Product Details

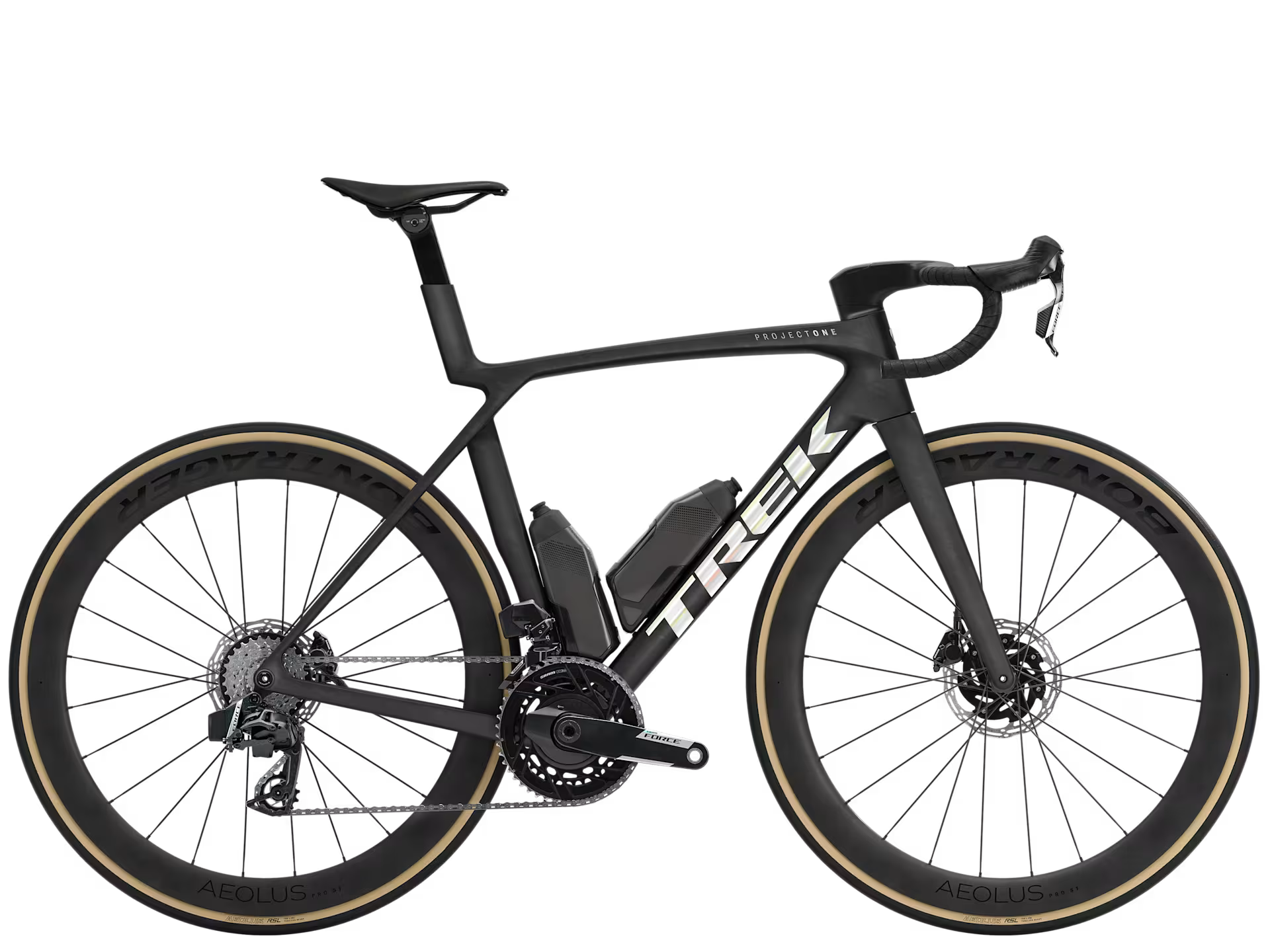

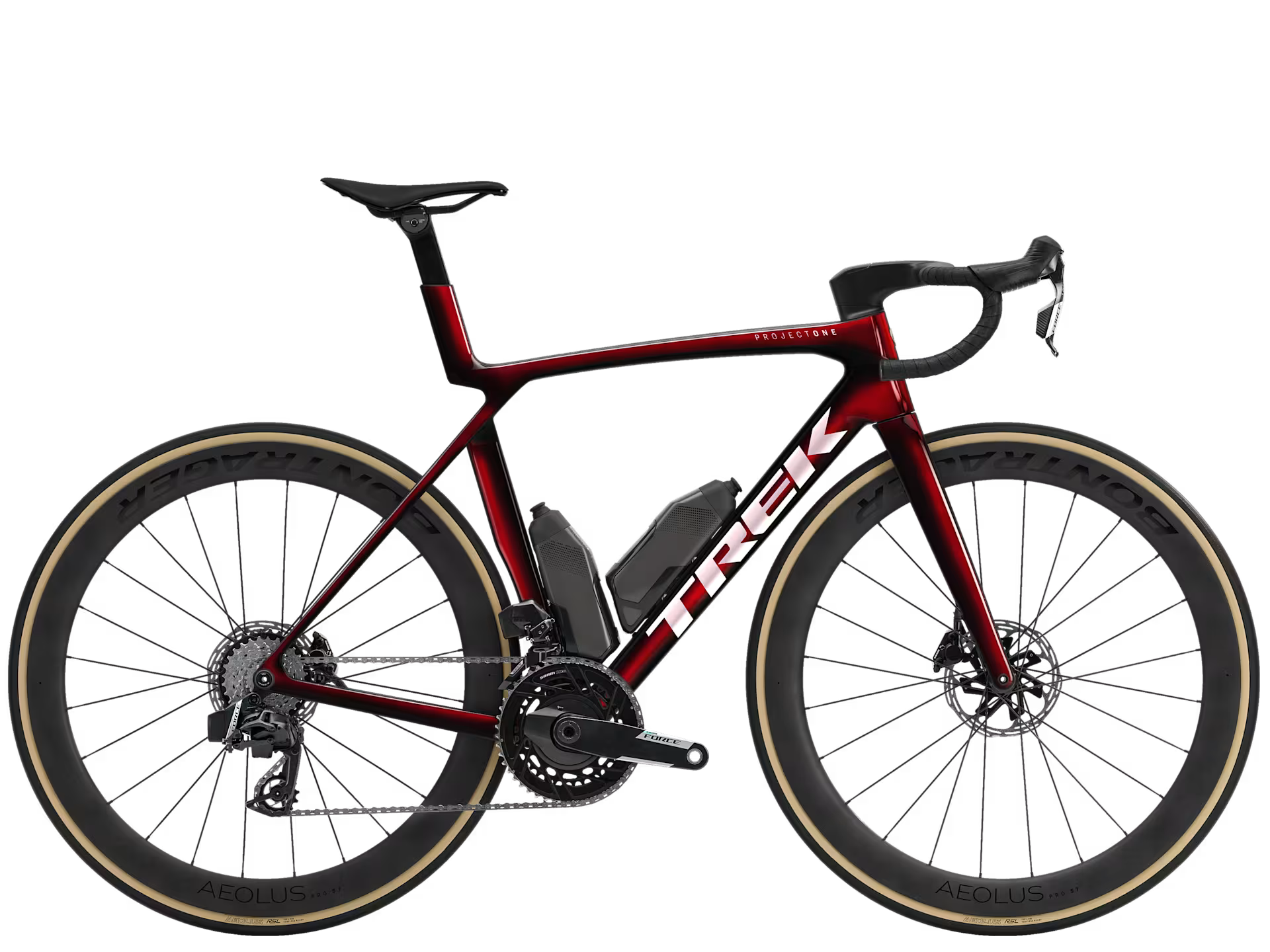

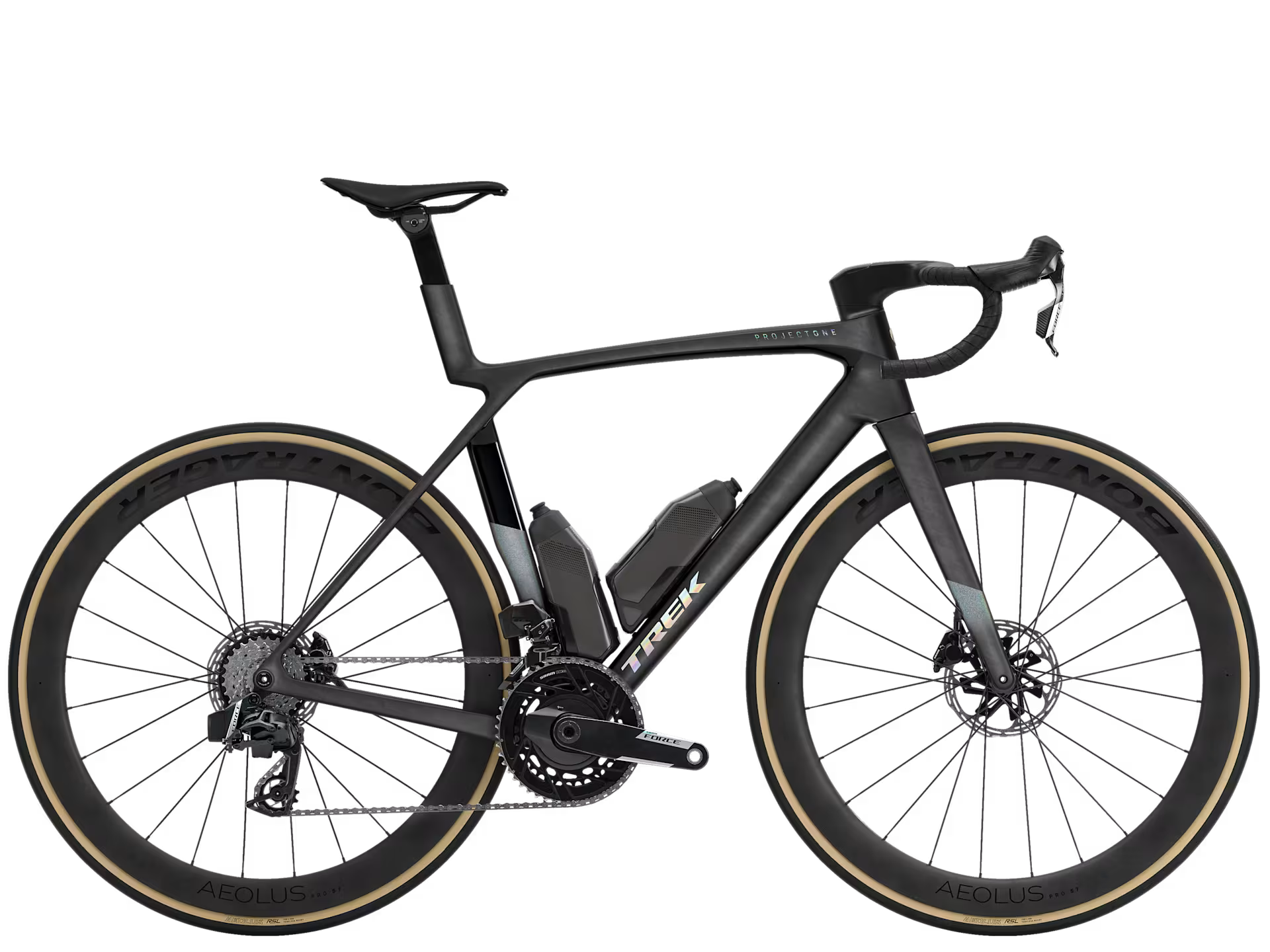

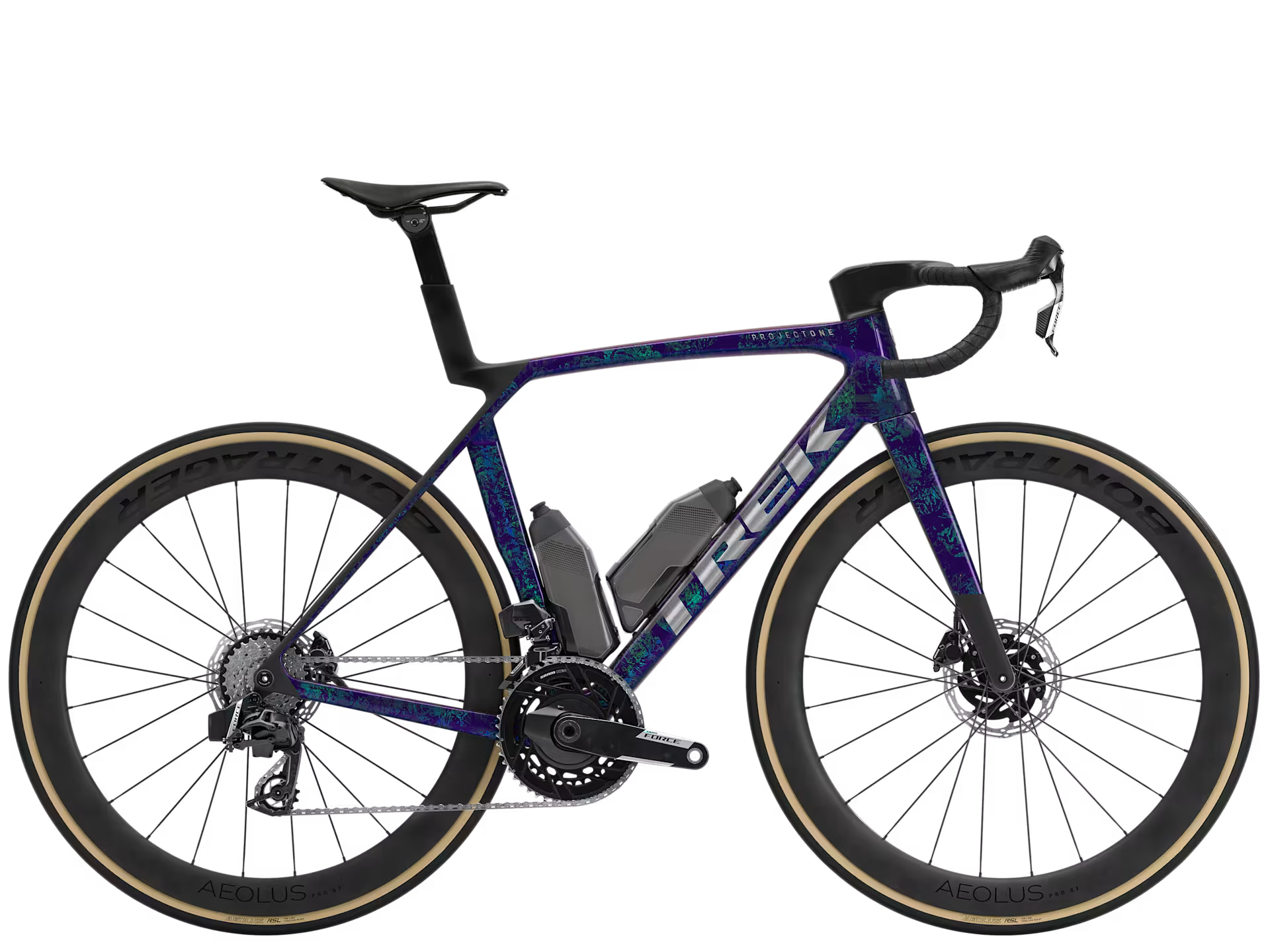

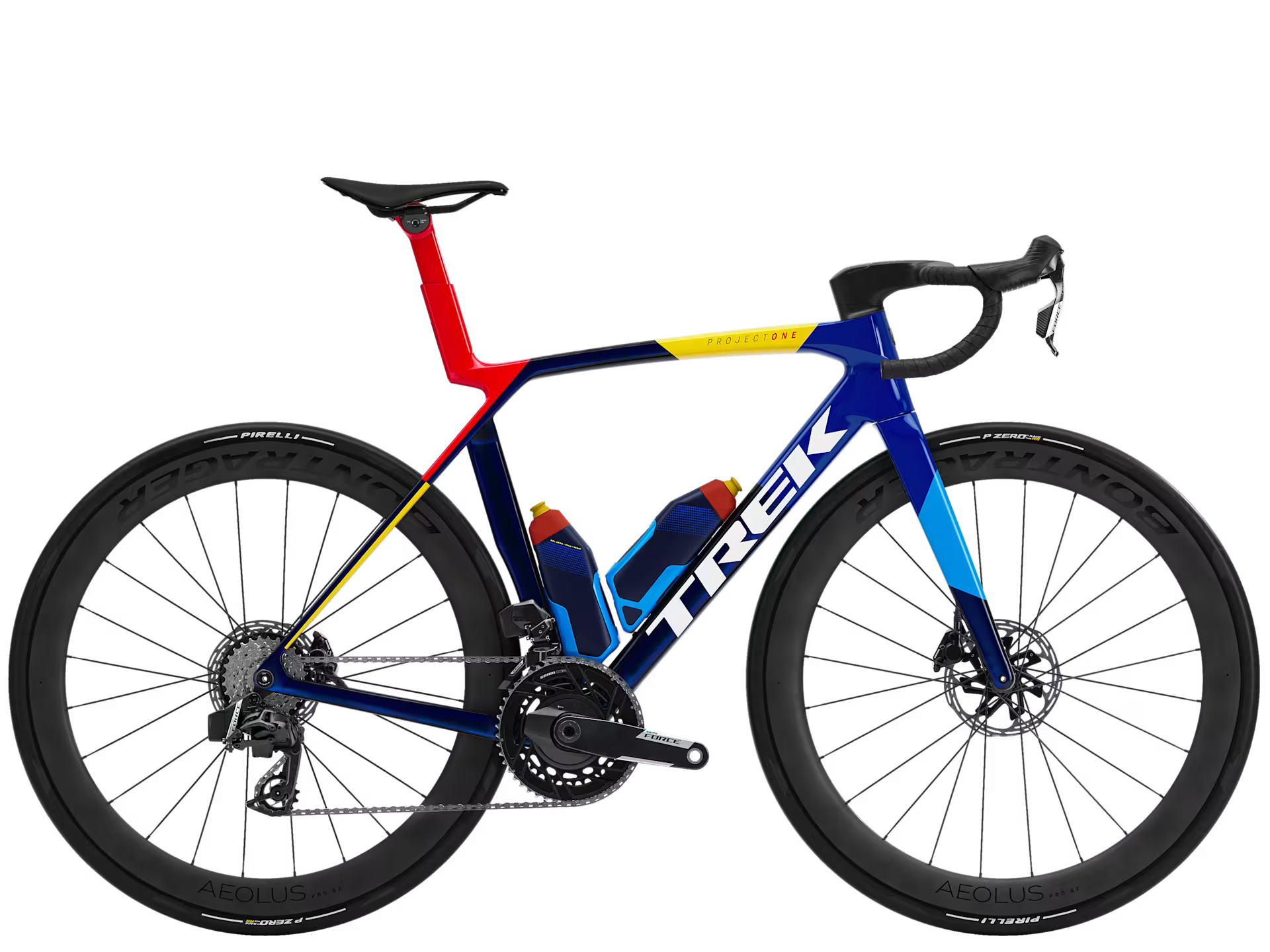

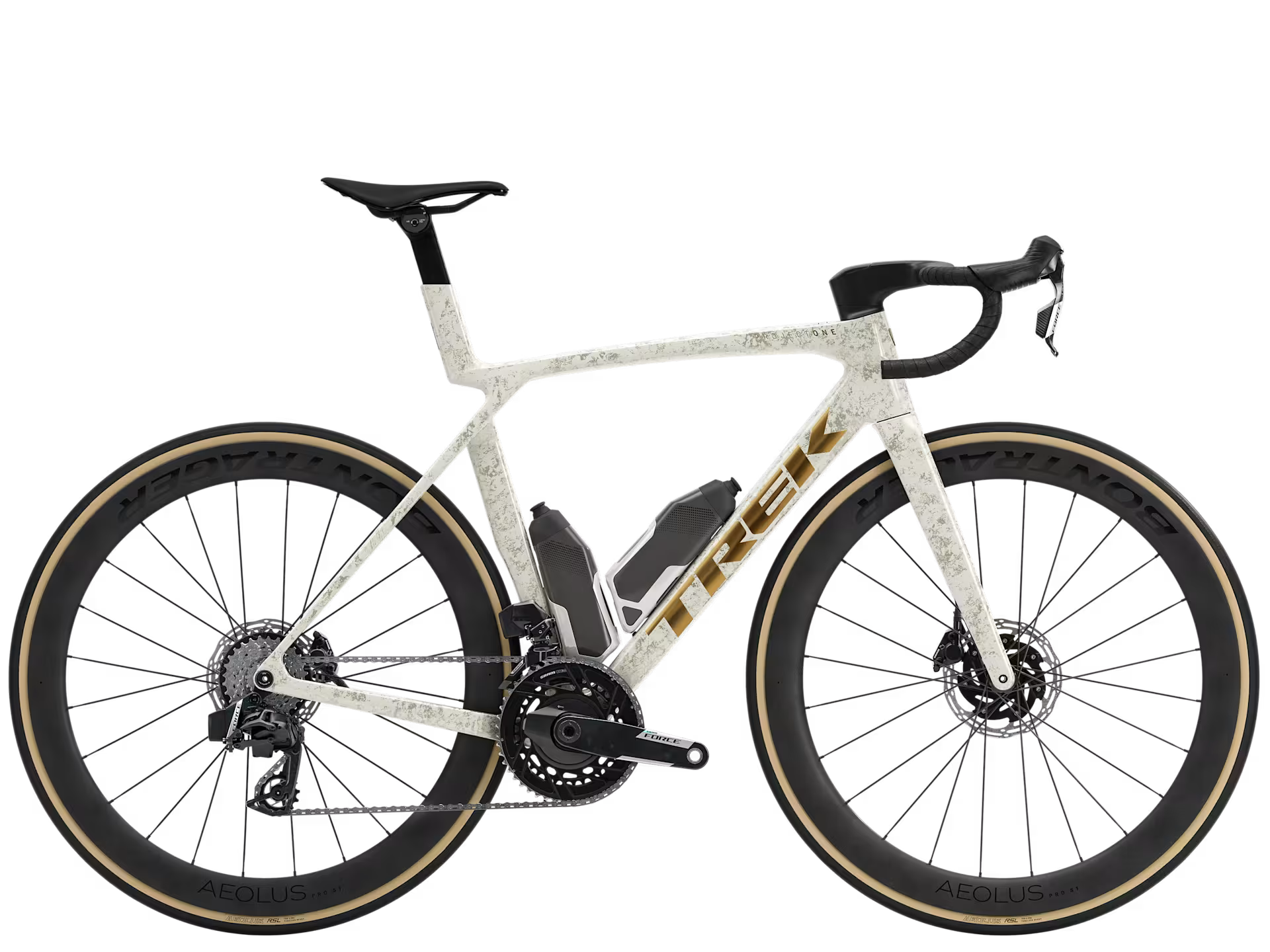

The Madone SLR 7 AXS Gen 8 is an aero, featherlight road bike that's built to race. Its 900 Series OCLV Carbon frame keeps the weight way down while delivering aerodynamic gains and IsoFlow technology means you don't have to sacrifice comfort for speed. It comes race-ready, with a wireless 2x12 SRAM Force AXS E1 group set with power meter cranks, Bontrager Aeolus Pro 51 carbon wheels, a Trek Aero RSL one-piece bar/stem and RSL Aero Bottles and Cages that further reduce drag.

*Please note – spec applies to all sizes unless listed separately

Fork: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle

Weight: ML - 7.22 kg / 15.92 lbs (with TLR sealant, no tubes, no bottles/cages)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery: SRAM AXS battery pack (with charger)

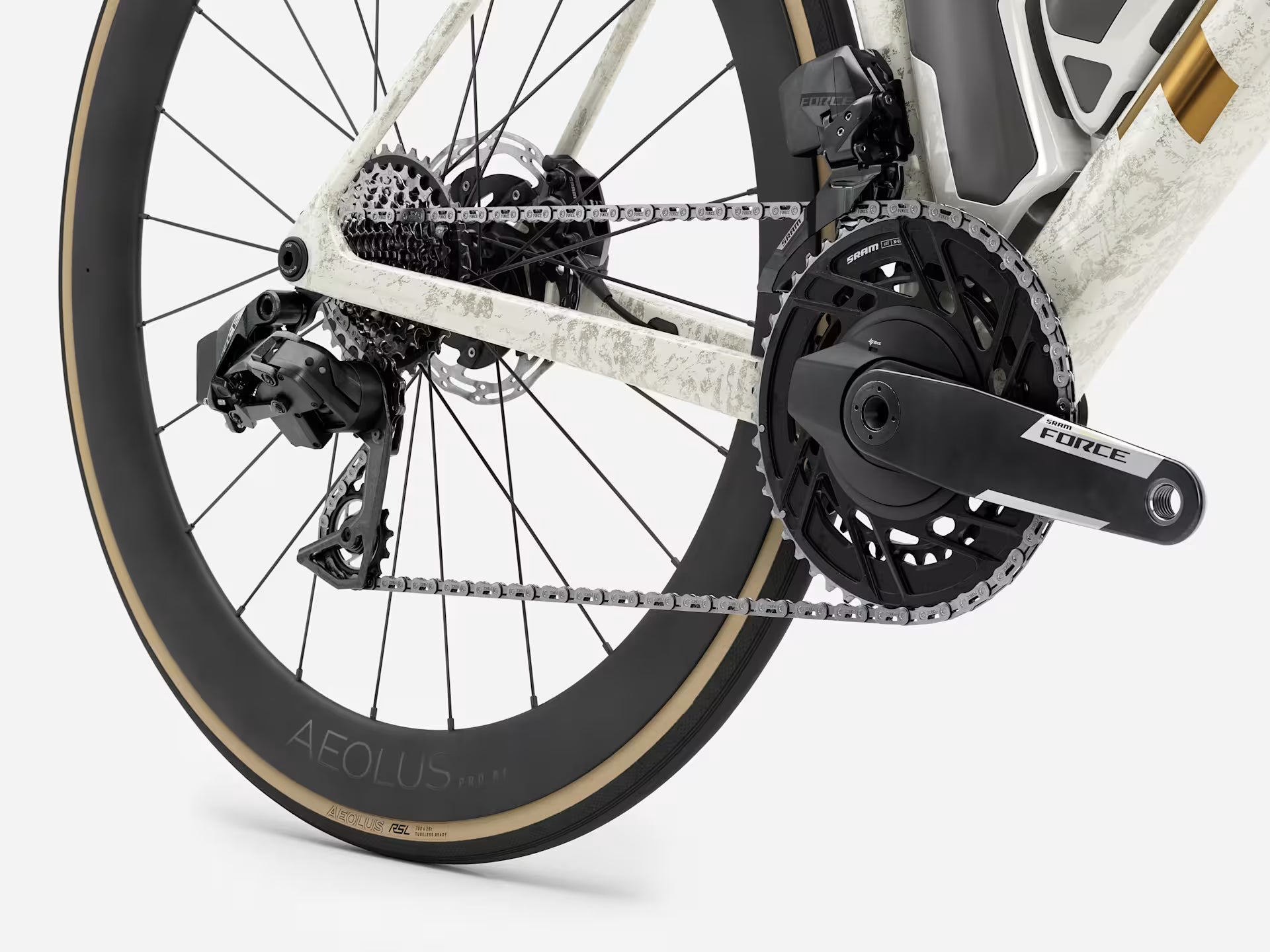

Shifter: SRAM Force AXS E1
Front derailleur: SRAM Force AXS, braze-on
Rear derailleur: SRAM Force AXS, 36T max cog
*Crank: Size: XS, S

SRAM Force AXS with power meter, 48/35, DUB, 165 mm length

Size: M, ML

SRAM Force AXS with power meter, 48/35, DUB, 170 mm length

Size: L, XL

SRAM Force AXS with power meter, 48/35, DUB, 172.5 mm length
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM Force XG-1270, 10-33, 12-speed
Chain: SRAM Force E1, 12/13-speed
Max. chainring size: 1x: 54T, 2x: 56/43

Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
*Tyre: Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm

Size: XS, S, M, ML, L, XL

Pirelli P Zero Race TLR RS, 120 tpi, tubeless-compatible, 700x28 mm
Tube: Pirelli P Zero SmarTube, TPU
Max tyre size: 32 mm (as measured, see manual for details)

Saddle: Bontrager Aeolus Pro, carbon rails, 145 mm width
Seatpost: Madone aero carbon seat post, 0 mm offset, short length

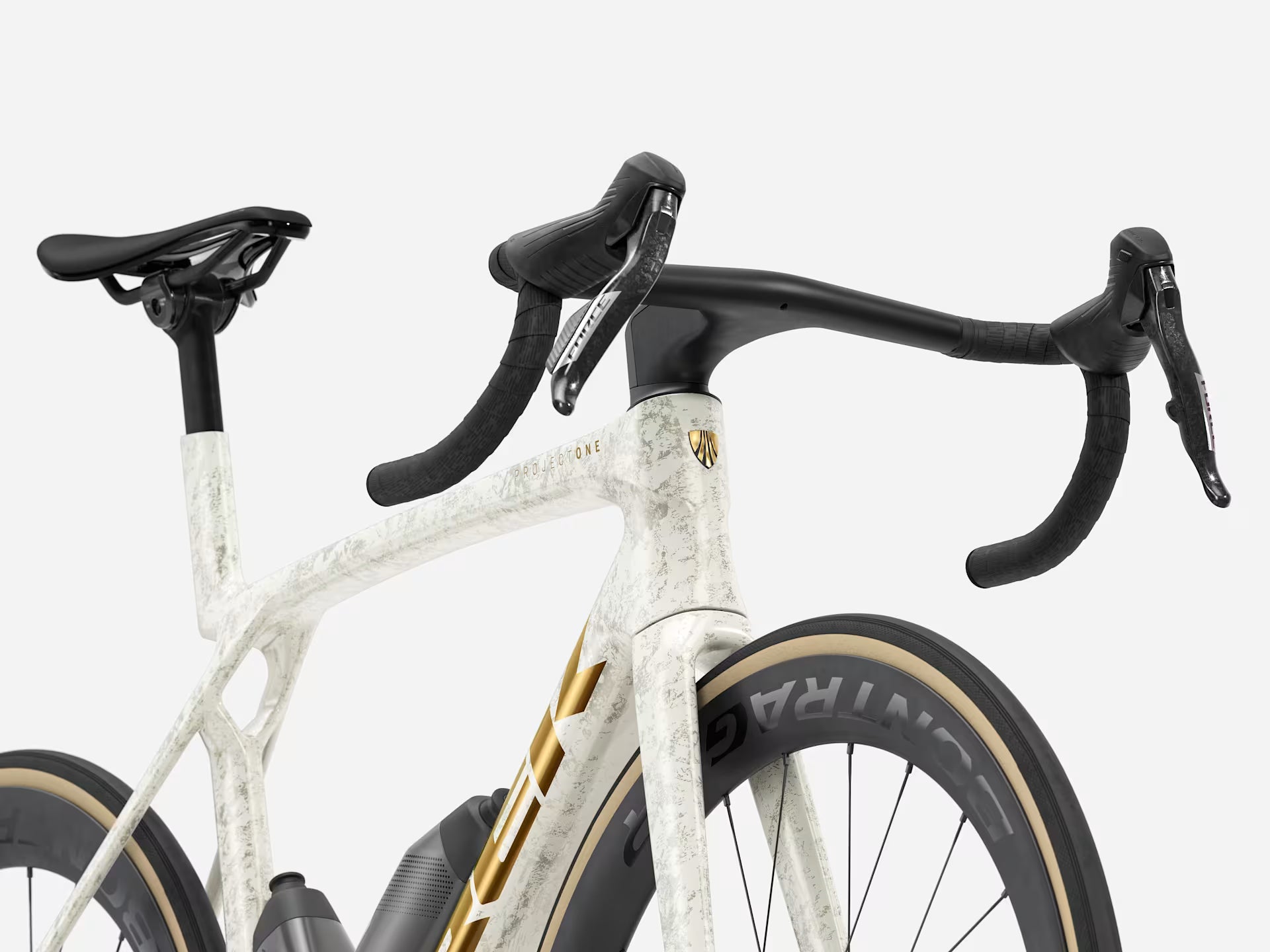

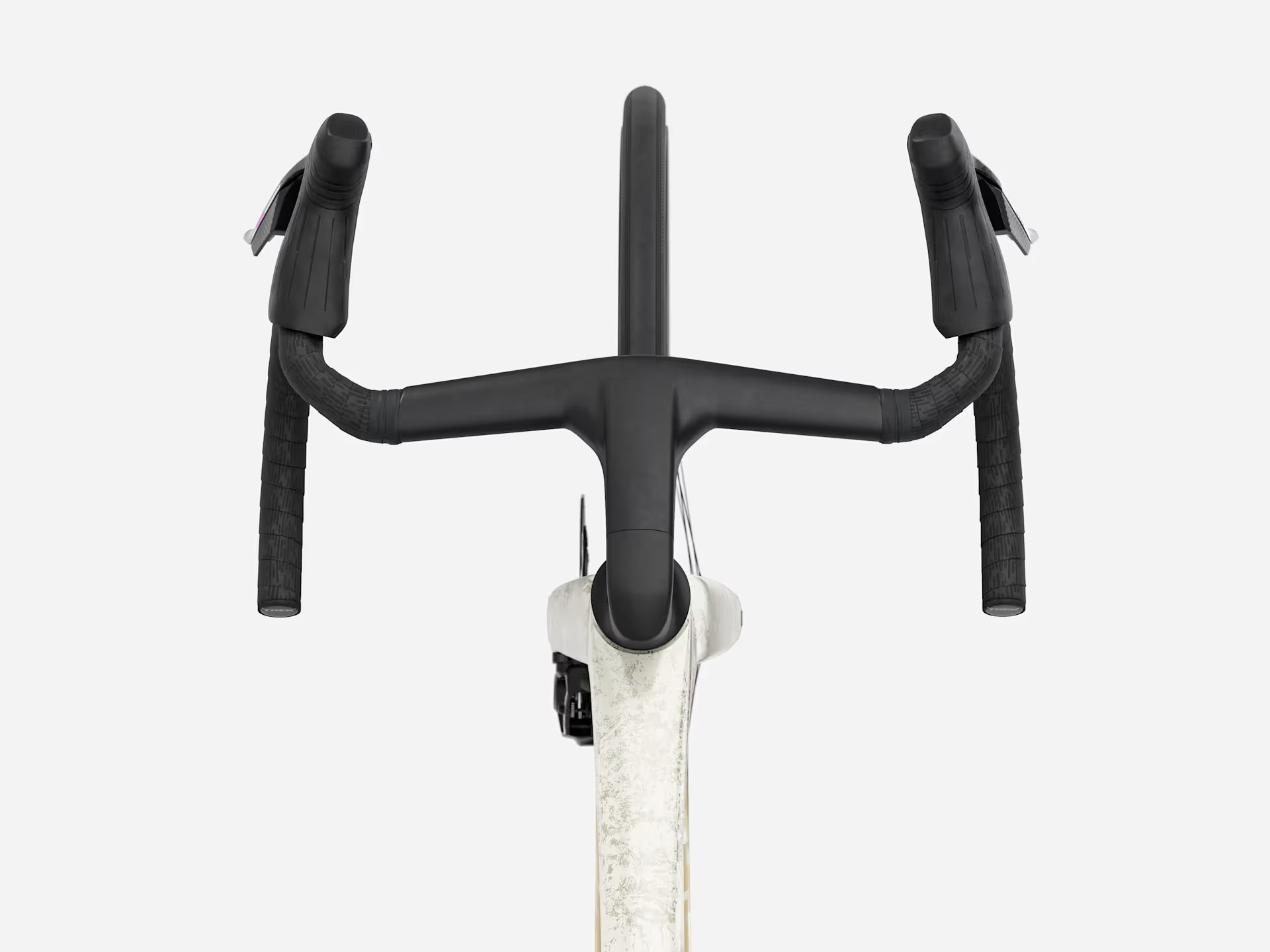

*Handlebar/stem (integrated)Skip to content: Size:This site has limited support for your browser. We recommend switching to Edge, Chrome, Safari, or Firefox. XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Close
Size: HomeS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length Hire

Size:Bikes MSee More
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length

Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
