Product Details

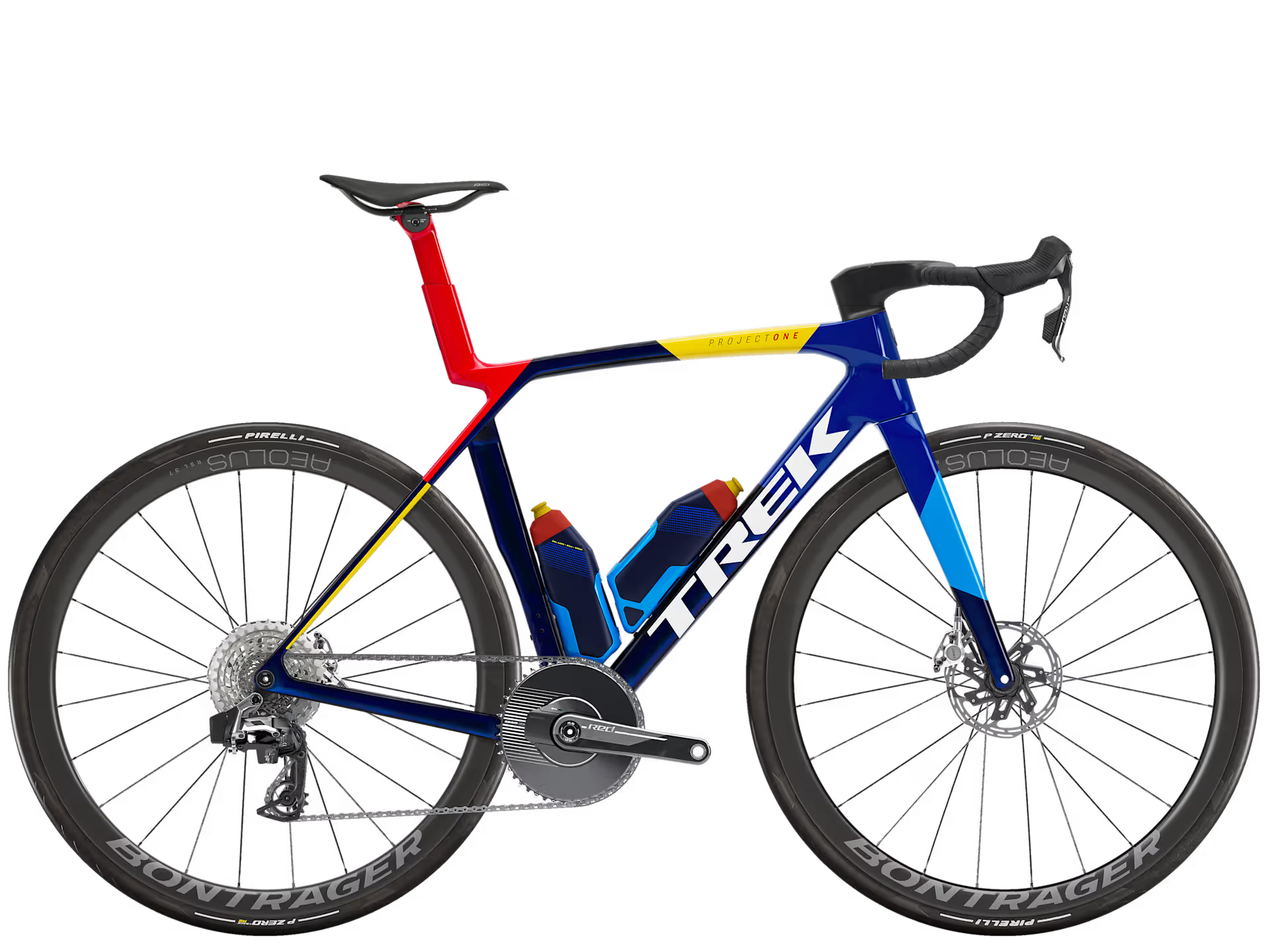

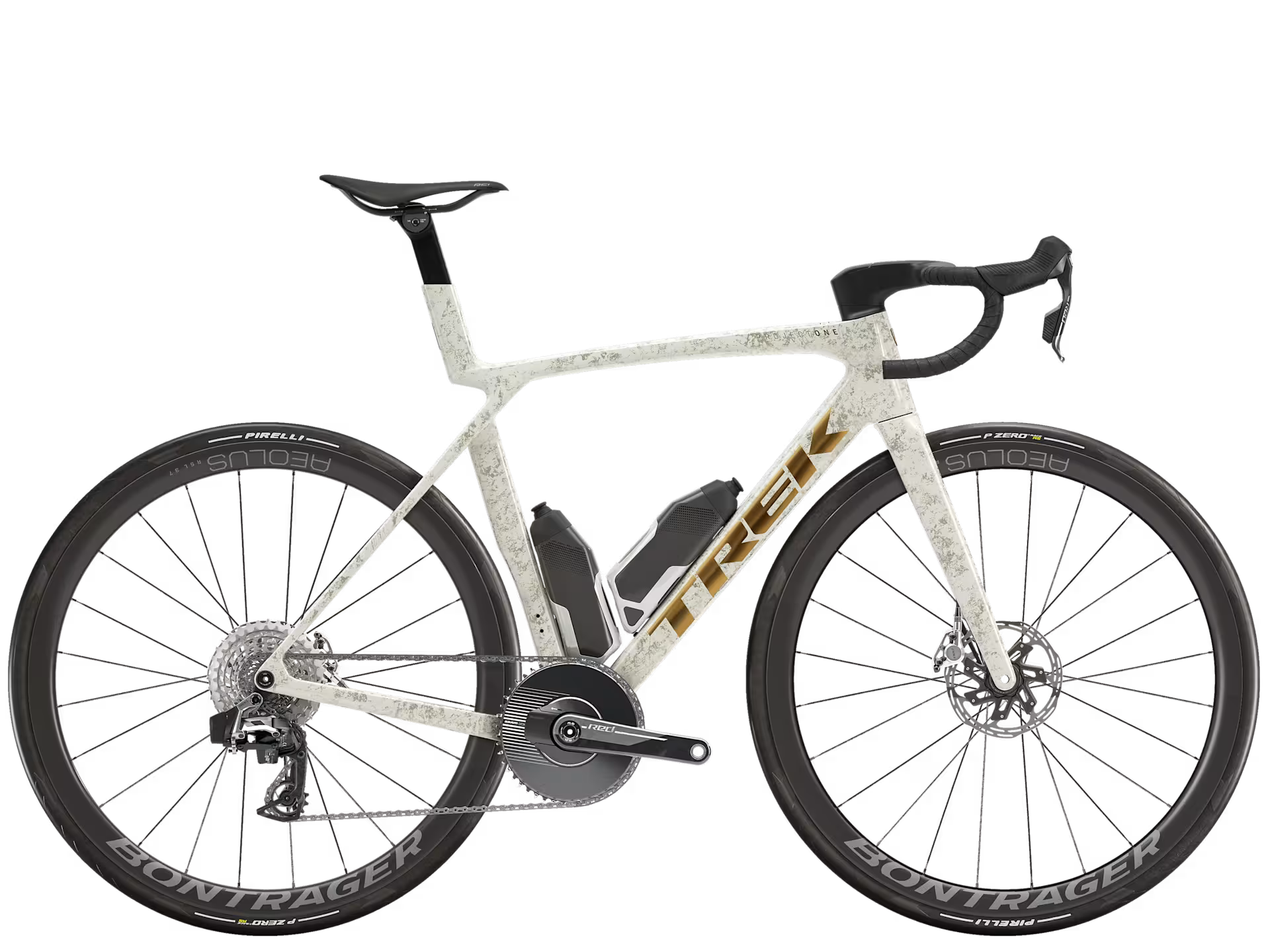

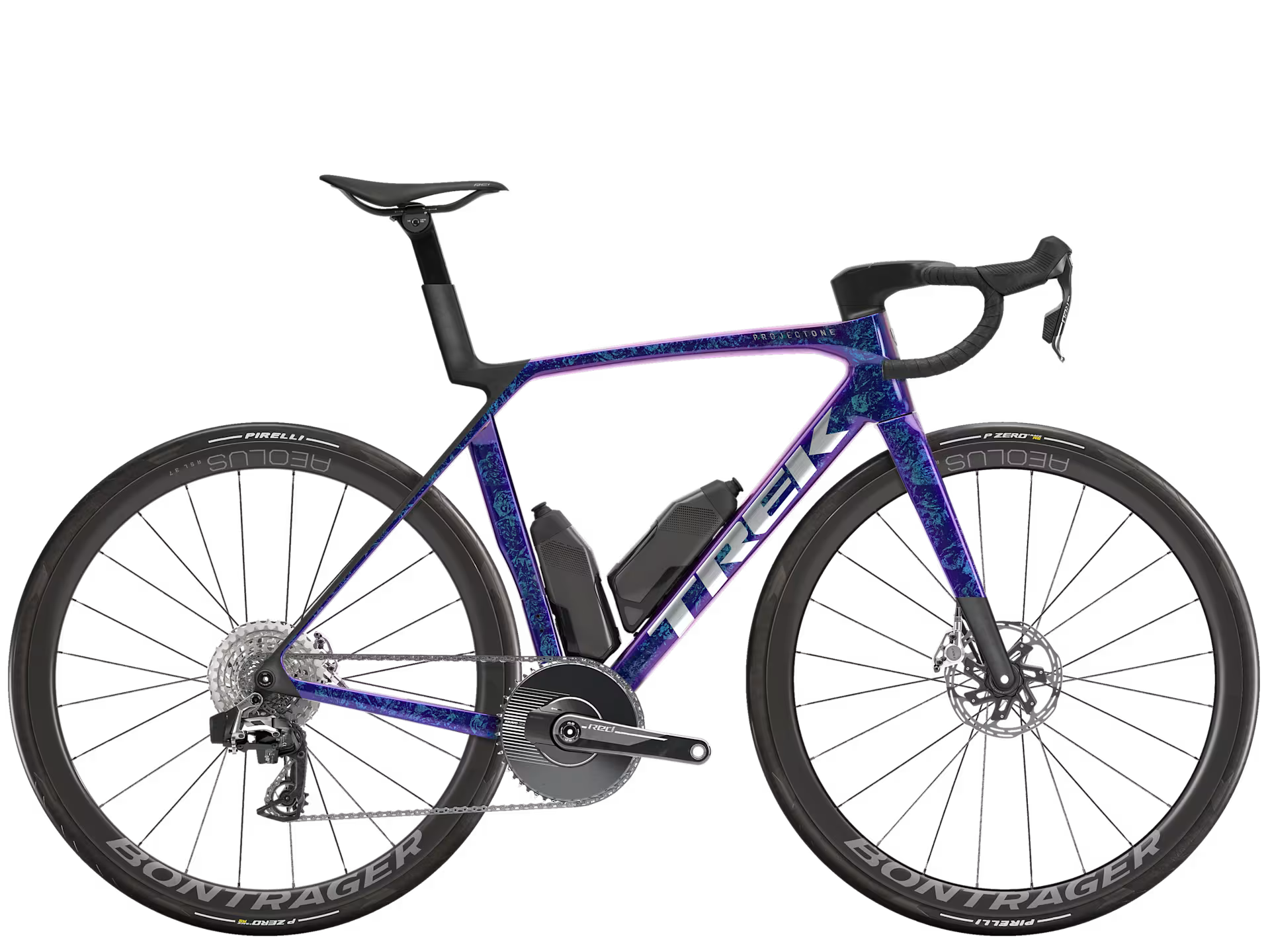

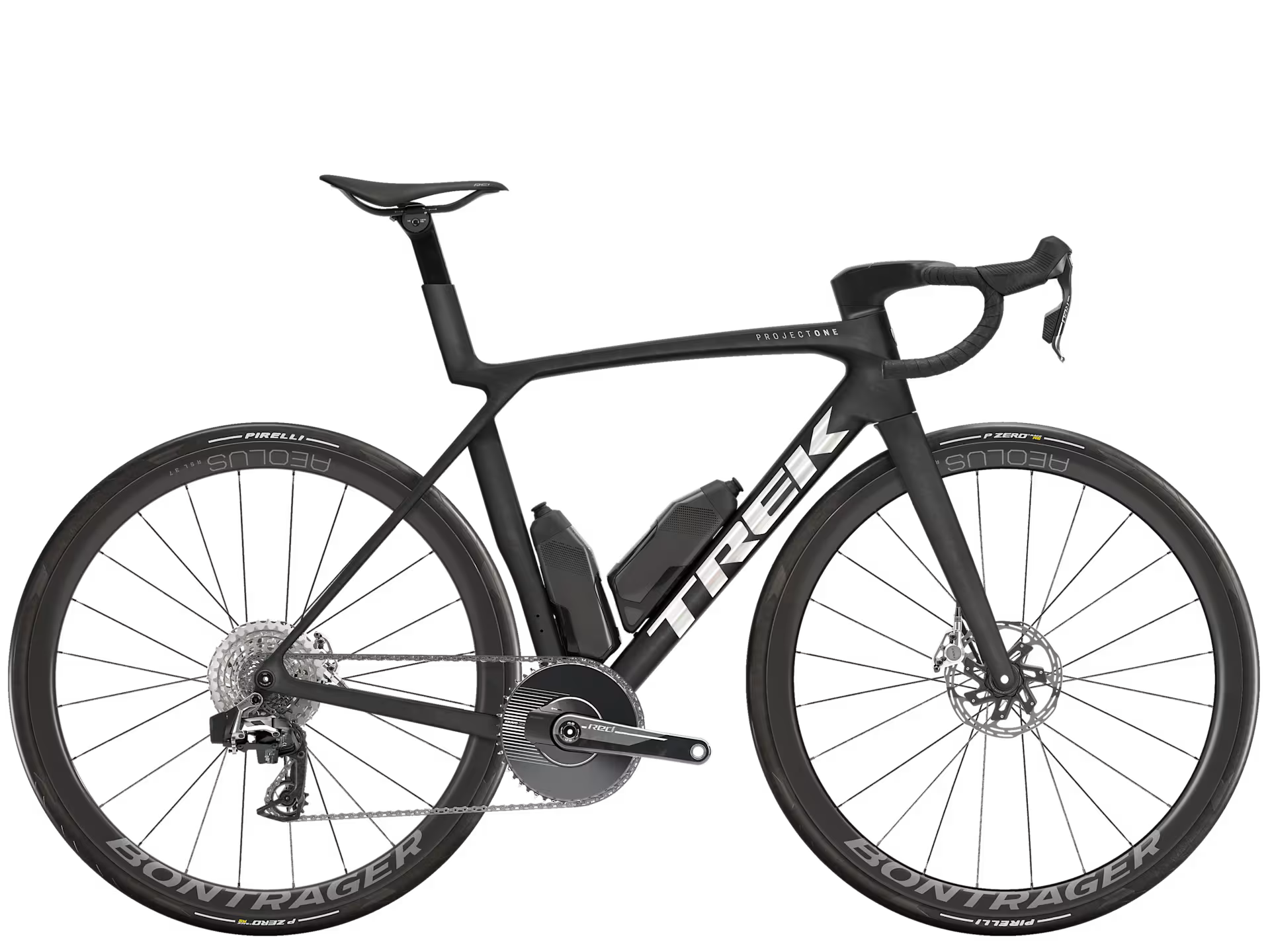

Madone SLR 9 AXS 1x Gen 8 is our lightest Madone disc ever. Weighing just 6.4 kg, it's 400 g lighter than the UCI minimum weight requirement while maintaining the aero efficiency Madone is known for. Fly up climbs and across flats with ultralight build details like a SRAM RED 1x12 drivetrain, feathery Aeolus RSL 37 wheels and an optional lightweight Matt Deep Smoke colourway.

*Please note – spec applies to all sizes unless listed separately

Fork: Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle

Weight: ML - 6.40 kg/14.11 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery: SRAM AXS battery pack (with charger)

Shifter: SRAM RED AXS E1
Rear derailleur: SRAM RED AXS E1, 36T max cog
*Crank: Size: XS, S

SRAM RED E1, power meter, 48T, DUB, 165 mm length

Size: M, ML

SRAM RED E1, power meter, 48T, DUB, 170 mm length

Size: L, XL

SRAM RED E1, power meter, 48T, DUB, 172.5 mm length
Bottom bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM RED XG-1290 E1, 10-36, 12-speed
Chain: SRAM RED E1, 12-speed

Wheel front: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12 mm thru axle
Wheel rear: Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12 mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Tyre: Pirelli P Zero Race RS, 120 tpi, 700x28 mm
Tube: Pirelli P Zero SmarTube, TPU

Saddle: Aeolus RSL, carbon rails, 145 mm width
Seatpost: Madone aero carbon seat post, 0 mm offset, short length
*Handlebar/stem (integrated): Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length

Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length

Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length

Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length

Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
Handlebar tape: Trek gel cork
Brake: SRAM Red AXS E1 hydraulic disc, flat mount
Brake rotor: SRAM Paceline X, rounded, CentreLock, 160 mm

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
