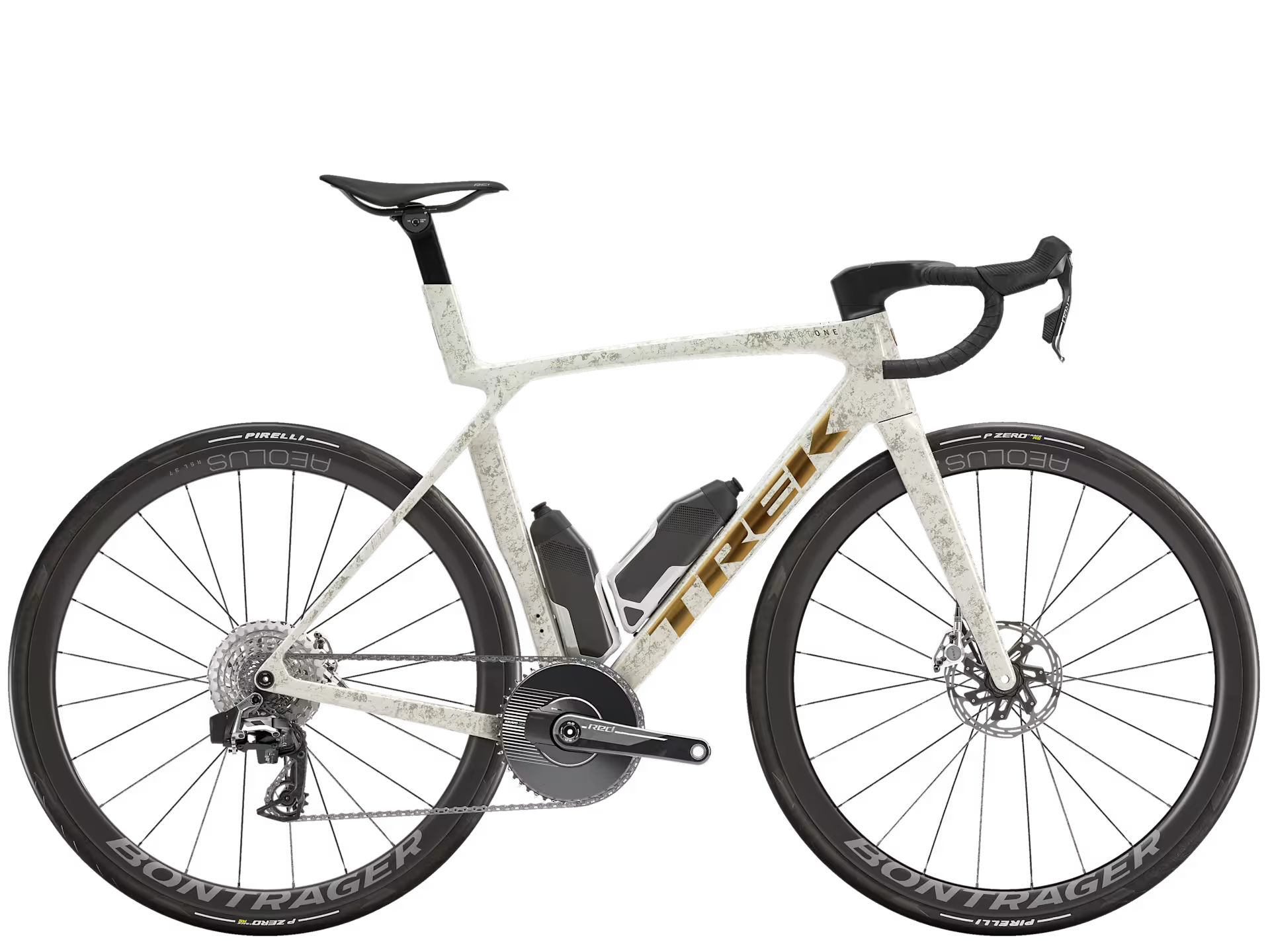

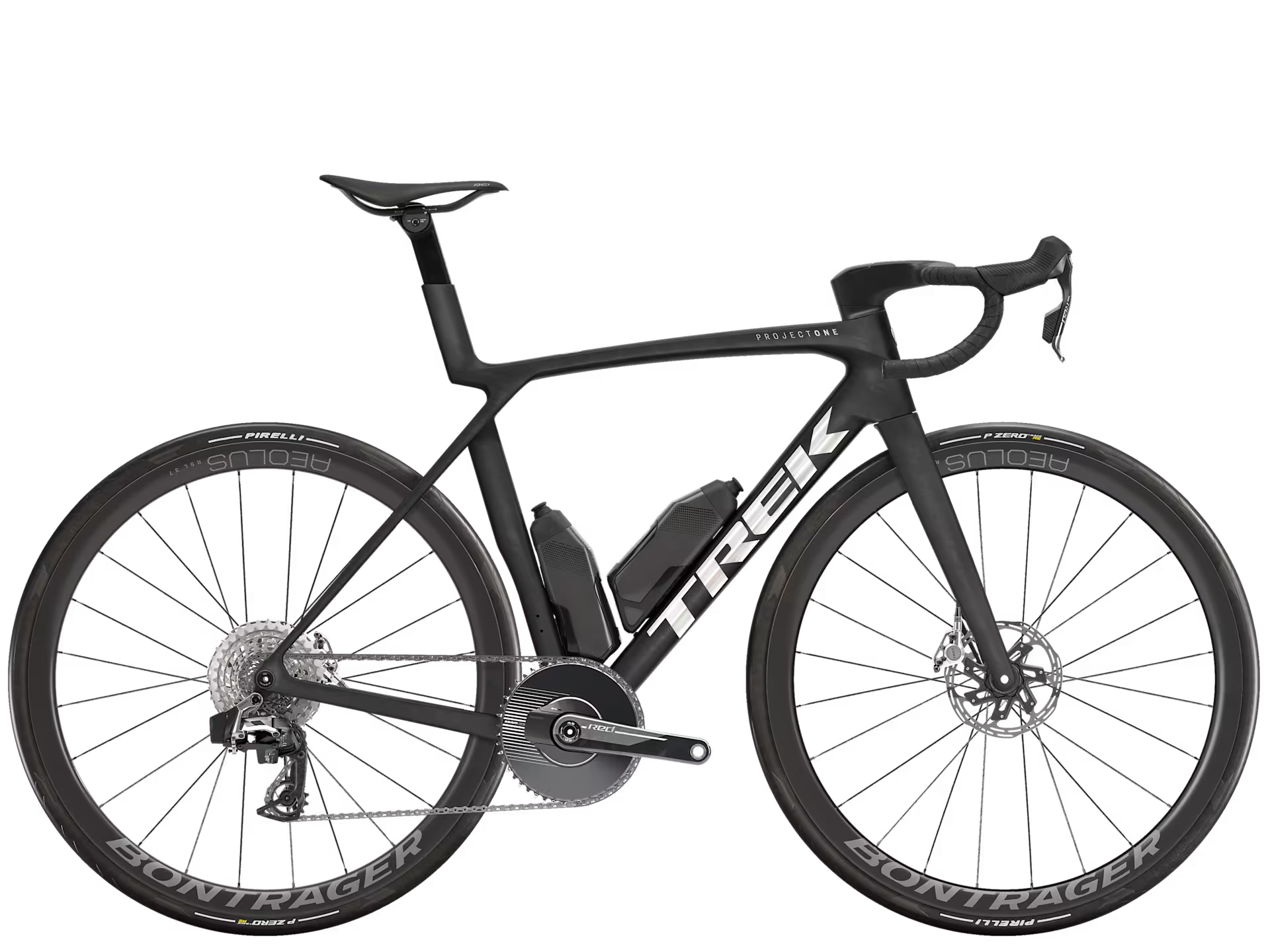

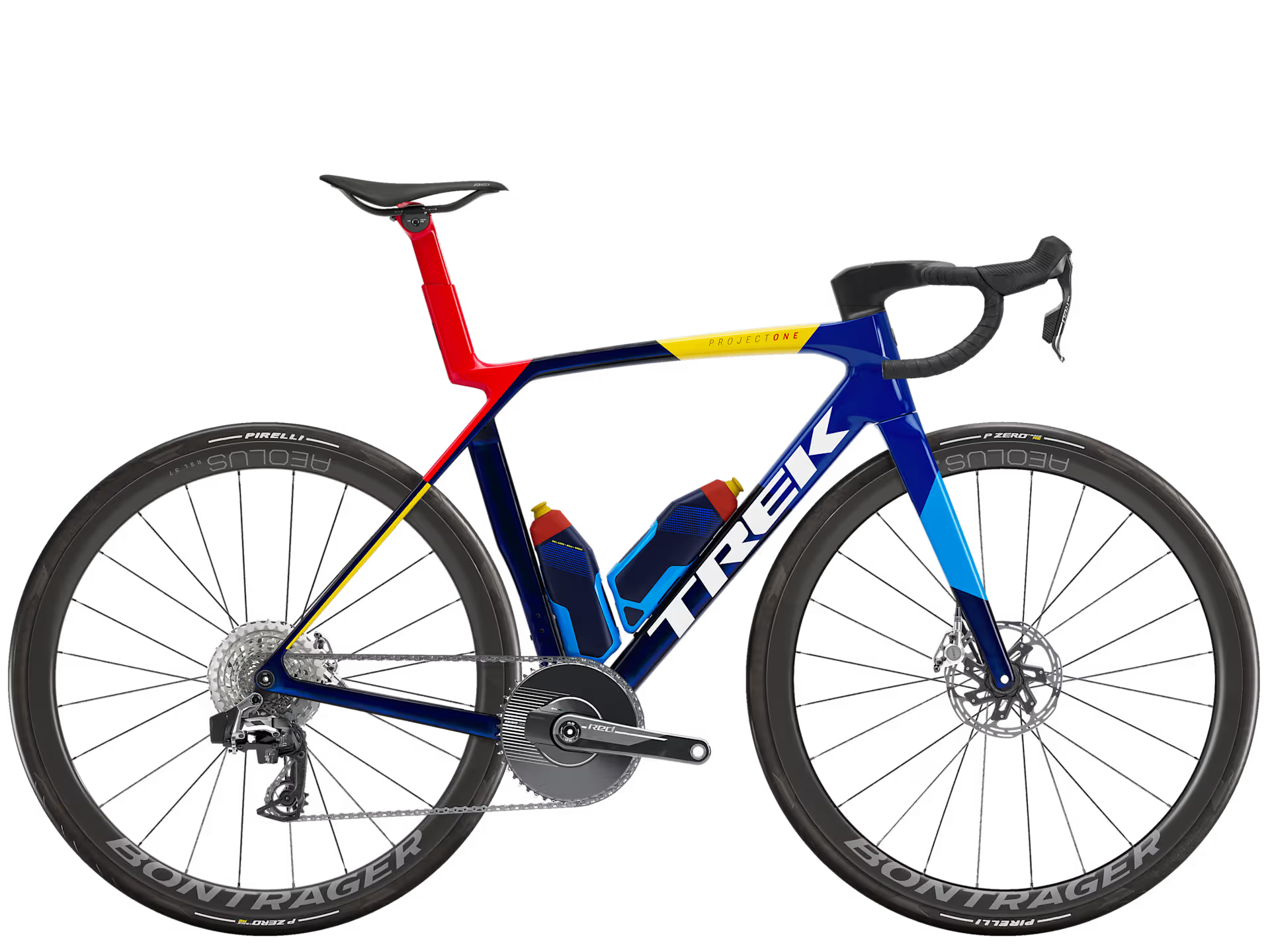

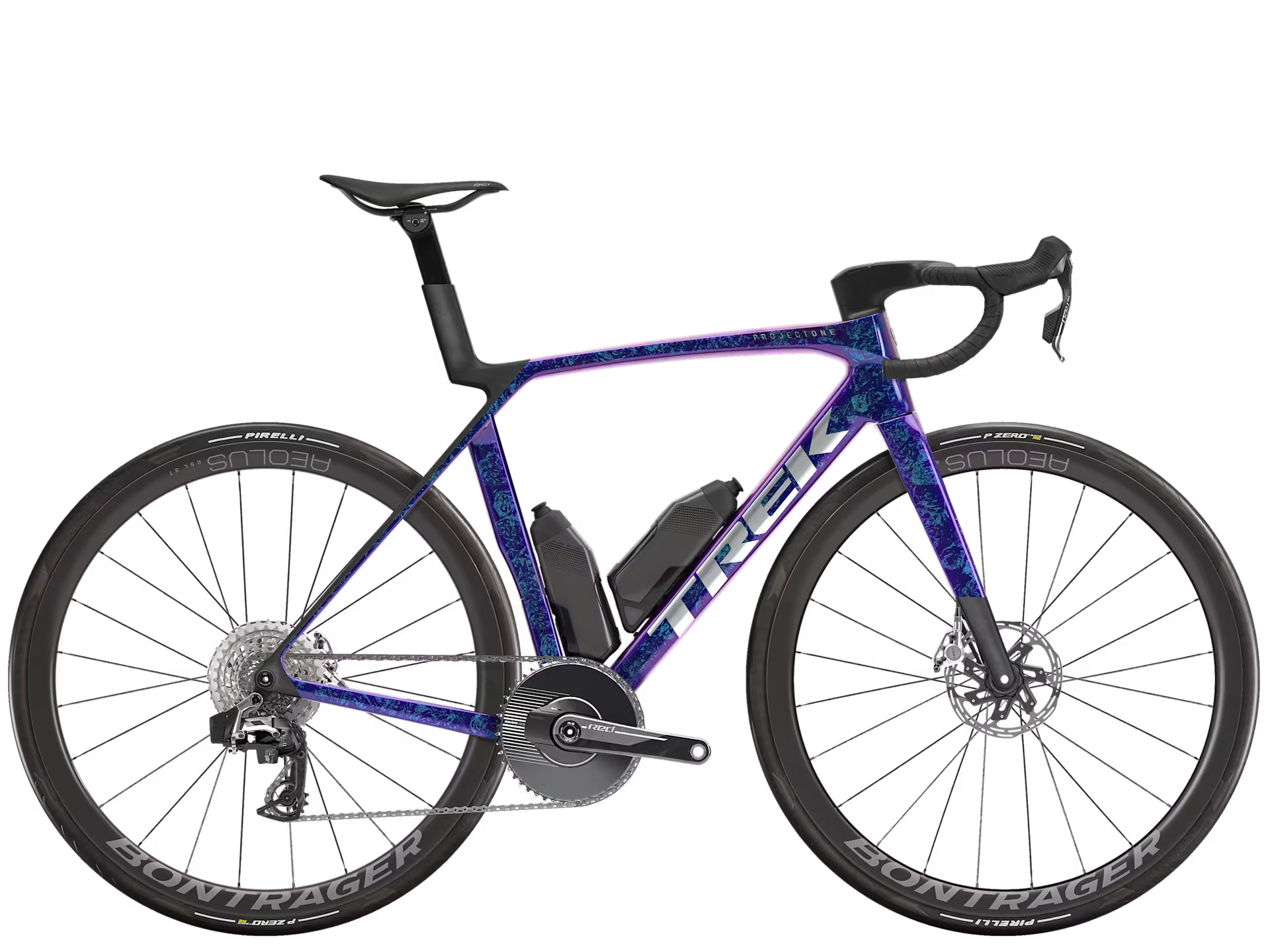

Trek Madone SLR 9 AXS 1x Gen 8

£10,000.00



SKU: 5344444

Product Details

Madone SLR 9 AXS 1x Gen 8 is our lightest Madone disc ever. Weighing just 6.4 kg, it's 400 g lighter than the UCI minimum weight requirement while maintaining the aero efficiency Madone is known for. Fly up climbs and across flats with ultralight build details like a SRAM RED 1x12 drivetrain, feathery Aeolus RSL 37 wheels and an optional lightweight Matt Deep Smoke colourway.



*Please note – spec applies to all sizes unless listed separately

Fork
Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle

Weight
ML - 6.40 kg/14.11 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery
SRAM AXS battery pack (with charger)

Shifter
SRAM RED AXS E1
Rear derailleur
SRAM RED AXS E1, 36T max cog
*Crank
Size: XS, S
SRAM RED E1, power meter, 48T, DUB, 165 mm length
Size: M, ML
SRAM RED E1, power meter, 48T, DUB, 170 mm length
Size: L, XL
SRAM RED E1, power meter, 48T, DUB, 172.5 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM RED XG-1290 E1, 10-36, 12-speed
Chain
SRAM RED E1, 12-speed

Wheel front
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12 mm thru axle
Wheel rear
Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12 mm thru axle
Skewer front
Skewer rear
Tyre
Pirelli P Zero Race RS, 120 tpi, 700x28 mm
Tube

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
