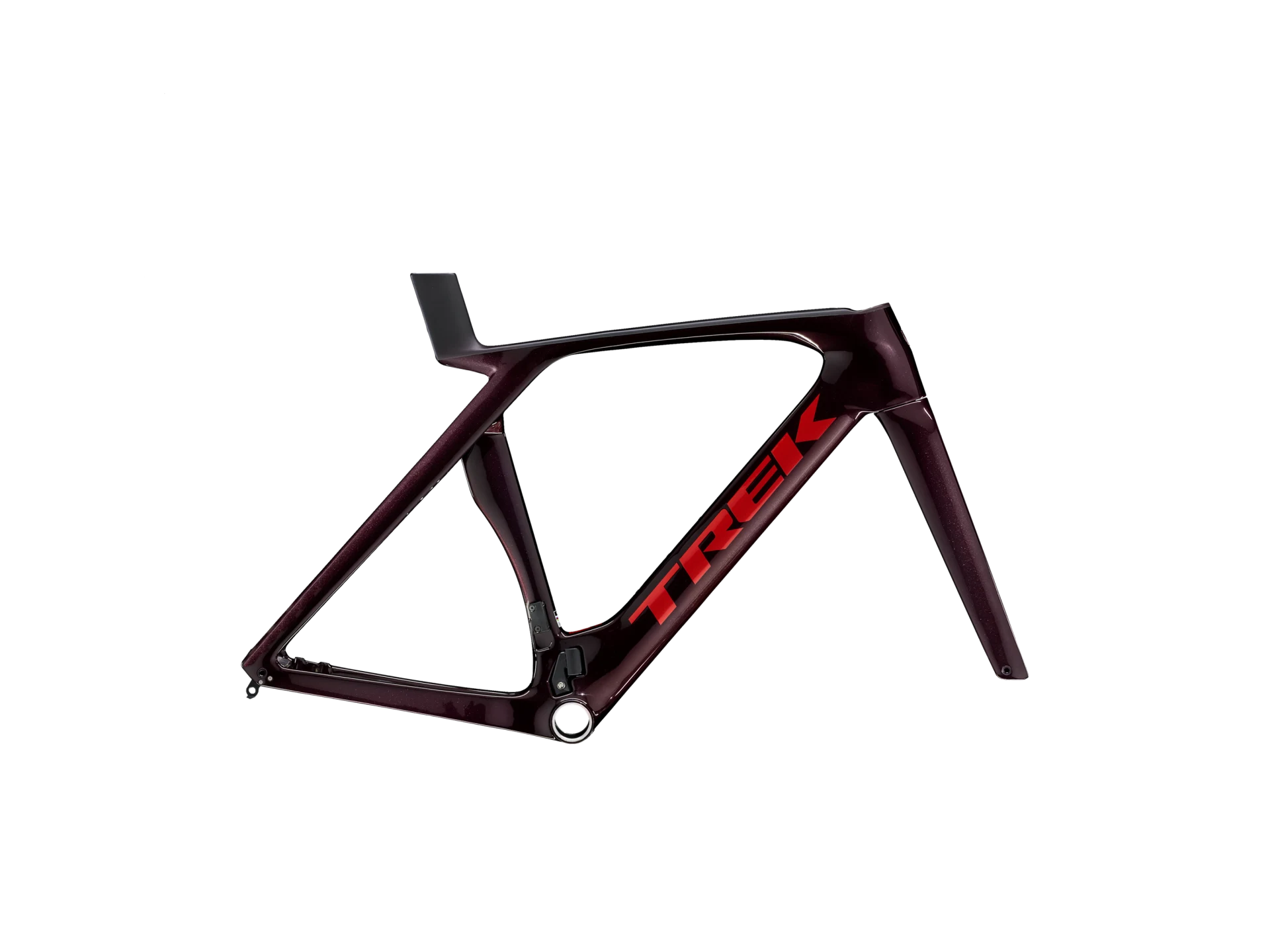

The Madone SL Disc Gen 7 Frame Set offers legendary speed, cutting-edge tech and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races. Plus, IsoFlow technology smooths out the bumps in the road and lessens the weight while offering an aerodynamic advantage over your competition.

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame    500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, 142x12 mm thru axle
Fork    Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100 mm thru axle

Weight
Weight    1200g – 56 cm (frame-only, painted)
476g (fork-only, painted)
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Wheels
Skewer front    Bontrager Switch thru-axle, removable lever
Skewer rear    Bontrager Switch thru-axle, removable lever
Max tyre size    32mm (as measured, see manual for details)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
