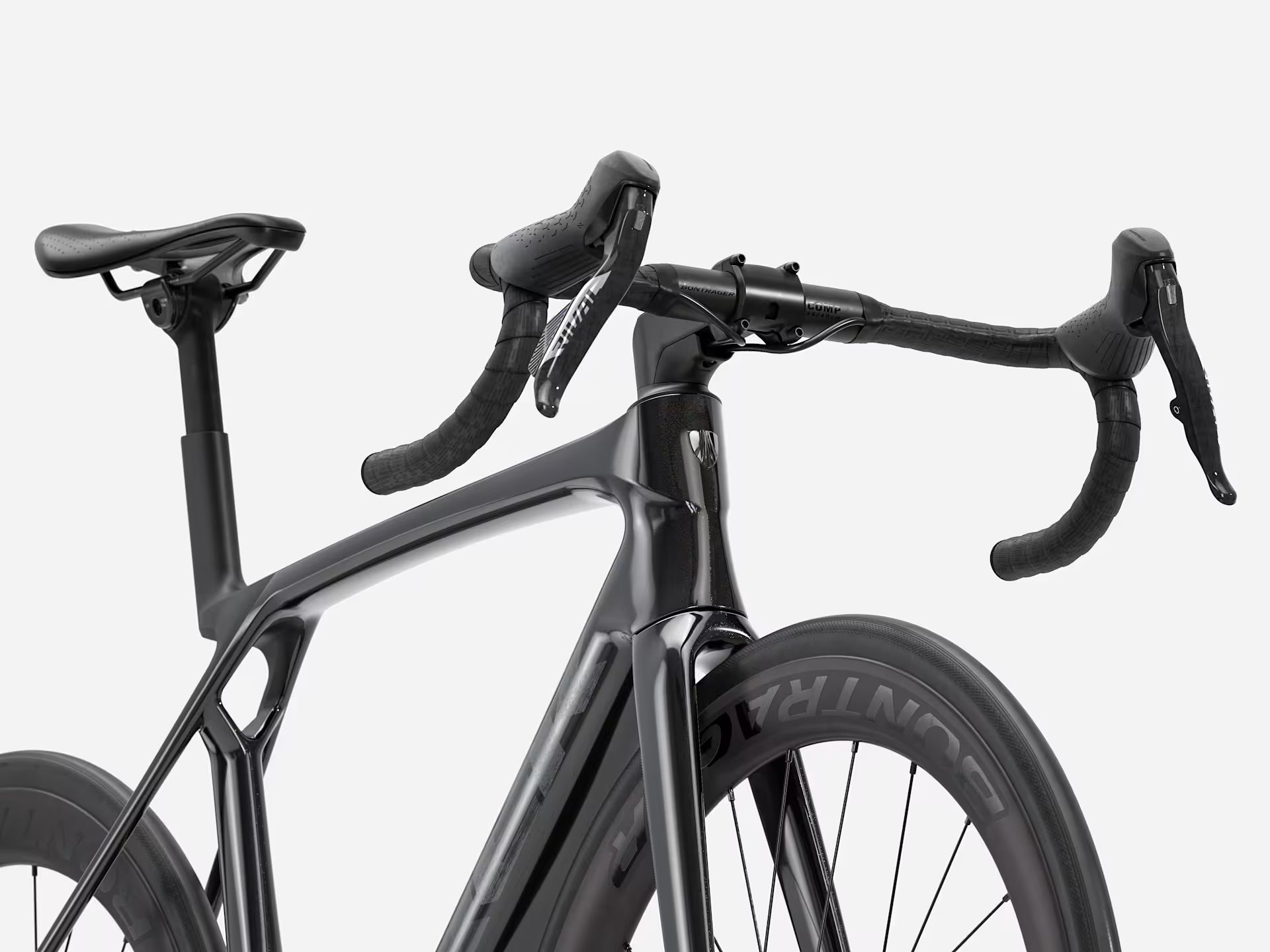

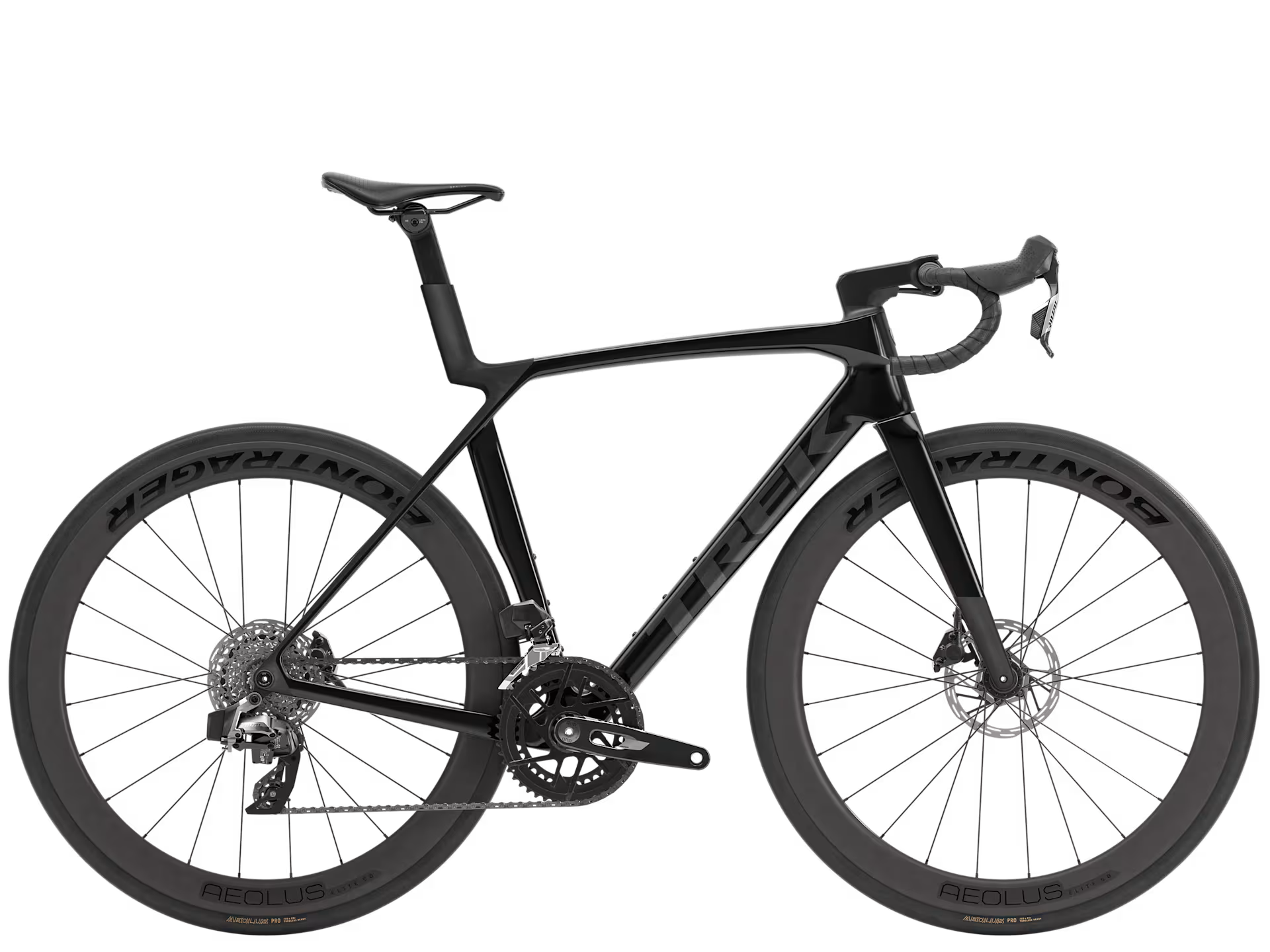

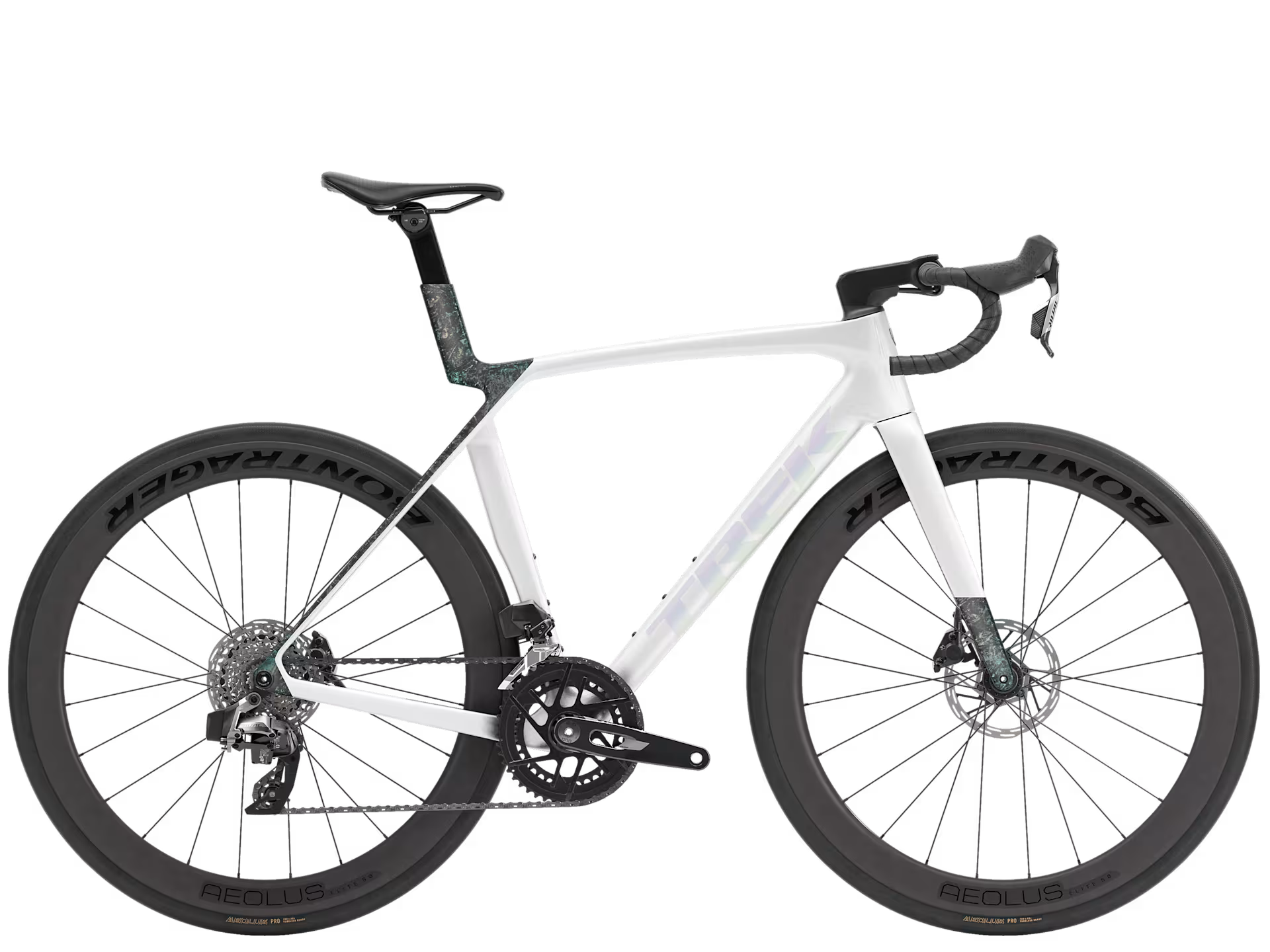

Trek Madone SL 6 AXS Gen 8
Trek Madone SL 6 AXS Gen 8
Trek Madone SL 6 AXS Gen 8
Trek Madone SL 6 AXS Gen 8
Trek Madone SL 6 AXS Gen 8

Trek Madone SL 6 AXS Gen 8

£4,000.00



SKU: 5338008

Product Details

The Madone SL 6 AXS Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point with a more economical OCLV 500 Carbon lay-up than its SLR sibling. A SRAM Rival AXS E1 electronic group set delivers lightning-fast electronic shifting and pairs with alloy handlebars to keep the price down. Plus, it's topped off with carbon wheels for extra lightweight performance.

*Please note – spec applies to all sizes unless listed separately

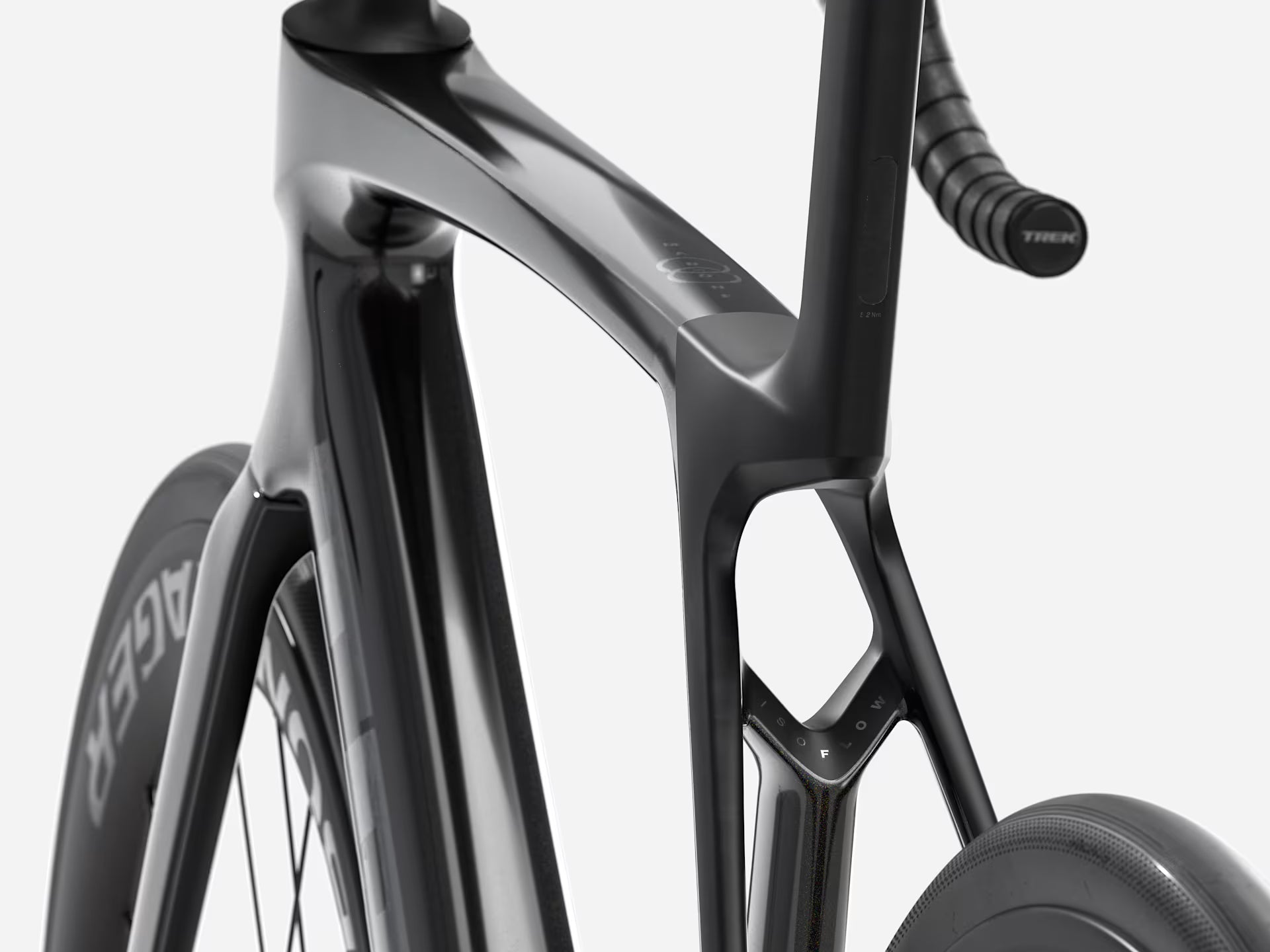

Frame
500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
*Fork
Size: XS, S, M, ML, L, XL
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
Size: XS, S, M, ML, L, XL
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight
ML - 8.11 kg / 17.88 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery
SRAM AXS battery pack (with charger)

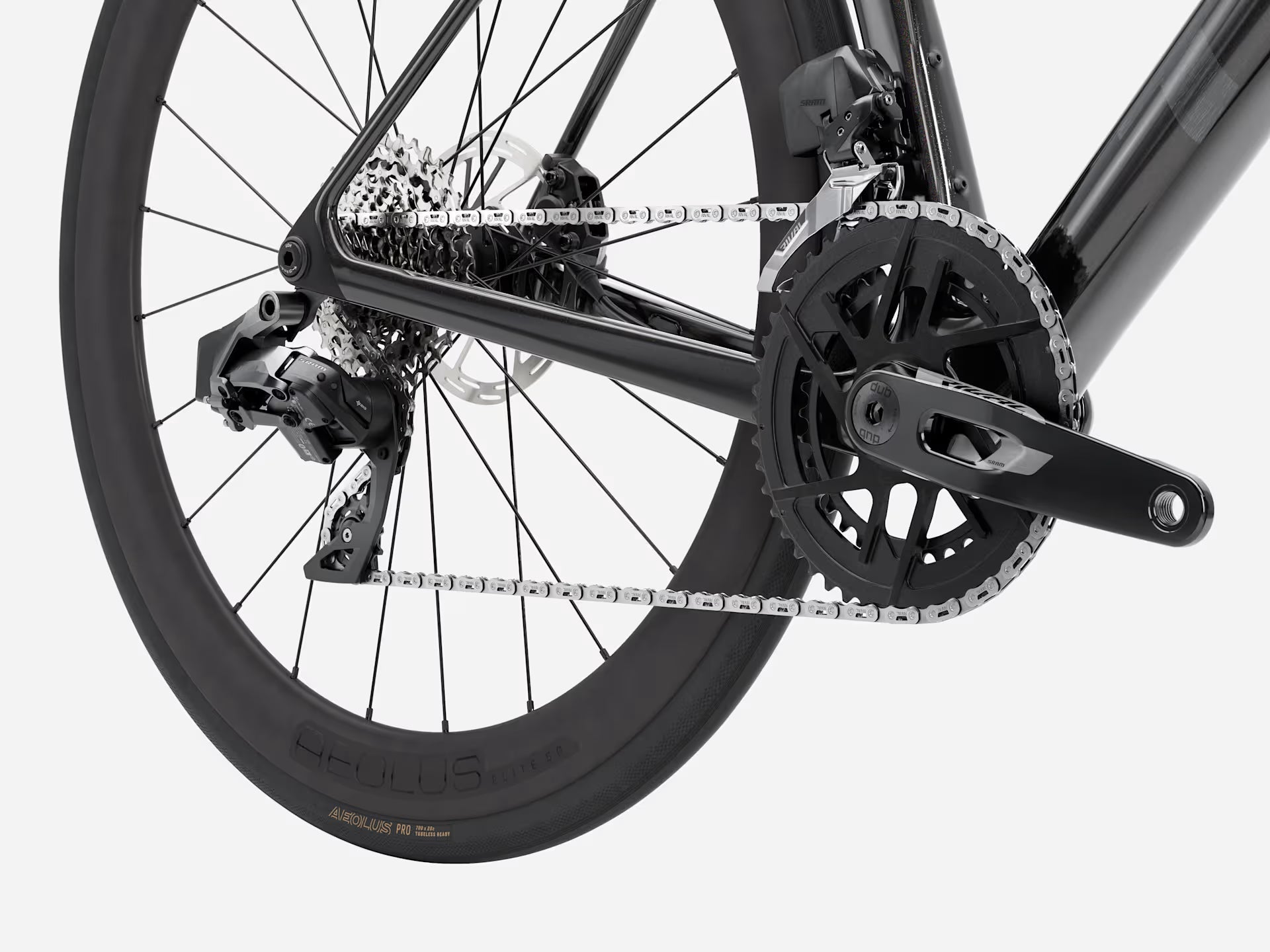

Front derailleur
SRAM Rival AXS, braze-on
Rear derailleur
SRAM Rival AXS, 36T max cog
*Crank
Size: XS, S
SRAM Rival AXS, 48/35, DUB, 165 mm length
Size: M, ML
SRAM Rival AXS, 48/35, DUB, 170 mm length
Size: L, XL
SRAM Rival AXS, 48/35, DUB, 172.5 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1250, 10-36, 12-speed
Max. chainring size
1x: 54T, 2x: 56/43

Wheel front
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Sram XDR freehub, 142x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
Rim strip
Bontrager TLR
Max tyre size
32 mm (as measured, see manual for details)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
