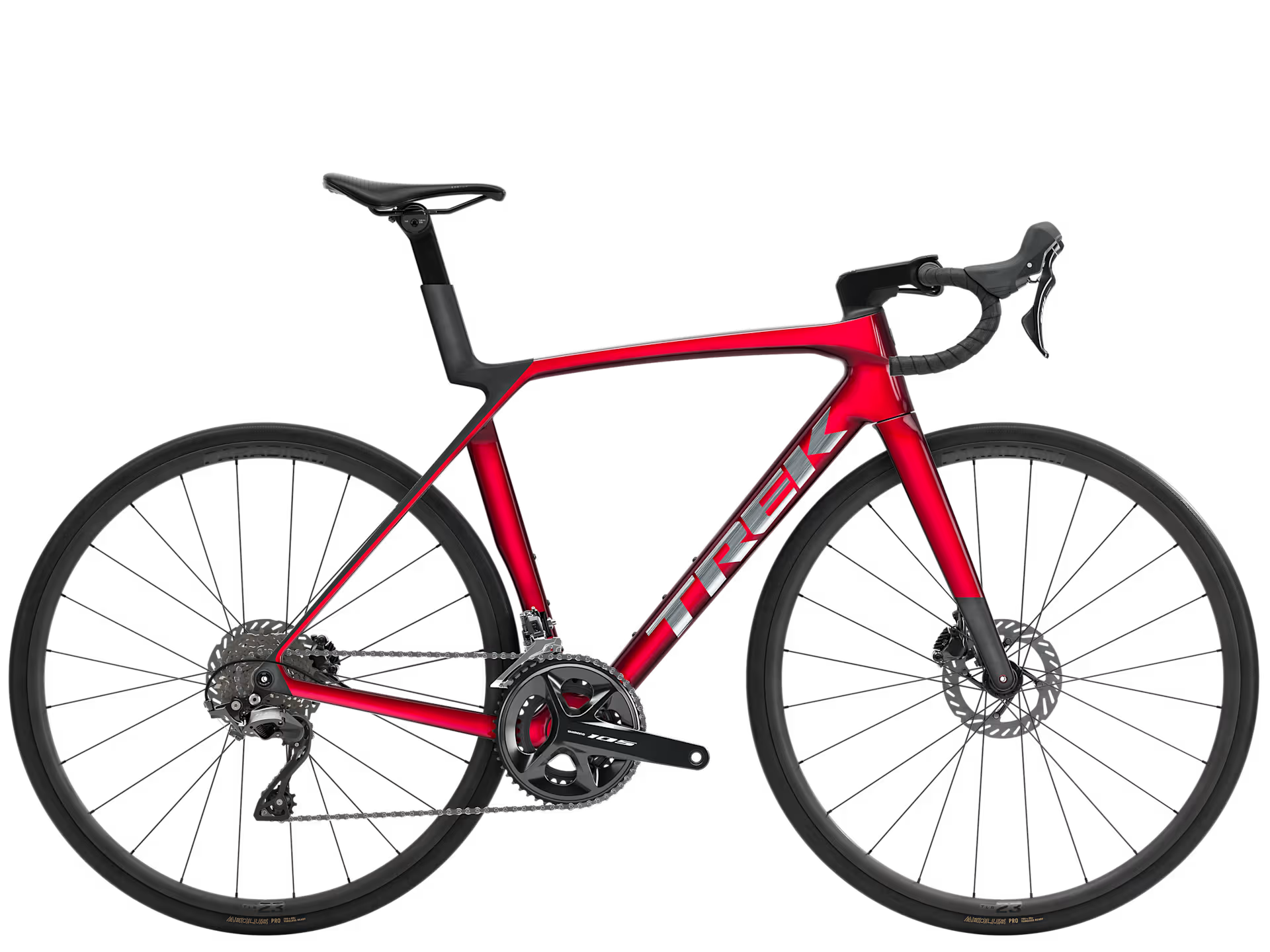

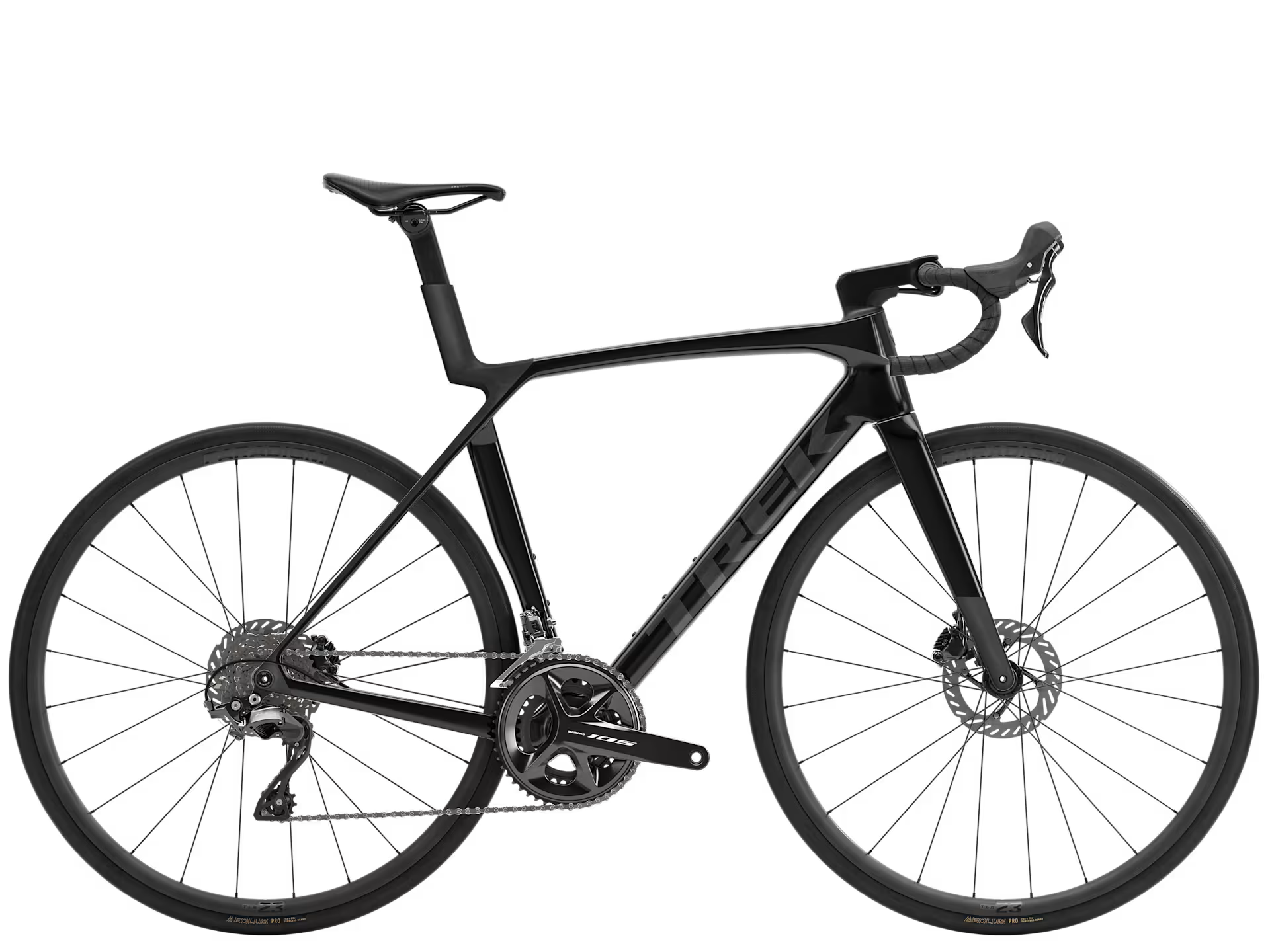

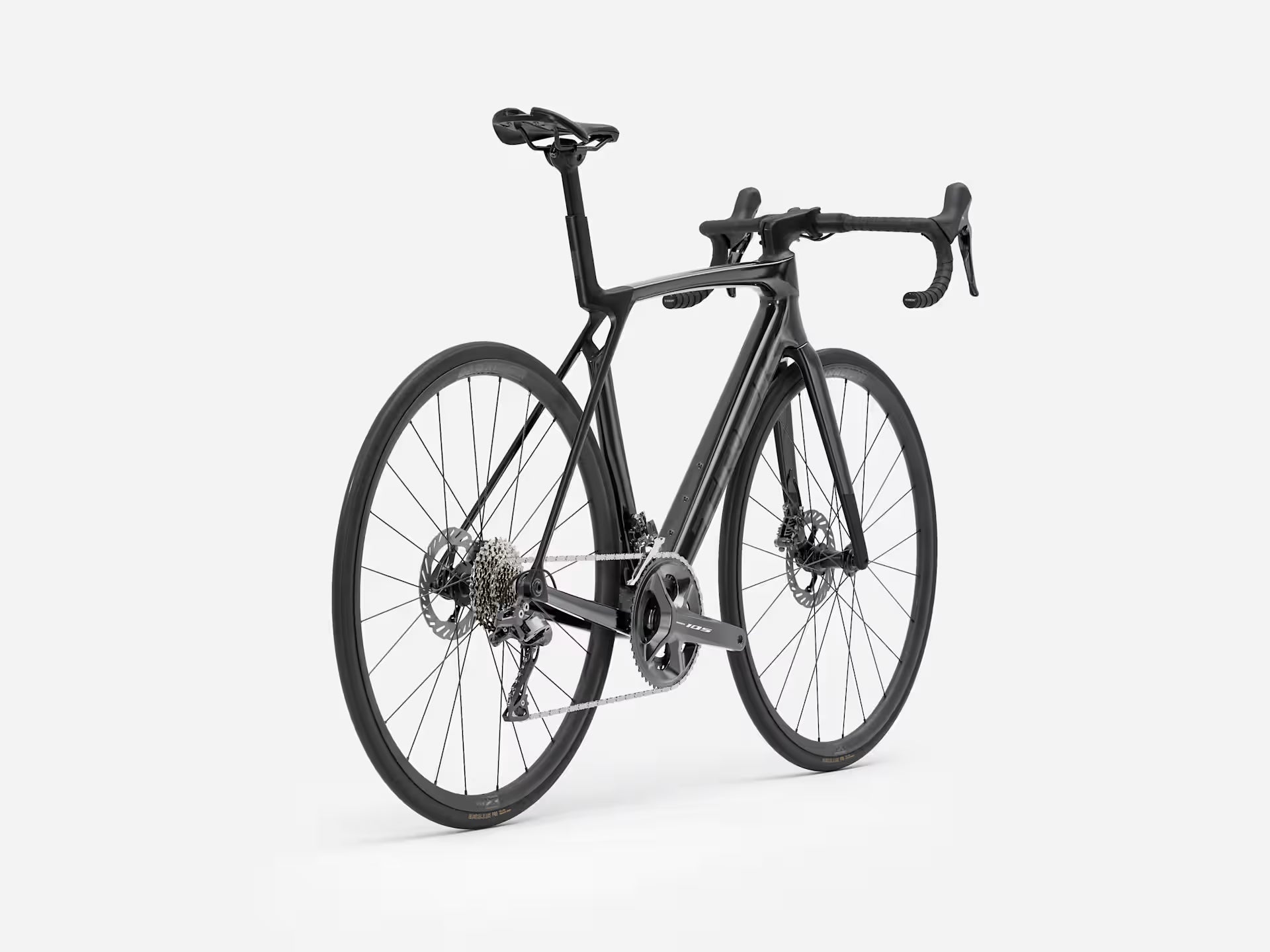

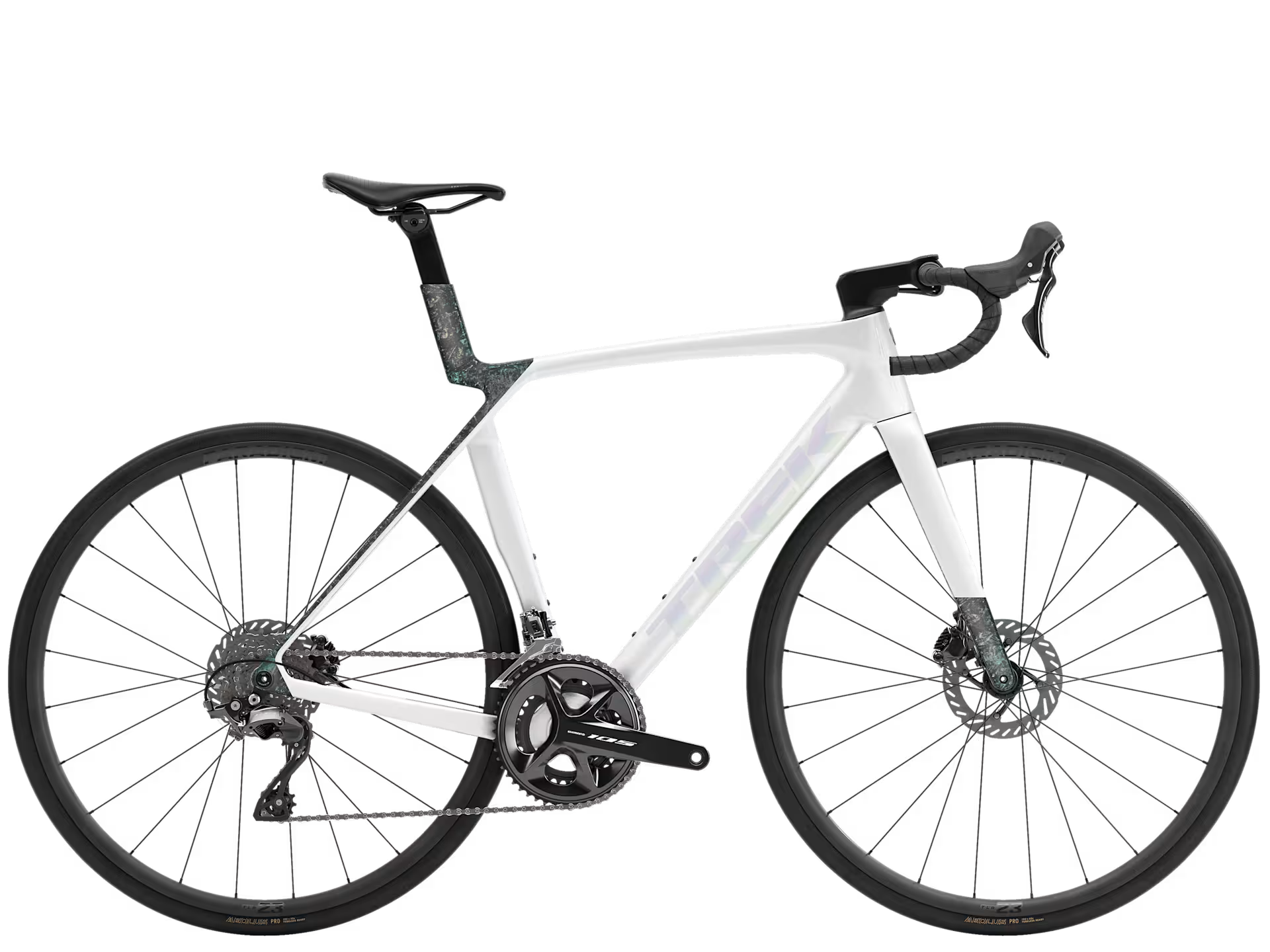

Trek Madone SL 5 Gen 8
Trek Madone SL 5 Gen 8
Trek Madone SL 5 Gen 8
Trek Madone SL 5 Gen 8
Trek Madone SL 5 Gen 8
Trek Madone SL 5 Gen 8
Trek Madone SL 5 Gen 8
Trek Madone SL 5 Gen 8

Trek Madone SL 5 Gen 8

£2,900.00



SKU: 5337898

Product Details

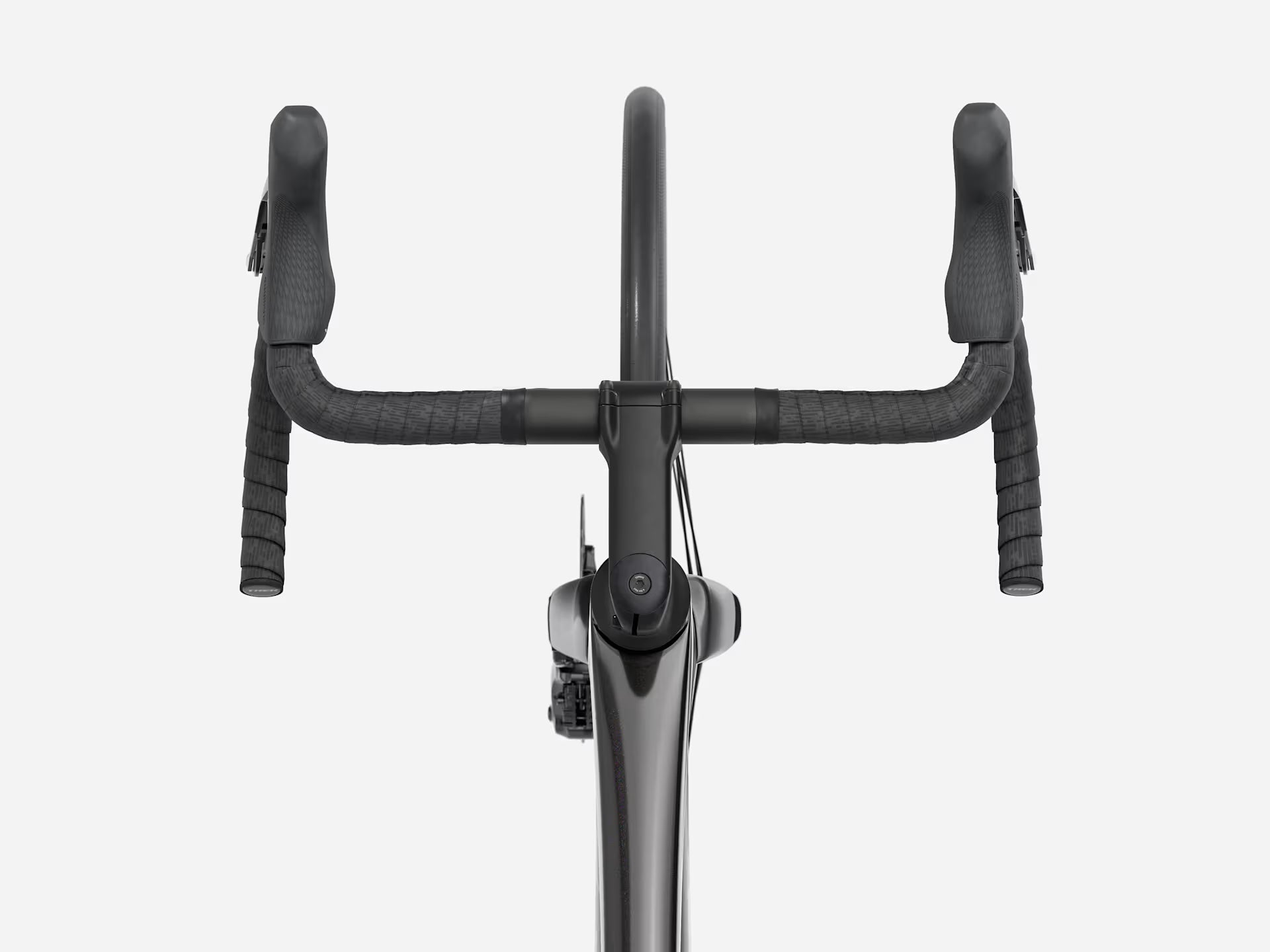

The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8 models, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. A Shimano 105 group set, alloy handlebars and alloy wheels keeps the price down while still delivering clean mechanical shifting you can trust.



*Please note – spec applies to all sizes unless listed separately

Frame

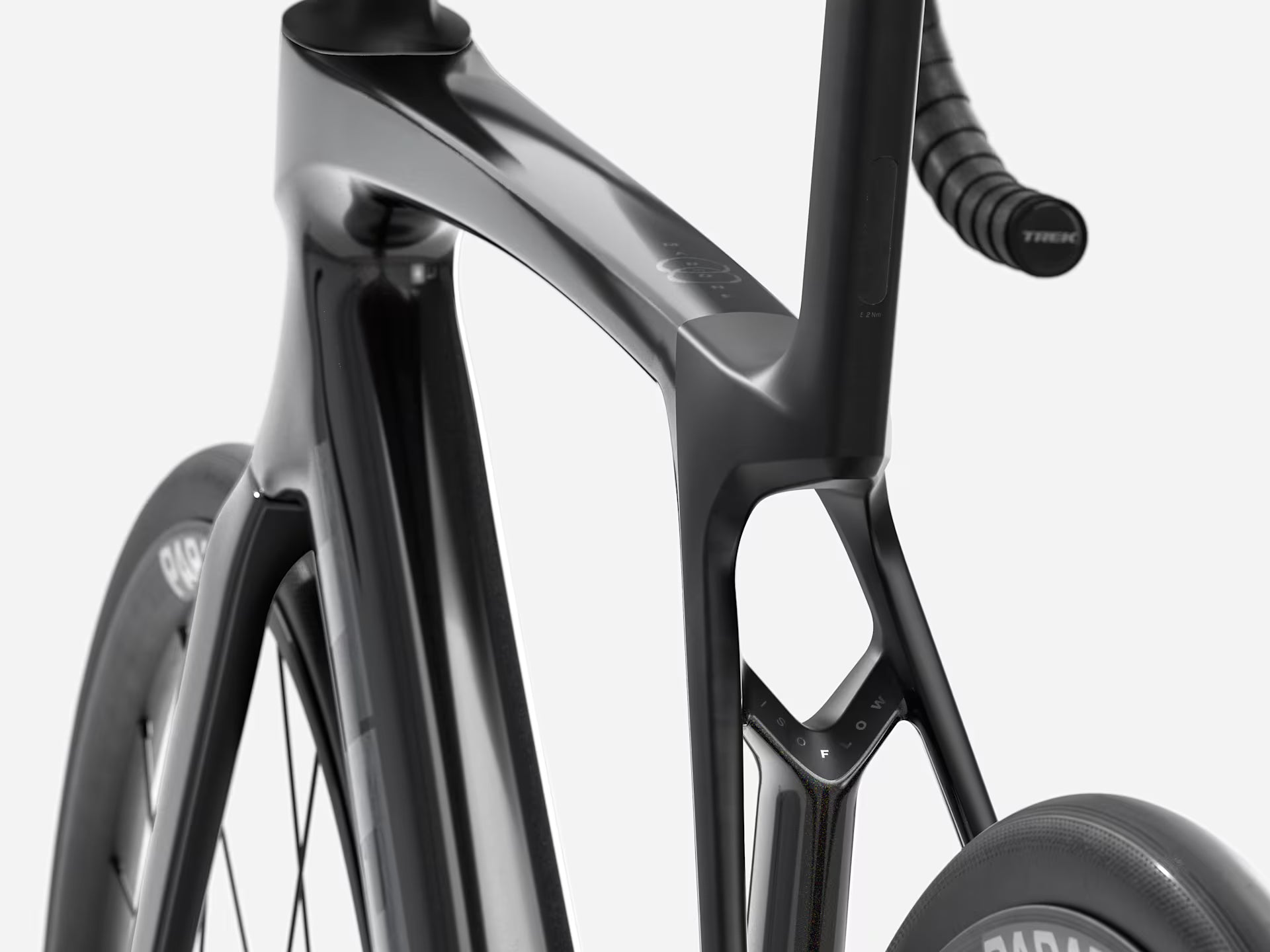

500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
*Fork
Size: XS, S, M, ML, L, XL
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
Size: XS, S, M, ML, L, XL
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight
ML - 8.64 kg / 19.05 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Front derailleur
Shimano 105 R7100, braze-on, down swing
Rear derailleur
Shimano 105 R7100, 36T max cog

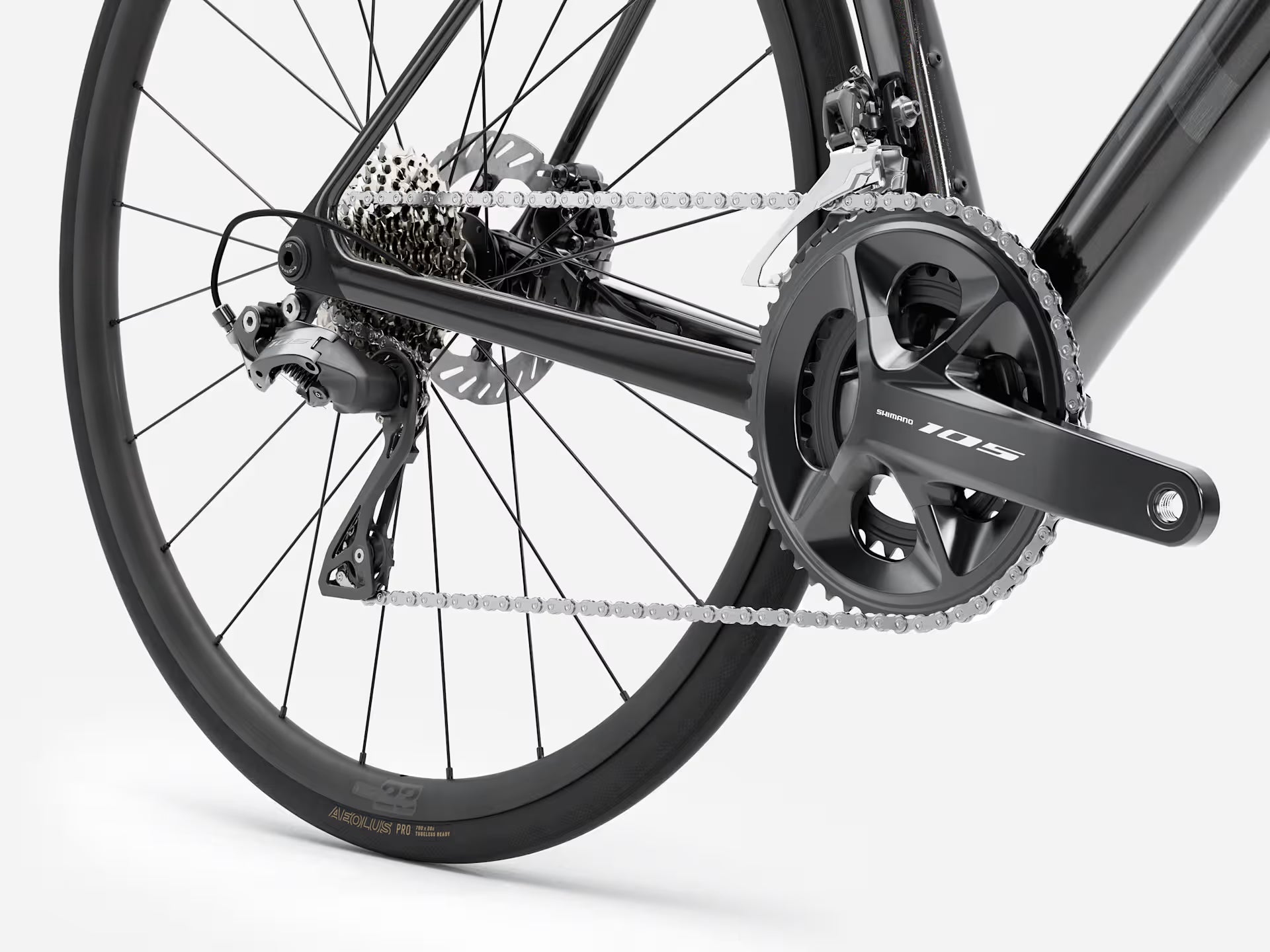

*Crank
Size: XS, S
Shimano 105 R7100, 50/34, 165 mm length
Size: M, ML
Shimano 105 R7100, 50/34, 170 mm length
Size: L, XL
Shimano 105 R7100, 50/34, 172.5 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 7101, 11-34, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 54T, 2x: 56/43

Hub front
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes
14 g stainless steel, black
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
Max tyre size
32 mm (as measured, see manual for details)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
