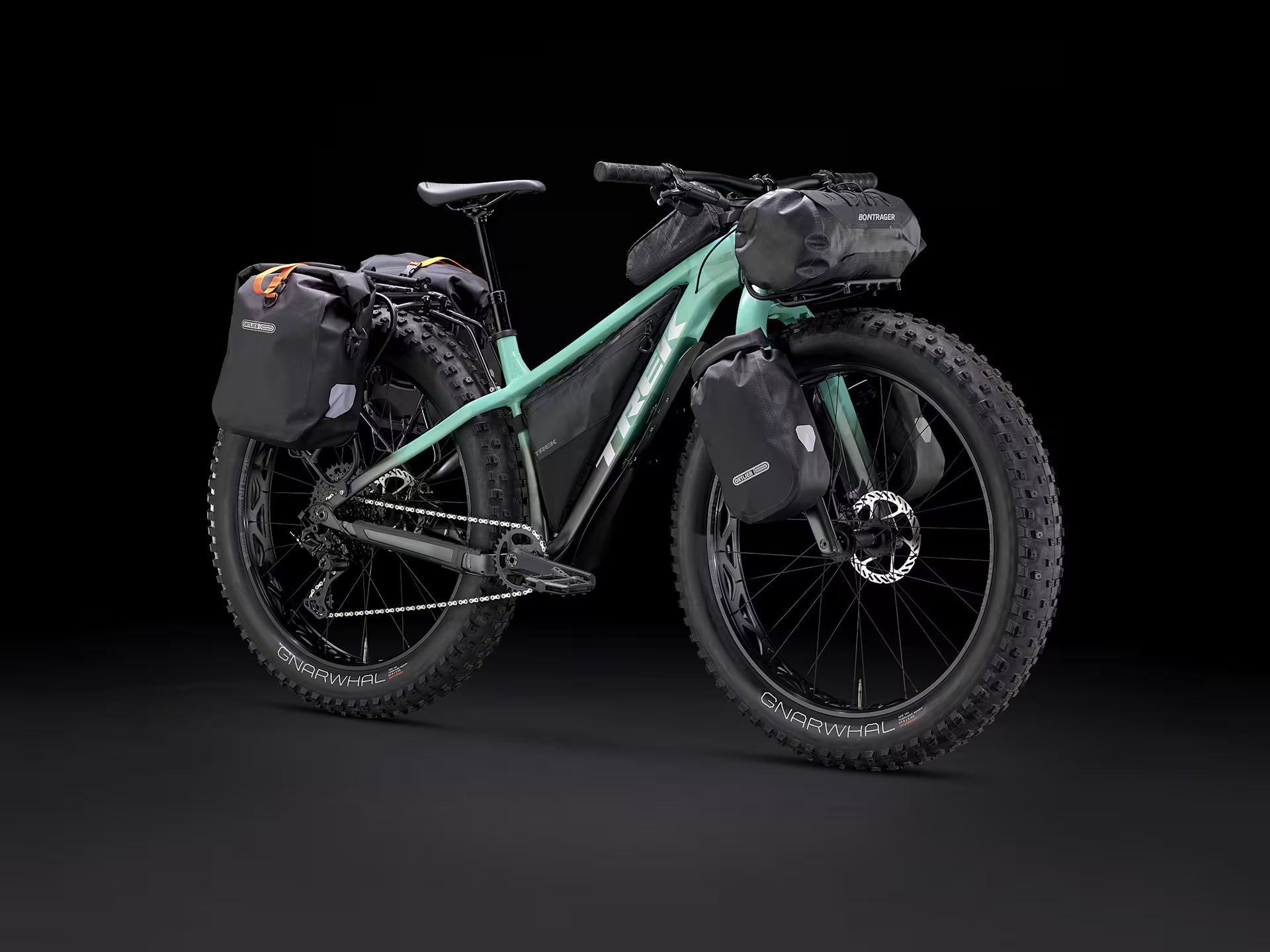

Trek Farley 5

£1,700.00



SKU: 5278196

Product Details

The Farley 5 is the ultimate go-anywhere fat bike. Arctic tundra? Farley's game. Sandy desert singletrack? Farley's lofty tyres will keep you afloat. A winter bikepacking mission through rugged terrain? Sounds like a walk in the park. The Farley's geometry is more capable than ever with a slacker head tube angle for more stability and a steeper seat tube angle for pedalling efficiency and comfortable reach. Up front, its carbon fork is loaded with a variety of mounts, so you'll be able to load up gear for the adventure of your dreams.



*Please note – spec applies to all sizes unless listed separately

Frame
Alpha Platinum Aluminium, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube mudguard mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur and dropper post routing, threaded BB, UDH, 197x12 mm
Fork
Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15 mm thru axle

Hub front
Bontrager alloy, sealed bearing, 6-bolt disc, 150x15 mm thru axle
Skewer front
Hub rear
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Tyre
Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5x4.50'"'
Max tyre size
27.5x4.50"

Shifter
microSHIFT Advent X SL-M9605, 10-speed
Rear derailleur
microSHIFT Advent X RD-M6205AM, 48T max cog
*Crank
Bottom bracket
Cassette
microSHIFT Advent X, 11-48, 10-speed
Chain
KMC X10, 10-speed
Pedal
Max. chainring size
1x: 32T

Saddle
Bontrager Verse P3, steel rails
*Seatpost
Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M
TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm length
Size: L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
*Stem
Size: S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
SRAM Level hydraulic disc
Brake rotor
Avid G2 CleanSweep, 6-bolt, 160 mm
Brake Set
SRAM Level hydraulic disc
Rotor size
Max brake rotor sizes: 180 mm front & rear

Weight
M - 16.20 kg/35.72 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
