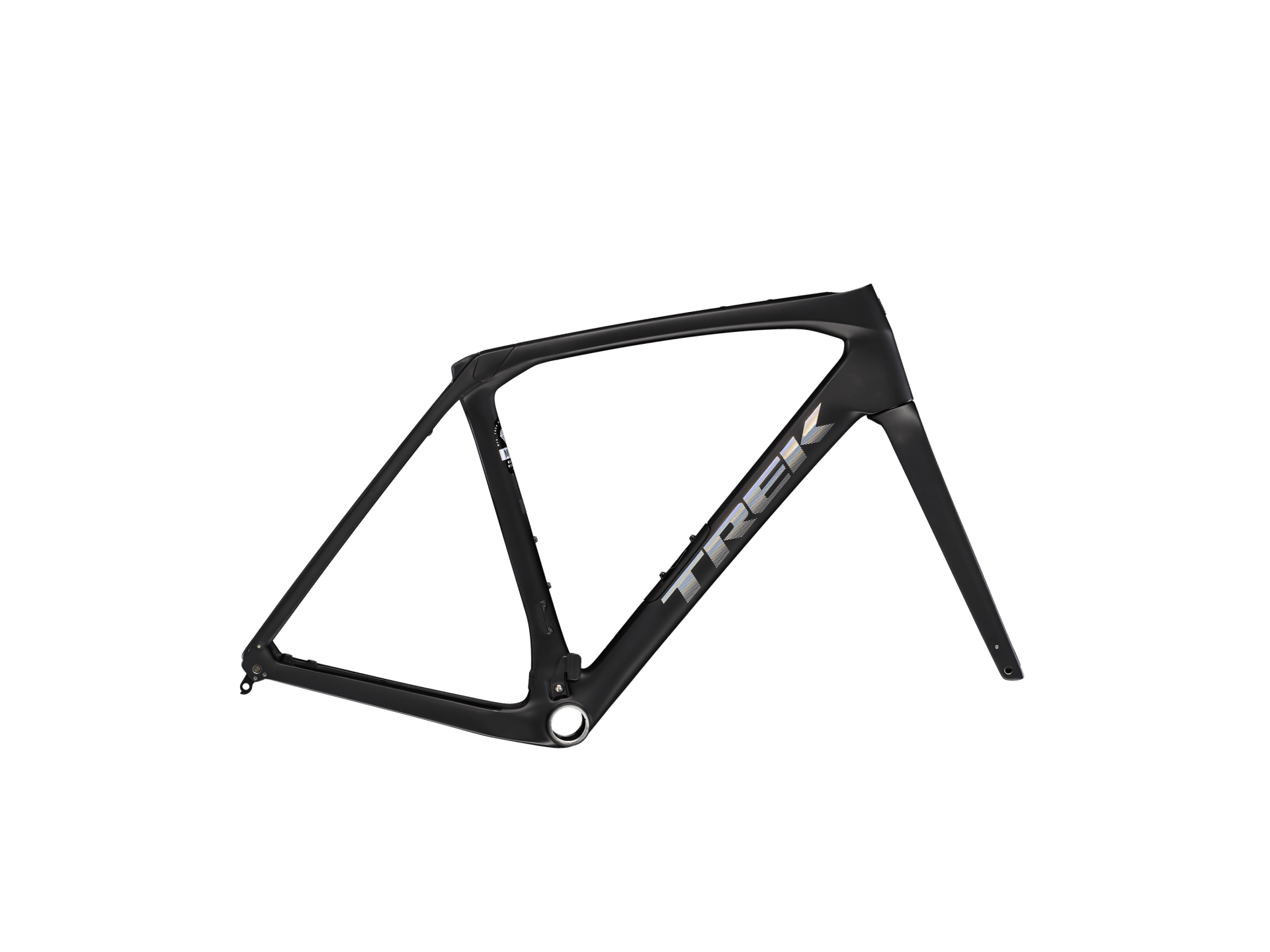

Domane SLR Disc Frame Set is built with ultralight 800 Series OCLV Carbon chassis and has rear IsoSpeed to soak up rough terrain. It's designed for flat-mount disc brakes, has an internal storage compartment, and includes a headset, 12 mm thru-axles and a Domane Disc full carbon fork. It features lofty clearance for up to 38 mm tyres to keep you floating on rough roads and light gravel.

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame    800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
Fork    Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit    Endurance

Weight
Weight    1,193 g - 56 cm (frame-only, painted)
427g (fork-only, painted)
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain
Max. chainring size    1x: 48T, 2x: 52/36

Wheels
Skewer front    Bontrager Switch thru-axle, removable lever
Skewer rear    Bontrager Switch thru-axle, removable lever
Max tyre size    38 mm without mudguards, 35 mm with mudguards

Components
Rotor size    Max brake rotor sizes: 160 mm front and rear

Accessories
Bag    Bontrager BITS Internal Frame Storage Bag
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
