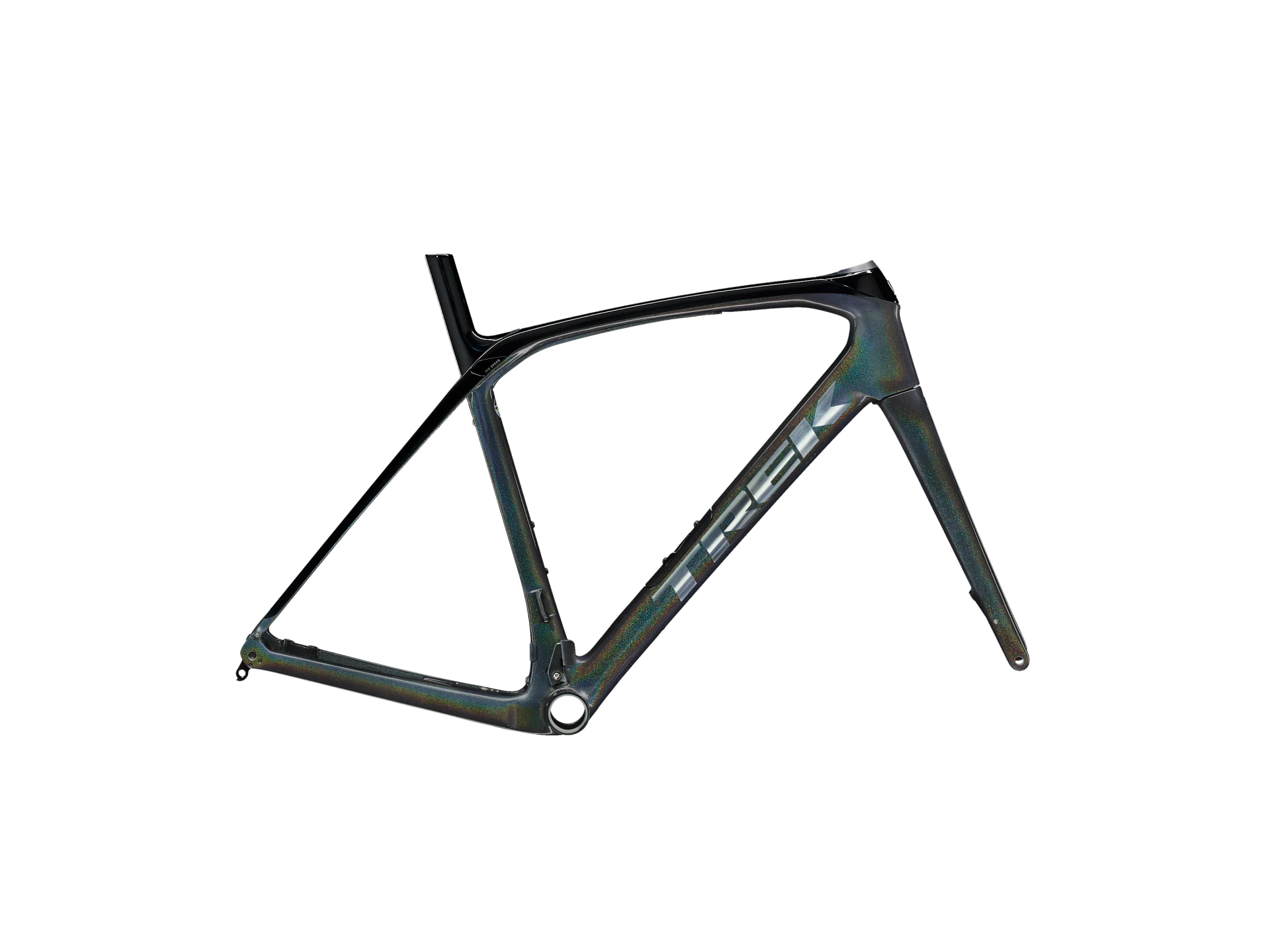

The award-winning Domane SLR Disc Frame Set is built with 700 Series OCLV Carbon and has both Front and Adjustable Rear IsoSpeed so you can fine-tune your compliance. This is the lightest endurance road bike frame we make. It's designed for flat-mount disc brakes, has an internal storage compartment, and includes a head set, 12 mm thru axles and a Domane Disc full carbon fork.

*Please note – spec applies to all sizes unless listed separatelyCycle To Work Schemes

Frameset
Frame    700 Series OCLV Carbon, front IsoSpeed, adjustable rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axleInsure Your Bike
Fork    Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit    Endurance

WeightBook a Service
Weight    56 - 2.24 kg/4.94 lb
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain
Front derailleur    Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)Parts & Components
Max. chainring size    1x: 46T, 2x: 52/36

See More

Wheels
Skewer front    Bontrager Switch thru axle, removable lever
Skewer rear    Bontrager Switch thru-axle, removable lever
Max tyre size    38mm

Brands

Components
Seatpost    Not included
