Product Details

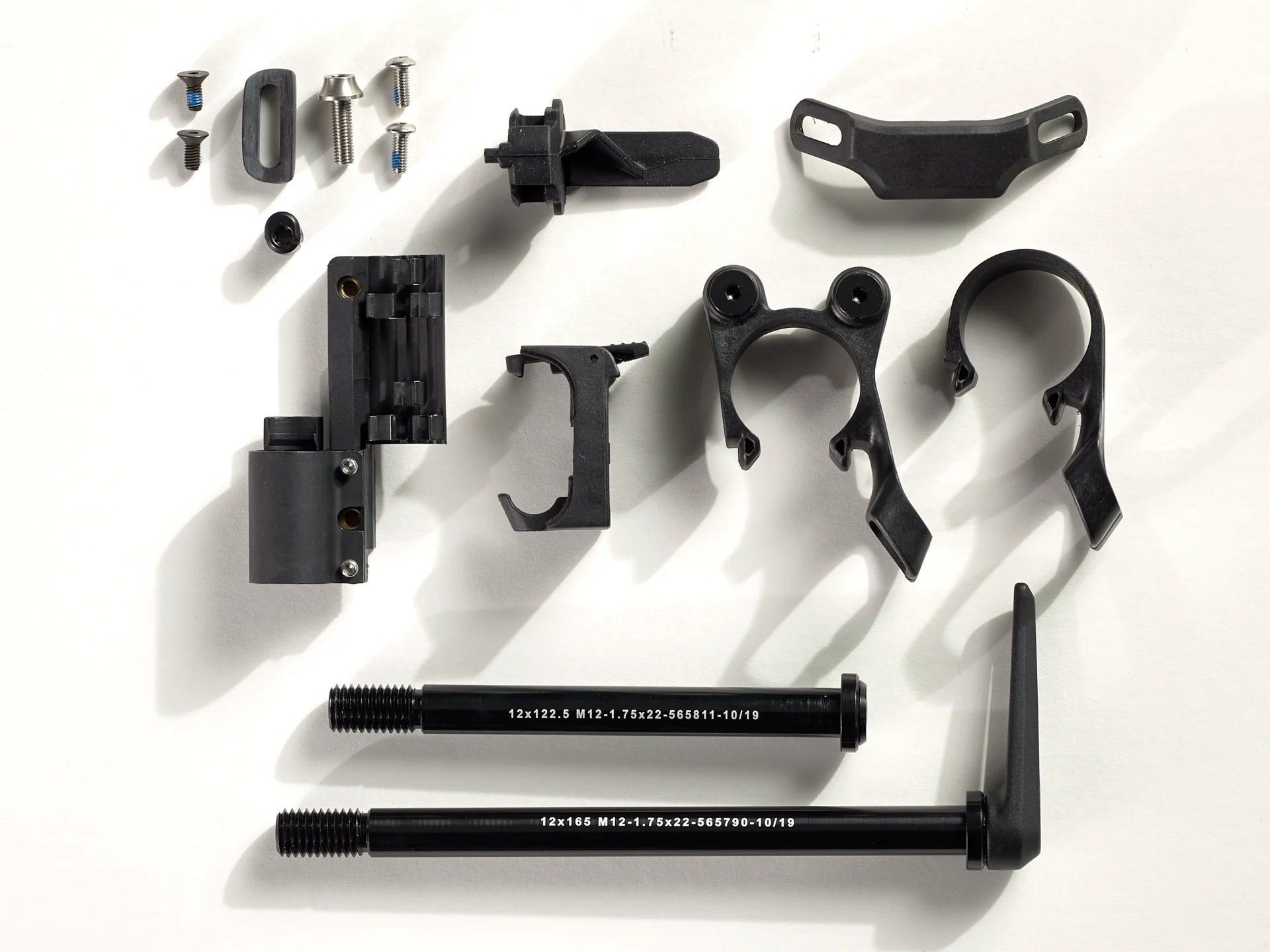

The award-winning Domane SLR Disc Frame Set is built with 700 Series OCLV Carbon and has both Front and Adjustable Rear IsoSpeed so you can fine-tune your compliance. This is the lightest endurance road bike frame we make. It's designed for flat-mount disc brakes, has an internal storage compartment, and includes a head set, 12 mm thru axles and a Domane Disc full carbon fork.
*Please note – spec applies to all sizes unless listed separately
Frameset
Frame 700 Series OCLV Carbon, front IsoSpeed, adjustable rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axle
Fork Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit Endurance
Weight
Weight 56 - 2.24 kg/4.94 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Drivetrain
Front derailleur Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)
Max. chainring size 1x: 46T, 2x: 52/36
Wheels
Skewer front Bontrager Switch thru axle, removable lever
Skewer rear Bontrager Switch thru-axle, removable lever
Max tyre size 38mm
Components
Seatpost Not included
Rotor size Max brake rotor sizes: 160mm front & rear
Accessories
Bag Bontrager BITS Internal Frame Storage Bag
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
