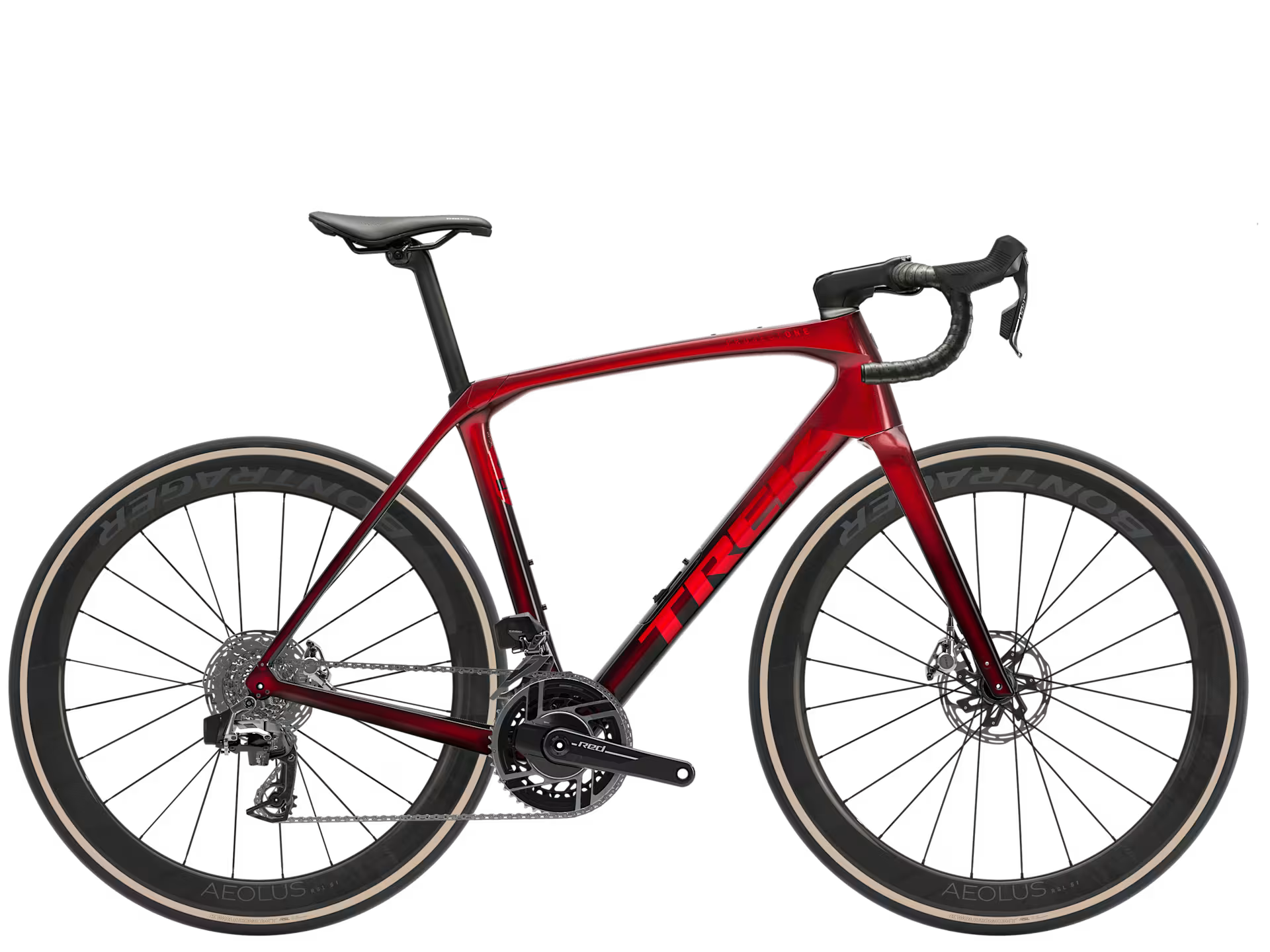

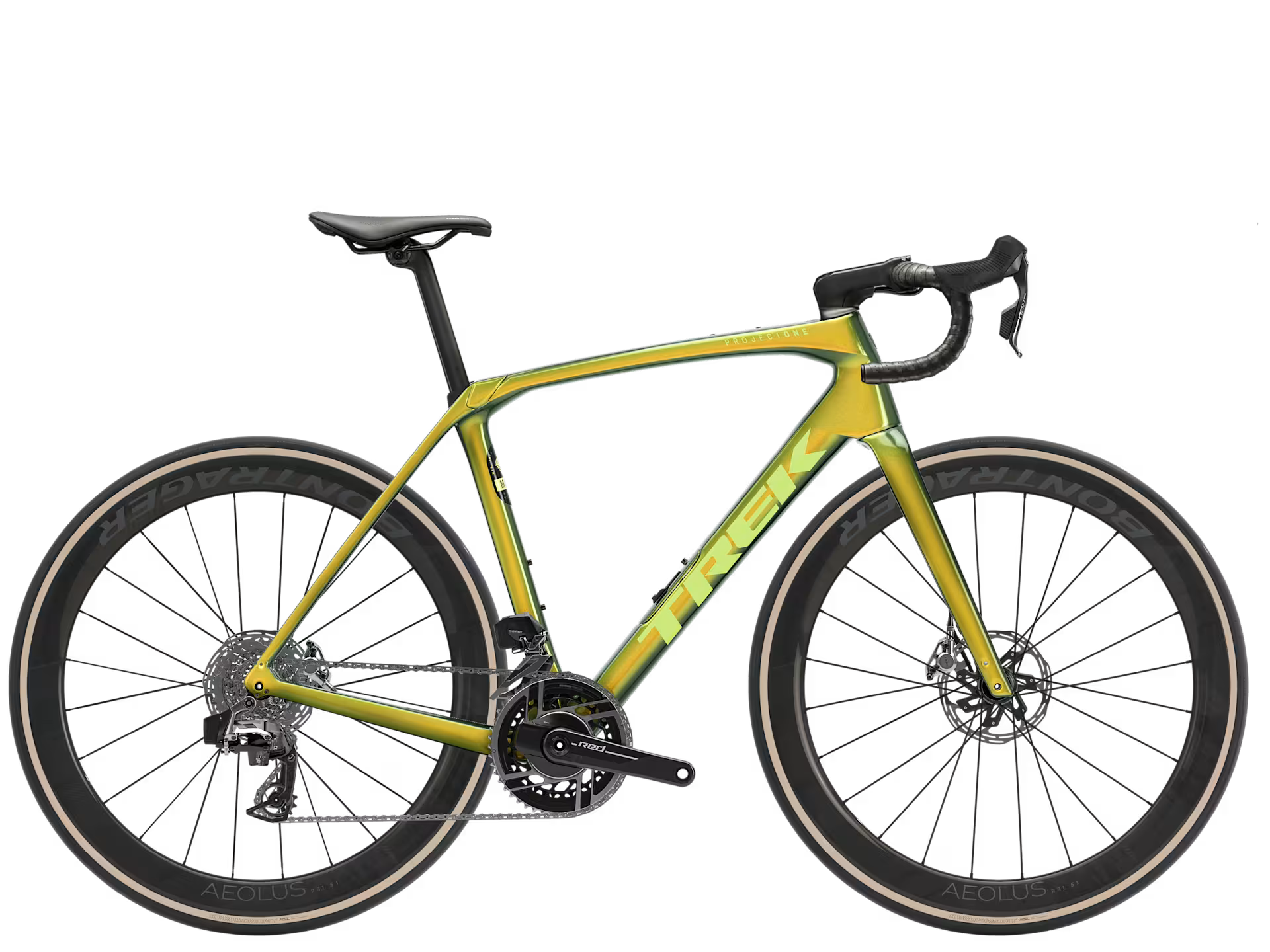

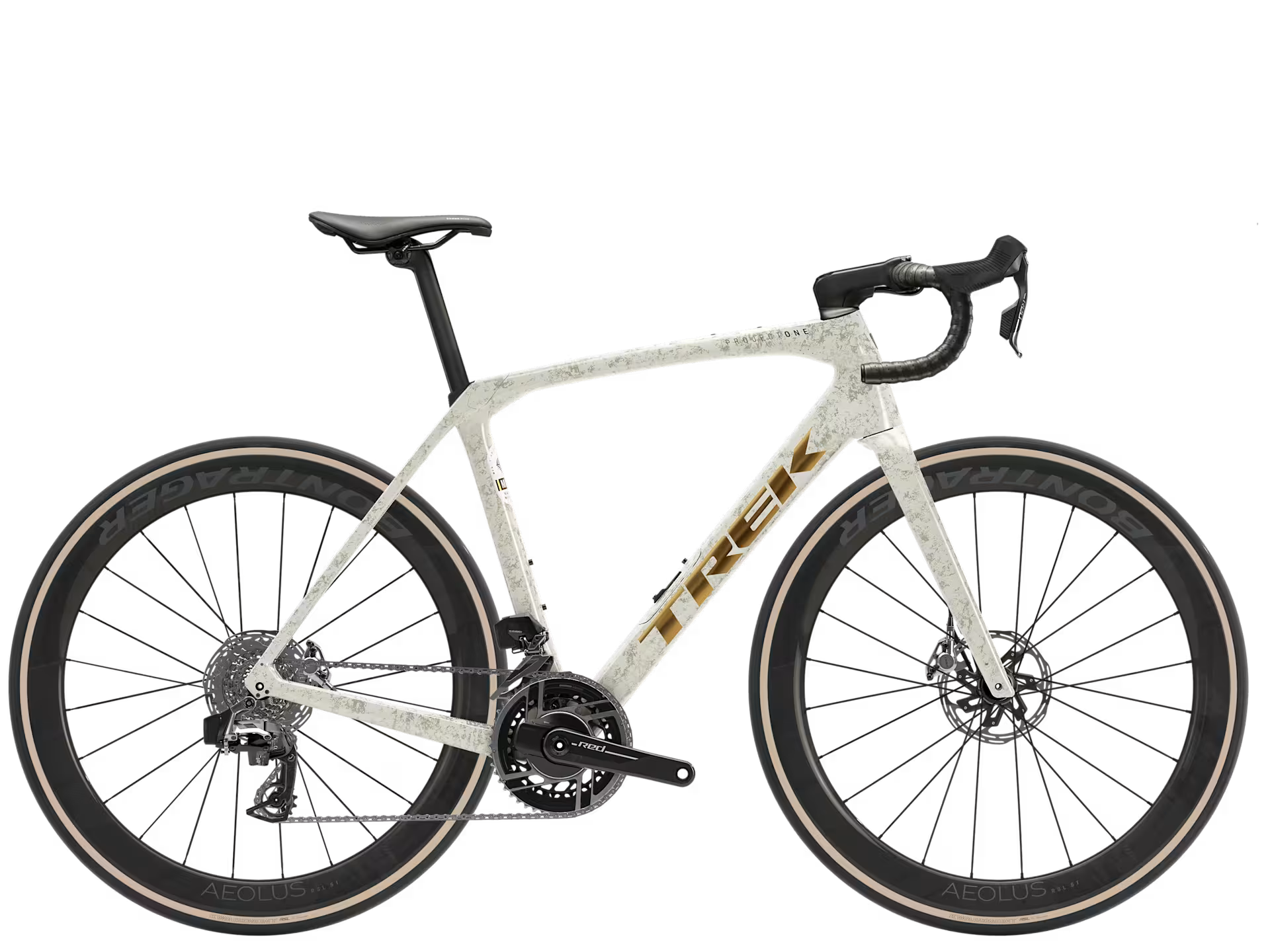

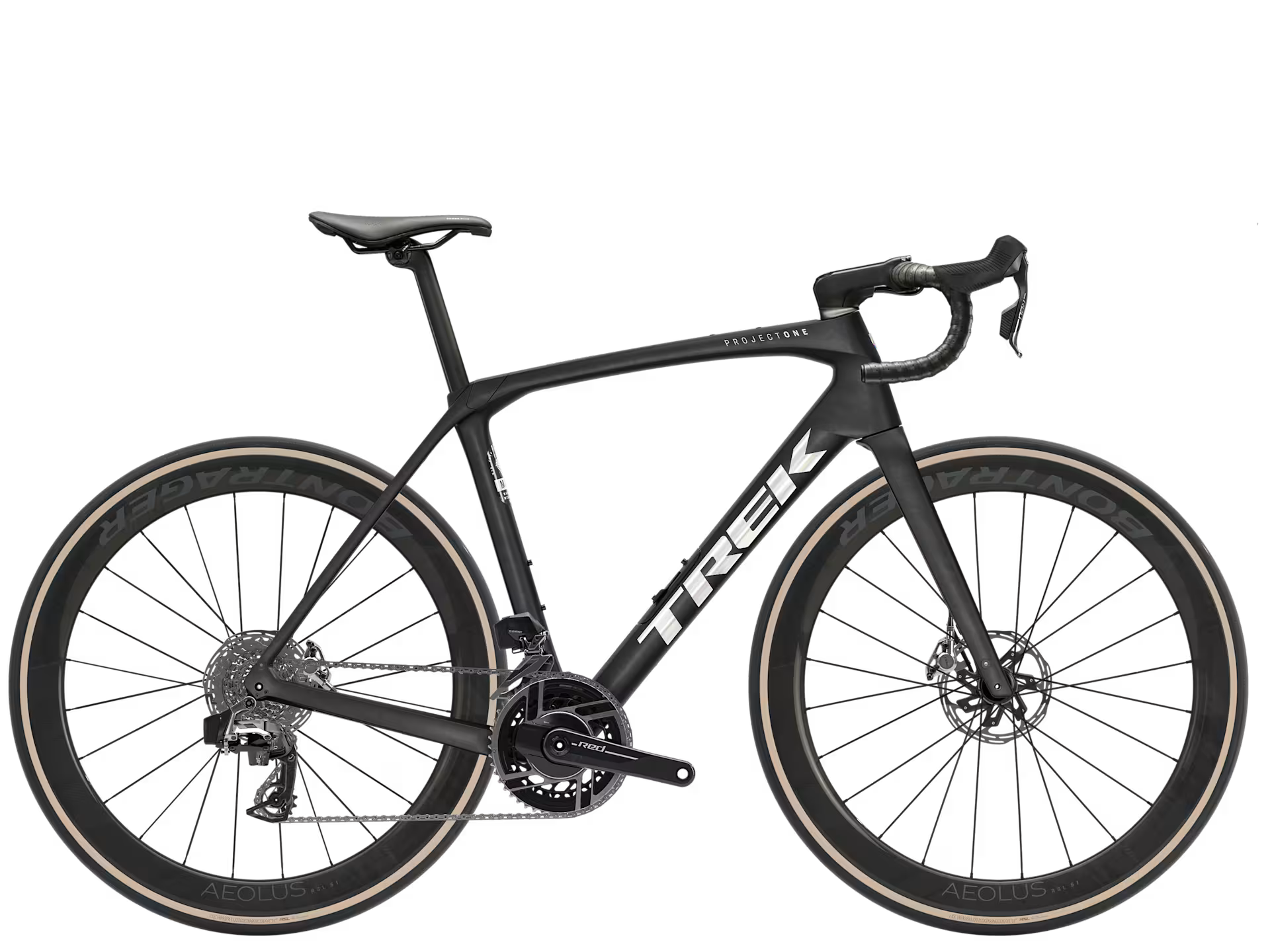

Trek - Domane SLR 9 AXS Gen 4
The Domane SLR 9 AXS is our top-of-the-line, ultra-light carbon endurance road bike decked out with the best parts for a fast, high-performance ride. You get an 800 Series OCLV Carbon frame with rear IsoSpeed, a 2x12 SRAM RED AXS E1 electronic drivetrain and OCLV Carbon wheels and handlebars.
*Please note – spec applies to all sizes unless listed separately
- Frame
-
800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, mudguard mounts, flat mount disc, 142x12 mm thru axle
- Fork
-
Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
- Weight
- 56 - 7.58 kg / 16.72 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
- Battery
-
SRAM AXS battery pack (with charger)
- Shifter
-
SRAM RED AXS E1
- Front derailleur
-
SRAM RED AXS E1, braze-on
- Rear derailleur
-
SRAM RED AXS E1, 36T max cog
- *Crank
-
Size: 47, 50
SRAM RED AXS E1, power meter, 46/33, DUB, 165 mm lengthSize: 52, 54, 56
SRAM RED AXS E1, power meter, 46/33, DUB, 170 mm lengthSize: 58, 60, 62
SRAM RED AXS E1, power meter, 46/33, DUB, 172.5 mm length - Bottom bracket
-
SRAM DUB, T47 threaded, internal bearing
- Cassette
-
SRAM RED XG-1290 E1, 10-36, 12-speed
- Chain
-
SRAM RED E1, 12/13-speed
- Max. chainring size
- 1x: 48T, 2x: 52/36
- Wheel front
-
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
- Wheel rear
-
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru axle
- Skewer front
- Skewer rear
- Tyre
-
Bontrager Kwaremont RSL TLR, tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32 mm
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Max tyre size
- 38 mm without mudguards, 35 mm with mudguards (as measured, see manual for details)
- Saddle
- *Seatpost
- *Handlebar
- Handlebar tape
- *Stem
- Brake rotor
-
SRAM Paceline X, rounded, CentreLock, 160 mm
- Rotor size
- Max brake rotor sizes: 160 mm front and rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
