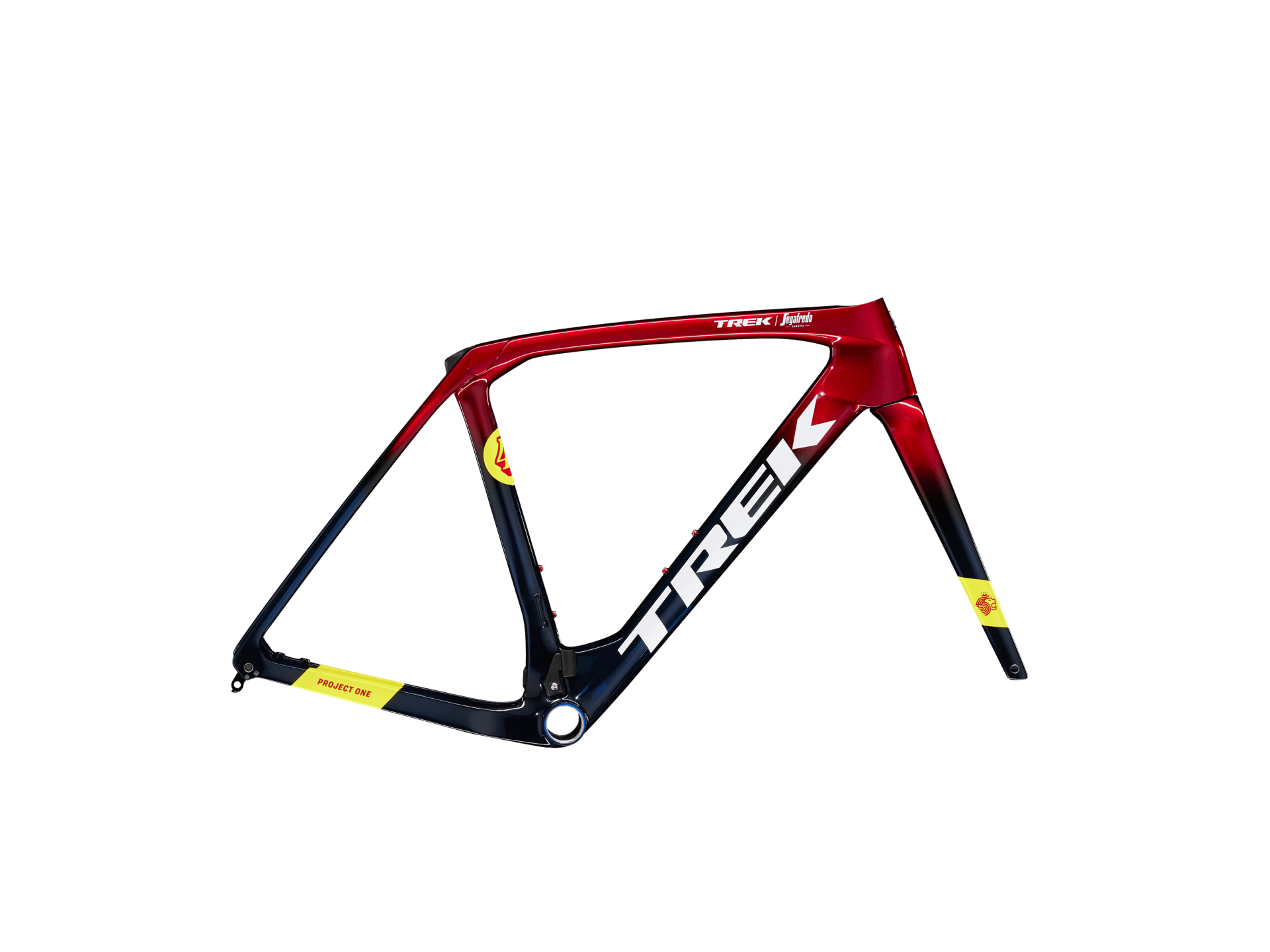

The Domane RSL (Race Shop Limited) Frame Set is an ultralight carbon endurance road bike frame that gives you the freedom to build your absolute dream machine. Designed for speed on even the roughest cobblestone courses, this is the frame of choice for Trek-Segafredo pros racing Paris-Roubaix. Its refined rear IsoSpeed and aerodynamic improvements help to elevate comfort while letting you get the most out of every watt you put in.

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame    800 Series OCLV Carbon, IsoSpeed, tapered head tube, internal cable routing, 3S chain keeper, flat mount disc, 142x12 mm thru axle
*Fork    Size: 52, 54, 56, 58, 60
Domane RSL carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100 mm thru axle
Size: 52, 54, 56, 58, 60
Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit    Pro Endurance

Weight
Weight    1057g – 56 cm (frame-only, painted)
401g (fork-only, painted)
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain
Max. chainring size    1x: 54T, 2x: 54/40

Wheels
Skewer front    Bontrager Switch thru-axle, removable lever
Skewer rear    Bontrager Switch thru-axle, removable lever
Max tyre size    35mm

Components
Rotor size    Max brake rotor sizes: 160mm front & rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
