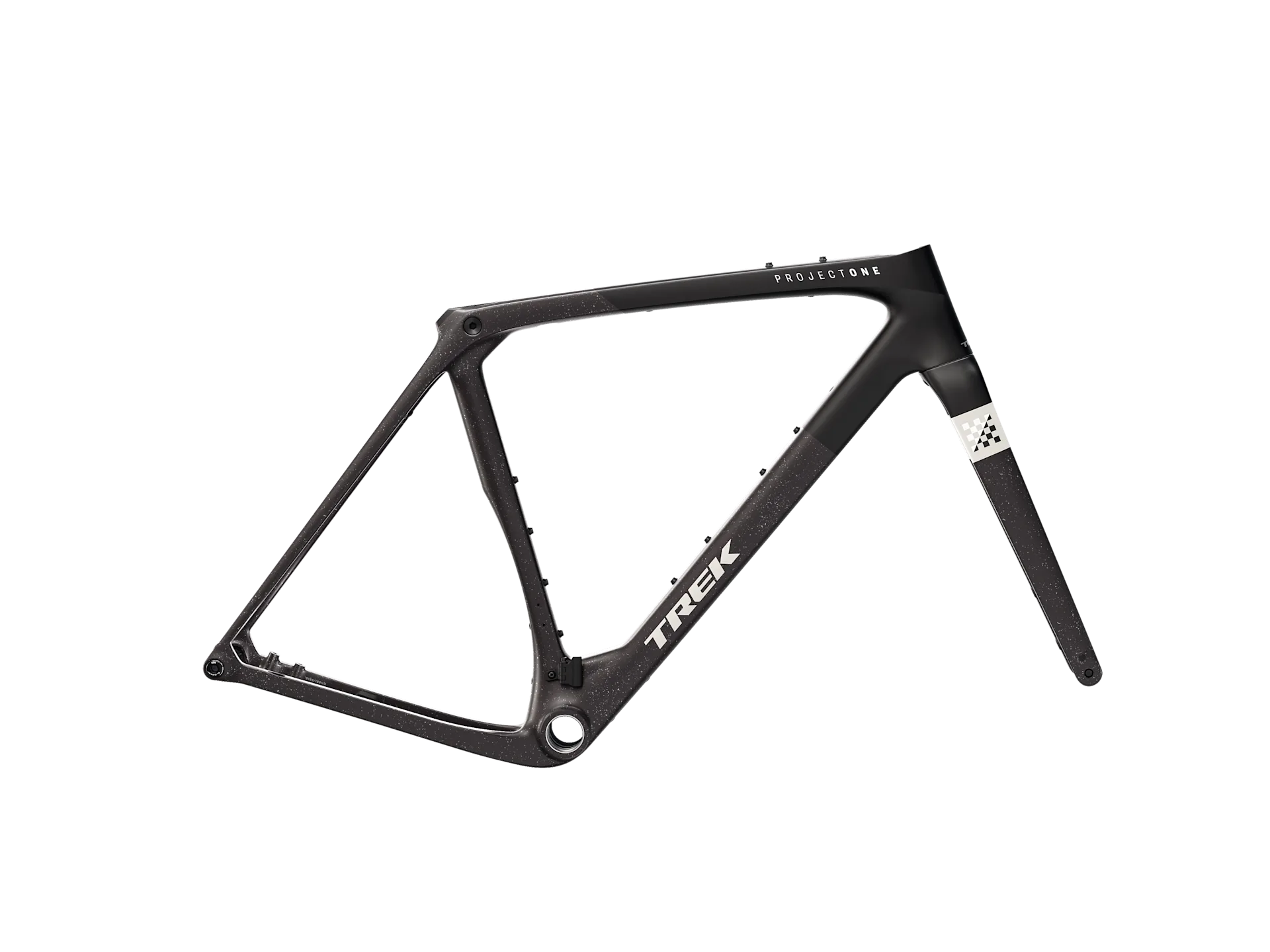

The Checkmate SLR Frame Set is a carbon gravel race frame ready to toe the line and kick up dust on the long and rough road. To deliver the performance that you crave on race day, the Checkmate combines a lightweight aero design with IsoSpeed and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. Top this frame up with your favourite components and bolt-on bags, and you'll be ready for anything.

 Frog

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame    800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
Fork    Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axleSurly

Weight
Weight    1146g - ML (frame-only, painted)UTO (ex Eovolt)
415g (fork-only, painted)
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain
Max. chainring size    See service manual

Wheels
Skewer front    Bontrager Switch chamfered thru axle, removable lever
Skewer rear    Bontrager Switch chamfered thru axle, removable lever
Max tyre size    45 mm without mudguardsSecond-Hand Bikes

ComponentsSee More
Rotor size    Max brake rotor sizes: 180mm front and rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.Shop All Second-Hand
