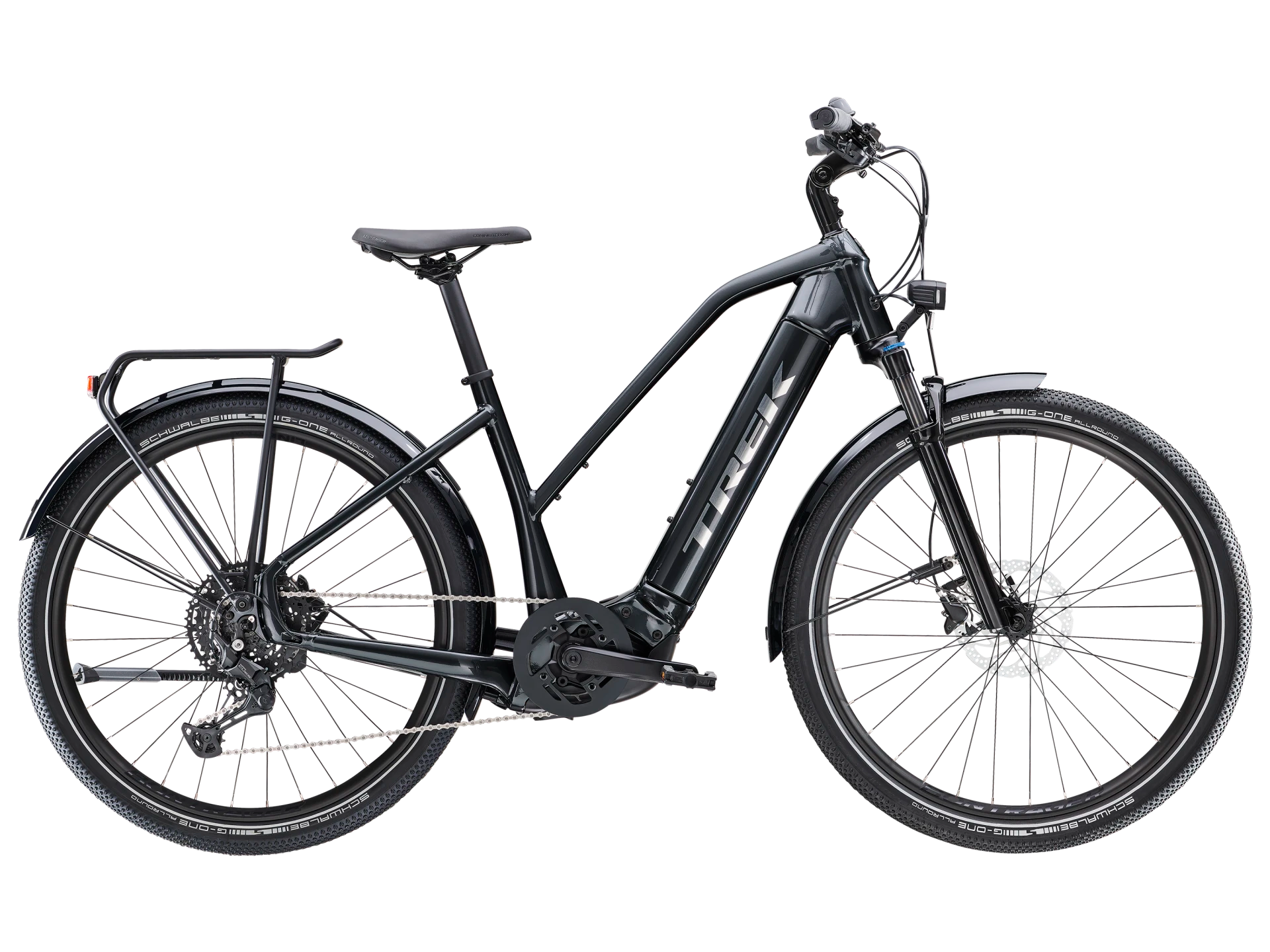

Trek Allant+ 7 Stagger Gen 2
£3,700.00
Product Details
The Allant+ 7 Stagger is an award-winning e-bike built for riders and commuters who want a stylish, durable e-bike with the added road-smoothing benefits of a suspension fork. The powerful and connected Bosch smart system, quality parts and a wealth of thoughtful design details make this electric bike a smart solution for getting around town every day
*Please note – spec applies to all sizes unless listed separately
| Frame | High-performance hydroformed e-bike frame, Removable Integrated Battery, Motor Armor, internal cable routing, post-mount disc |
|---|---|
| Fork | SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel |
| Max compatible fork travel | 63mm |
| Hub front | Shimano Tourney HB-QC300, centerlock |
|---|---|
| Hub rear | Shimano FH-QC300-HM, 32-hole, CentreLock, 8-/9-/10-/11-speed, 135x5 mm QR |
| Rim | Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Tyre | Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584 |
| Max tyre size | 27.5 x 2.40" |
| Battery | Bosch PowerTube 625Wh, smart system |
|---|---|
| Charger | Bosch standard 4A, 230V, smart system |
| Computer | Bosch Purion 200 |
| Motor | Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm |
| Shifter | Shimano CUES U6000 w/optical gear display, 10-speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank |
Size: S, M ProWheel alloy, 170 mm length |
|
Size: L ProWheel alloy, 175 mm length |
|
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | slip-proof pedals with reflectors |
| Max. chainring size | 1x: 48T |
| Saddle | Bontrager Commuter Comp |
|---|---|
| *Seatpost |
Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Size: L Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Herrmans Clik, ergonomic, lock-on |
| *Stem |
Size: S, M Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length |
|
Size: L Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length |
|
| Head set | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor |
Size: S, M, L Shimano RT30, CentreLock, 180 mm |
|
Size: S, M, L Shimano EM300, CentreLock, 180 mm |
|
| Rotor size | Max brake rotor sizes: 180 mm front and rear |
| *Light |
Size: S, M, L Spanninga SOLO for e-bike |
|---|---|
|
Size: S, M, L Herrmans H-Black MR9-E, 60lux, LED, headlight |
|
| Kickstand | Pletscher Comp Flex 18 |
| Cargo rack | MIK-compatible alloy rear rack, maximum load 25 kg |
| *Mudguard |
Size: S, M, L SKS plastic, rear |
|
Size: S, M, L SKS plastic, front |
| Weight | M - 19.60 kg / 43.22 lbs (excluding battery) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
