Trek Allant+ 7 Stagger

£2,950.00£3,700.00

SKU: 5276597

Product Details

The Allant+ 7 Stagger is an award-winning e-bike built for riders and commuters who want a stylish, durable e-bike with the added road-smoothing benefits of a suspension fork. The powerful and connected Bosch smart system, quality parts and a wealth of thoughtful design details make this electric bike a smart solution for getting around town every day.

Specs

*Please note – spec applies to all sizes unless listed separately

Wheels
Hub front Shimano TX505, CenterLock
Hub rear Shimano TX505, CenterLock
Rim Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Tyre Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584
Max tyre size 27.5x2.40"
E-system
Battery Bosch PowerTube 625Wh, smart system
Charger Bosch standard 4A, 230V, smart system
*Computer Size: S, M, L
Bosch Kiox 300, smart system
Size: S, M, L
Bosch LED remote, smart system

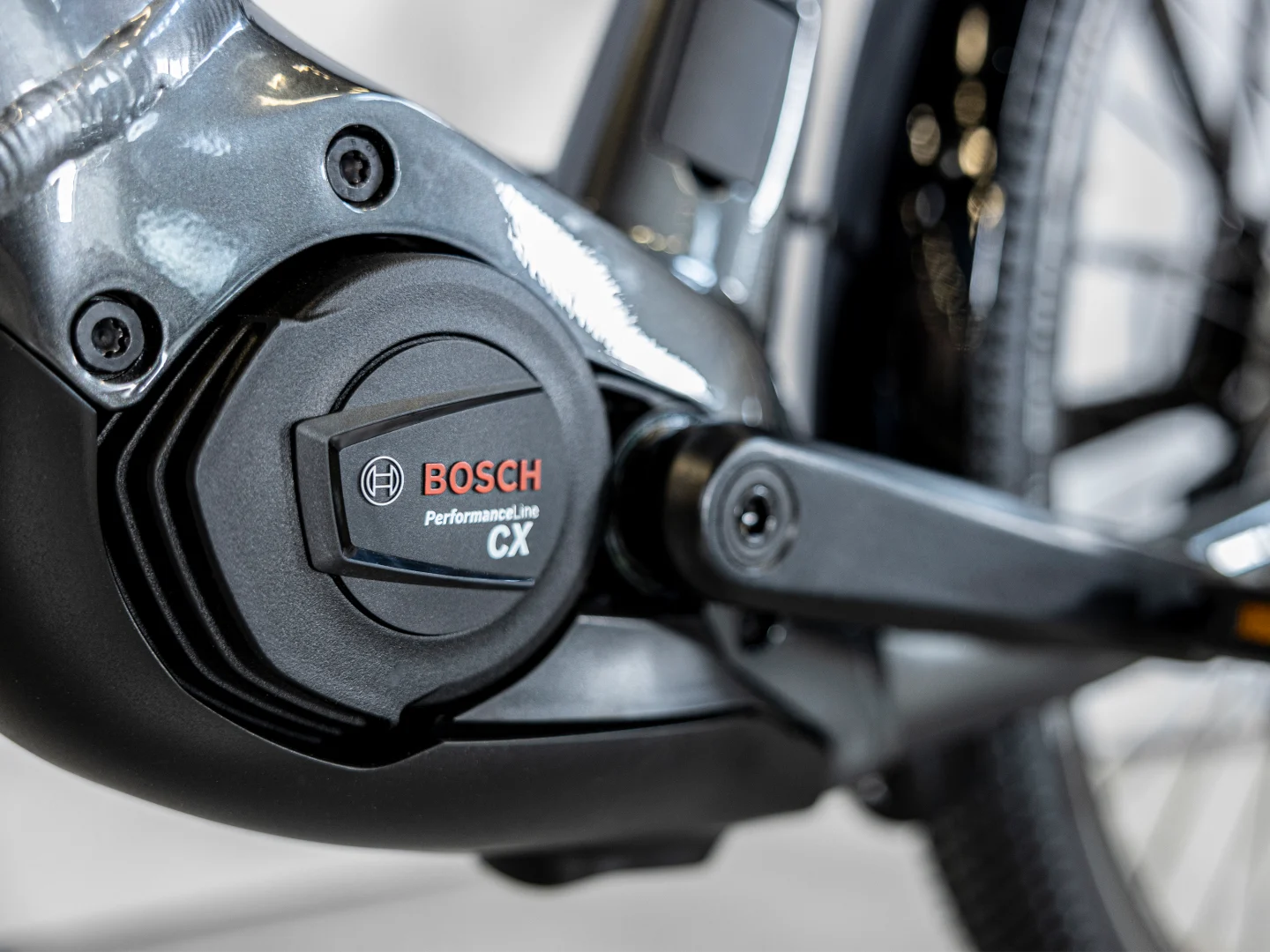

Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Drivetrain
Shifter Shimano Deore M5130, 10-speed
Rear derailleur Shimano Deore M5130
*Crank Size: S, M
ProWheel alloy, 170 mm length
Size: L
ProWheel alloy, 175 mm length
Chainring ProWheel 40T narrow/wide steel, w/alloy guard
Cassette Shimano LG400, 11-43, 10-speed
Chain Shimano LG500, 9/10/11-speed
Pedal slip-proof pedals with reflectors
Max. chainring size 1x: 48T
Components
Saddle Bontrager Commuter Comp
*Seatpost Size: S, M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: L
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips Herrmans Clik, ergonomic, lock-on
*Stem Size: S, M
Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length
Size: L
Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Head set FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
*Brake rotor Size: S, M, L
Shimano RT30, CentreLock, 180 mm
Size: S, M, L
Shimano EM300, CentreLock, 180 mm
Brake Set Tektro HD-M275 hydraulic disc
Rotor size Max brake rotor sizes: 180mm front & rear
Accessories
*Light Size: S, M, L
Spanninga SOLO for e-bike
Size: S, M, L
Herrmans H-Black MR8-E, 180 Lumen, 60 Lux, LED, headlight
Kickstand Pletscher Comp Flex 18
Cargo rack MIK-compatible alloy rear rack, maximum load 25 kg
*Mudguard Size: S, M, L
SKS plastic, front
Size: S, M, L
SKS plastic, rear
Weight
Weight M - 23.20 kg / 51.15 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).



We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
