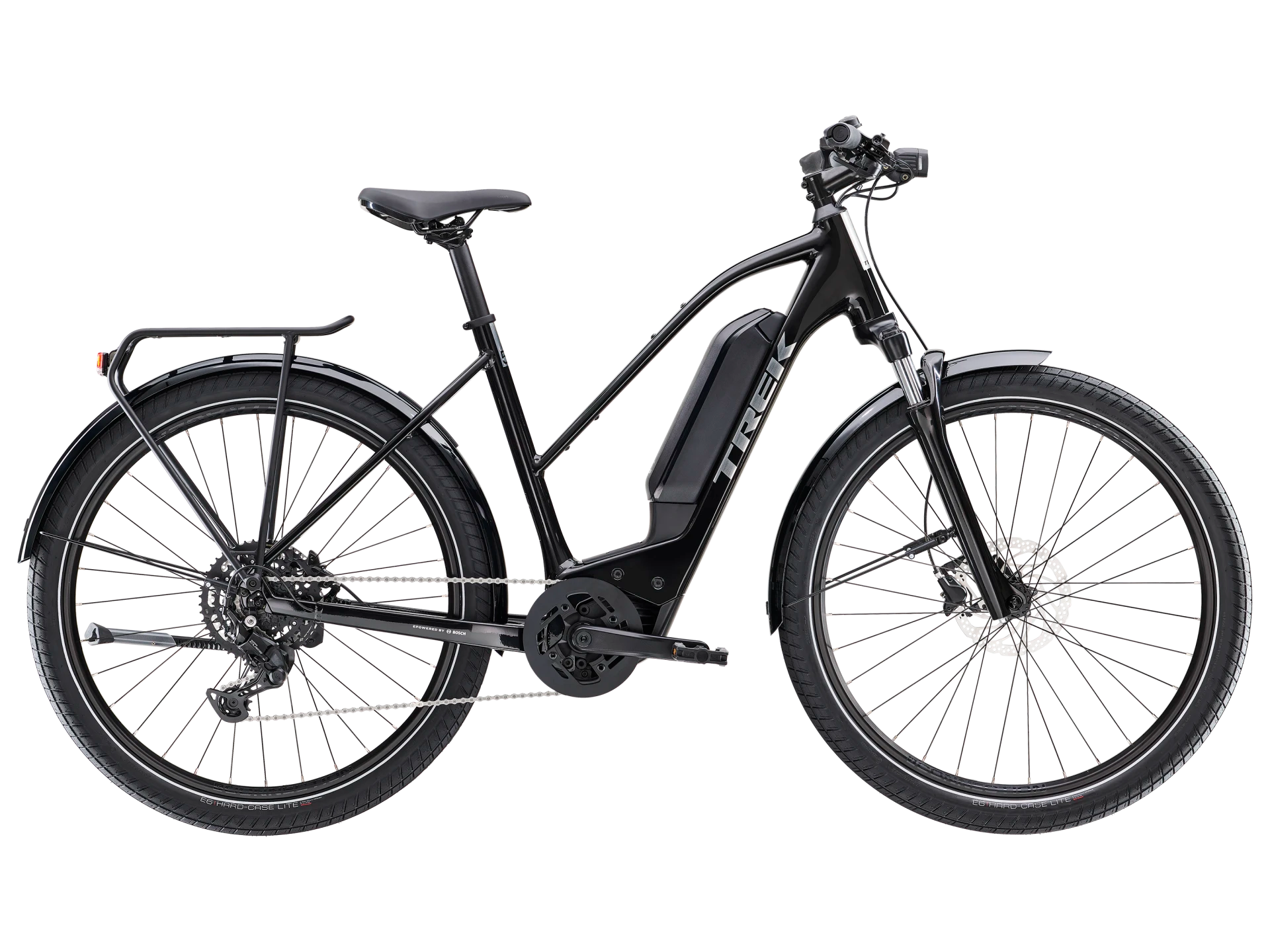

Trek Allant+ 5 Stagger

£3,000.00

SKU: 5313835

Product Details

The Allant+ 5 Stagger is the ultimate electric city bike for riders looking to accelerate their commute. The frame is designed with a staggered profile that simplifies getting on- and- off and a Bosch smart system offers more connectivity than ever before, so your smart phone can communicate with your bike to log distances and plan routes. It's available with your choice of battery size, ranging from 400- to 800-watt hours, so you can take control of your commute and cruise comfortably all the whole way home

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5 mm QR
Fork SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel
Wheels
Hub front Shimano Tourney HB-QC300, centerlock
Hub rear Shimano FH-QC300-HM, 32-hole, CentreLock, 8-/9-/10-/11-speed, 135x5 mm QR
Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tyre Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
E-system
Charger Bosch standard 2A, 230V, smart system
Computer Bosch Purion 200
Motor Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Drivetrain
Shifter Shimano U4000, 9-speed
Rear derailleur Shimano CUES U4000
*Crank Size: S, M
ProWheel alloy, 170 mm length
Size: L
ProWheel alloy, 175 mm length
Chainring ProWheel 40T narrow/wide steel, w/alloy guard
Cassette Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain Shimano LG500, 9/10/11-speed
Pedal slip-proof pedals with reflectors
Components
Saddle Selle Royal Vivo Moderate Ergo
*Seatpost Size: S, M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: L
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
Grips Herrmans Clik, ergonomic, lock-on
*Stem Size: S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Size: M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Size: L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Brake Shimano MT200 hydraulic disc
*Brake rotor Size: S, M, L
Shimano RT30, CentreLock, 180 mm
Size: S, M, L
Shimano EM300, CentreLock, 180 mm
Accessories
*Light Size: S, M, L
Spanninga SOLO for e-bike
Size: S, M, L
Herrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED, headlight
Kickstand Pletscher Comp Flex 18
Cargo rack MIK-compatible alloy rear rack, maximum load 25 kg
*Mudguard Size: S, M, L
SKS plastic, rear
Size: S, M, L
SKS plastic, front
Weight
Weight M - 24.50 kg / 54.02 lbs (with 545Wh battery)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
