BIG ALL-MOUNTAIN DAYS WHERE TRAVEL AND GEOMETRY MATTER MOST

BUILT FOR ABUSE AND ROWDY RIDING

ENDURO-STYLE RIDING AND RACING

BIG BIKE, BIG WHEELS, BIG FUN

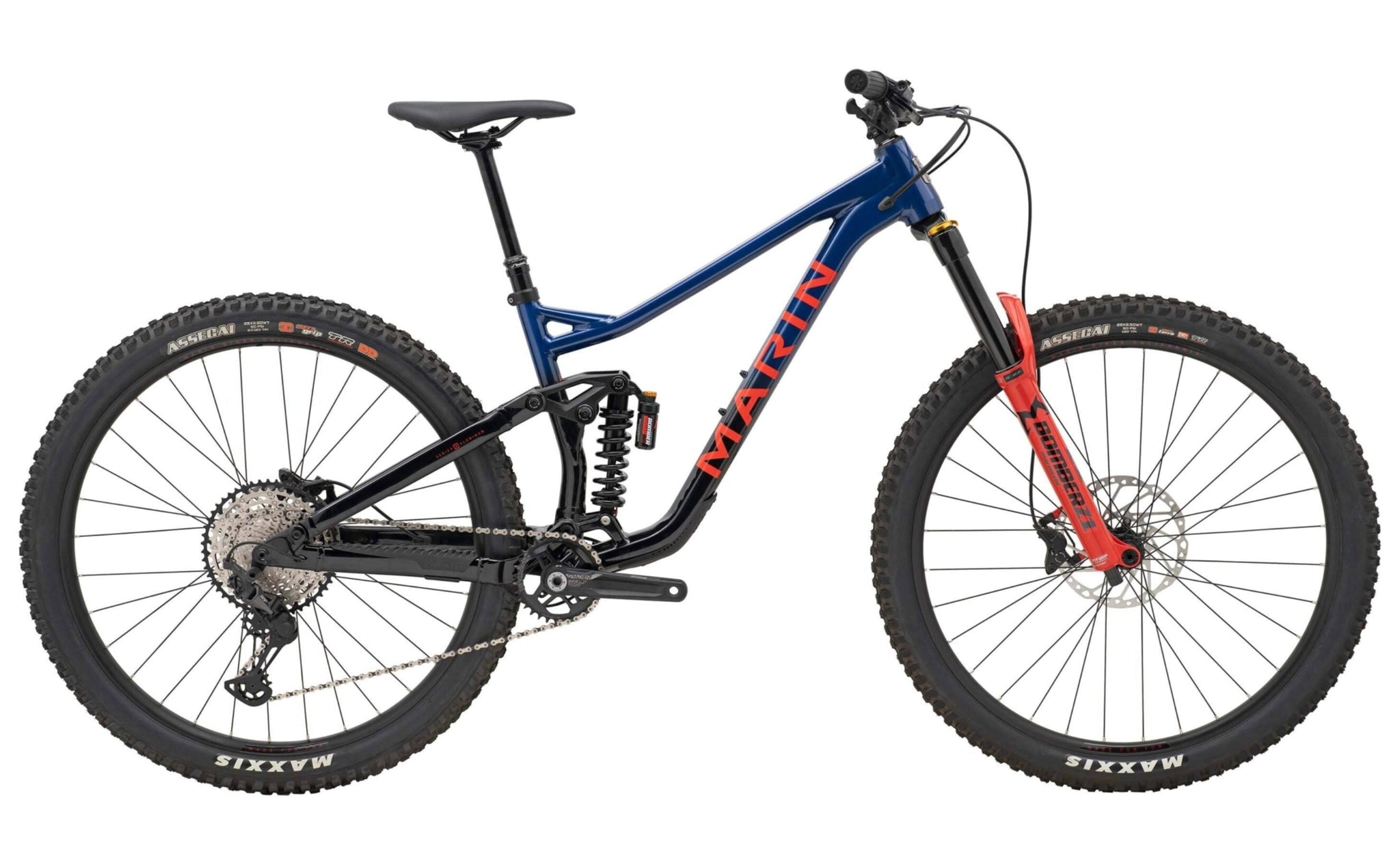

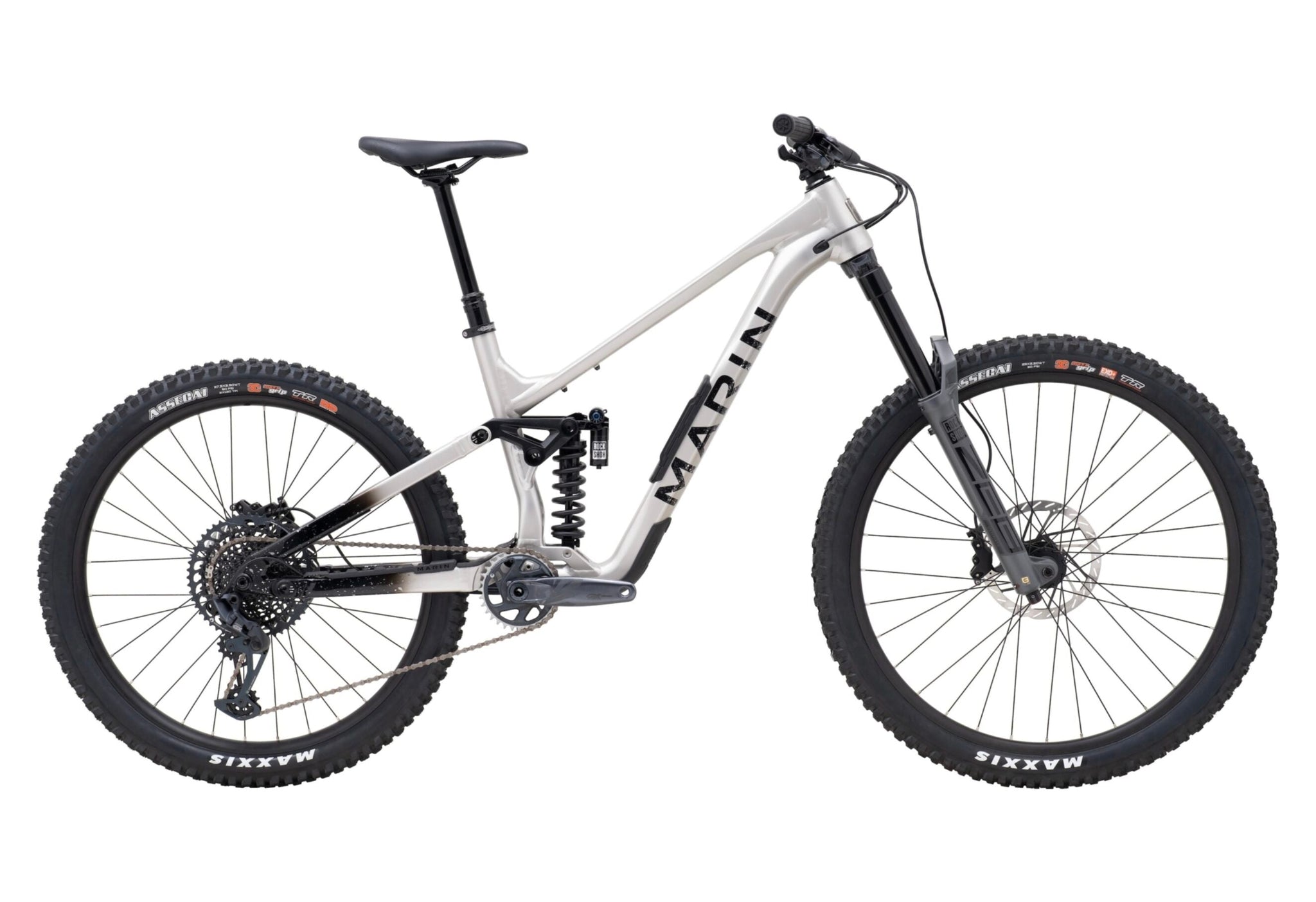

The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.

Specifications

• Frame

  Series 4 6061 Aluminum, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

• Front Suspension

  Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110x15 Kabolt, 44mm Offset, Medium spring rate

• Rear Suspension

  Marzocchi CR Coil, Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount, S/M 350lb Spring, L/XL 450lb Spring

• Rims

  Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible

• Hub, Rear

  Forged Aluminum, 148x12mm, Disc, Microspline Freehub Body

• Hub, Front

  Forged Aluminum, 110x15mm, Disc

• Spoke, Nipples

  14g Black Stainless Steel

• Tires

  Maxxis Assegai 29x2.5", MAXX TERRA, EXO+, Tubeless Compatible

• Derailleur, Rear

  Shimano XT 12-Speed, SGS

• Derailleur, Front

  -

• Shift Lever

  Shimano SLX 12-Speed, SL-7100

• Crankset

  FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mega Eco Spindle, Boost Spacing

• Bottom Bracket

  MegaEvo BB, 73mm BSA Threaded

• Chain

  KMC X-12 Silver and Black

• Cassette

  Shimano SLX M7100 Cassette, 12-Speed, 10-51T

• Brake, Front

  TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor

• Brake, Rear

  TRP Slate EVO, 4-Piston Hydraulic Disc, 180mm Rotor

• Brake Levers

  Shimano BL-M4100, I-Spec EV Compatible

• Handlebar

  Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

• Stem

  Marin CNC, 35mm Length, 35mm Bar Bore

• Grips

  Marin Grizzy Lock On

• Headset

  FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• Seatpost

  X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

• Saddle

  Marin Speed Concept

• Pedals

  -

• Extras

  Bolt-On Thru-Axle

• Extras

  Downtube Protector
