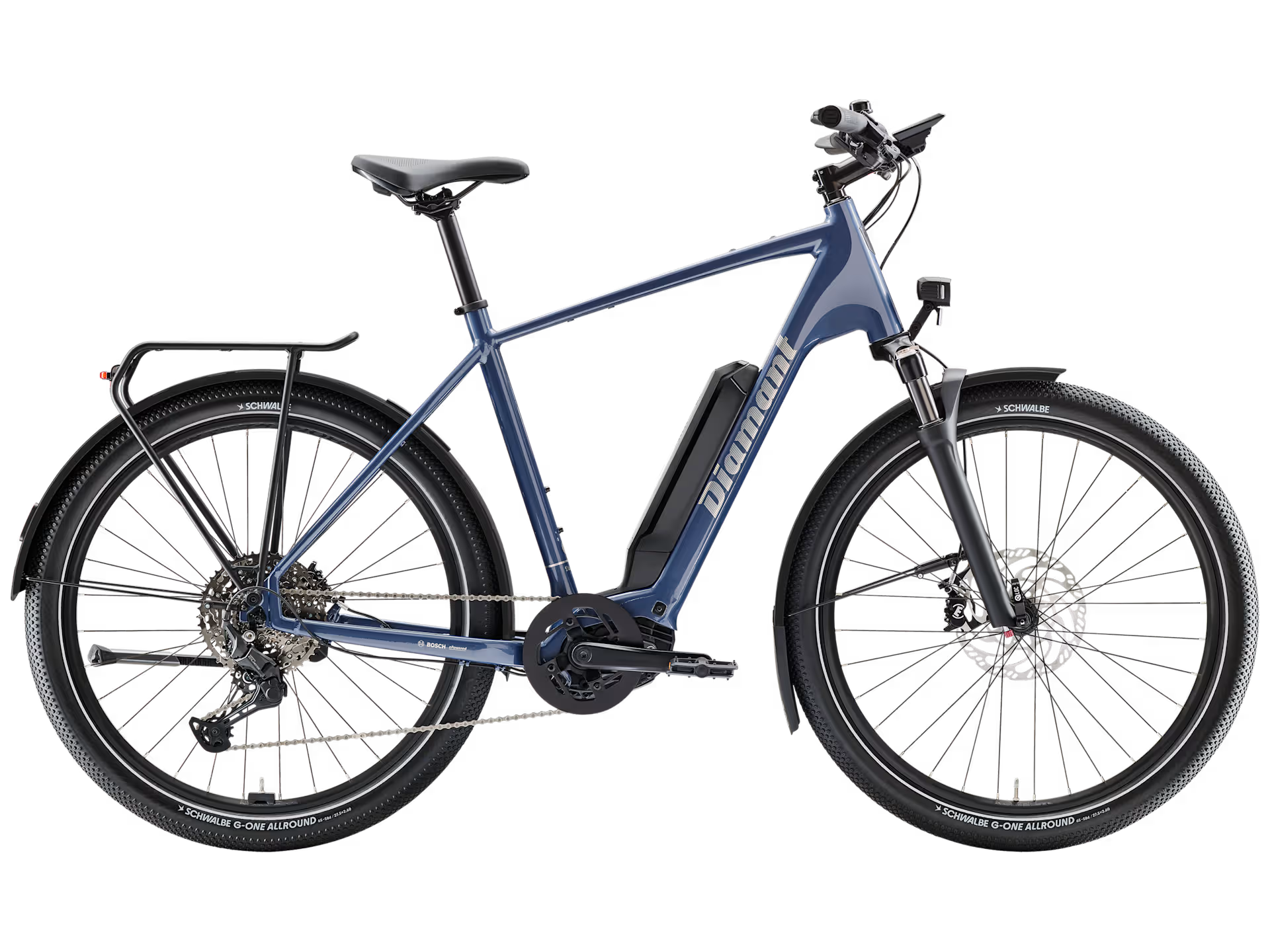

Diamant Zing Trip Plus (Stepover)

£3,200.00



SKU: 5330645

Product Details

Light e-bikes have weak motors, strong e-bikes are too heavy? Not at all! The completely newly developed Zing Trip Plus combines low weight and high performance - and not only saves on equipment but also comes standard for everyday use and vacation. This is made possible by the external battery, which can be easily removed for charging, storage, transport, and overnight stays. The additional equipment caters to more demanding individuals with an interest in extended and dynamic bike tours.



*Please note – spec applies to all sizes unless listed separately

Hub front
Shimano TC500, centerlock, 110x15 mm thru axle
Hub rear
Shimano QC400, 32-hole, centerlock, 135x5 mm
Rim
Spokes
14 g stainless steel, black
Tyre
Schwalbe G-One Allround, reflective strip, wire bead, puncture protection, 65-584

Charger
Bosch standard 4A, 230V, smart system
Controller
Bosch Kiox 500, smart system
Computer
Bosch LED remote, smart system
Motor

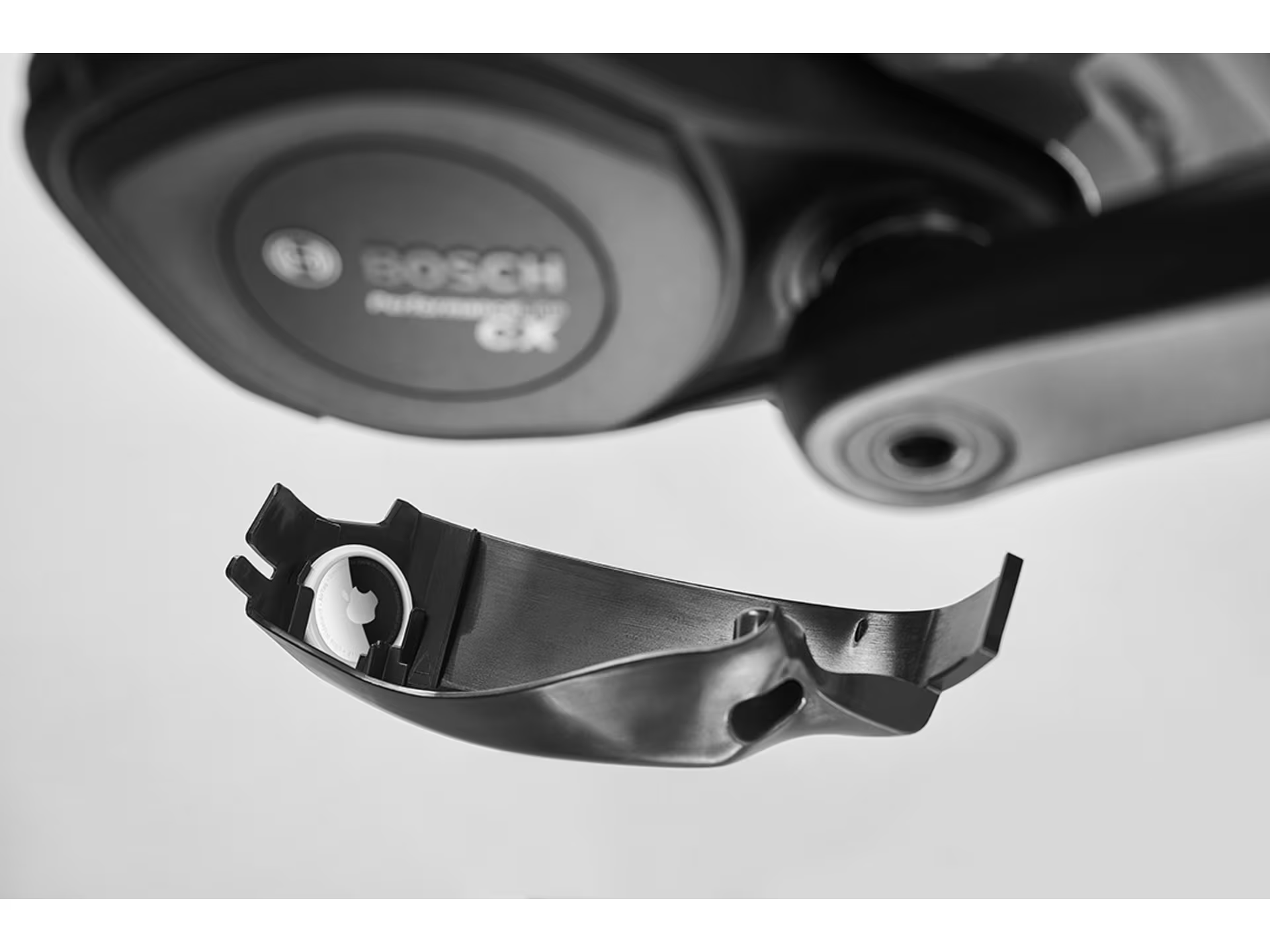

Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)

Shifter
Shimano CUES U6000 w/optical gear display, 10-speed
Rear derailleur
Shimano CUES U6000 GS
*Crank
Size: M
ProWheel alloy, 165mm length
Chainring
Alloy, with 40T narrow-wide steel ring, alloy guard
Cassette
Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed
Chain
Shimano LG500, 9/10/11-speed
Pedal

Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Handlebar
Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
Grips
Ergotec EG Active Flex, lock on, flex adjustment
*Stem
Head set
Brake
Magura MT Thirty, 4-piston hydraulic disc
*Brake rotor
Size: M, L, XL
Magura MDR-C, 180 mm
Size: M, L, XL
Magura MDR-C, 203 mm

*Light
Size: M, L, XL
Spanninga Pimento Large, with brake light
Cargo rack
Mudguard
SKS plastic, rear

Weight
L - 22.10 kg (400 Wh) / 22.90 kg (545 Wh) / 23.80 kg (800 Wh)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
