Product Details

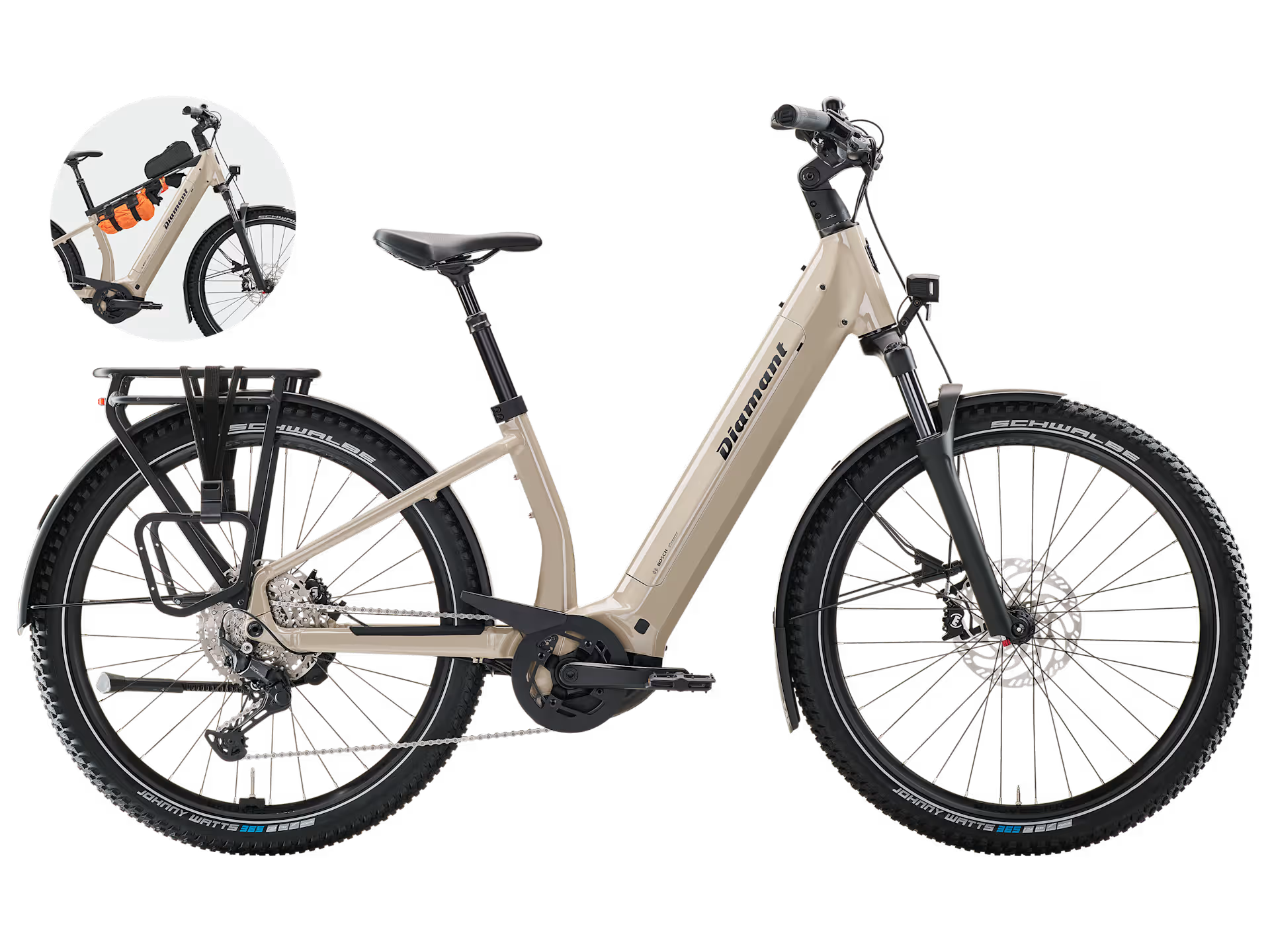

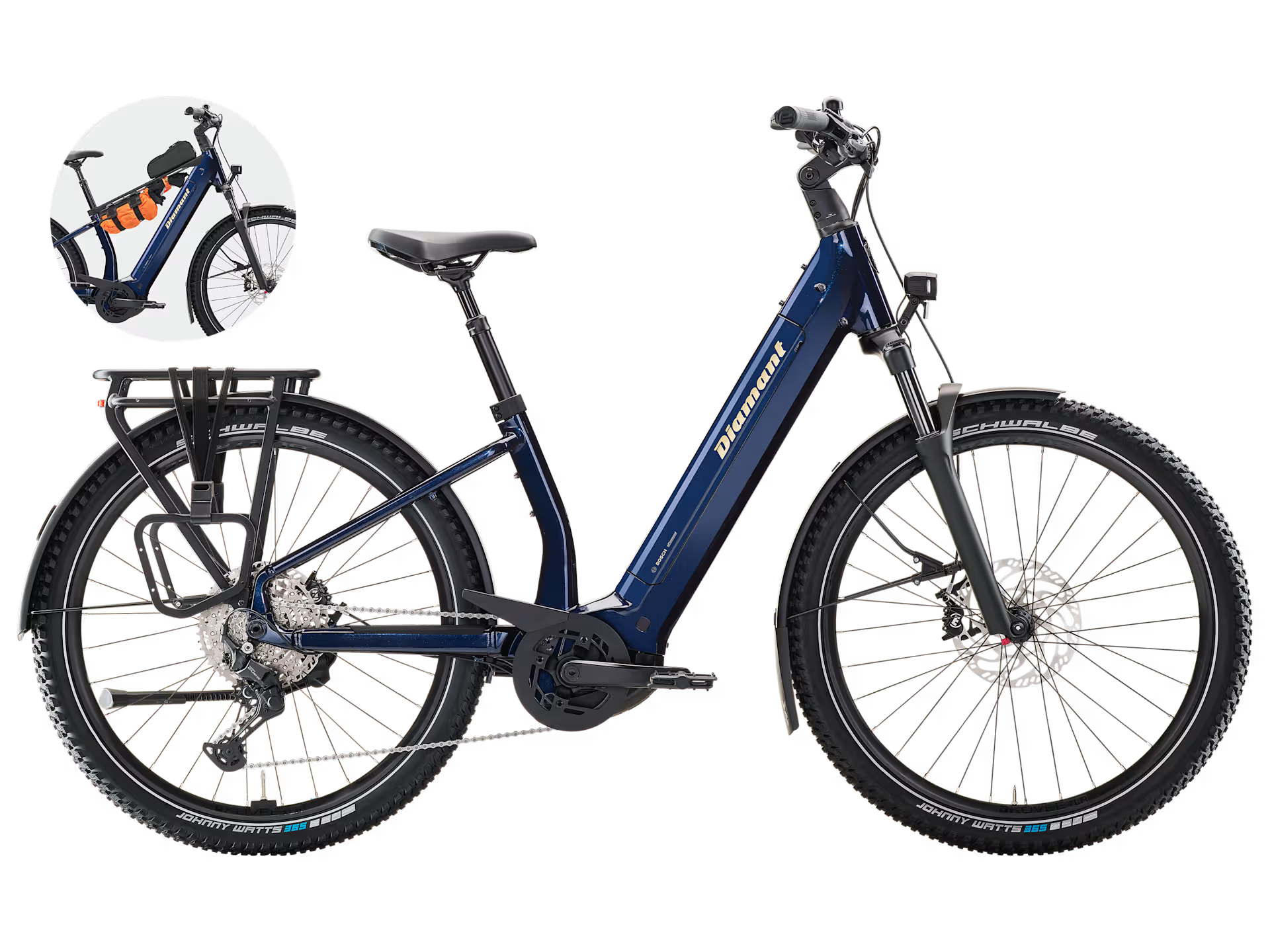

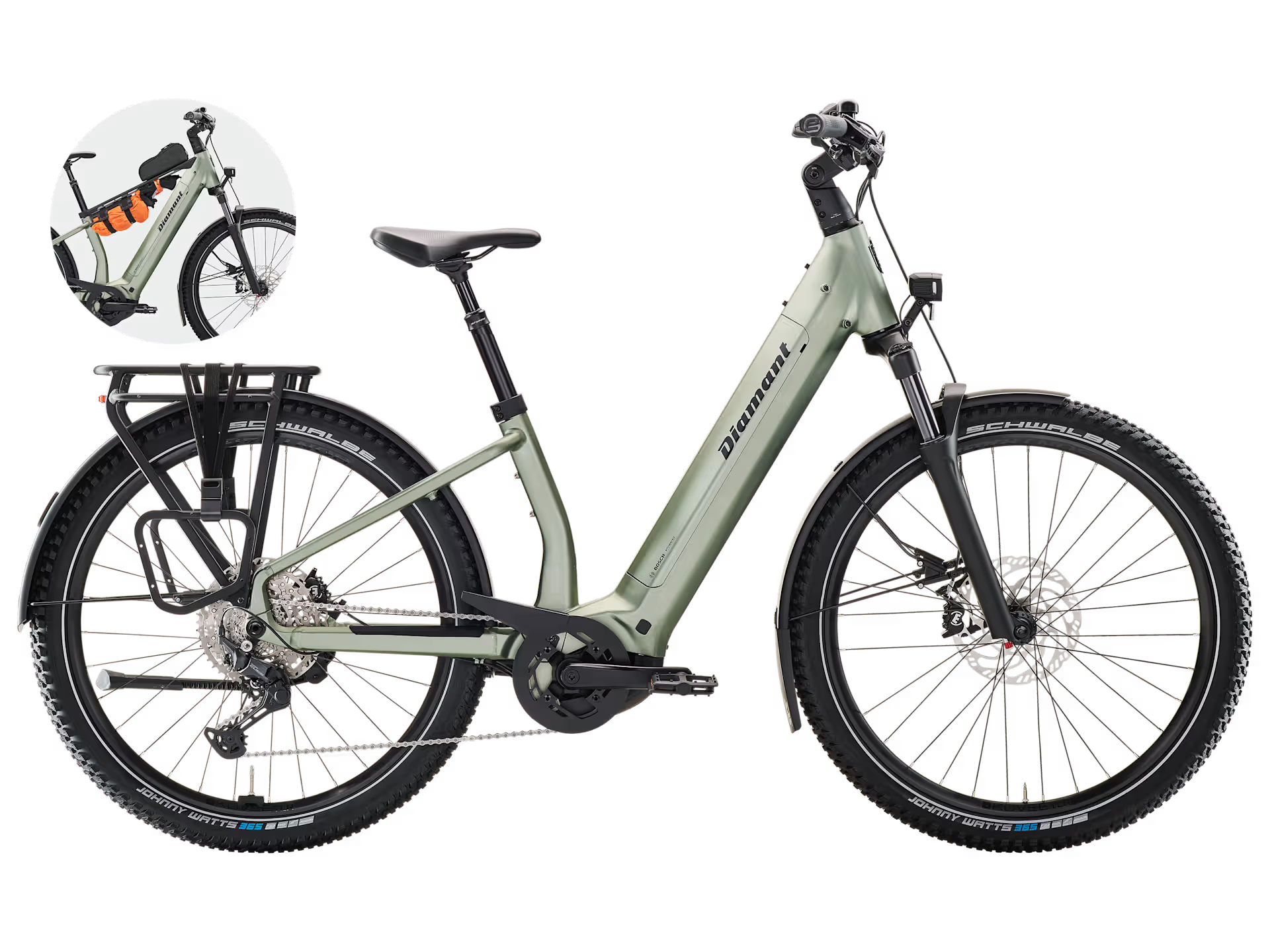

The Suvea E-SUV is not an electric car, but an exciting concept for an e-bike that combines sporty experiences with maximum utility. This includes: range and comfort, safety and control, dynamics and luggage transport. With many innovative approaches like the incredibly versatile Clever Rack Pro, an e-bike is created that moves towards freedom on any terrain.
*Please note – spec applies to all sizes unless listed separately
- Frame
-
High-performance hydroformed alloy, Smart Routing for cables, UDH dropout, belt split, ringlock mount
- Fork
-
SR Suntour Mobie 34, air spring, lockout, 100 mm travel
- Hub front
-
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
- Hub rear
-
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
- Skewer rear
-
Bontrager Switch thru-axle, removable lever
- Rim
- Spokes
-
14 g stainless steel, black
- Tyre
-
Schwalbe Johnny Watts 365, reflective strip, puncture protection, 65-584
- Battery
-
Bosch PowerTube 600
- Charger
-
Bosch standard 4A, 230V, smart system
- Controller
-
Bosch Kiox 500, smart system
- Computer
-
Bosch LED remote, smart system

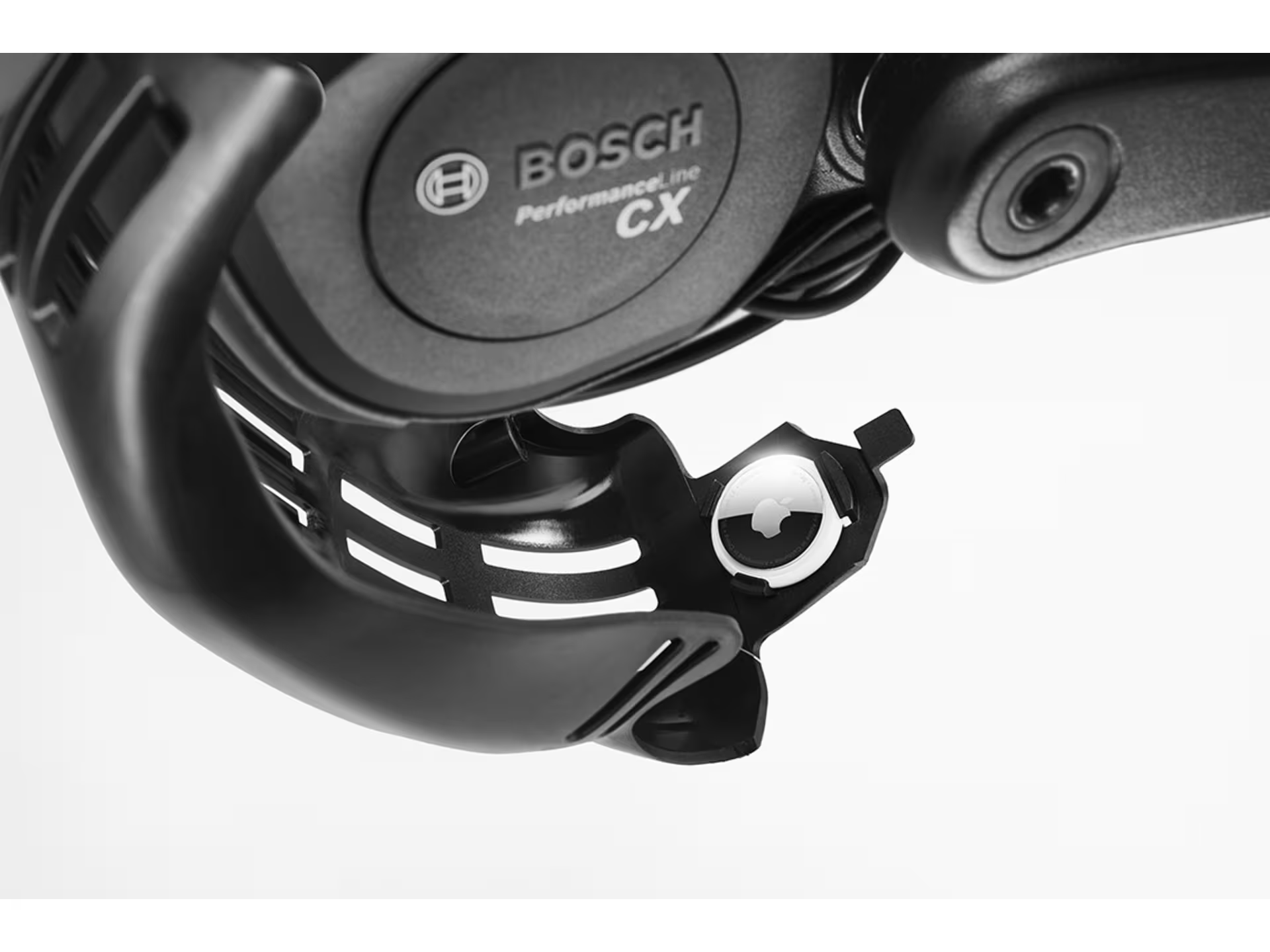

- Motor
-
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
- Shifter
-
Shimano CUES U6000 w/optical gear display, 10-speed
- Rear derailleur
-
Shimano CUES U6000 GS
- *Crank
-
Size: S-M
ProWheel alloy, 165mm length - Chainring
-
Alloy, with 40T narrow-wide steel ring, alloy guard
- Cassette
-
Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed
- Chain
-
Shimano LG500, 9/10/11-speed
- Pedal
- Saddle
-
Selle Royal Vivo Moderate Ergo
- *Seatpost
-
Size: L-XL
Aluminium with suspension, 350 mm long, with adjustable spring rateSize: S-M

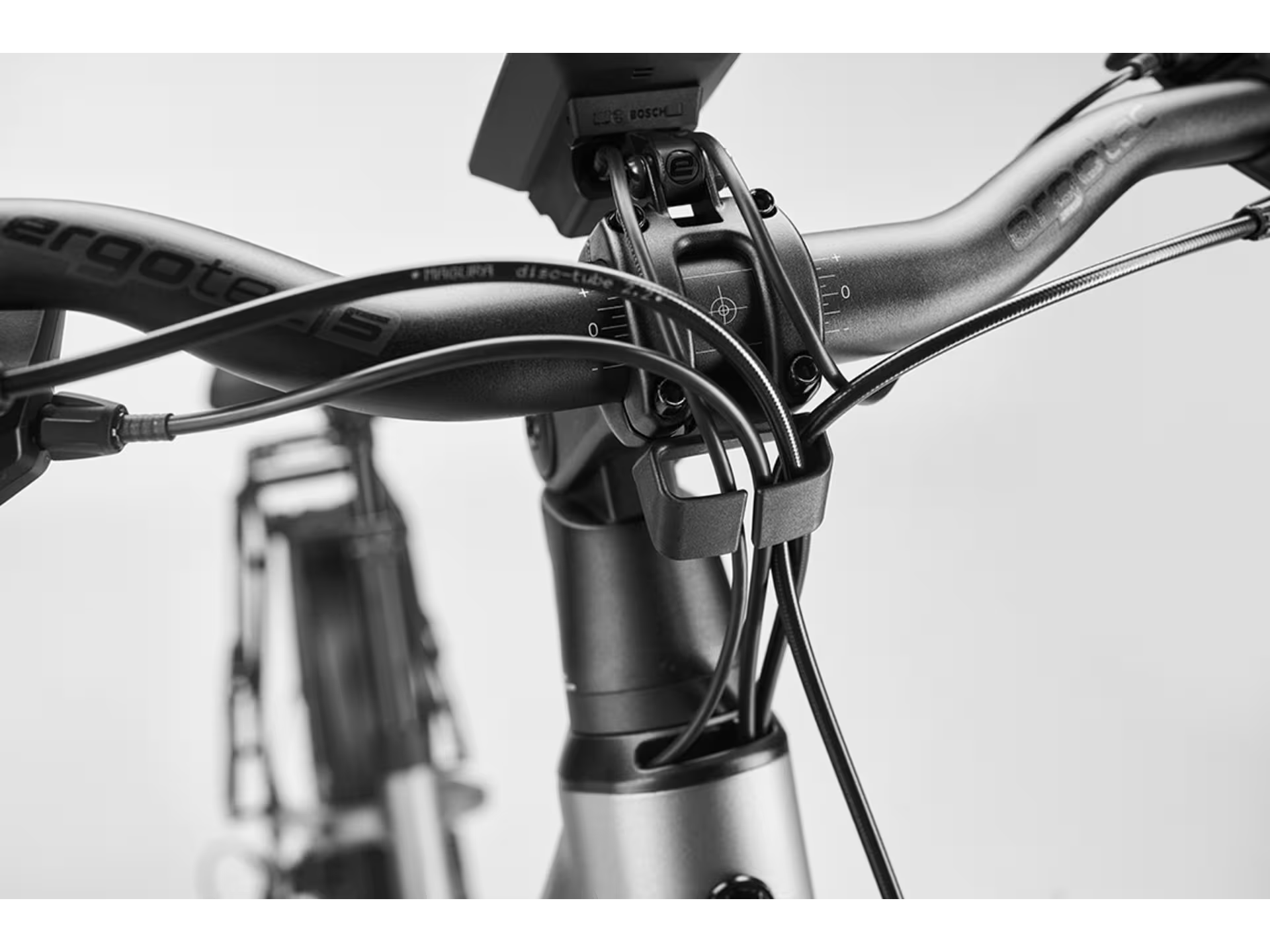

Aluminium with suspension, 300 mm long, with adjustable spring rate - Handlebar
-
Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
- Grips
-
Ergotec EG Active Flex, lock on, flex adjustment
- Stem
- Brake rotor
-
Magura MDR-C, 203 mm
- *Light
-
Size: S-M, L-XL
Herrmans H-Black MR5-E, 140 Lumen, 40 Lux, LED, headlightSize: S-M, L-XL
Spanninga Pimento Large, with brake light - Kickstand
-
Pletscher Comp Flex 40

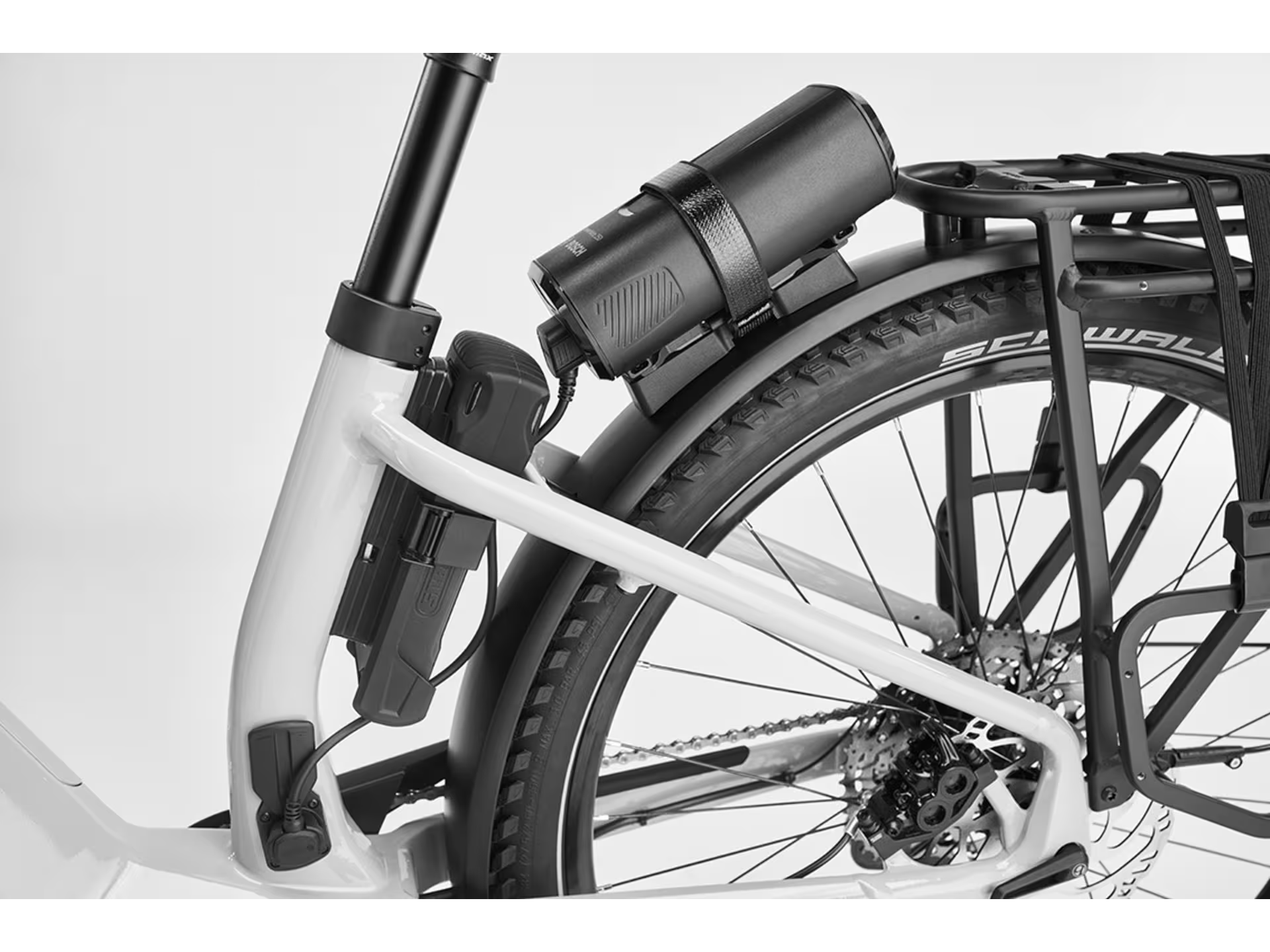

- Cargo rack
-
MIK-compatible alloy rear rack
- Mudguard
-
SKS plastic, rear
- Weight
- S-M - 28.40 kg (600 Wh) / 29.30 kg (800 Wh)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 352 lb (160 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
