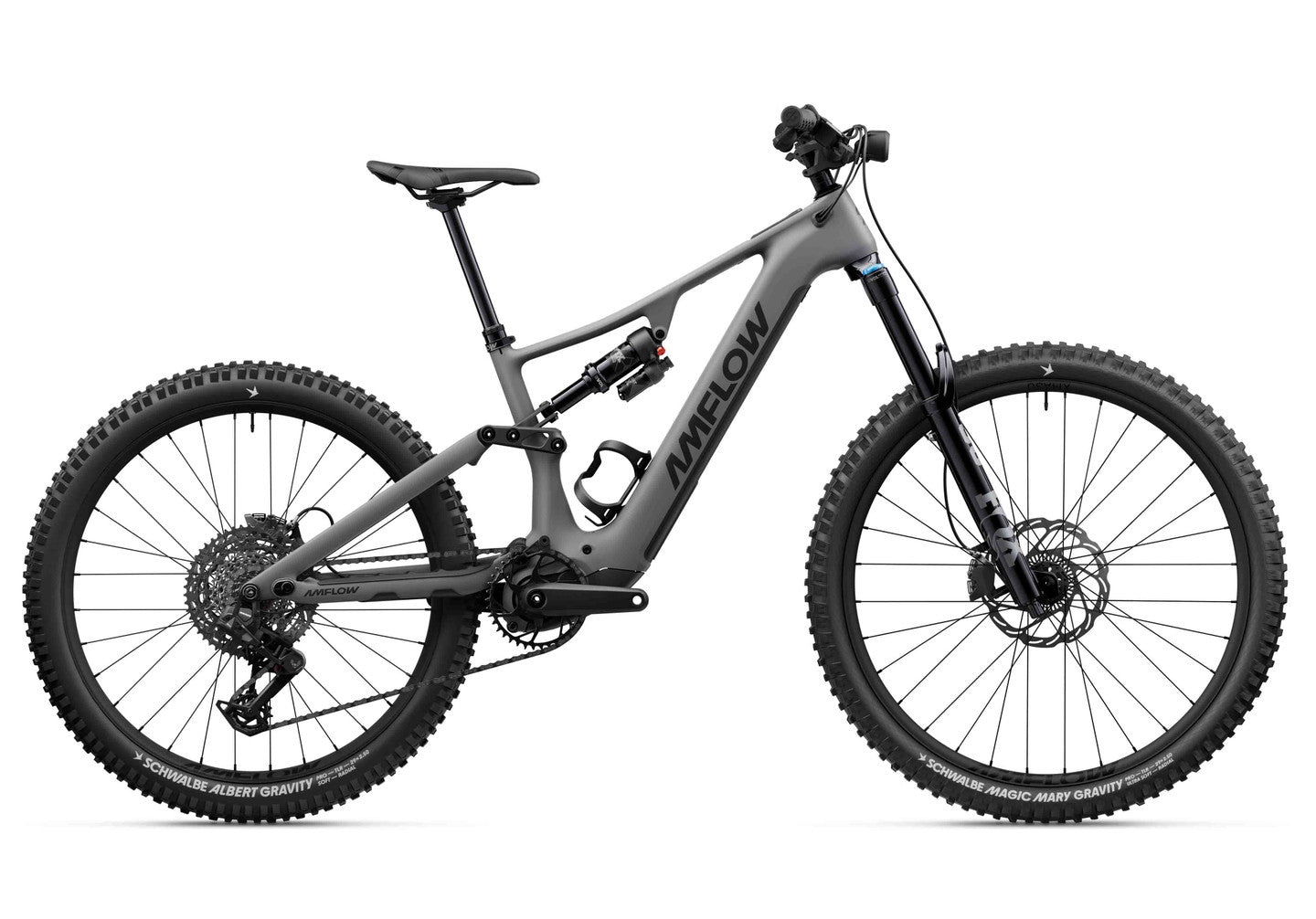

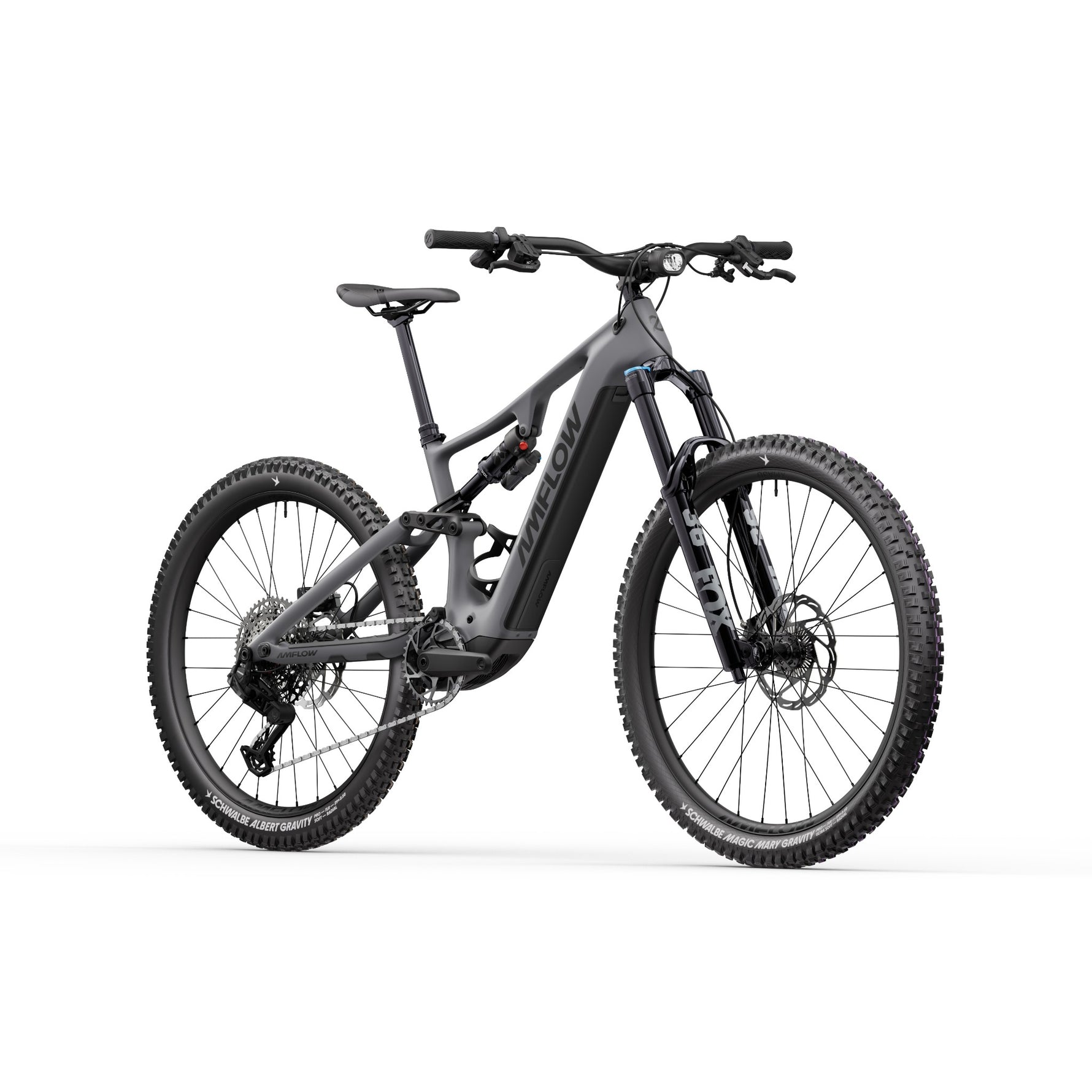

Amflow PR Carbon Pro 2027 – Lightweight Power Meets Big-Mountain Capability

The Amflow PR Carbon Pro 2027 is a next-generation lightweight full-power eMTB, engineered for riders tackling aggressive and demanding terrain. Built around an ultra-light 2.9kg full-carbon frame, the bike achieves a remarkably low overall system weight of just 22kg while delivering exceptional power and control on technical trails.

At the heart of the bike is the latest AVINOX M2S drive system, designed to provide uncompromising climbing performance and refined trail responsiveness. Producing up to 150Nm of peak torque in Boost Mode, the M2S motor delivers immense power while maintaining smooth and predictable traction across varied terrain. The frame and motor platform have been developed together from the ground up, creating a highly integrated riding experience that balances raw power with precision handling.

AVINOX M2S Drive System

The AVINOX M2S motor represents the newest evolution of the AVINOX eMTB platform, combining compact dimensions, advanced sensor integration, and industry-leading power delivery.

Motor Highlights

Powerful Performance

• 130Nm standard torque
• 150Nm peak torque in Boost Mode
• Up to 1300W peak power output
• 250W nominal power
• 800% assistance support

Compact Design

• Dimensions: 107mm (H) × 172mm (L)
• Weight: 2.65kg

Advanced Technology

• Multi-sensor fusion algorithm
• Integrated IMU
• Torque, cadence, and wheel speed sensors
• Barometer, compass, and ambient light sensor
• Intelligent traction-style assistance for smooth power transfer and improved grip

Built for Harsh Conditions

• IP66-rated water resistance

Riding Assistance Modes

The PR Carbon Pro features five intelligent riding modes designed to adapt to different terrain and riding styles.

ECO

Optimised for efficiency and long-distance riding with reduced assistance on flatter terrain.

AUTO

Automatically adjusts support levels in real time using the AVINOX sensor fusion system to match terrain resistance and rider input.

TRAIL

Balanced assistance for technical and mixed-terrain riding.

TURBO

Maximum support for steep climbs and difficult trail obstacles.

BOOST

Delivers up to 150Nm of torque and 1300W peak power for up to 60 seconds, ideal for extreme climbs and high-demand situations.

Lightweight Full-Power eMTB

Despite its full-power drive system and high-capacity battery, the Amflow PR Carbon Pro weighs just 22kg, making it one of the lightest bikes in its category. The lightweight carbon construction contributes to agile handling and improved responsiveness on technical descents and climbs.

Smart Heart Rate Control

The AVINOX Ride App introduces an intelligent heart-rate-based assistance system. Riders simply pair a compatible heart rate monitor and select their preferred heart rate zone. The motor system then automatically adjusts assistance levels in real time, helping riders maintain consistent effort and improve endurance management.

Removable 800Wh Battery System

The new AVINOX RS800 removable battery combines large capacity with low weight and practical usability.

Battery Features

• 800Wh capacity
• Quick-release removable design
• Approximate battery weight: 4kg
• Up to 158km claimed range
• Seamless integration with the AVINOX M2S system

Combined with the M2S motor, the system is capable of delivering up to 1500W peak power for sustained high-performance riding.

Integrated Display & Smartphone Connectivity

The AVINOX Control Display is fully integrated into the bike’s frame and acts as the central control hub for the entire system.

Display Features

• 2-inch full-colour OLED touchscreen
• Real-time ride metrics
• Estimated range display
• Quick-access display controls
• Smartphone connectivity via the AVINOX Ride App

The clean integration keeps the cockpit uncluttered while providing essential ride information at a glance.

Amflow 2027 Model Comparison

The PR Carbon Pro sits within the wider Amflow 2027 lineup alongside the PX and PL models. Riders can compare the range to better understand the differences in battery configuration, frame design, motor systems, and component specification.

Key Comparison Areas

• Removable 800Wh battery vs integrated 700Wh systems
• 125Nm AVINOX M2 vs 150Nm AVINOX M2S motors
• Reinforced PR chassis vs ultra-light PX carbon frame
• Suspension, drivetrain, and wheelset specifications

The PR Carbon Pro is positioned as the ideal balance between long-range capability, removable battery practicality, and high-performance trail riding.
