Madone SLR Disc frame set is the ultimate platform for a custom aerodynamic road bike. It's built with our all-new, ultralight 800 Series OCLV Carbon layup and road-smoothing Adjustable Top Tube IsoSpeed.

*Please note – spec applies to all sizes unless listed separately

Frameset
Frame 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Fork Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit H1.5 Race

Weight
Weight 56 - 1.97 kg/4.35 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Drivetrain
Front derailleur Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)

Wheels
Skewer front Bontrager Switch thru axle, removable lever
Skewer rear Bontrager Switch thru-axle, removable lever
Max tyre size 28mm

Components
Seatpost Not included
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Cart 0 items Benin (XOFFr)

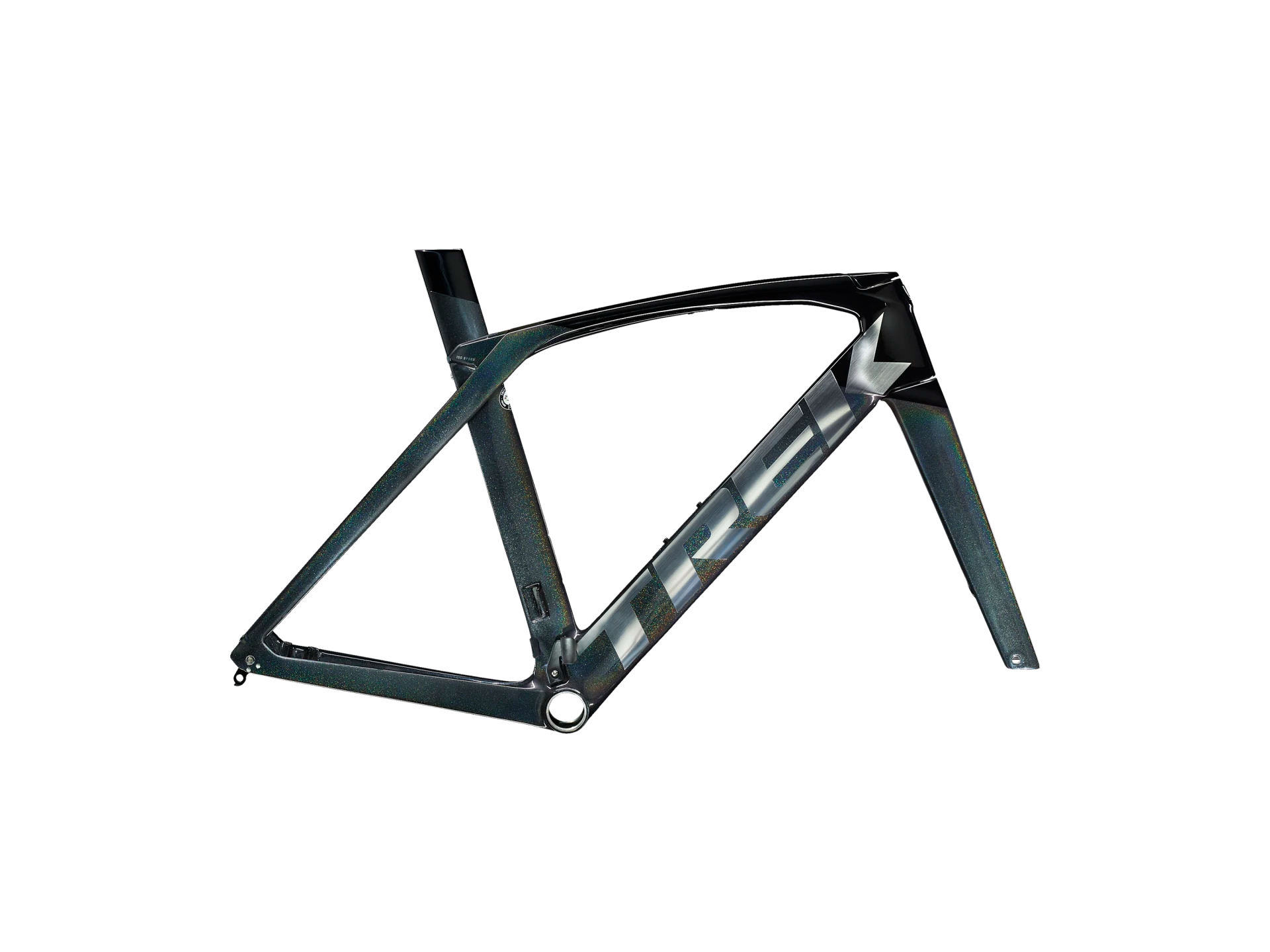

Trek Madone SLR Gen 6 Frame Set
