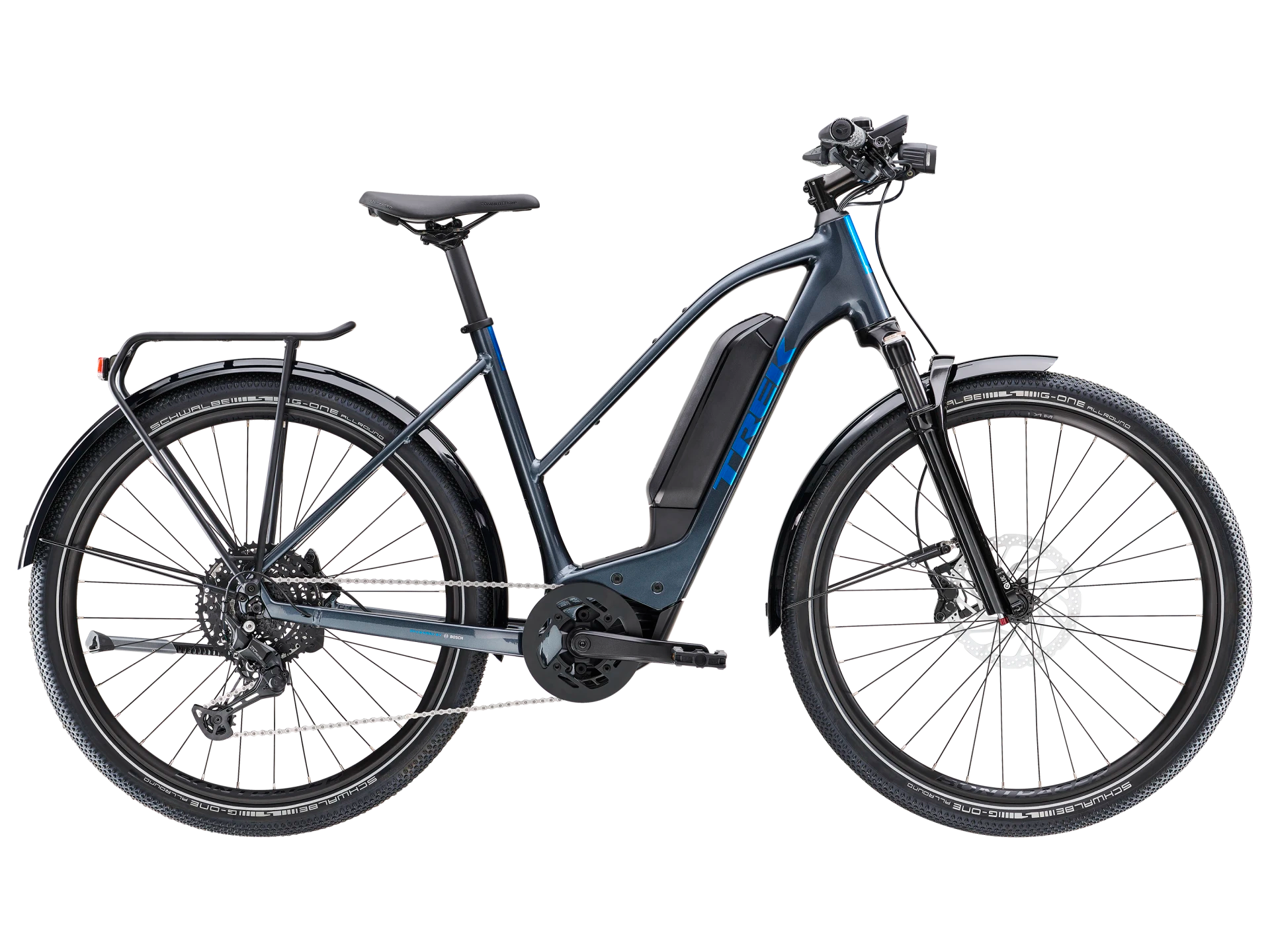

Trek Allant+ 6 Stagger
£3,425.00
Product Details
The Allant+ 6 Stagger is a deluxe city electric bike for soaring through commutes and exploring down gravel paths. It's equipped with the Bosch smart system that offers more connectivity than ever before. Pair your smartphone with your bike to log activities, plan routes and more. Available with your choice of battery size, ranging from 400 to 800-watt hours, so you can cruise comfortably all the way home. Plus, it's topped off with upgraded components where it matters most.
*Please note – spec applies to all sizes unless listed separately
| Frame | High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5 mm QR |
|---|---|
| Fork | SR Suntour Mobie 34, air spring, rebound and compression adjust, tapered alloy steerer, 100x15 mm thru axle, 60 mm travel |
| Hub front | Bontrager sealed bearing, 32-hole, 15 mm alloy thru-axle |
|---|---|
| Hub rear | Formula CL-52 alloy, 135x5 mm QR |
| Skewer rear | 148x5 mm bolt-on |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584 |
| Charger | Bosch standard 4A, 230V, smart system |
|---|---|
| *Computer |
Size: S, M, L Bosch Kiox 300, smart system |
|
Size: S, M, L Bosch LED remote, smart system |
|
| Motor | Bosch Performance Line CX, 20 mph (25 km/h in Europe) |
| Shifter | Shimano CUES U6000 w/optical gear display, 10-speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank |
Size: S, M ProWheel alloy, 170 mm length |
|
Size: L ProWheel alloy, 175 mm length |
|
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | slip-proof pedals with reflectors |
| Saddle | Bontrager Commuter Comp |
|---|---|
| *Seatpost |
Size: S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
Size: L Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width |
| Grips | Bontrager XR Endurance Elite |
| *Stem |
Size: S, M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length |
|
Size: L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
| *Brake |
Size: S, M, L Shimano MT401 / MT420 hydraulic disc, 180 mm rotor |
|
Size: S, M, L Shimano MT401/MT420 hydraulic disc |
|
| *Brake rotor |
Size: S, M, L Shimano RT30, CentreLock, 203 mm |
|
Size: S, M, L Shimano EM300, CentreLock, 180 mm |
| *Light |
Size: S, M, L Spanninga SOLO for e-bike |
|---|---|
|
Size: S, M, L Herrmans H-Black MR9-E, 60 lux, LED, headlight |
|
| Kickstand | Pletscher Comp Flex 18 |
| Cargo rack | MIK-compatible alloy rear rack, maximum load 25 kg |
| *Mudguard |
Size: S, M, L SKS plastic, rear |
|
Size: S, M, L SKS plastic, front |
| Weight | M - 23.10 kg / 50.93 lbs (with 545Wh battery) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
