Frameset

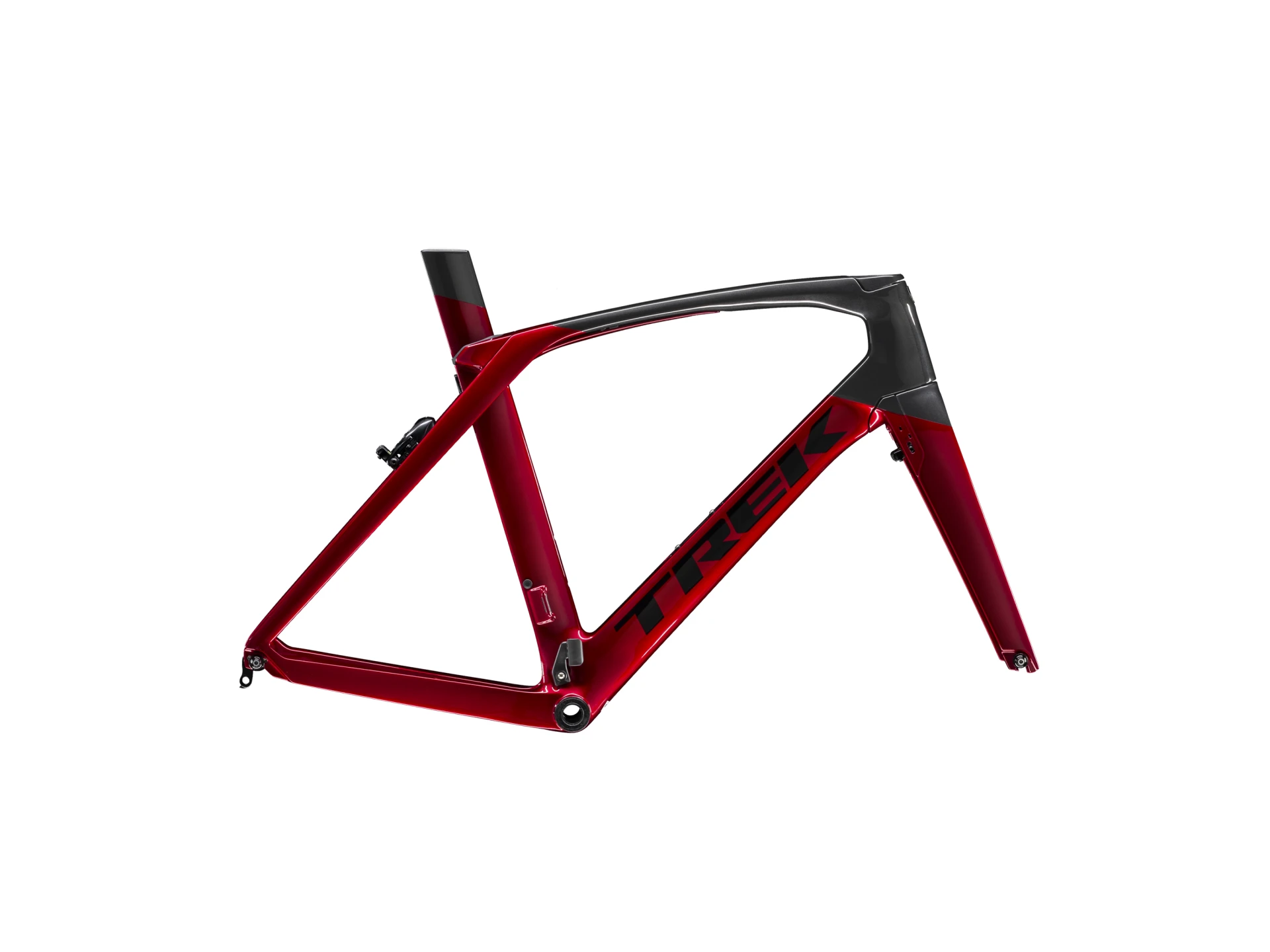

Frame    700 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control centre, micro-adjust seat mast, precision water bottle placement, 3S aero chain keeper, direct-mount rim brake, DuoTrap S-compatible, 130x5 mm QR
Fork    Madone KVF full carbon, tapered carbon steerer, invisible cable routing, carbon dropouts, 5x100 mm QRMy Account
Frame fit    H1.5 Race

Weight
Weight    56 - 2.44 kg
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).Open cart

Drivetrain
Front derailleur    Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs)
Bottom bracket    Trek BB90
Max. chainring size    1x: 50T, 2x: 54/40

Wheels
Max tyre size    28mm

Components
Seatpost    Not included
Brake    Madone aero, integrated, SwissStop Flash EVO Black Prince pads

Rotor size    Max brake rotor sizes: 160mm front & rearOpen search bar
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
