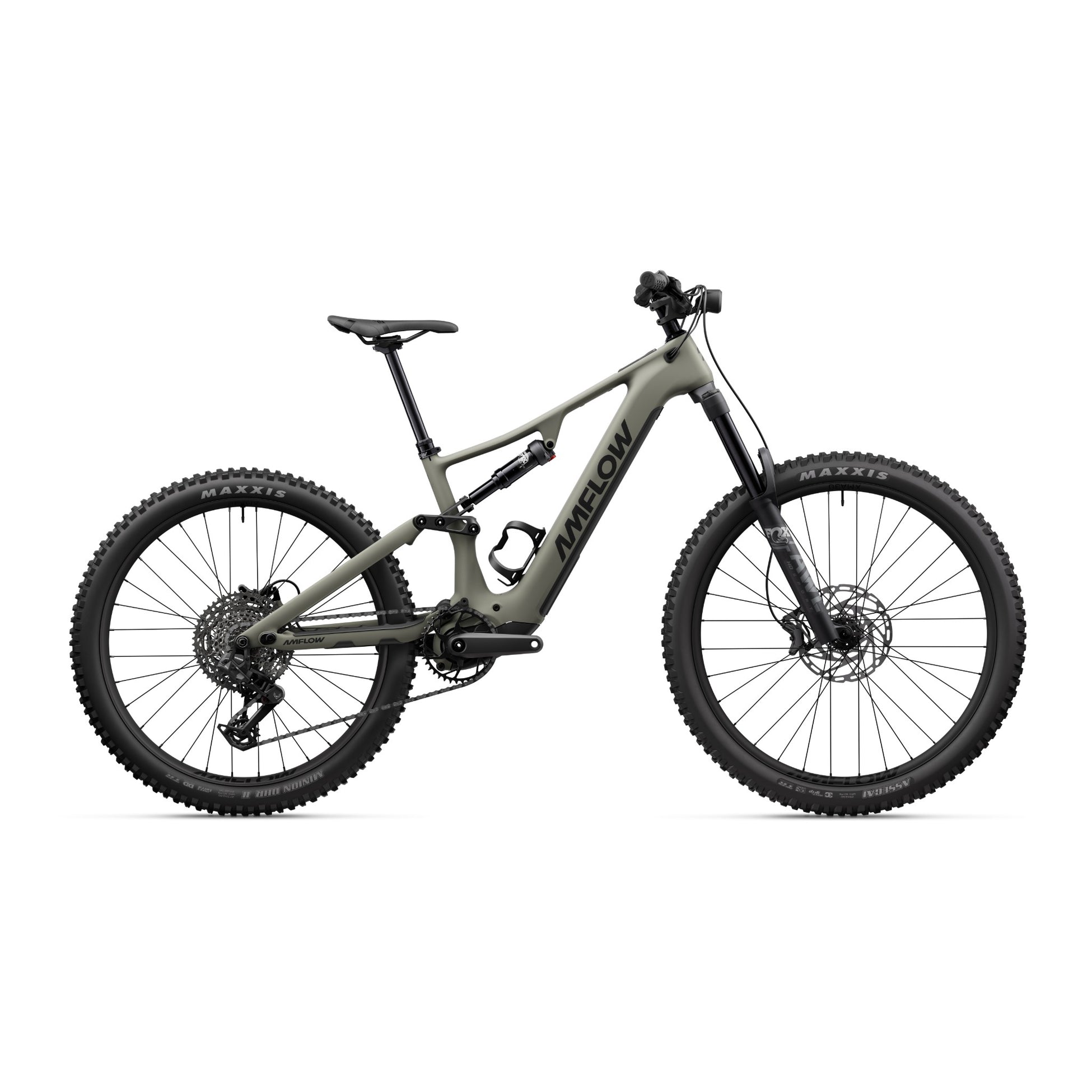

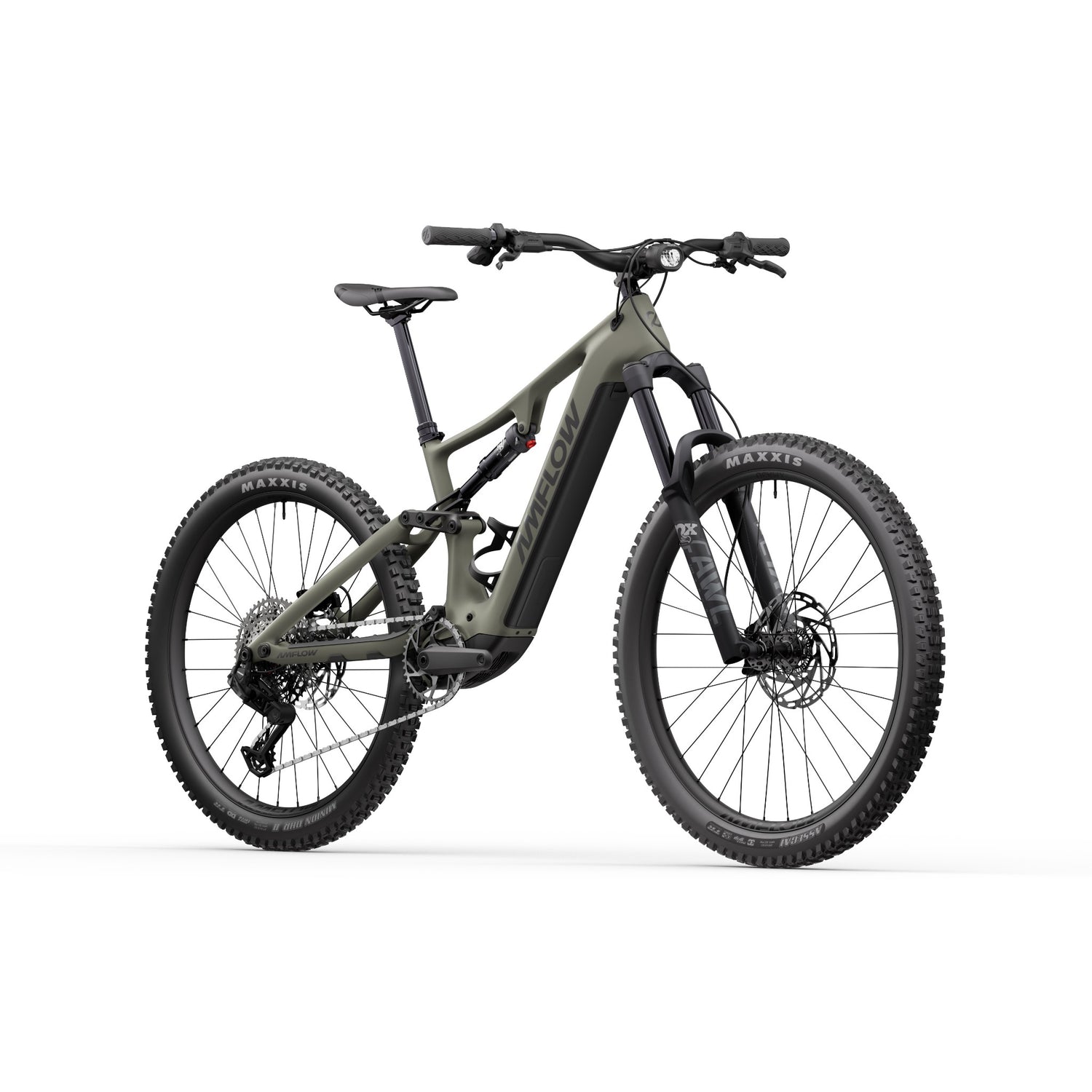

The Amflow PR Carbon is a full-power electric mountain bike built around a lightweight full-carbon frame and Amflow's own Avinox M2 drive system. At £3,999 it represents the entry point to the PR Carbon range, but that shouldn't suggest it's a compromise — this is a genuinely capable trail and enduro-oriented e-MTB with a thoughtful, well-rounded component spec.

Helmets

The Avinox M2 motor delivers up to 125N·m of peak torque and works seamlessly with the SRAM S1000 Eagle Transmission electronic drivetrain via Amflow's SmoothShift function, which allows you to change gear while coasting — handy when you're managing technical sections or trying to maintain cadence on variable gradient. An 800Wh removable battery sits within the frame and can be charged in situ or pulled out entirely for swapping, which makes longer days in the hills considerably more manageable. It ships with a 168W charger as standard.

About Us

Suspension is handled by a FOX AWL HD Sport fork up front — running 160mm of travel with a RAIL 2.0 damper and Sweep/LSR adjustment — paired with a FOX Float Rhythm rear shock. Both are custom-tuned to the PR Carbon's kinematics to find the right balance between sensitivity and support. The mullet wheel setup (29-inch front, 27.5-inch rear) keeps rollover confidence high on rougher ground while maintaining the agility you want through tighter, more technical sections. Tyres are a Maxxis Assegai 29×2.50 (3C MaxxGrip, EXO+, TR) on the front and a Maxxis DHR II 27.5×2.50 (MaxxTerra, DD, TR) on the rear — a proven gravity-focused combination that covers most trail conditions well.Gloves

Braking is handled by Tektro TKD173 four-piston hydraulic disc brakes with 203mm rotors, developed in collaboration with Amflow. The drivetrain runs a 38T chainring and SRAM XS-1270 10-52T cassette, operated via SRAM AXS Pod Controllers. The Avinox 2-inch OLED Control Display handles ride data, motor modes and features offline navigation (GPX/FIT/TCX route import), Apple Find My location tracking, and Bluetooth connectivity. The system also supports Auto mode, which adjusts motor output in real time based on riding conditions, and Boost mode for maximum torque on the steepest climbs. Contact Us

Clothing

One of the PR Carbon's most distinctive features is its adjustable geometry system. Head tube angle (five positions spanning ±1°), bottom bracket height (two positions — 349 or 353mm) and chainstay length (440–452mm) can all be independently adjusted, giving up to 40 theoretical geometry configurations. Whether you're chasing grip and stability on a big descent or looking for a more efficient, agile setup on mellower terrain, there's room to dial it in.

Blog

FeaturesSocks

EssentialsTrack Service Progress
• Full carbon frame, approximately 2.9kg (Size M) — available in Moss Green
Cleaners, Degreasers and Lubrication
• Avinox M2 drive unit — 110N·m nominal torque, 125N·m peak torque; quiet, smooth power delivery Building Your Bike From the Box
• 800Wh removable battery — charge in the bike or remove for swapping or home chargingAccessories
Insure Your Bike
• FOX AWL HD Sport fork (MY 2027) — 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, custom-tuned
Maintenance
• FOX Float Rhythm rear shock (MY 2027) — 210×55mm, LSR adjustment, custom-tuned Privacy Policy
• 29-inch front / 27.5-inch rear (mullet) wheel setup on Amflow XMA-30 alloy rims with SAPIM E-Light spokes
Cookie Policy
• Maxxis Assegai 29×2.50 (3C MaxxGrip, EXO+, TR) front tyre and Maxxis DHR II 27.5×2.50 (MaxxTerra, DD, TR) rear tyre — tubeless ready
• Tektro TKD173 four-piston hydraulic disc brakes, 203mm rotors, Amflow custom spec Terms of Service
Sell Your Bike
• SRAM S1000 Eagle Transmission electronic drivetrain — 38T chainring, 10-52T cassette, AXS Pod Controllers
Refund policy
• SmoothShift — shift gears while coasting, deeply integrated with the Avinox drive system
Contact Us
• Avinox 2-inch OLED Control Display — offline navigation, Apple Find My tracking, OTA updates, Bluetooth
• Auto mode and Boost mode for intelligent or maximum power assistance
Finance
• 40 adjustable geometry configurations — head tube angle, bottom bracket height and chainstay length all independently adjustable
Open cart
• Amflow dropper post with adjustable travel shim (190mm / 210mm / 230mm depending on frame size)
Open search bar
• Includes 168W charger, Avinox front light, bottle cage, torque wrench, shock pump, pedals and clear frame protection film

Sizing

The Amflow PR Carbon is available in four frame sizes. The height ranges below are a useful starting point, but where sizes overlap, reach is the most important measurement for fit — a longer reach suits riders who prefer a more stretched, aggressive position, while a shorter reach works better for those who prefer to sit more upright. { "@context": "http://schema.org", "@type": "Organization", "name": "ProjektRide","logo": "https:\/\/projektride.co.uk\/cdn\/shop\/files\/logo-svg-white_1592x.svg?v=1676480383","sameAs": [ null, null, null, null, null, null, null ], "url": "https:\/\/projektride.co.uk" }

Search for products on our site

• M  Close — 157–173cm (5'2"–5'8") — Reach: 452mm, Stack: 626mm
• L   — 173–183cm (5'8"–6'0") — Reach: 475mm, Stack: 637mm
• XLHome   — 180–191cm (5'11"–6'3") — Reach: 500mm, Stack: 649mm Suggested search terms
Hire
• XXL  BikesAbout Us— 191–198cm (6'3"–6'6") — Reach: 527mm, Stack: 662mm
