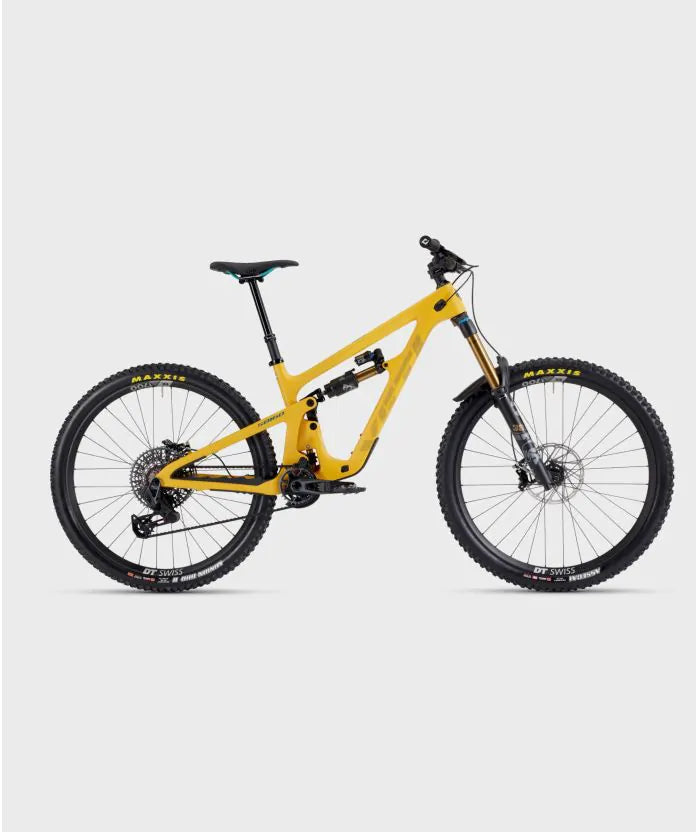

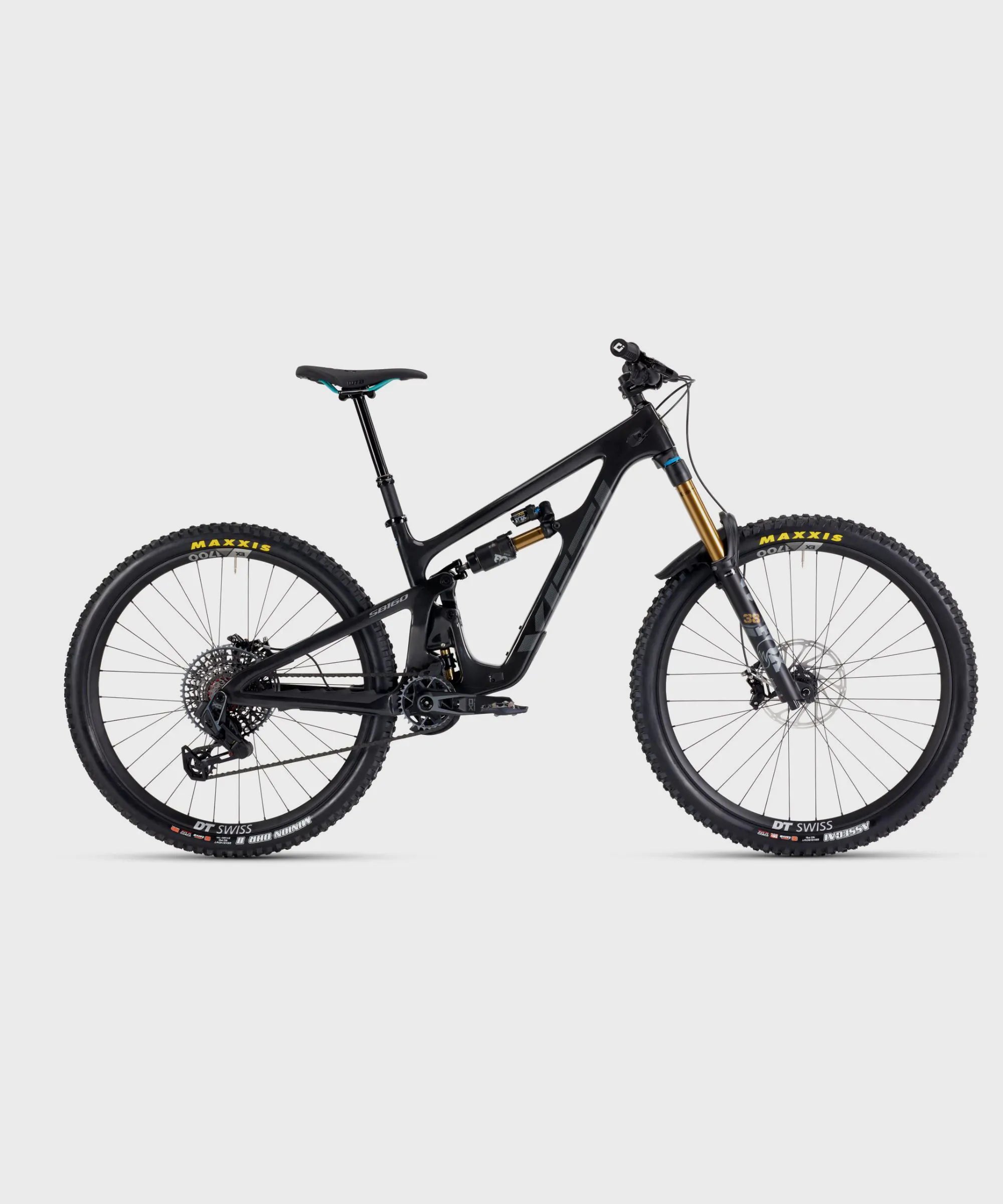

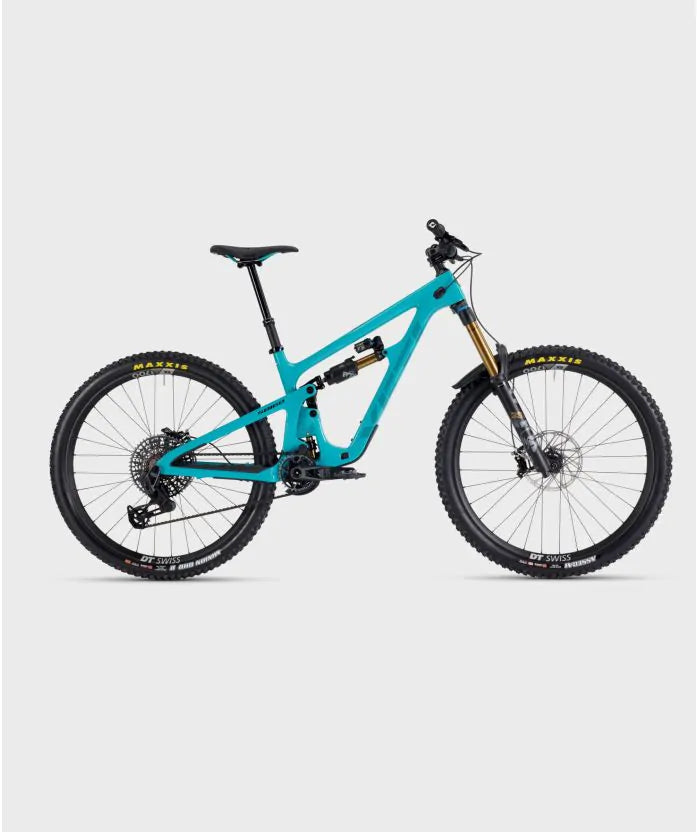

Yeti Cycles SB160 T-Series T3 29" Bike
£9,499.00
Product Details
Upholding a time-tested, race-bred ethos that says nothing should hold a rider back from the sheer joy of untethered speed. Built off one of the most winning race platform in EWS history, the sb160 is pure race machinery. Honed for more. Be fastest.
160MM
FRAME TRAVEL
170MM
FORK TRAVEL
17%
LEVERAGE RATE
29"
WHEEL SIZE
64°
HEAD TUBE ANGLE
77.5°
EFF. SEAT ANGLE
HIGHLIGHTS
- Fox Factory 38 & Fox Float X2 Shock
- Fox Transfer dropper post
- Custom DT Swiss EX1700 wheels
- 4 piston CODE brakes
- ODI Elite Pro grips
- 200mm front and rear rotors
- Maxxis Assegai 2.5 EXO+ & Minion DHR 2.4 DD casing
- Downhill tested and used by the Yeti Fox Factory team
FRAME HIGHLIGHTS
- Switch Infinity assembly on T-Series
- Threaded bottom bracket
- High-clearance downtube
- Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Compact-wishbone shock extender
- Downhill tested
- Yeti/Fox Factory team approved
- Boost spacing
- Sizes S-XXL
FROM LEGACY TO DYNASTY
The Yeti/Fox Factory Team won 51 EWS stages, 12 EWS races, and 1 national series championships aboard the SB150. The SB160 builds momentum on this legacy of excellence. Honed. Refined. Even effing faster.
SIZE GUIDE
| SMALL | 5'1" - 5'7" | ||||
| MEDIUM | 5'5" - 5'11" | ||||
| LARGE | 5'10" - 6'3" | ||||
| X-LARGE | 6'1" - 6'7" | ||||
| XX-LARGE | 6'5" - 6'11" |
SPECIFICATION
TURQ Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
| FORK | FOX FACTORY 38 GRIP X2 / 170MM |
| SHOCK | FOX FACTORY FLOAT X2 |
| TYRE (F) | MAXXIS ASSEGAI 2.5 EXO+ |
| TYRE (R) | MAXXIS MINION DHR II 2.4 DD |
| ROTOR (F) | SRAM CENTERLINE 200 |
| ROTOR (R) | SRAM CENTERLINE 200 |
| HEADSET | CANE CREEK 40 INTEGRATED |
| WHEELSET | DT SWISS CUSTOM EX1700 30MM |
| BB | SRAM DUB BSA 73 |
| GRIPS | ODI ELITE PRO |
| BAR | YETI CARBON 35X800MM |
| STEM | BURGTEC ENDURO MK3 35X50MM |
| CRANK | SRAM X0 EAGLE TRANSMISSION 30T 170MM |
| BASH GUARD | MRP AMG SL BASH GUIDE |
| SEAT | SILVERADO CUSTOM |
| BRAKES | SRAM CODE RSC |
| DERAILLEUR | SRAM X0 EAGLE AXS TRANSMISSION |
| CASSETTE | SRAM X0 EAGLE TRANSMISSION 10-52 |
| CHAIN | SRAM X0 EAGLE TRANSMISSION FLATTOP |
| SHIFTER | SRAM AXS POD CONTROLLER |
| SEATPOST | FOX TRANSFER 31.6MM / 175MM |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
| SM | MD | LG | XL | XXL | ||
| A | SEAT TUBE LENGTH | 365 | 400 | 440 | 470 | 485 |
| B | EFF. TOP TUBE LENGTH | 571 | 602 | 624 | 651 | 670 |
| C | HEAD TUBE ANGLE | 64 | 64 | 64 | 64 | 64 |
| D | EFF. SEATTUBE ANGLE | 77.5 | 77.5 | 77.5 | 77.5 | 77.5 |
| E | ACTUAL SEATTUBE ANGLE | 72.1 | 72.6 | 72.7 | 73.1 | 73.6 |
| F | CHAINSTAY LENGTH | 437 | 439 | 441 | 443 | 445 |
| G | WHEELBASE | 1211 | 1246 | 1270 | 1302 | 1329 |
| H | ESTIMATED BB HEIGHT | 353 | 353 | 353 | 353 | 353 |
| I | STANDOVER | 735 | 744 | 750 | 756 | 757 |
| J | HEADTUBE LENGTH | 95 | 101 | 107 | 118 | 140 |
| K | FORK (AXLE TO CROWN) | 588 | 588 | 588 | 588 | 588 |
| L | FORK (OFFSET) | 44 | 44 | 44 | 44 | 44 |
| M | STACK | 615 | 620 | 625 | 635 | 655 |
| N | REACH | 435 | 465 | 485 | 510 | 525 |
| O | FRONT CENTER | 774 | 807 | 829 | 859 | 884 |
| P | VERTICAL FORK TRAVEL | 153 | 153 | 153 | 153 | 153 |
