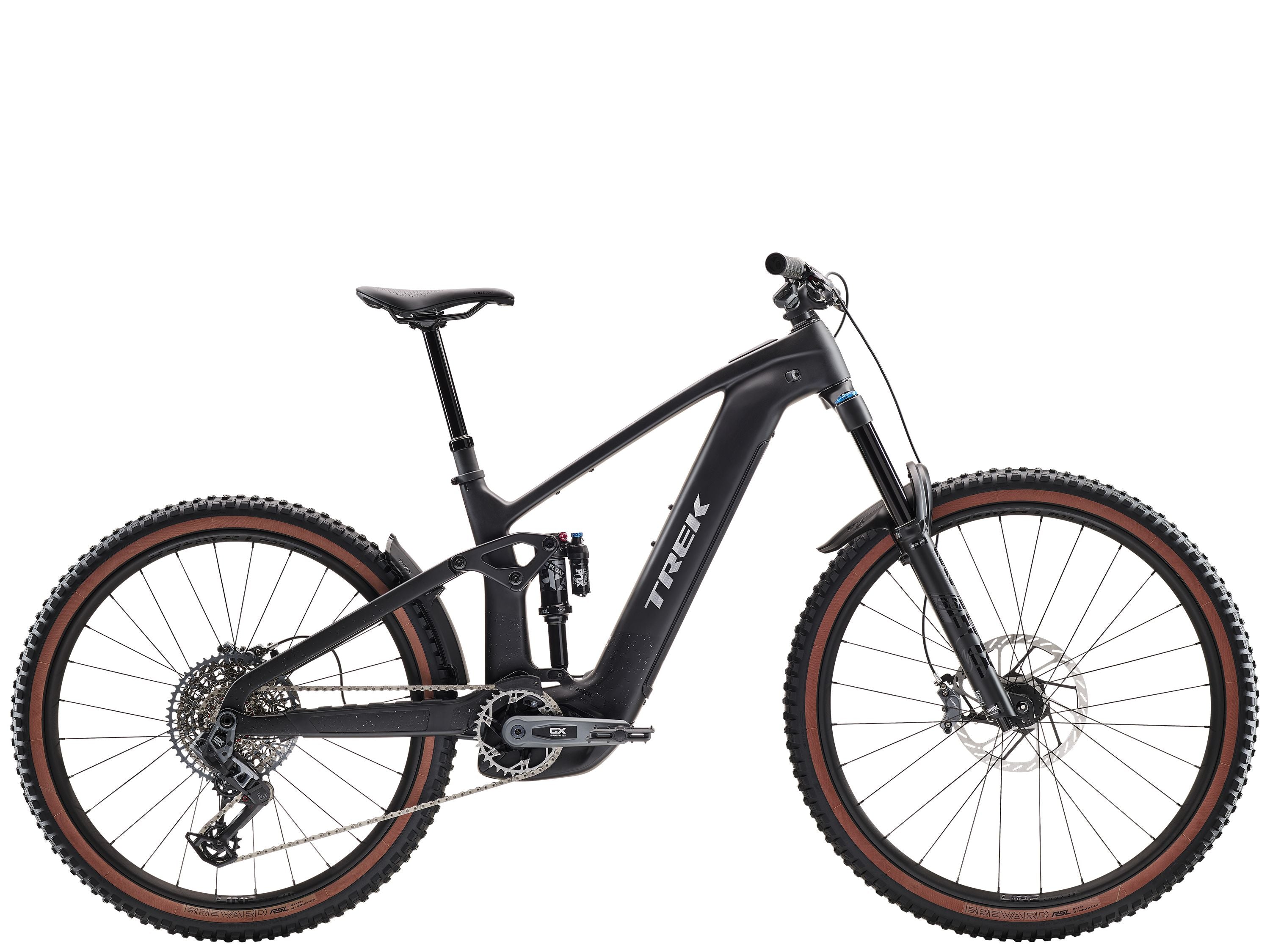

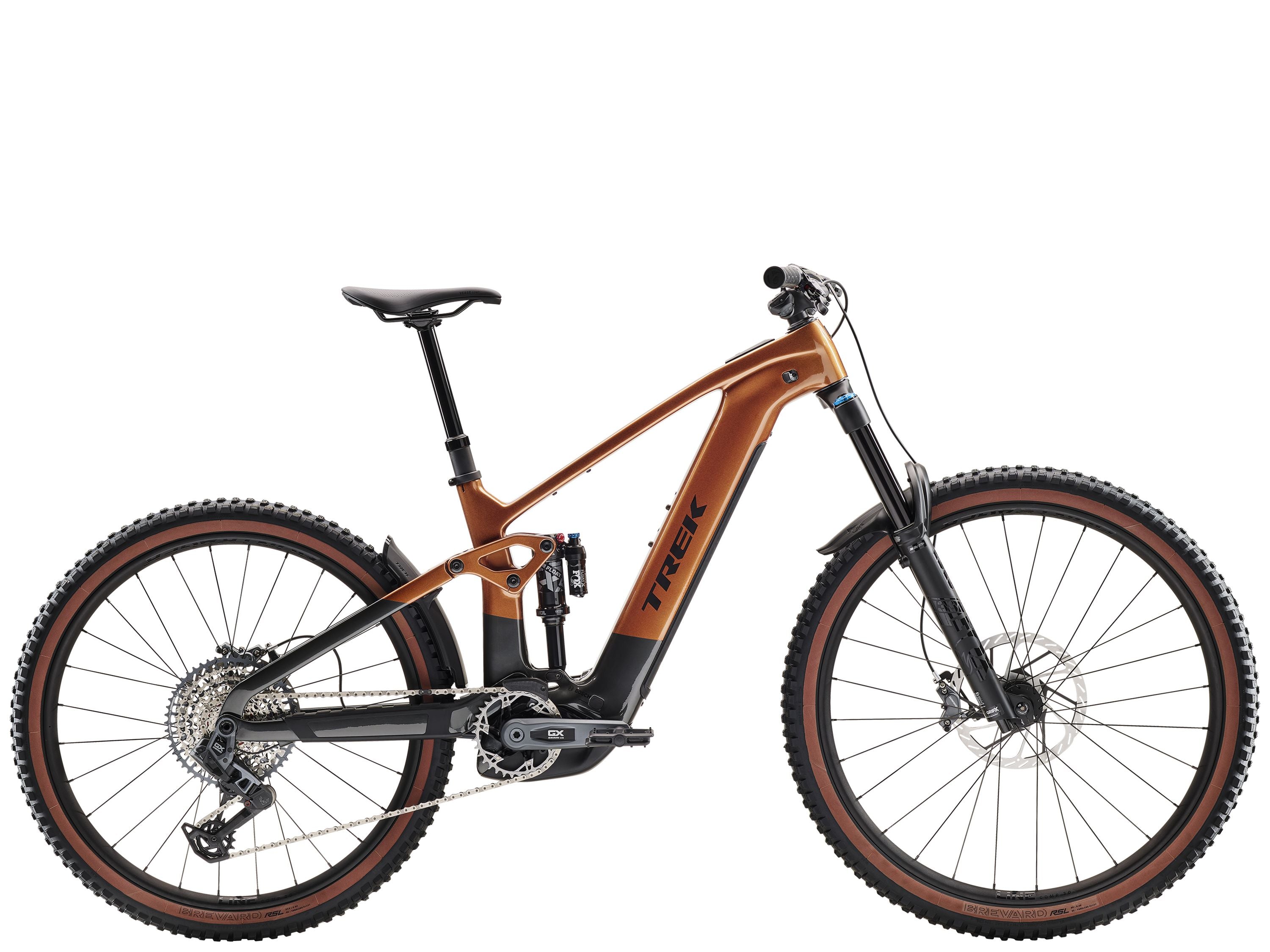

Rail+ 9.8 GX AXS T-Type Gen 5
The Rail+ 9.8 is a carbon enduro e-MTB made for chasing after distant peaks and hammering out laps. It starts out with a hard-hitting OCLV Mountain Carbon frame that partners with 160 mm of front and rear travel from a Fox Performance Elite suspension package to eat up deep roots and chunky rock lines. A 12-speed wireless SRAM GX Eagle transmission keeps shifting smooth, even under serious load, while SRAM Maven Bronze 4-piston brakes provide the stopping power you need. It's finished off with a Bontrager Line dropper post and Bontrager Line Comp 30 tubeless-re
Technology
Bosch Performance Line CX motor: 100 Nm upgrade ready - Bosch Performance Line CX sets the standard for eMTB performance with 85 Nm of torque out of the box, but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.
Specification
| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel OCLV Mountain C |
|---|---|
| Frame Material | CARBON |
| Rim Size | 27.5 |
| Fork | Fox |
| Fork | Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt-X axle, 160 mm travel Fox Performance Elite Float 38, Float EVOL air spring, GRIP X damper, |
| Rearsuspension | Fox |
| Suspension Rear | Fox Performance Elite Float X, 2-position damper, 205mm x 65mm |
| Wheels | Bontrager Line Comp 30 |
| Tires | Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50" |
| Shifter | SRAM |
| Derailleur Rear | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX, 160 mm length |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM Maven Bronze 4-piston hydraulic disc SRAM Maven Bronze 4-piston hydraulic disc |
| Brake Rotor | SRAM HS2, 6-bolt, 200mm // SRAM HS2, 6-bolt, 220mm |
| Pedals | VP-536 nylon platform |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Stem | Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Fenders | Trek custom mudguard |
| Battery | Bosch PowerTube 800 Wh, smart system Bosch PowerTube 800Wh, smart system |
| Controller | Bosch System Controller BRC3100, smart system |
| Motor | Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h) Bosch Performance Line CX (Europe and APAC: 25 km/h, |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
