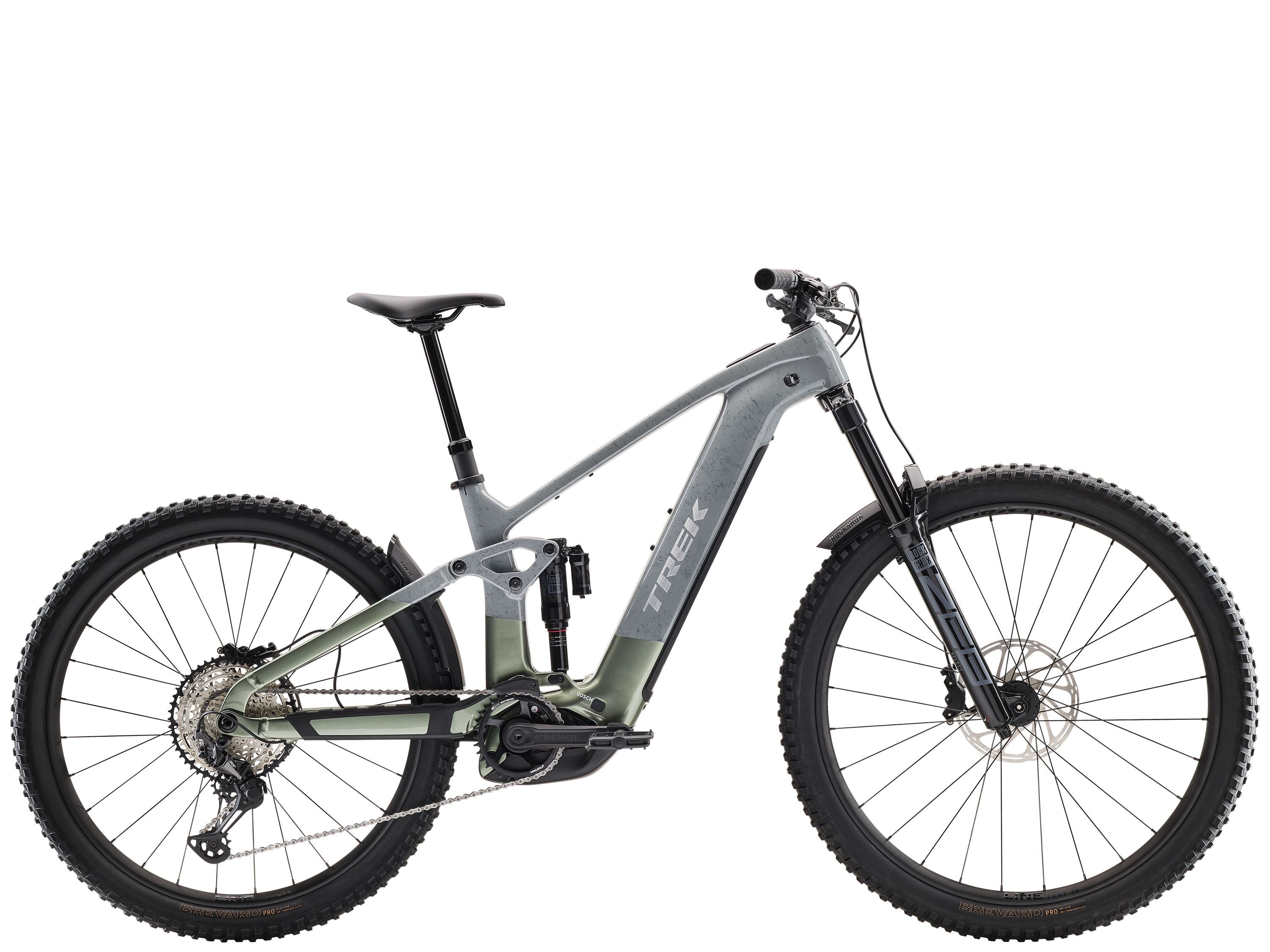

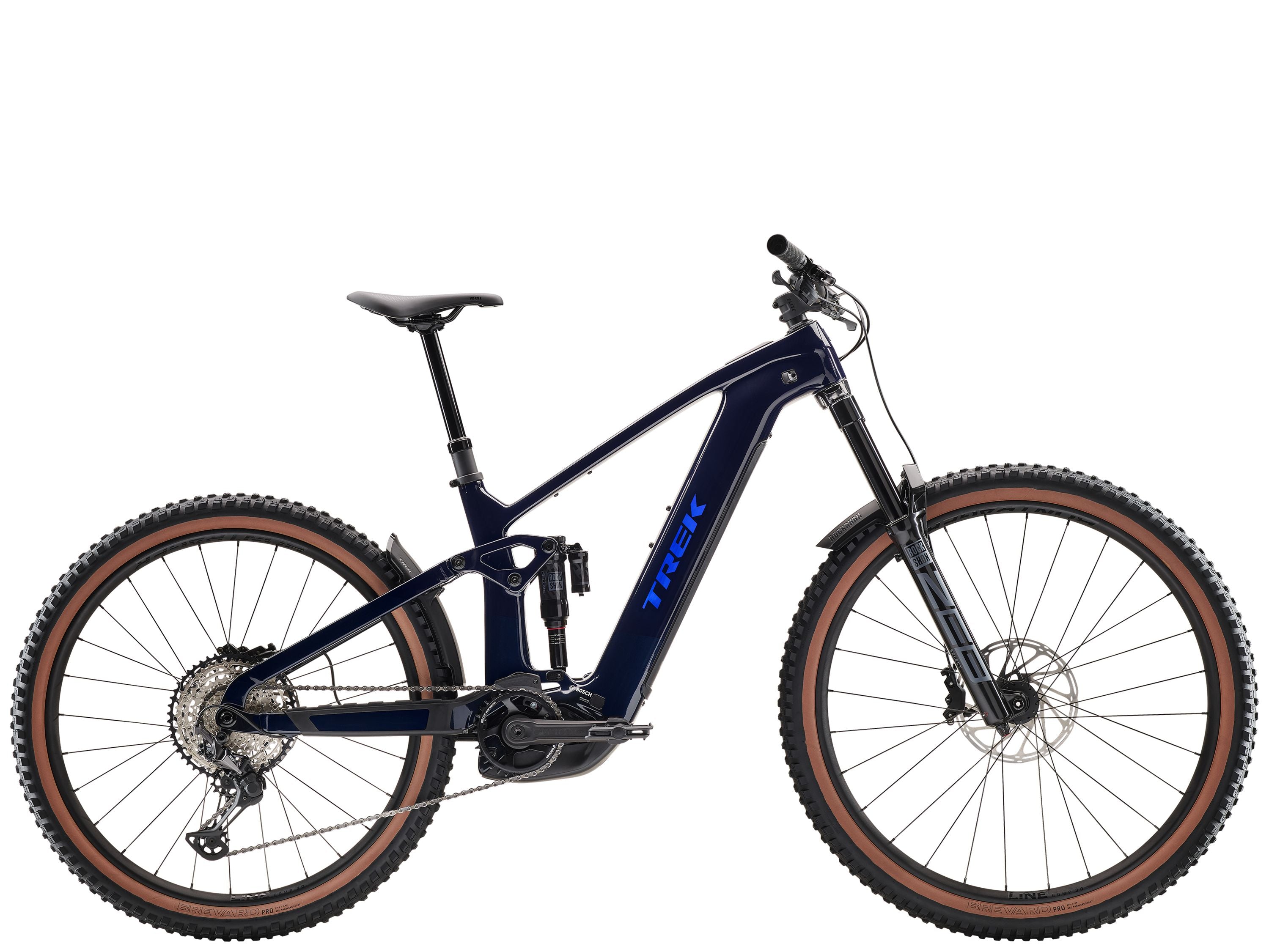

Rail+ 9.7 Gen 5
The Rail+ 9.7 is a carbon enduro e-MTB built for your biggest adventures. Its rugged OCLV Mountain Carbon frame, with alloy chainstay and seatstay, delivers 160 mm front and rear travel from a RockShox Zeb Select fork and Super Deluxe Select+ RT shock, making rowdy lines and root lattices a walk in the park. You get a Shimano XT/SLX drivetrain for 12-speed shifting you can count on, SRAM DB 8 4-piston brakes, a Bontrager Line dropper post and Bontrager Line TLR tubeless-ready wheels for rolling into anything.
Technology
Bosch Performance Line CX motor: 100 Nm upgrade ready - Bosch Performance Line CX sets the standard for eMTB performance with 85 Nm of torque out of the box, but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.
Specification
| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel OCLV Mountain C |
|---|---|
| Frame Material | CARBON |
| Rim Size | 27.5 |
| Fork | RockShox |
| Fork | RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, B |
| Rearsuspension | RockShox |
| Suspension Rear | RockShox Super Deluxe Select RT, 205mm x 65mm |
| Wheels | Bontrager Line Comp 30 |
| Tires | Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" |
| Shifter | Shimano |
| Derailleur Rear | Shimano XT M8100, long cage |
| Cassette | Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM DB 8 4-piston hydraulic disc SRAM DB 8 4-piston hydraulic disc |
| Brake Rotor | SRAM CentreLine, 6-bolt, round-edge, 200 mm |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse P3, chromoly rails |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Fenders | Trek custom mudguard |
| Battery | Bosch PowerTube 800 Wh, smart system Bosch PowerTube 800Wh, smart system |
| Controller | Bosch System Controller BRC3100, smart system |
| Motor | Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h) Bosch Performance Line CX (Europe and APAC: 25 km/h, |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
