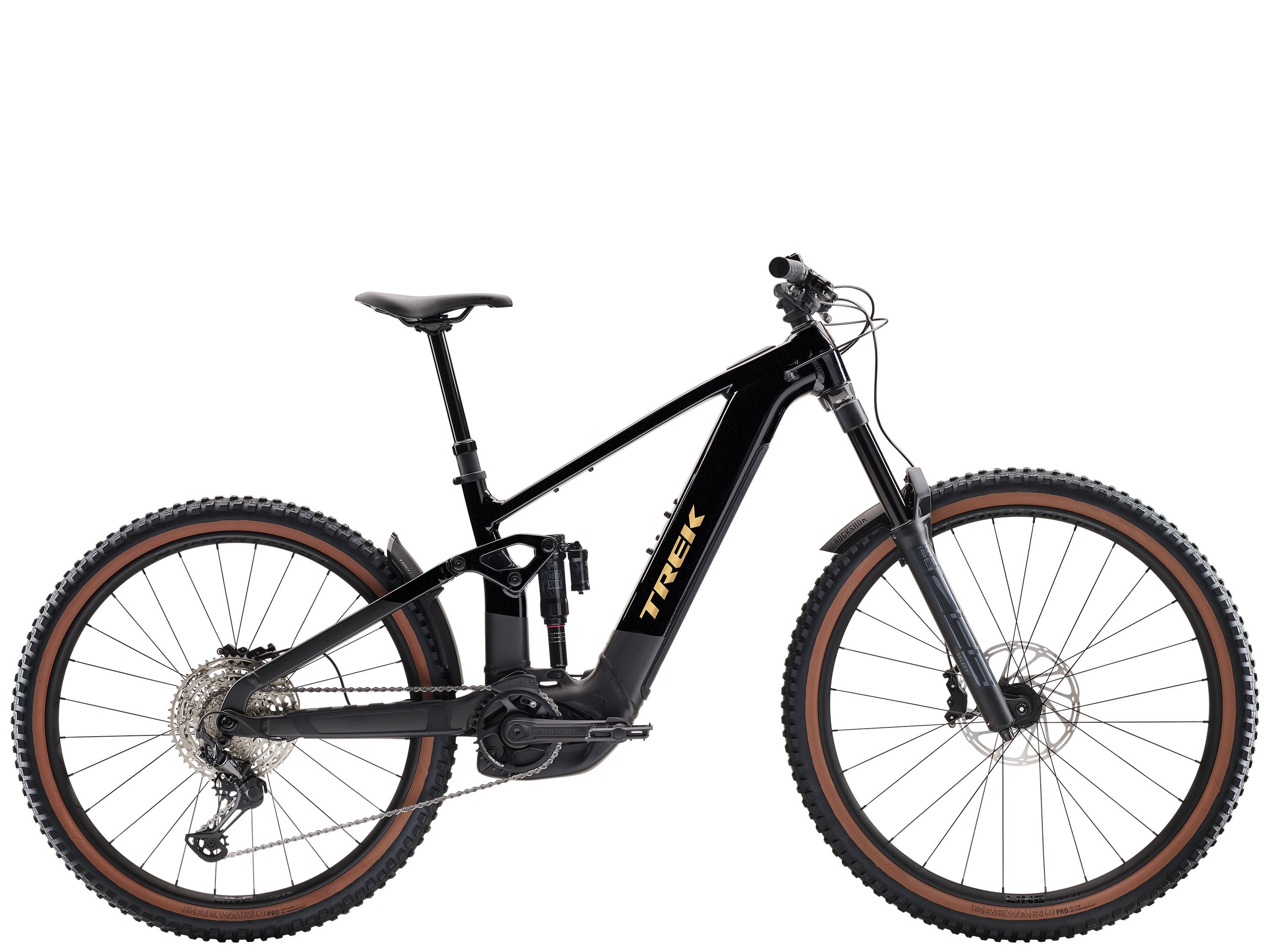

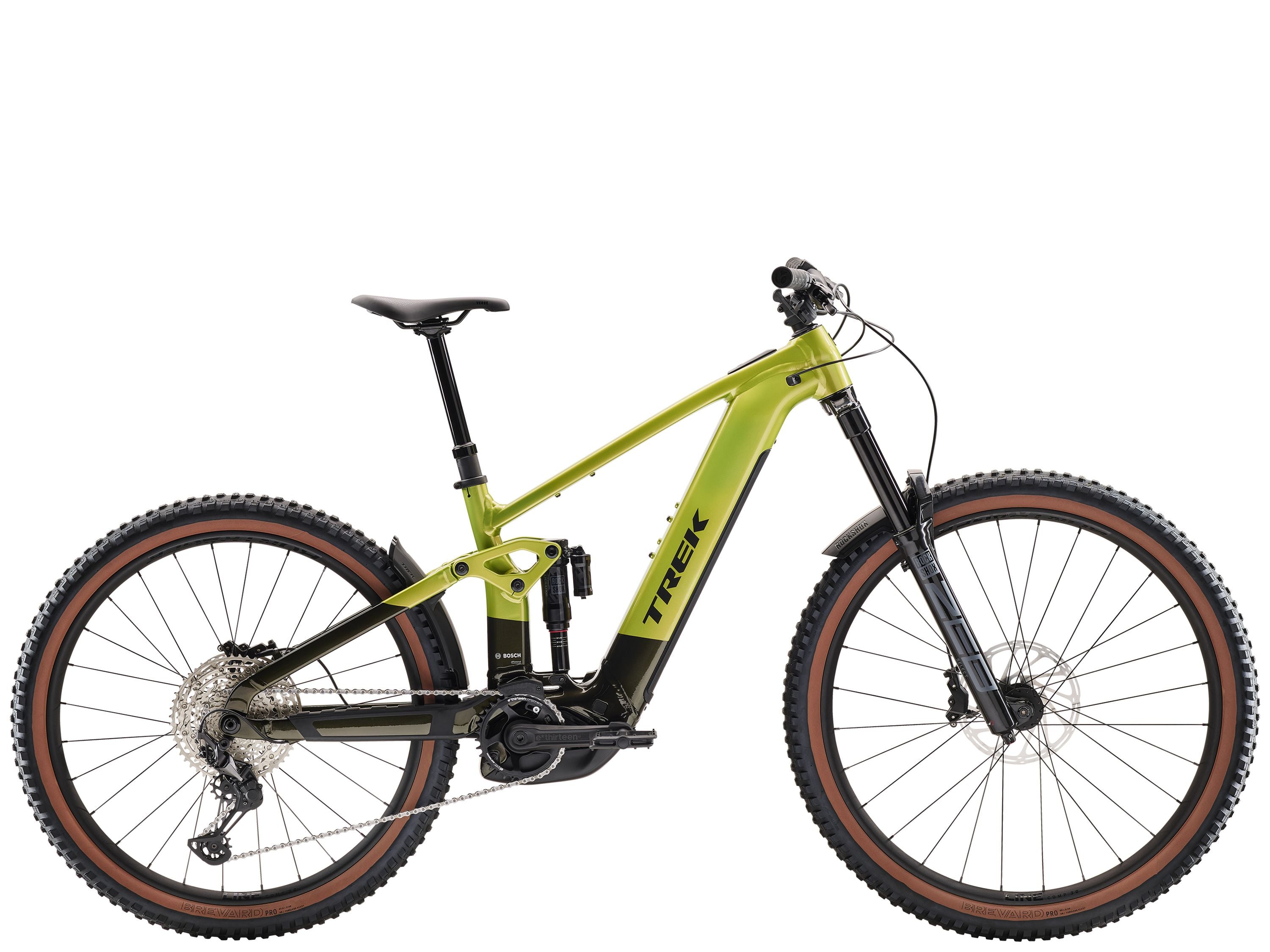

The Rail+ 8 is an aluminium enduro e-bike with big power and tons of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminium frame paired with a RockShox Super Deluxe Select+ RT shock and ZEB Select fork (160 mm front/rear) for making quick work of chunky backcountry rock gardens. You get the smooth-shifting performance of a Shimano XT/SLX drivetrain, stop-on-a-dime control from SRAM DB 8 4-piston disc brakes, a Bontrager Line dropper post and tubeless-ready Bontrager Line TLR 30 wheels.

Technology

Bosch Performance Line CX motor: 100 Nm upgrade ready - Bosch Performance Line CX sets the standard for eMTB performance with 85 Nm of torque out of the box, but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

SpecificationServices

Book a Service Other Cycle To Work Schemes Parts & Components Cockpit Stems Headsets Brakes Complete Brakes Brake Rotors Brake Pads Brake Spares Rear Suspension Finishing Kit Tyres Tubeless Seat Posts & Clamps Components E-bike Batteries and chargers Wheels Complete Wheels Tubeless Clothing and Protection ProjektRide Merchandise Gloves Socks Essentials Cleaners, Degreasers and Lubrication Maintenance Sell Your Bike Contact Us Finance Open search bar

FrameWorkshop	Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travelWorkshop Prices
Frame Material	ALUMINIUMTrack Your Service
Rim SizeCustom Builds	27.5
ForkInsure Your Bike	RockShoxBook a Service
Fork	RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, B
RearsuspensionBrands	RockShoxTent Box
Suspension RearHandlebars	RockShox Super Deluxe Select RT, 205mm x 65mm
WheelsGrips & Bar-Tape	Bontrager Line Comp 30
Tires	Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Shifter	Shimano
Derailleur RearForks	Shimano XT M8100, long cageFront Suspension
Cassette	Shimano Deore M6100, 10-51, 12-speed
ChainTubes	Shimano SLX M7100, 12-speed
BrakeSaddles	SRAM
BrakesetPedals	SRAM DB 8 4-piston hydraulic disc SRAM DB 8 4-piston hydraulic discGears & Drivetrain
Brake Rotor	SRAM CentreLine, 6-bolt, round-edge, 200 mm
Saddle	Bontrager Verse P3, steel railsTools & Maintenance
Seatpost	Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm lengthHelmets
Handlebar	Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm widthClothing
Stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
GripsAccessories	Bontrager XR Trail Comp, nylon lock-on
Fenders	Trek custom mudguard
Battery	Bosch PowerTube 800 Wh, smart system Bosch PowerTube 800Wh, smart system
Controller	Bosch System Controller BRC3100, smart system
Motor	Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h) Bosch Performance Line CX (Europe and APAC: 25 km/h,
Size Chart Rider HeightSearch for products on our site	Rider Height - 177.0 - 188.0
Size Chart Rider Inseam	Inseam - 84.0 - 89.0
