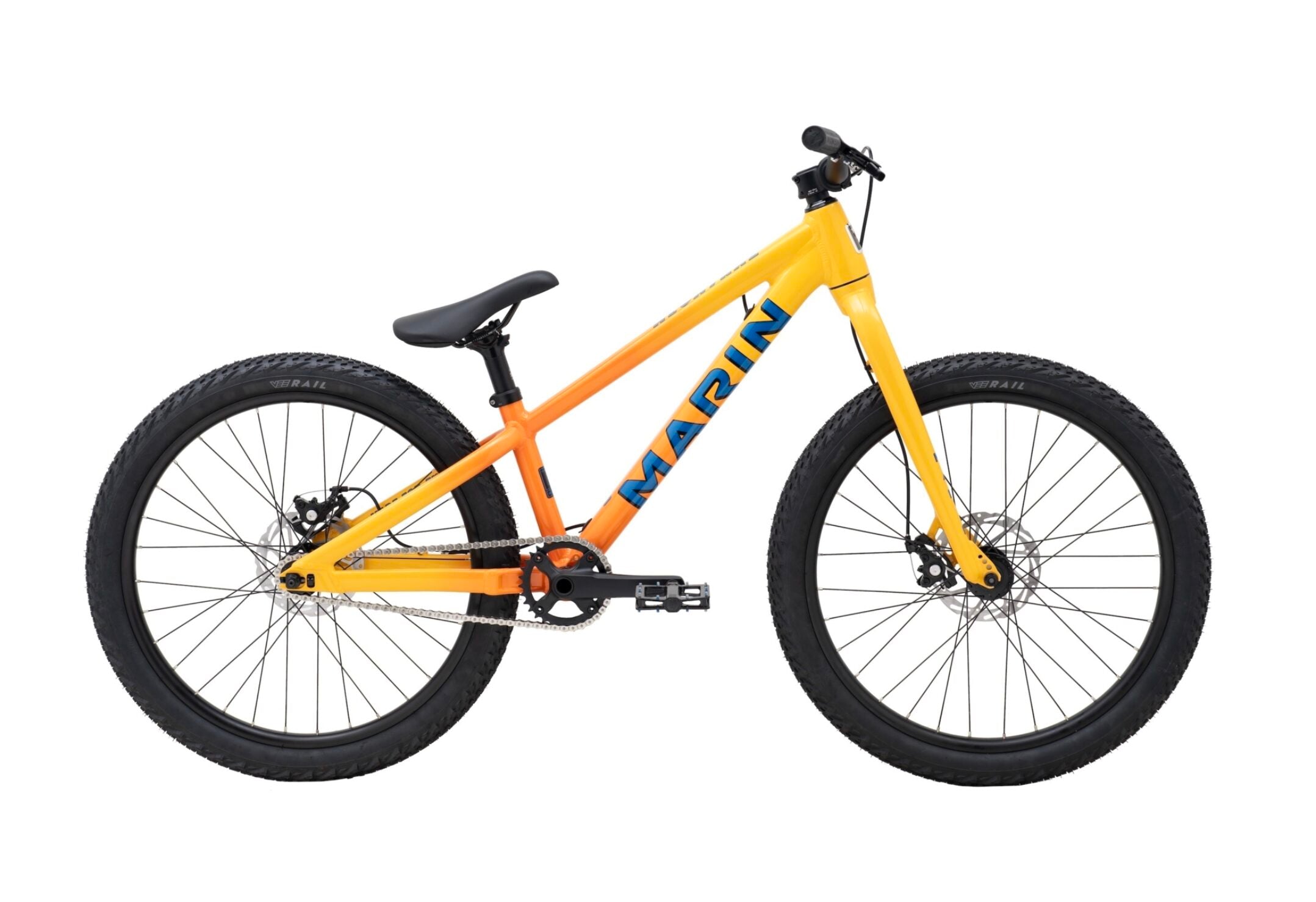

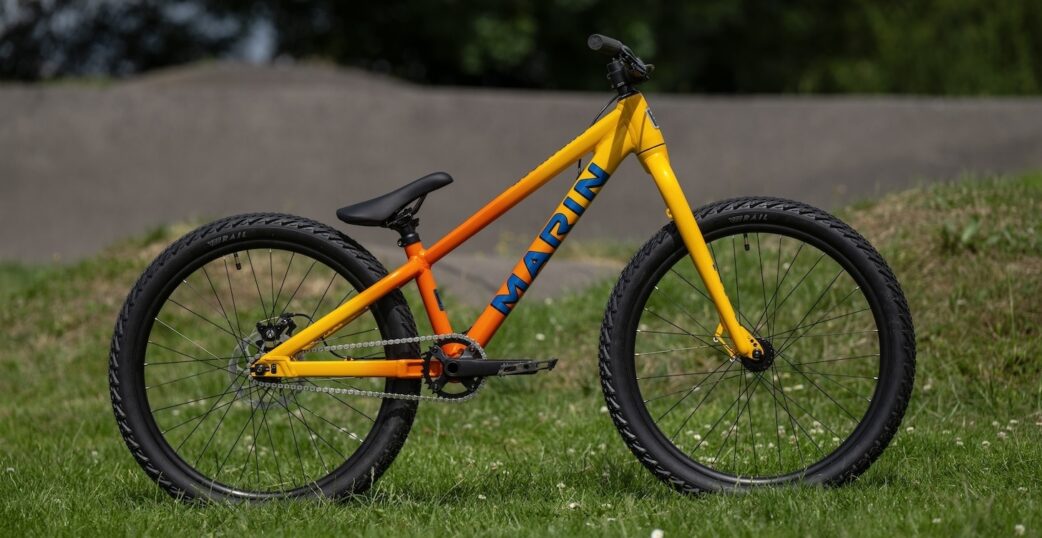

We've taken the Alcatraz 1 and scaled it down for smaller riders. Built upon the same tubing as the larger models, it features a 360mm reach, 69° headtube angle, and 72° seattube angle, with 369mm chainstays. A suspension-corrected rigid CrMo fork is designed to handle rough-and-rowdy riding, and a simple and stout single-speed drivetrain and Tektro mechanical disc brakes ensure a fun and safe ride.

Specifications

• Frame

  Series 3 6061 Aluminum, 24” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs

• Front Suspension

  Marin Series 2 CroMo 24", Suspension Corrected, 100x9mm Dropouts

• Rear Suspension

  -

• Rims

  Marin Custom Extrusion, 27mm Inner, Pinned Joint

• Hub, Rear

  Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H

• Hub, Front

  Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing

• Spokes

  14g Black Stainless Steel

• Tires

  Vee Tire, Rail 24x2.25”, LSG Compound, Wire Bead

• Derailleur, Rear

  -

• Derailleur, Front

  -

• Shift Lever

  -

• Crankset

  Marin Forged Alloy, Alloy 32T DM Chainring, 155mm Length

• Bottom Bracket

  External Sealed Cartridge Bearings

• Chain

  KMC HL-1

• Cassette

  14T Single Speed Cog

• Brake, Front

  Tektro MD-M280 Mechanical Disc 160mm Rotor

• Brake, Rear

  Tektro MD-M280 Mechanical Disc 160mm Rotor

• Brake Levers

  Tektro CL-330TS Alloy

• Handlebar

  Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 700mm Width, 4º Up, 9º Back

• Stem

  Marin 3D Forged Alloy, 31.8mm clamp, 35mm extension

• Grips

  Marin MTN, Closed End

• Headset

  FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

• Seatpost

  Marin Alloy, 30.9mm

• Saddle

  Marin DJ Saddle

• Pedals

  Alloy Platform

• Extras

  Marin Chain Tension Device
