Product Details
All Road Frame details
- ZS44/EC44 headset included
- UDH Hanger included
- Alloy seatpost collar included
- Titanium seatpost collar (optional extra)
- 3AL-2.5V grade 9
- Butted tubes
- Thru-axles front & rear and all appropriate cable guides included
- Lifetime Frame Warranty
- Frameset weight: ~ 2.2k g
- Frame weight: ~1.8 kg
- Frame finish - Sandblasted (Standard)
- Axles 12mm x 100mm front and 12mm x 142mm The Robert Axle Project bolt thru
- Bottom bracket Standard BSA
- Mudguards and rack mounts compatible
- Brake mount: Flat mount 140mm or 160mm rotors
- Seat tube internal 27.2mm & Seat tube external 31.8
- Frame Tyre clearance 700 x 45c
- Front mech clamp 31.8
- Axle size 166XM12 - TP1.0
Geometry, Weight & Specs
Weight and specs:
Frame weight 1.8kg Frameset 2.3kg
Compare the geometry with your existing bike:
Customisable options are available including tyre options, titanium finishing kits and alternate level group sets.

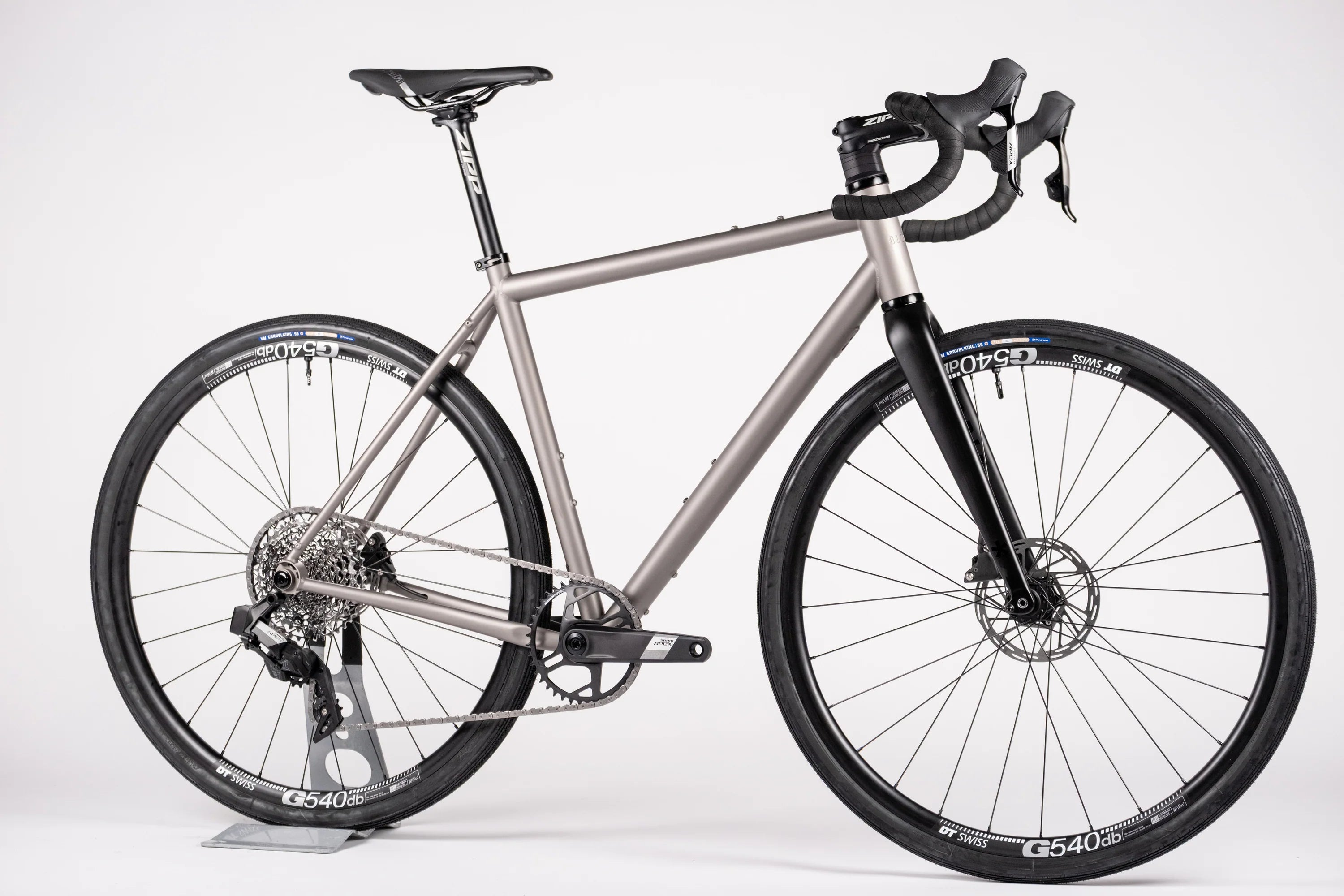

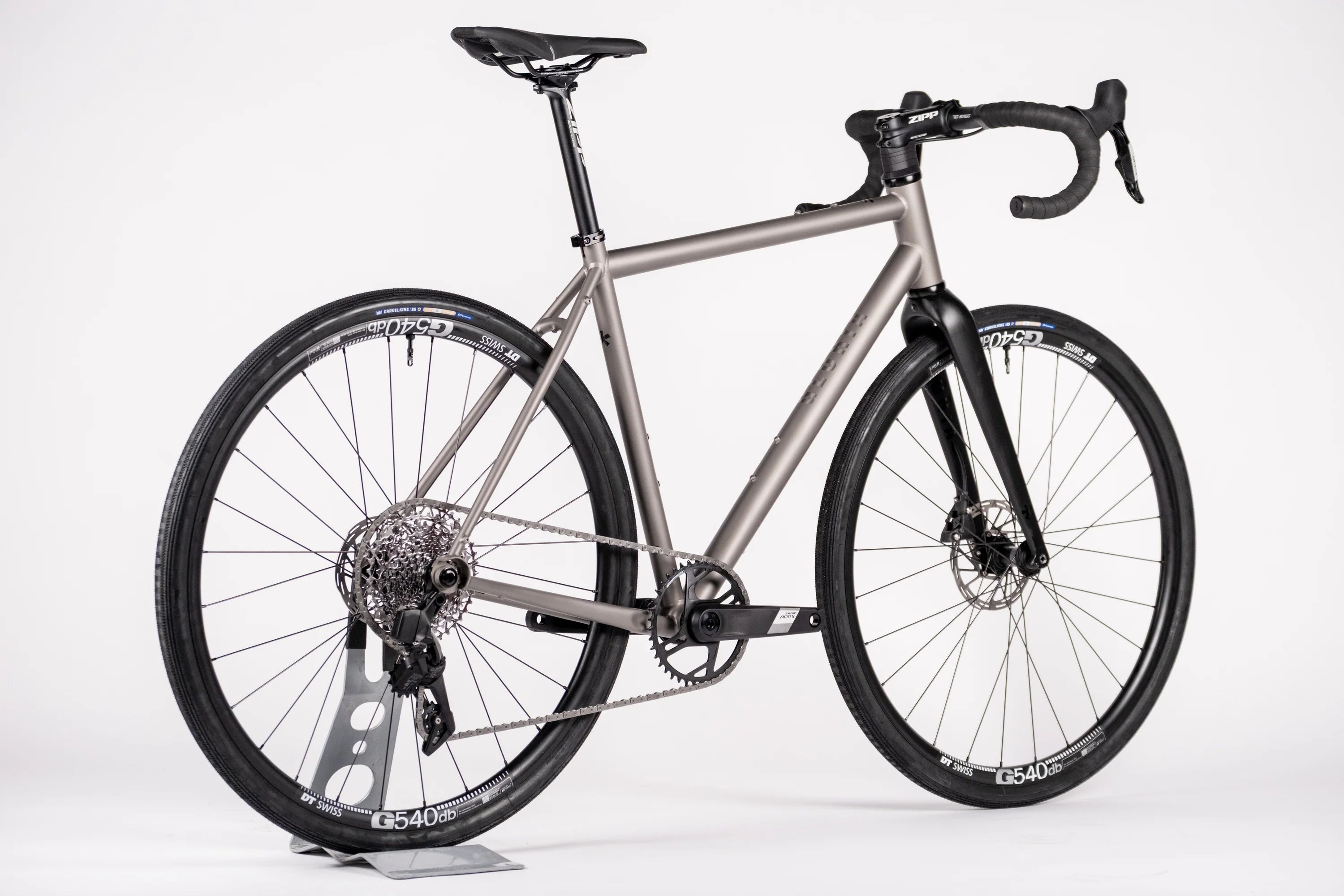

Bike listed:
Product Type | Component | |
Bar Tape / Grips | BBB | |
Frame | Gloria - Titanium All-Road | |
Fork | Gloria Carbon - Integrated - No Cage Mounts (45mm Tyre Max) | |
Handle Bar | Zipp Service Course | |
Saddle | Selle Italia X1 | |
Stem | Zipp Service Course | |
Tyre | Panaracer 35c tubeless | |
Wheelset |
|
|
Bottom Bracket | Sram Dub | |
Seat Post | Zipp Service Course | |
Groupset | SRAM Apex | |
Cassette | Apex 12spd 11-44 | |
Chain | SRAM AXS | |

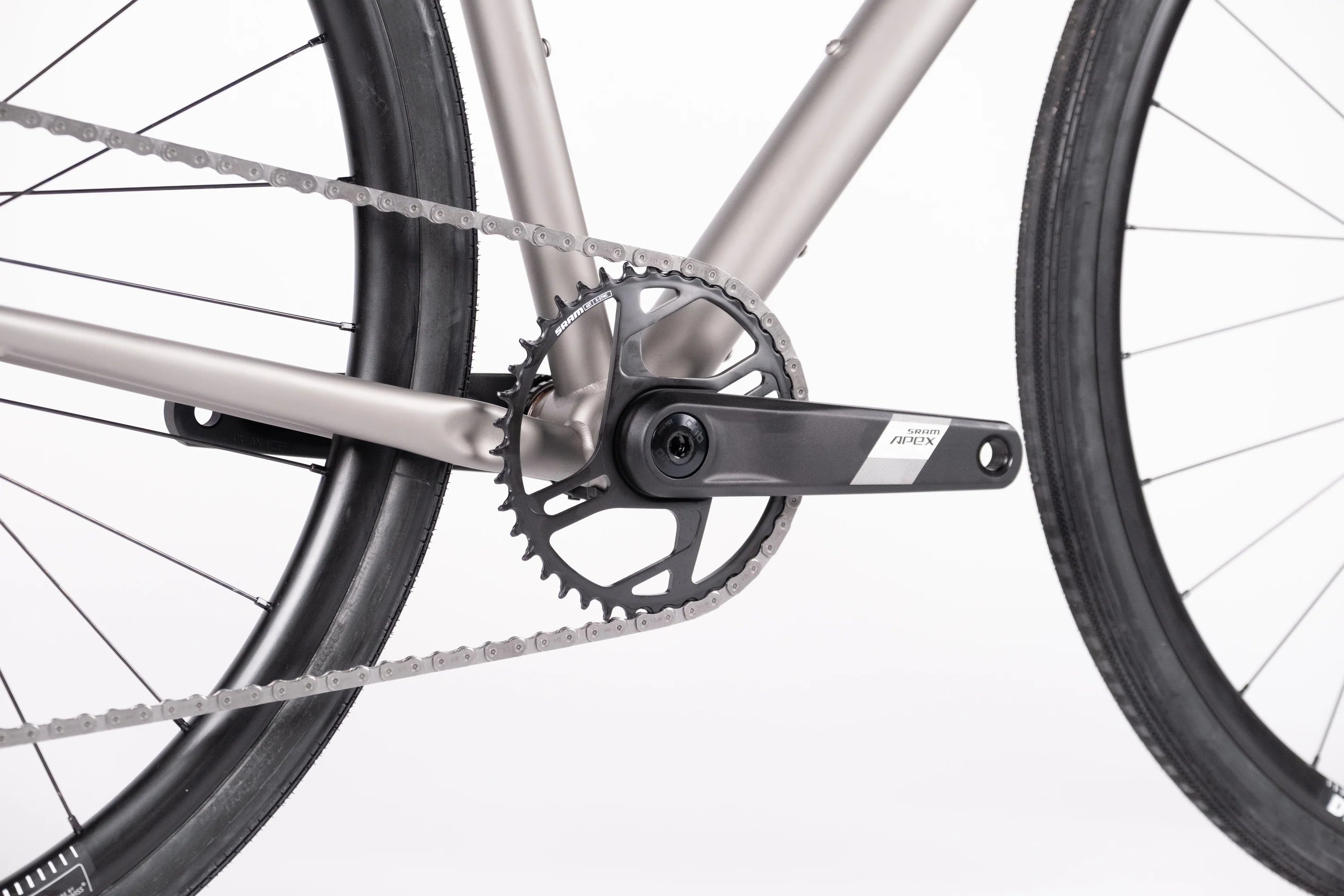

CrankSet | Apex 1x 40t | |
Head Set | Gloria EC44 Integrated | |
Head Set spacer | Gloria Semi Integrated Spacer Set / (1,1/8) / 3 x 10mm / Black | |
Left Lever | Apex flat mount rear calliper | |
Right Levers | Apex flat mount front calliper | |

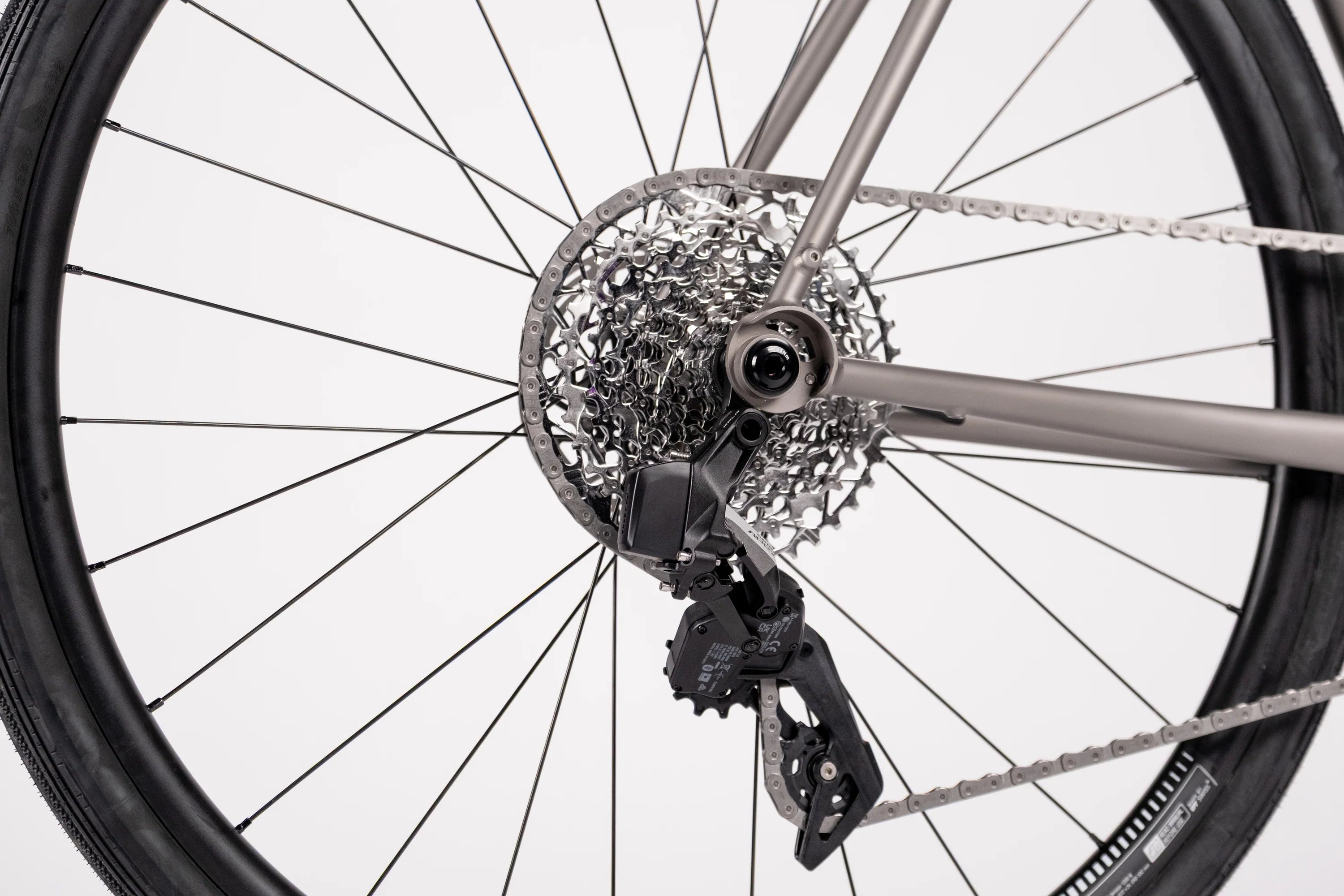

Rear Mech | Apex | |
Font Mech | N/A | |
Seat Clamp | Gloria Alloy Seat Clamp | |
Rotors | Front 160 / Rear 140 |
Geometry:
50 | 52 | 54 | 56 | 58 | 60 | |
Stack | 543.1 | 562 | 580.9 | 600 | 619 | 636.6 |
Reach | 358.1 | 366.5 | 380.9 | 382.3 | 390 | 399.5 |
Head Tube Angle | 70 | 71 | 72 | 72.5 | 72.5 | 72.5 |
Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
Effective Top Tube | 519 | 533 | 547 | 560 | 574 | 588 |
Seat Tube C-T | 456 | 484 | 518 | 544 | 558 | 588 |
Head Tube | 110 | 126 | 142 | 160 | 180 | 198 |
Chain stay | 425 | 425 | 425 | 425 | 425 | 425 |
Wheelbase | 998 | 1003 | 1008 | 1017 | 1031 | 1046.5 |
DT Length | 618.1 | 628.6 | 639 | 647.3 | 656 | 665.7 |
Fork length | 395 | 395 | 395 | 395 | 395 | 395 |
About the All-Road
So if you're in the mood for a weekly club ride, an adventure or the thrill of a racing experience, this bike is your ideal partner. It seamlessly adapts to your riding preferences, making it versatile for a variety of uses:
1. Fast-Paced Riding: Its lightweight frame and aerodynamic design make this bike a speed demon. Ready to challenge the open road, it offers precision and agility, letting you stretch your limits.
2. Cruise & Endurance Rides: For those who enjoy a more laid-back cycling experience, this bike promises a comfortable, smooth ride. Perfect for scenic explorations or neighbourhood cruising, it guarantees an enjoyable journey every time.
3. Club Rides: Join in on group rides and stay in step with your fellow cyclists. This bike's responsive handling and efficient power transfer are ideal for keeping pace with the pack, all while enjoying the camaraderie.
4. Racing Thrills: If competitive racing gets your heart racing, this bike is up for the challenge. Equipped with advanced features, it helps you navigate tough terrains and smash personal records.
5. Gravel Rides: With its impressive capabilities, this bike also tackles off-road adventures. It accommodates up to 45c tires, taking you anywhere you wish to explore.
Plus, there are customisation options available!
Dive into the joy of cycling with our expertly crafted bike, designed with passion to enhance your riding experiences.
No matter your cycling style or goals, this bike promises to surpass your expectations. It strikes the perfect balance of speed, comfort, and performance, empowering you to tackle every adventure with confidence and joy.
Embrace the freedom to ride your way, at your pace, and discover the full potential of your cycling journey with this exceptional bike.
