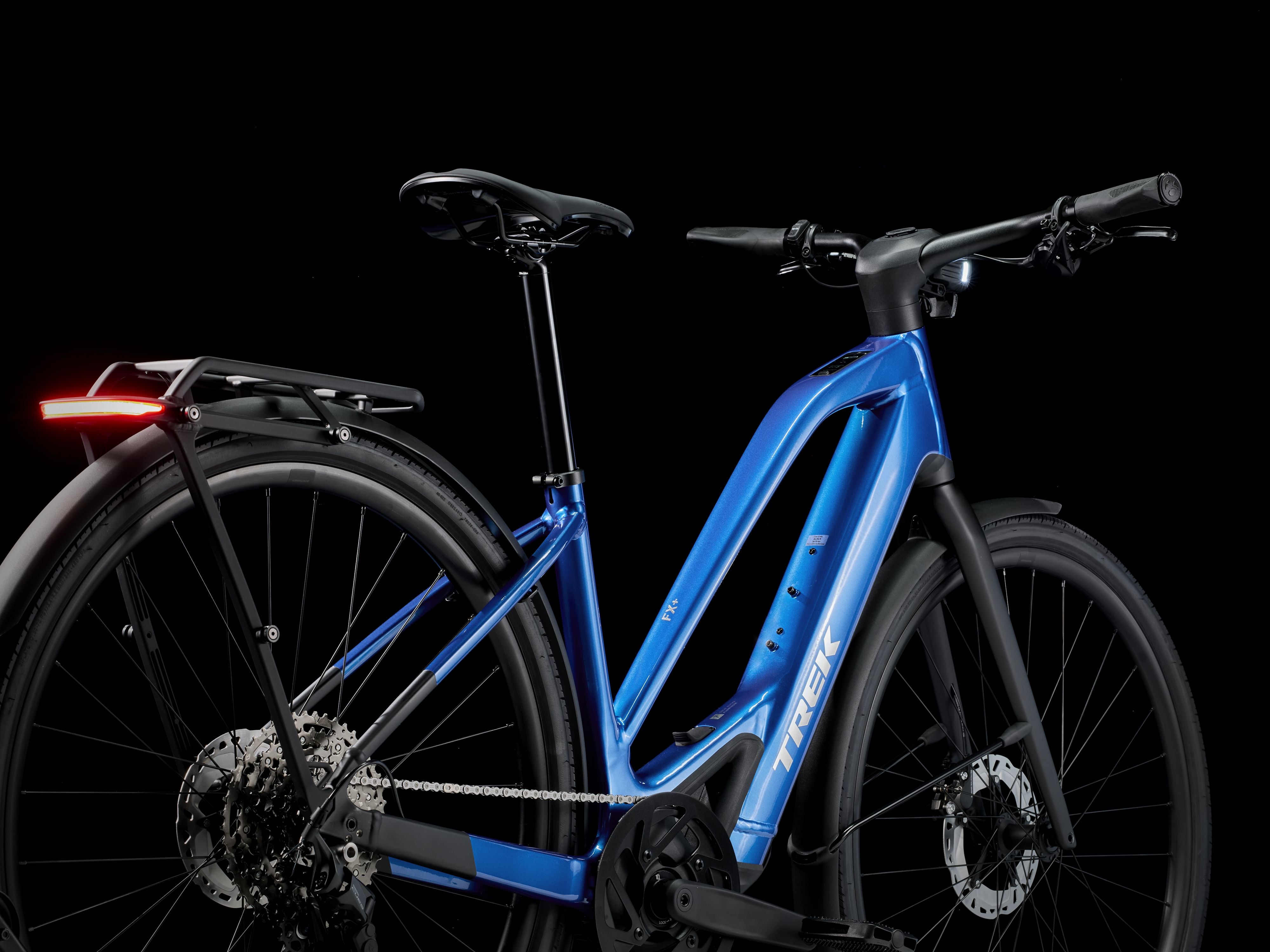

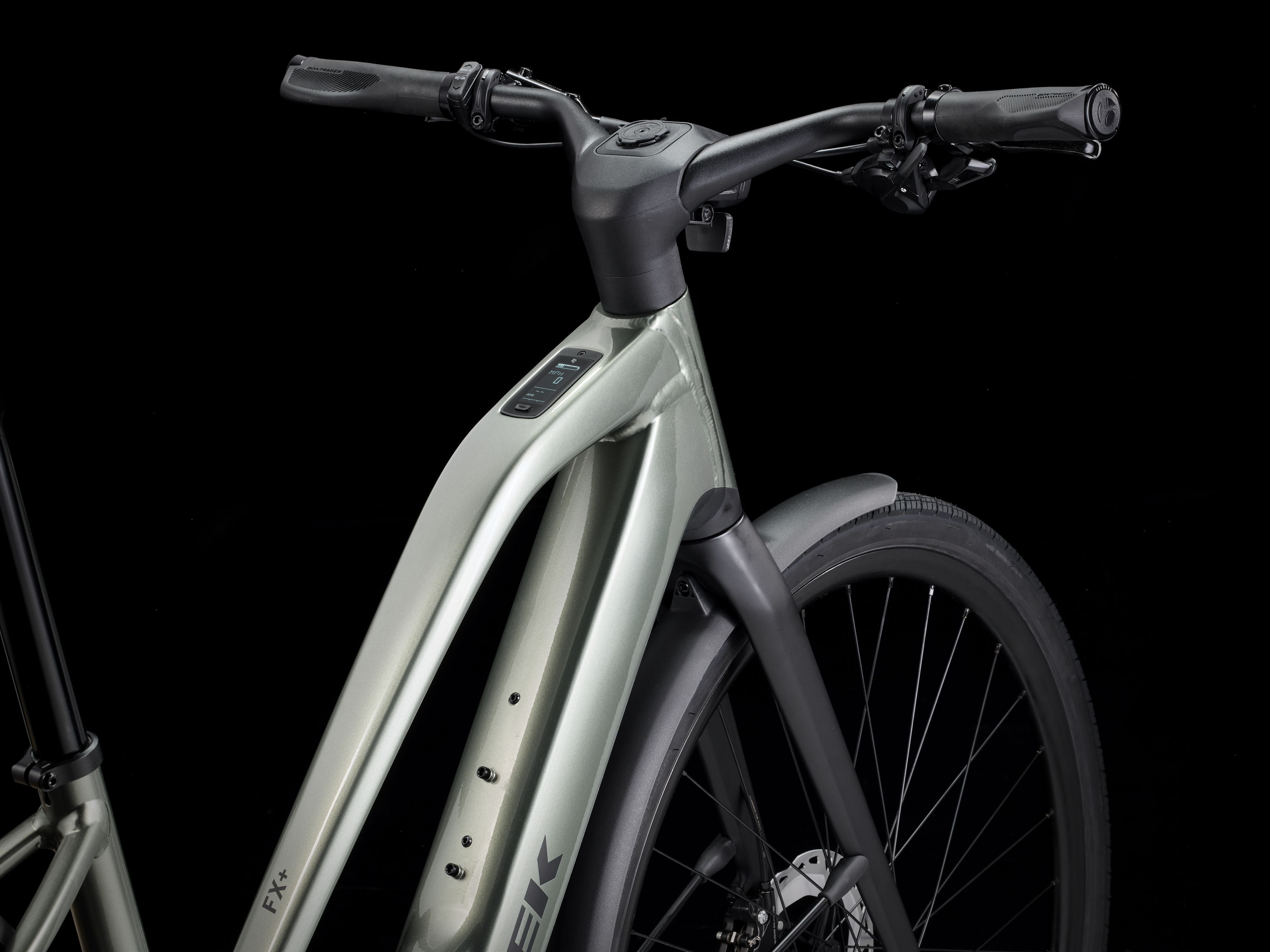

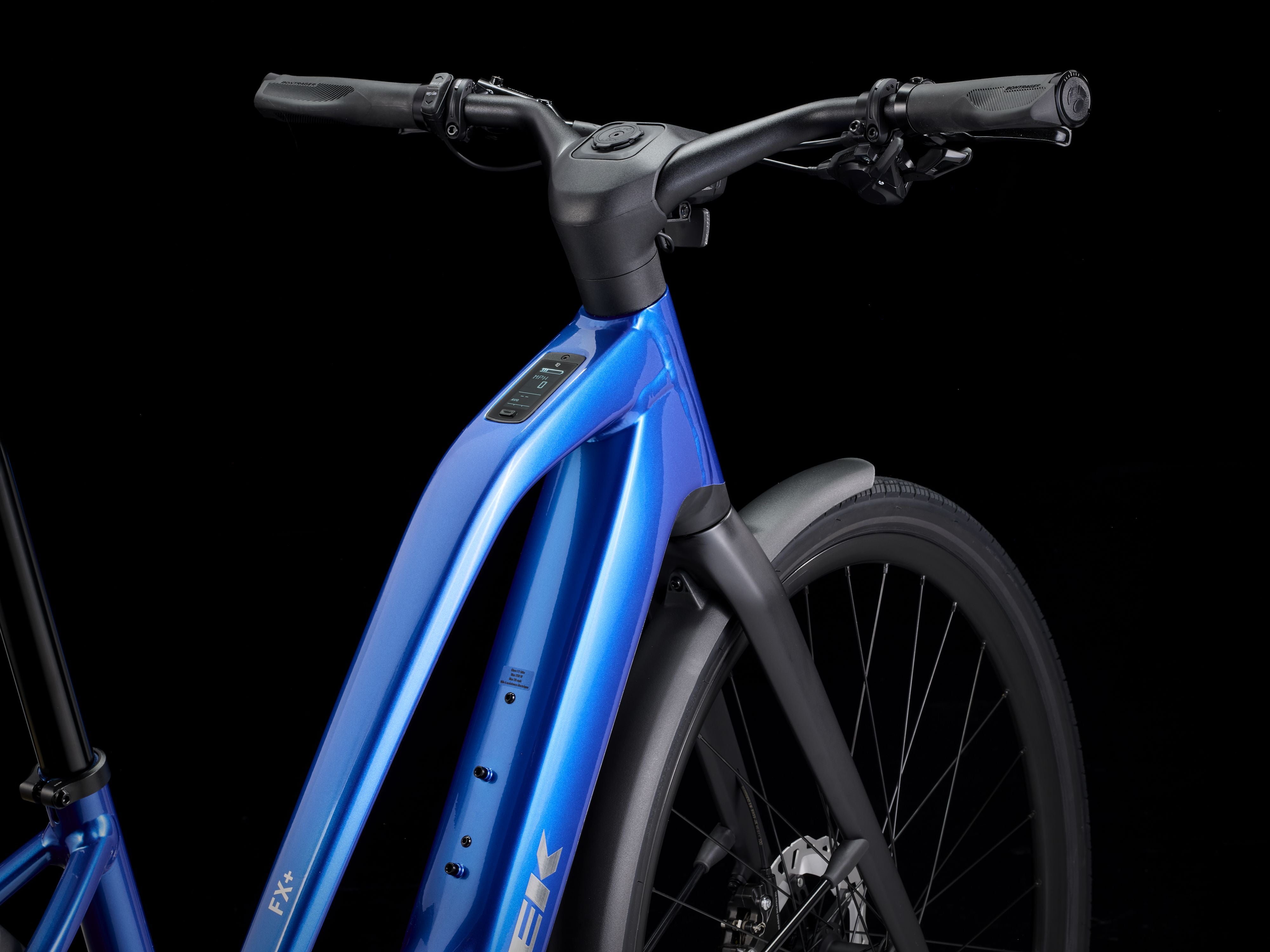

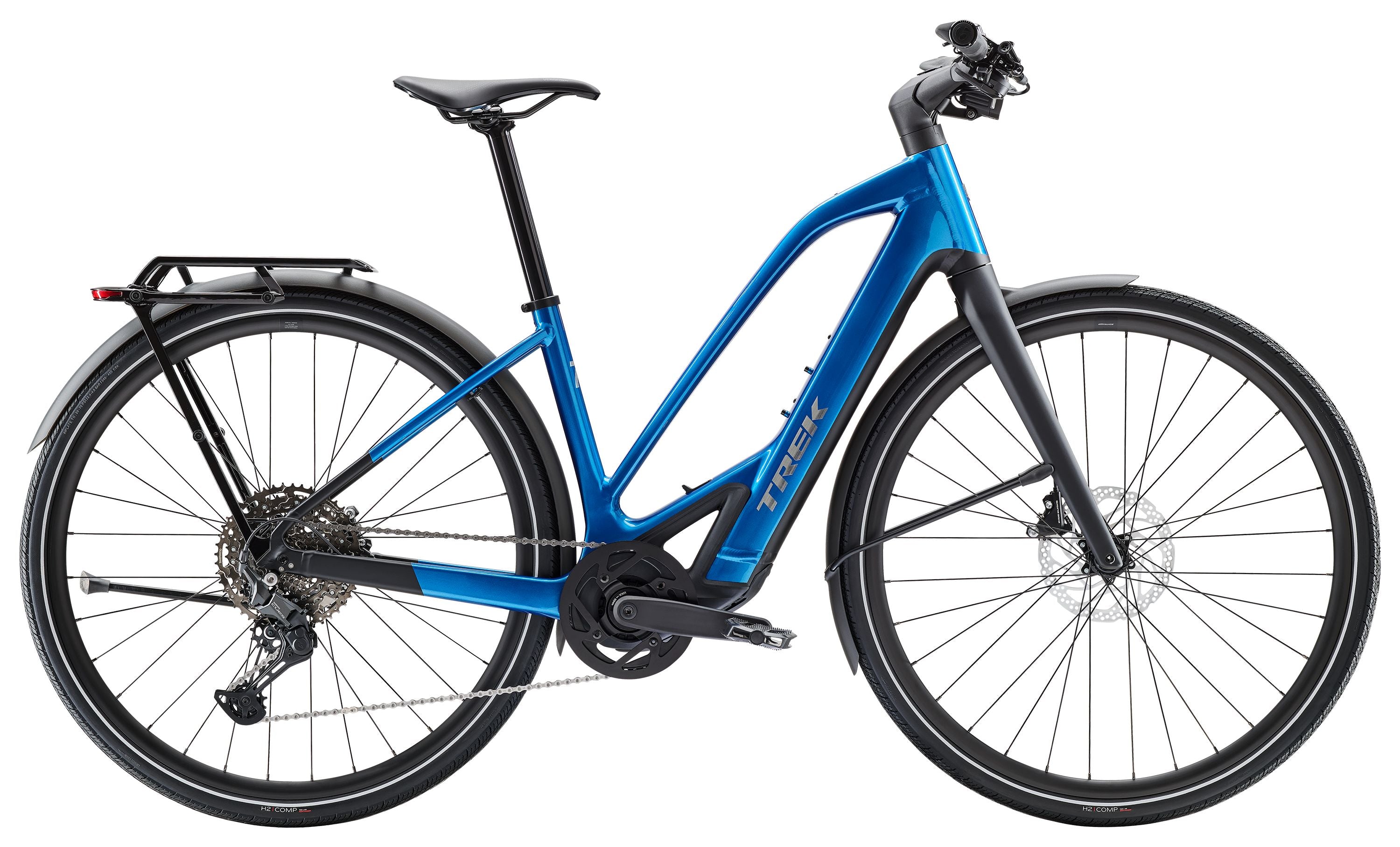

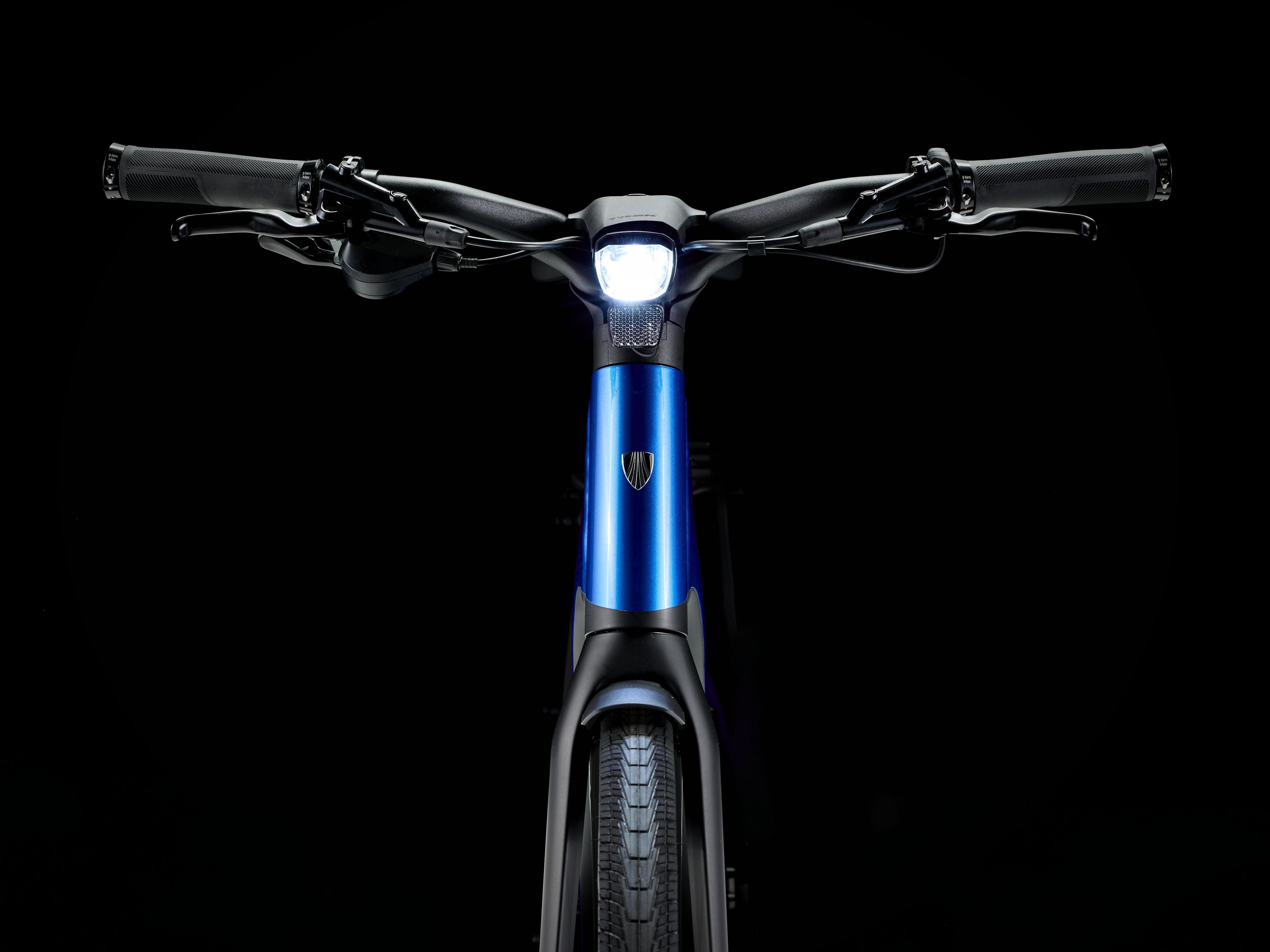

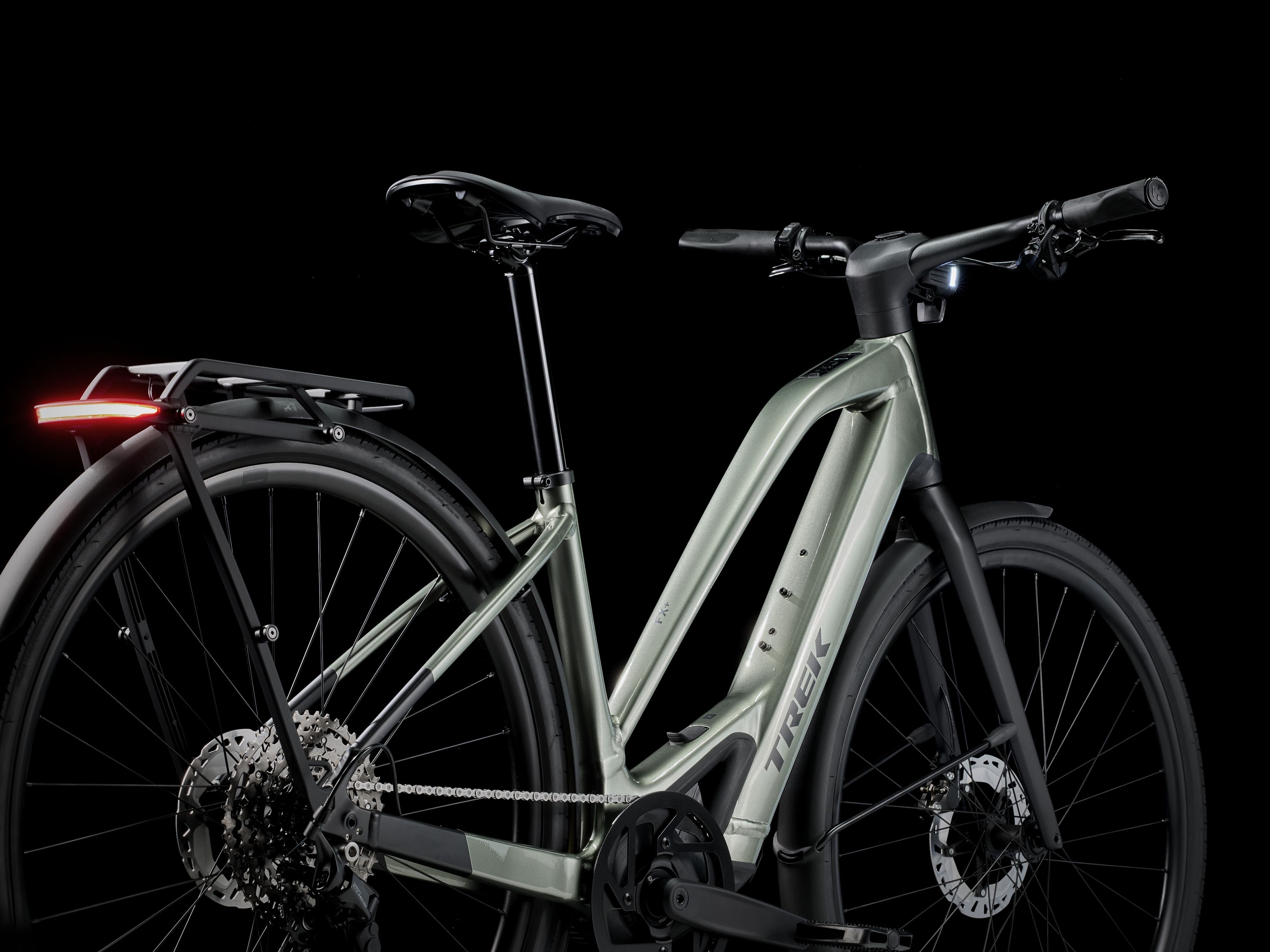

FX+ 7 Midstep

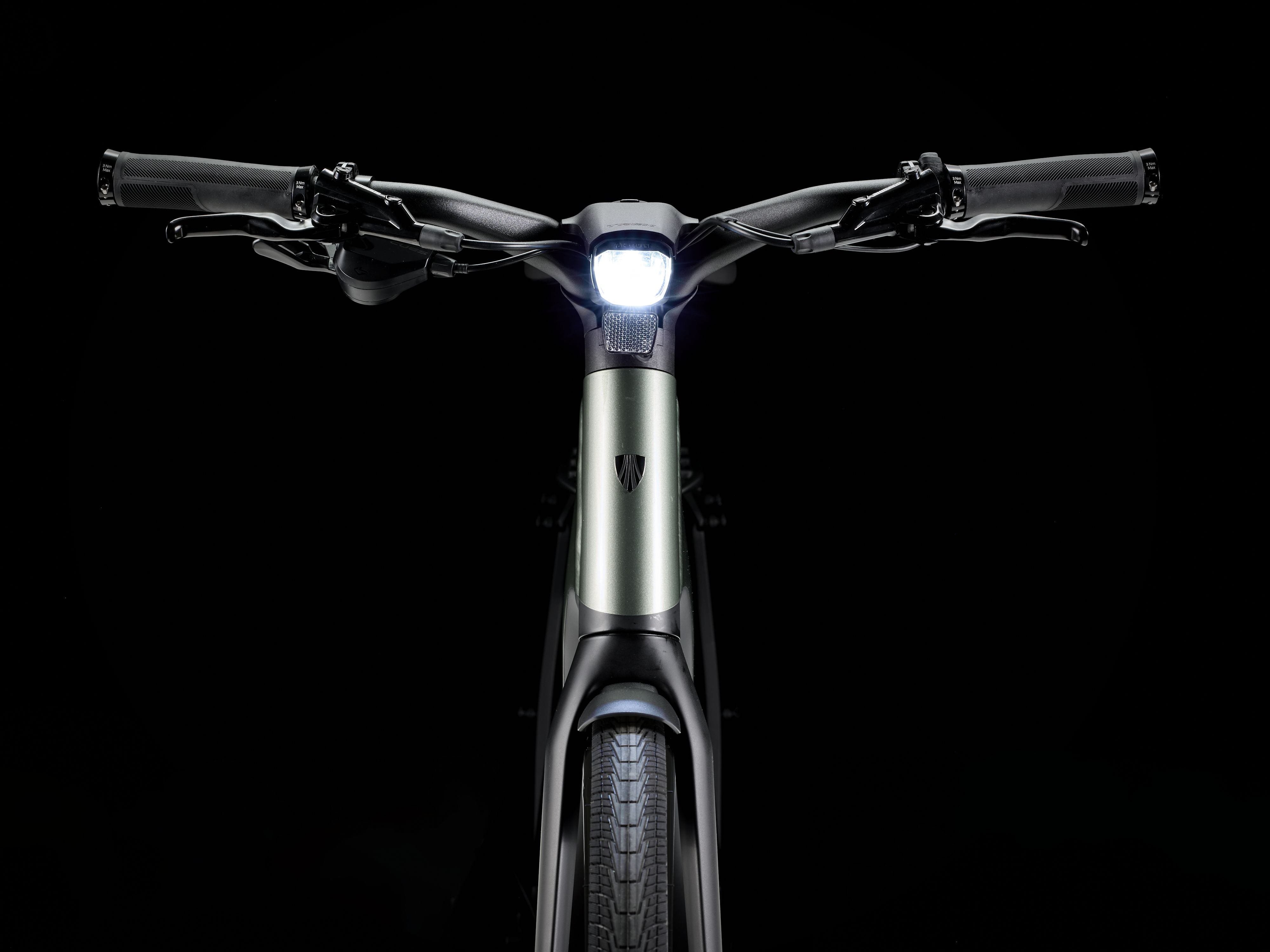

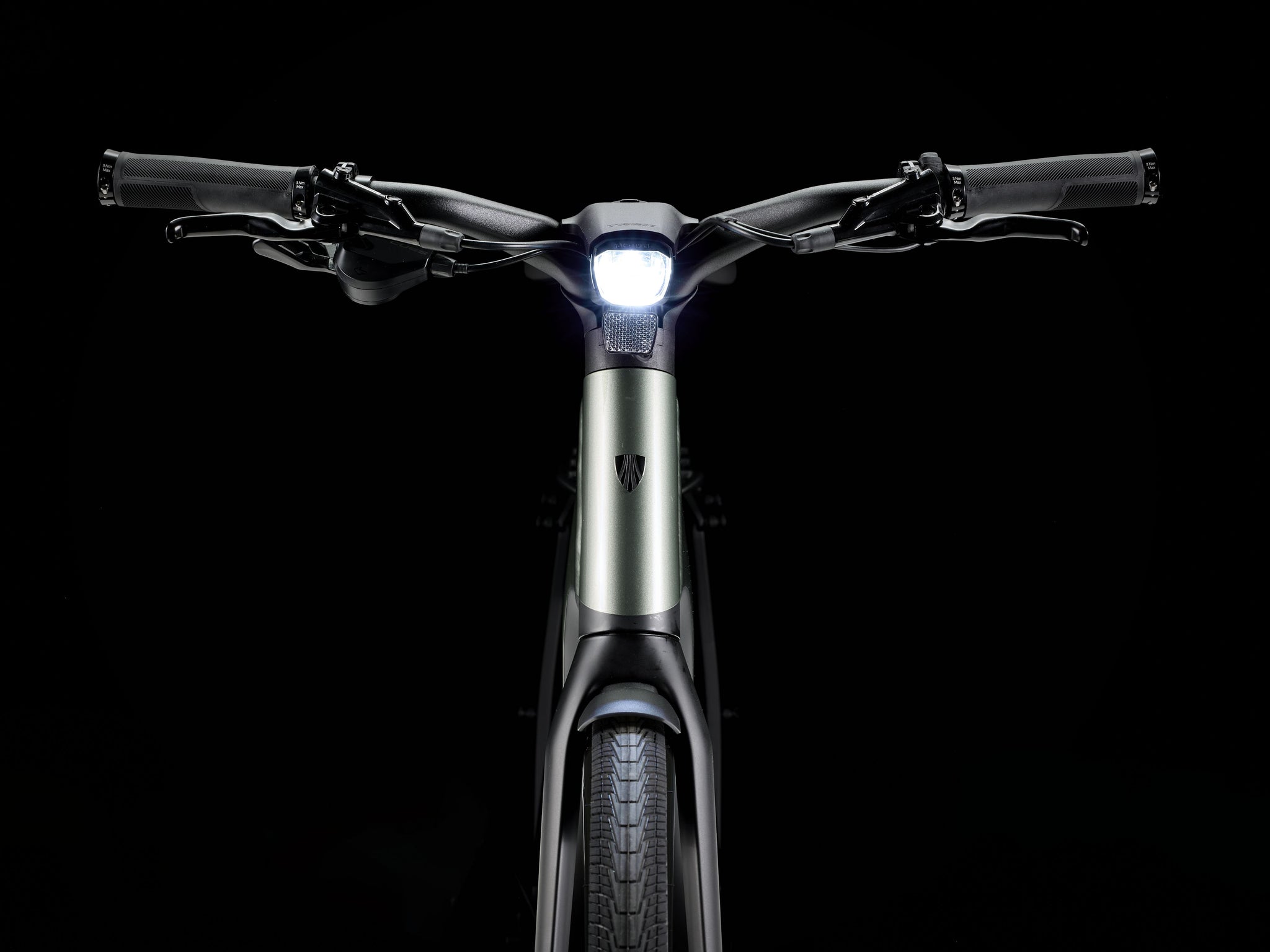

The FX+ 7 Midstep is a supremely light, quiet and sleek electric city bike made for cruising across town on greenways and bustling commutes. Its confidence-inspiring geometry and elegant Midstep frame design pair with a TQ motor that's compact, quiet and supremely smooth for a boost that feels completely natural. It comes ready for anything with a lightweight carbon fork, built-in front and rear lights, hydraulic disc brakes and crisp, clean shifting thanks to Shimano CUES.
Technology
Light and nimble - The FX+ 7 weighs only 18.15 kg fully equipped, making it easy to manoeuvre on city streets, carry up stairs, lift onto bike racks and more.
Specification
| Frame | Alpha Platinum Aluminum, internal cable routing, dealer removable battery, rack and mudguard mounts, post mount disc, kickstand mount |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 28 |
| Fork | Trek |
| Fork | FX Carbon, hidden fender mounts, flat mount disc, internal routing, 100x12 thru axle FX Carbon, hidden fender mounts, flat mount disc, internal routing, 100x12 thru axle |
| Tires | Bontrager H2 Hard Case Lite, wire bead, 30 tpi, 700x40 mm |
| Hub Front | Formula alloy, CenterLock disc, 100x12 mm thru-axle |
| Hub Rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rims | Bontrager Paradigm, Tubeless-Ready, 32-hole, 21 mm width, Presta valve |
| Shifter | Shimano |

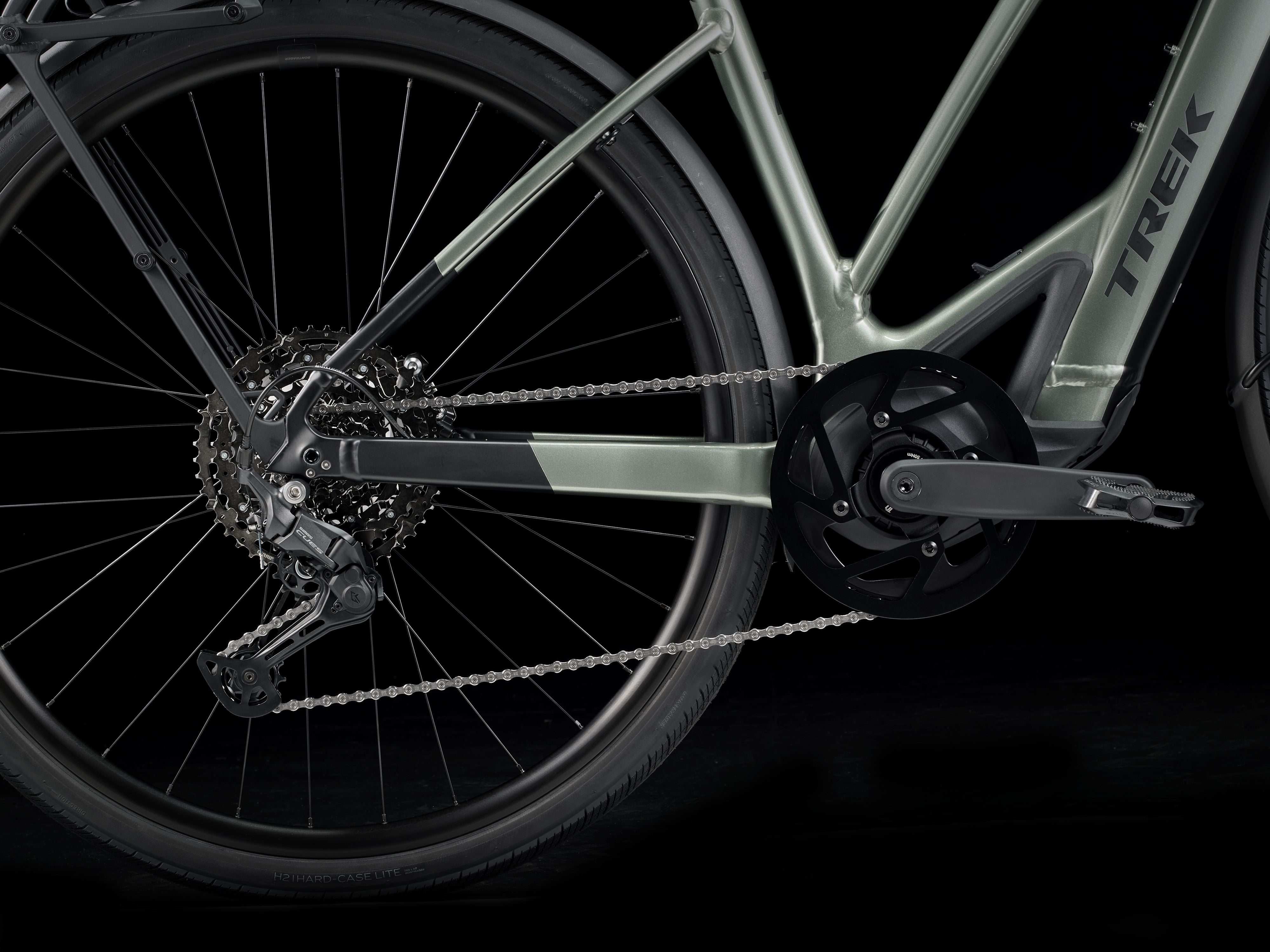

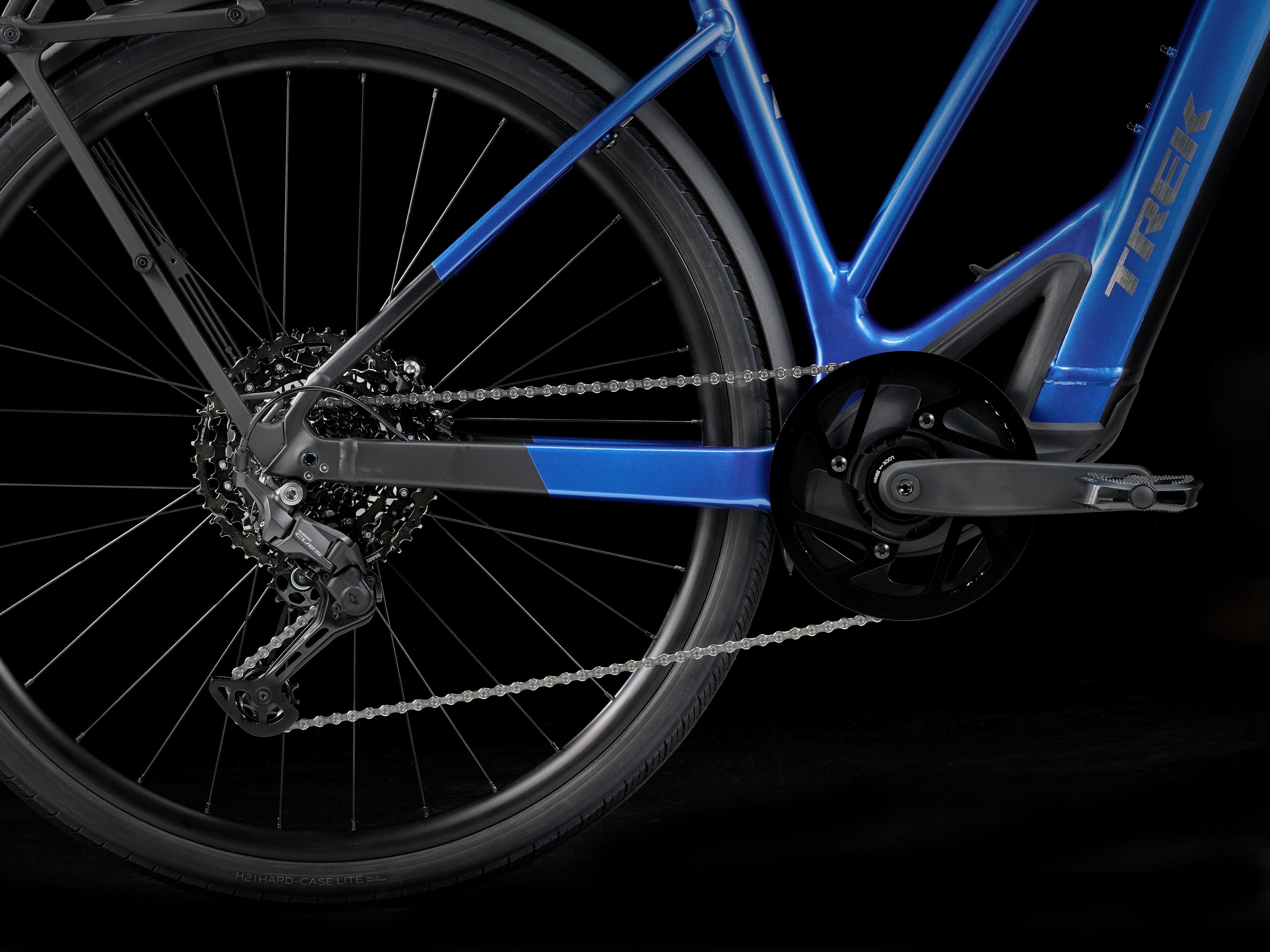

| Derailleur Rear | Shimano CUES U6000 GS |
| Crank | ProWheel Alloy, 46T narrow-wide chain ring, 170 mm arm length ISIS spline |
| Cassette | Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Brake | Shimano |
| Brakeset | Shimano hydraulic disc, RS600 lever, RS405 calliper // Shimano hydraulic disc, RS600 lever, RS405 calliper Shimano hydraulic disc, RS600 lever, RS405 caliper // Shimano hydraulic disc, RS600 lever, RS405 caliper |
| Brake Rotor | Shimano RT-MT800, CentreLock, 180 mm // Shimano EM810, CenterLock 160 mm |
| Pedals | Bontrager City pedals |
| Saddle | Bontrager Verse Comp, steel rails, 165 mm width |
| Seatpost | Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length |
| Handlebar | Bontrager Integrated handlebar/stem, 15 mm virtual handlebar rise, 680 width, 0 degree stem rise, 90 mm stem (virtual) length |
| Grips | Bontrager Satellite Elite, alloy lock-on |
| Fenders | Trek FX+ 7 Rear Mudguard |
| Carrier Rear | MIK-compatible alloy rear rack |
| Kickstand | Pletscher Comp 18 |
| Battery | TQ 360Wh TQ 360Wh |
| Controller | TQ LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, |
| Size Chart Rider Height | Rider Height - 175.0 - 186.0 |
| Size Chart Rider Inseam | Inseam - 82.0 - 88.0 |
