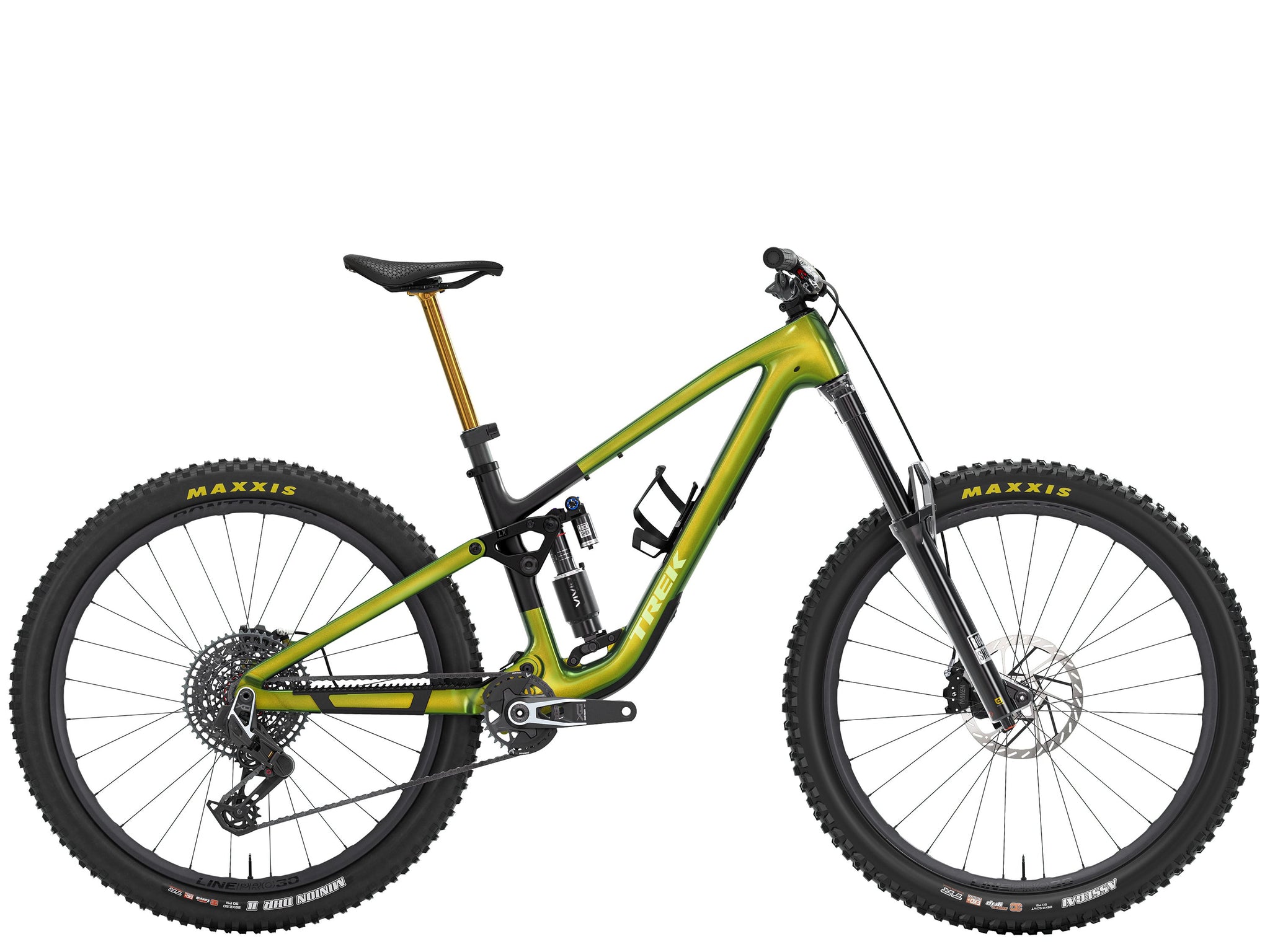

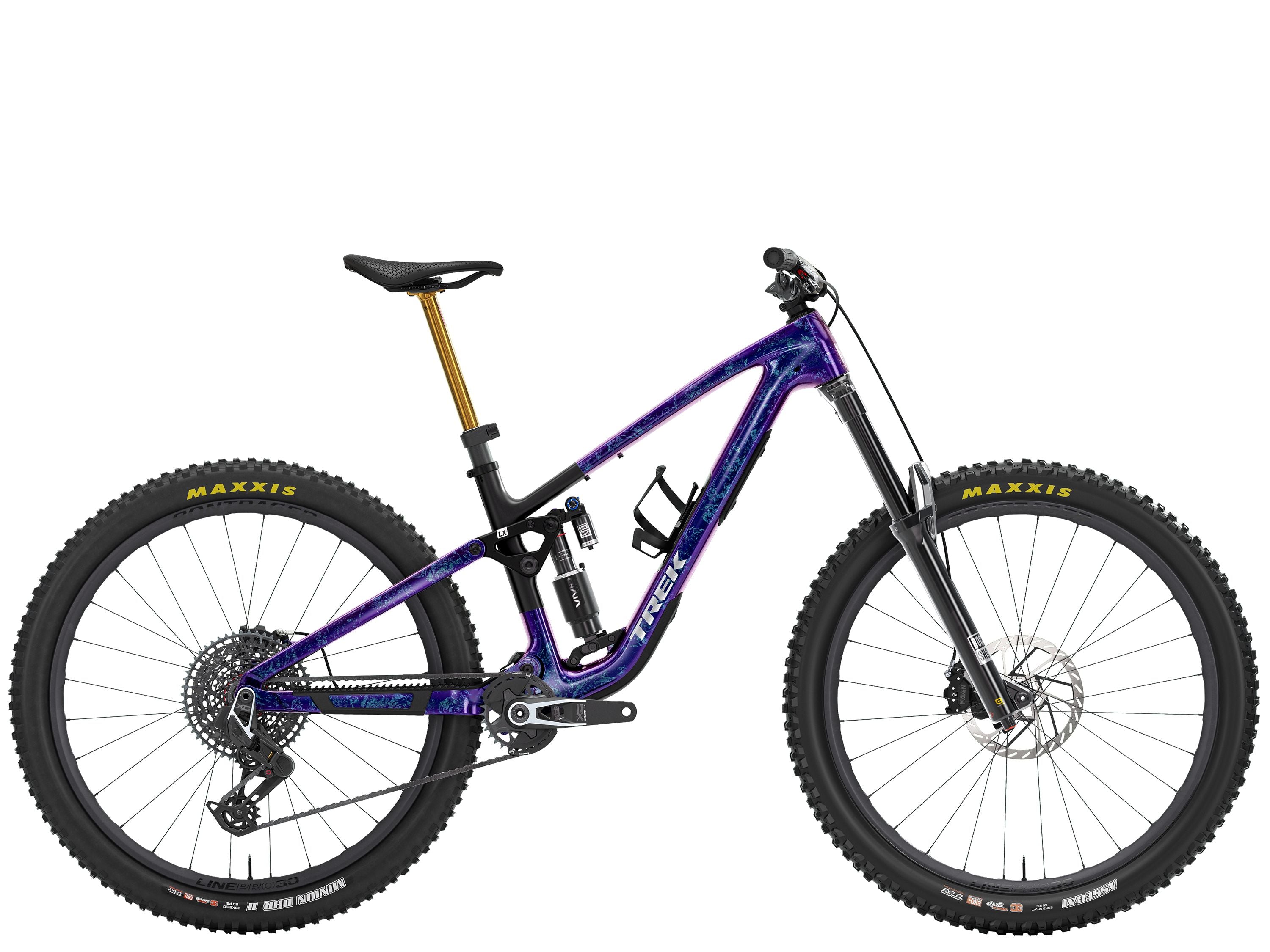

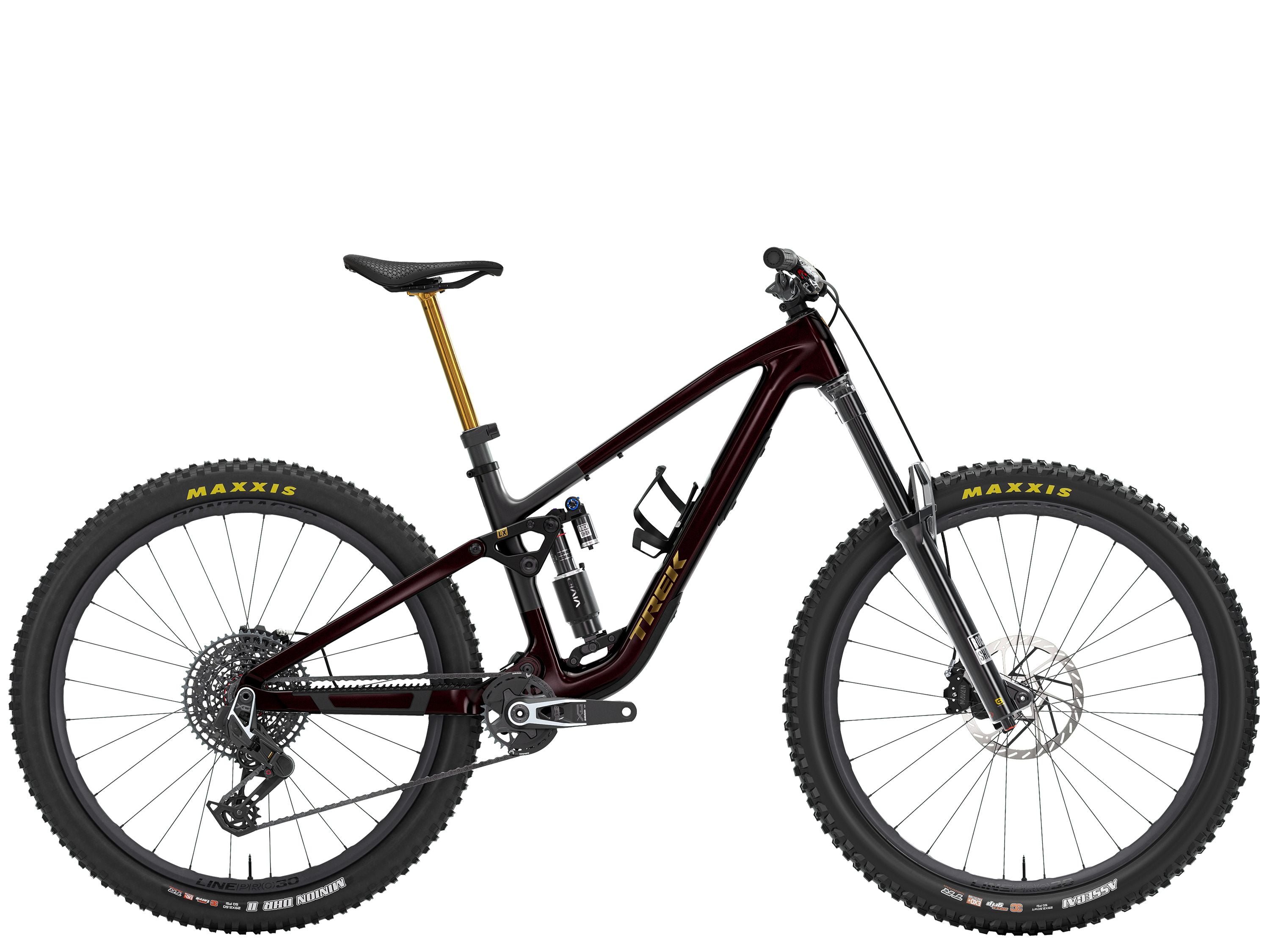

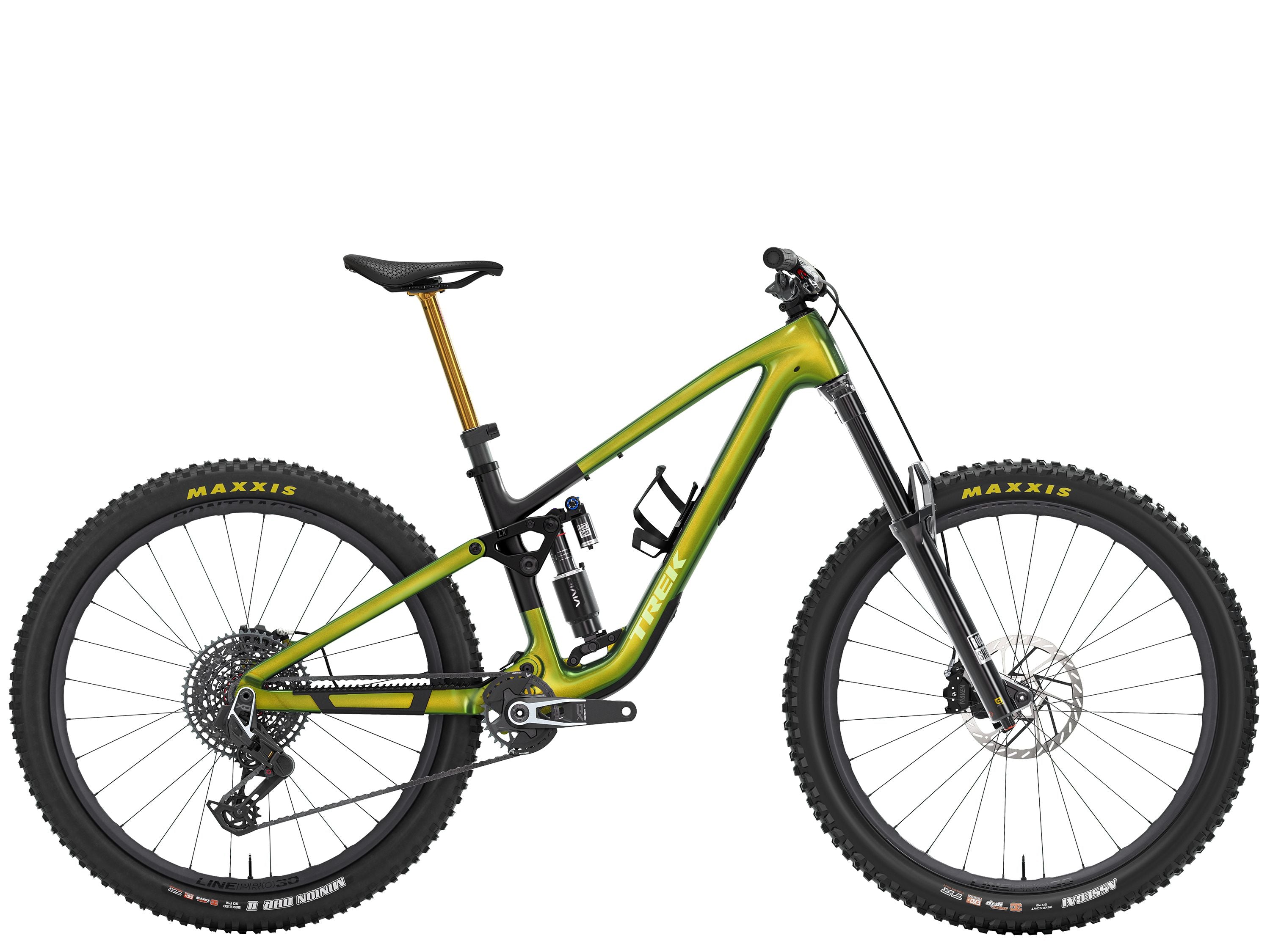

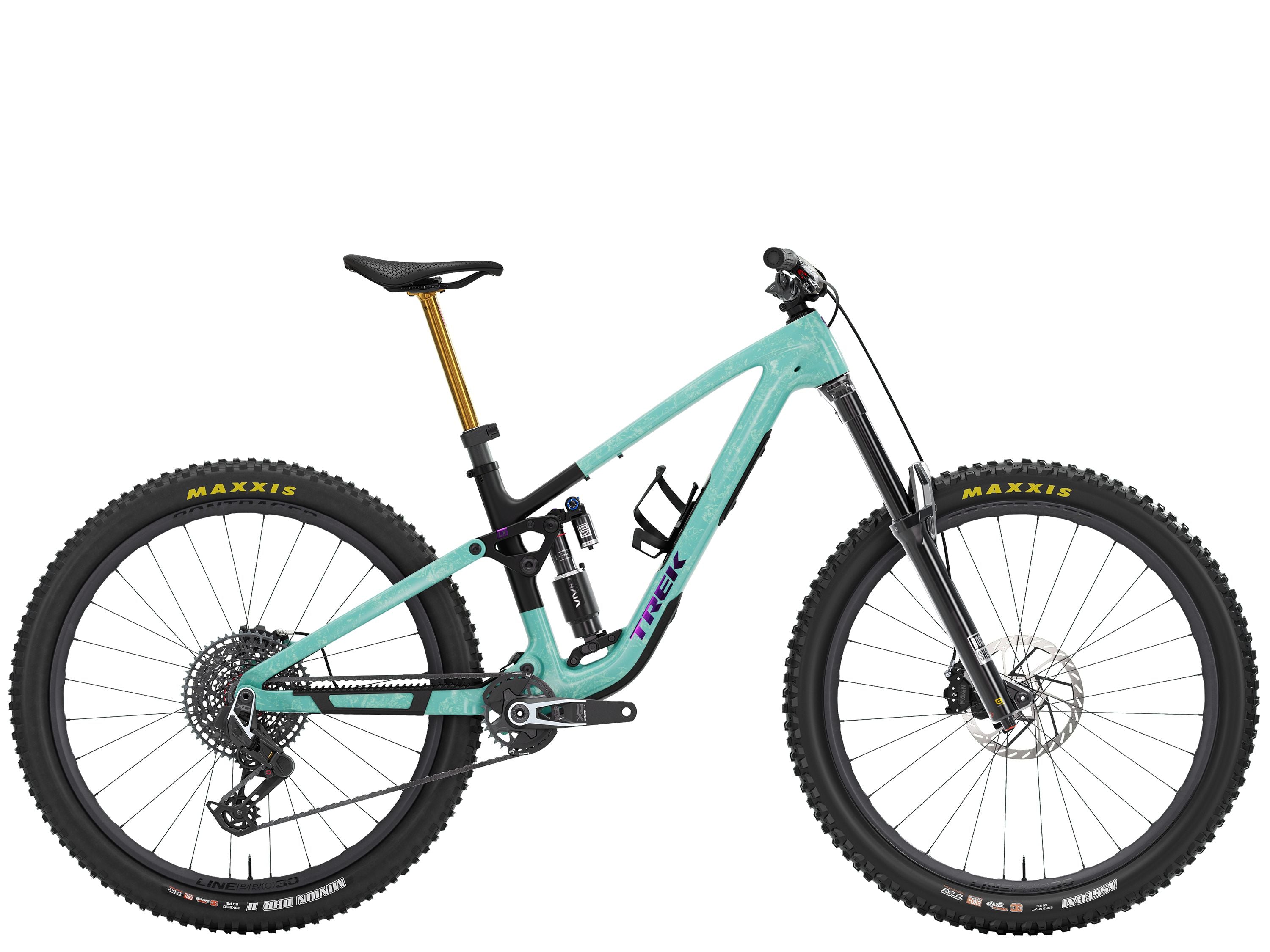

Fuel LX 9.9 X0 AXS
Fuel LX 9.9 X0 AXS Gen 7 is our top carbon trail bike, born for the chaos and topped with the best components. Its OCLV Mountain Carbon frame partners with a RockShox ZEB Ultimate fork and Vivid Ultimate shock (160mm rear, 170mm front) for going all-out on the wildest lines on the mountain. A SRAM X0 AXS transmission gives you clean and crisp shifting, even on the punchiest climbs, while SRAM Maven Silver 4-piston brakes provide incredible modulation and power. It's topped off with a Fox Transfer NEO dropper post and carbon Bontrager Line Pro wheels.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
|---|---|
| Frame Material | CARBON |
| Rim Size | 29 |
| Fork | RockShox |
| Fork | Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups, Charger 3.2 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 170mm travel Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups, Charger 3.2 RC2 |
| Rearsuspension | RockShox |
| Suspension Rear | RockShox Vivid Ultimate D1, 205x65mm |
| Wheels | Bontrager Line Pro 30 |
| Tires | Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5" // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5" |
| Shifter | SRAM |
| Derailleur Rear | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM X0 Eagle, DUB, 30T steel, T-Type, 55mm chainline, 170 mm length // SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 165mm length |
| Bottom Bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc |
| Brake Rotor | SRAM HS2, 6-bolt, 180mm // SRAM HS2, 6-bolt, 200mm |
| Saddle | Trek Aeolus Pro, carbon fibre rails, AirLoom lattice 145 mm width |
| Seatpost | Fox Transfer NEO, 175 mm travel, wireless, 34.9 mm |
| Handlebar | Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width |
| Stem | Race Face Turbine R, 35mm, 0 degree, 40mm length |
| Grips | Trek Line Elite, lock-on |
| Battery | SRAM AXS battery pack (with charger) SRAM AXS battery pack (with charger) |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
