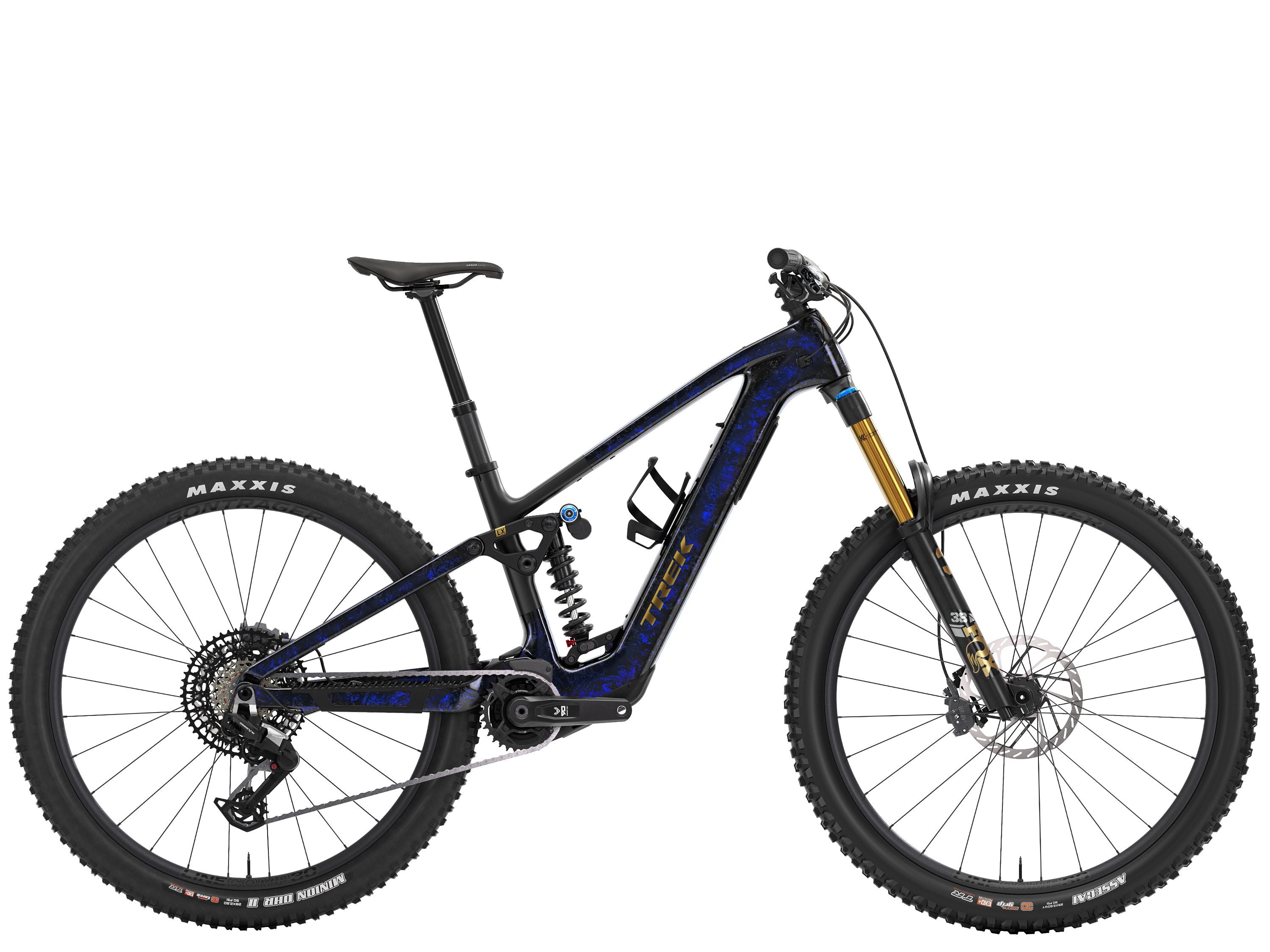

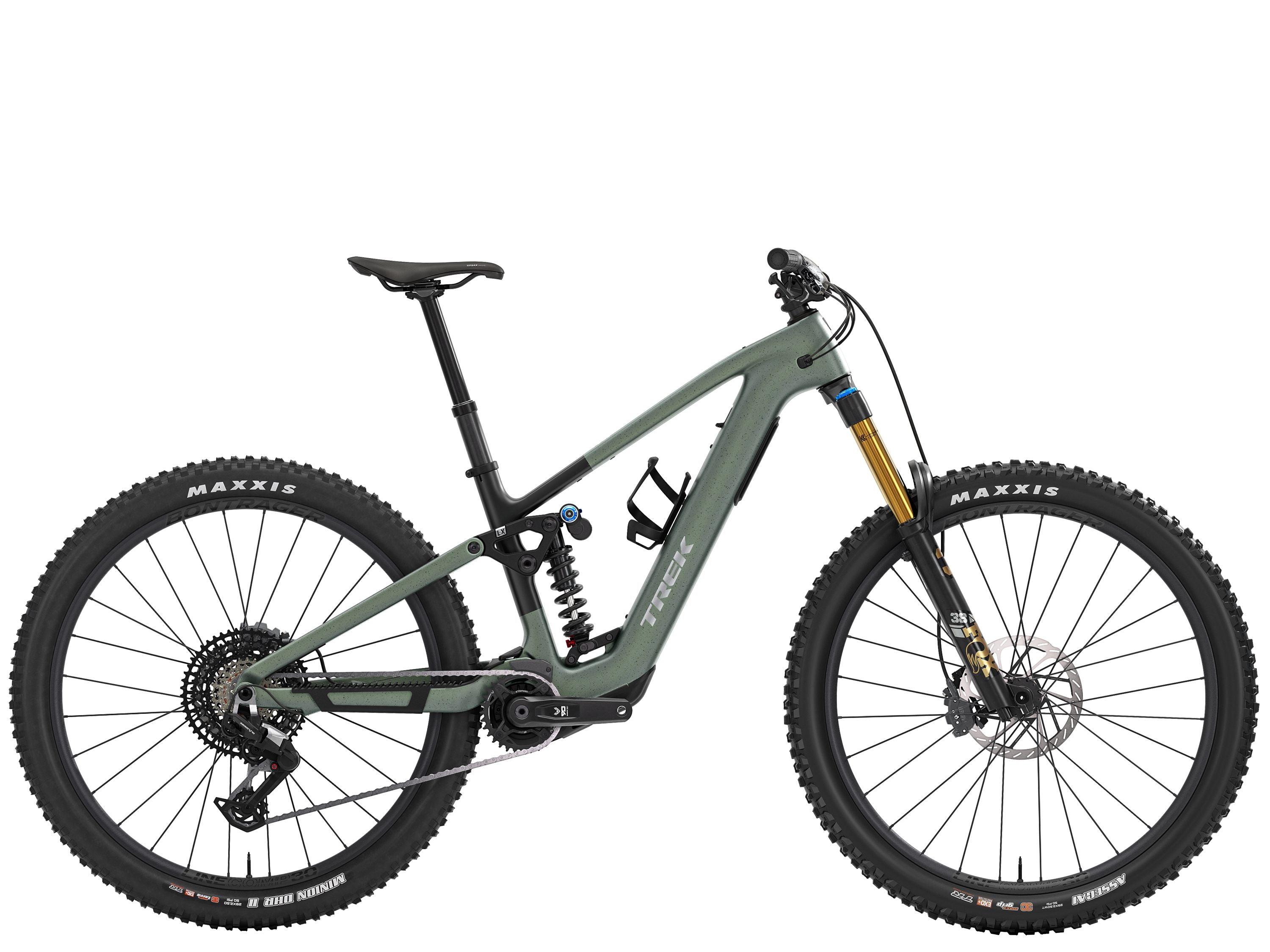

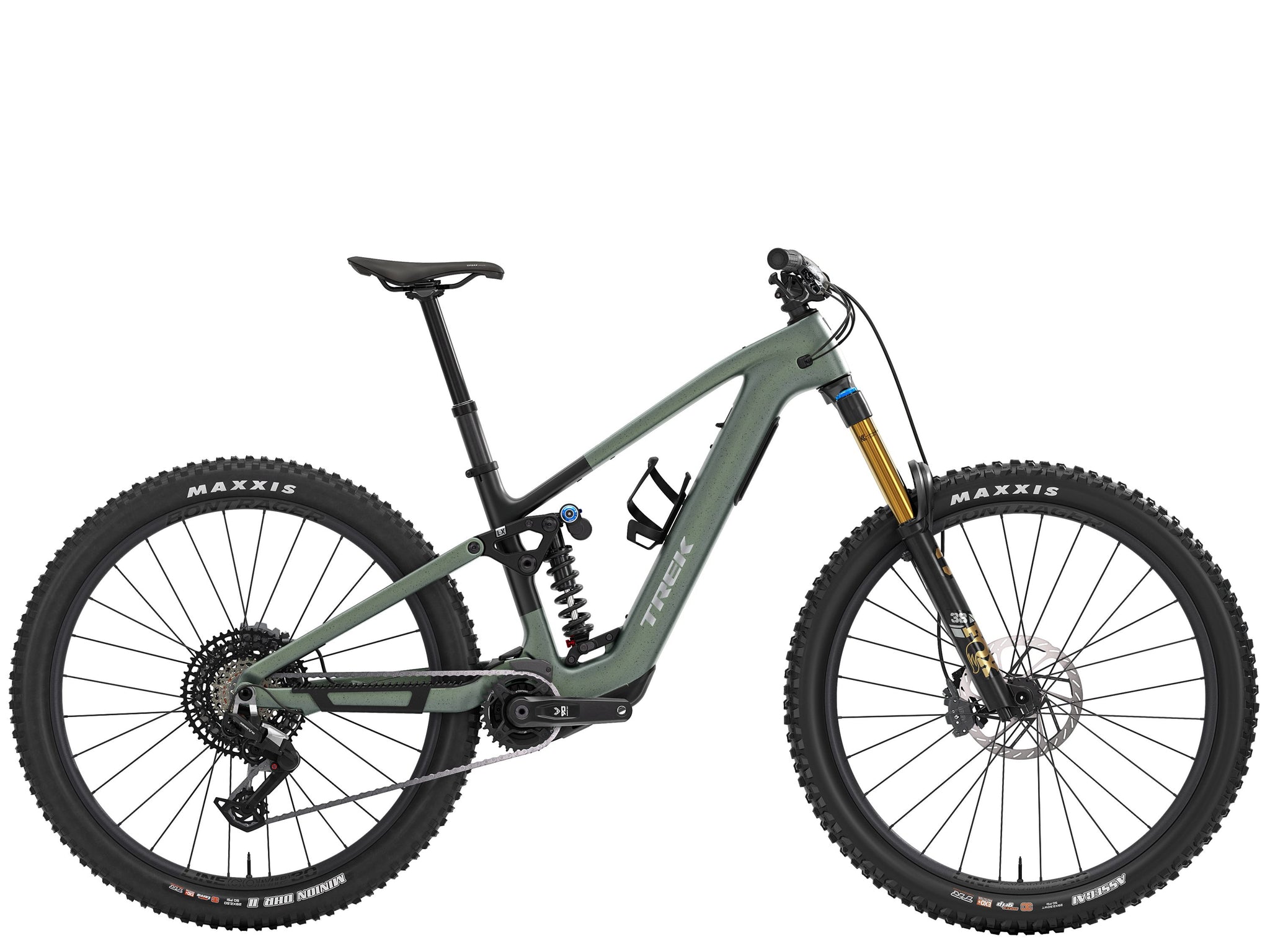

Fuel+ LX 9.8 Eagle 90 Gen 2
The Fuel+ LX 9.8 Eagle 90 is a hard-hitting electric mountain bike for tackling endless laps. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a quiet, smooth boost, while a Fox Factory suspension package with a coil shock (160 mm rear, 170 mm front) keeps you feeling confident in the roughest terrain. A fuss-free SRAM Eagle 90 transmission gives you smooth mechanical shifting and SRAM Maven Bronze 4-piston brakes keep modulation and control on lock.
Technology
Adapt, rip, repeat - Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Specification
| Frame | OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm OCLV Mountain Carbon, remo |
|---|---|
| Frame Material | CARBON |
| Rim Size | 29 |
| Fork | Fox |
| Fork | Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 170 mm travel Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 1 |
| Rearsuspension | Fox |
| Suspension Rear | Fox DHX2, 205 mm x 65 mm |
| Wheels | Bontrager Line Comp 30 |
| Tires | Maxxis Assegai, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' // Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'' |
| Shifter | SRAM |
| Derailleur Rear | SRAM Eagle 90, T-Type |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM Maven Bronze 4-piston hydraulic disc // SRAM Maven Bronze 4-piston hydraulic disc SRAM Maven Bronze 4-piston hydraulic disc // SRAM Maven Bronze 4-piston hydraulic disc |
| Brake Rotor | SRAM HS2, 6-bolt, 200mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| Handlebar | Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Grips | Trek Line Elite, lock-on |
| Battery | TQ 580Wh TQ 580Wh |
| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power |
| Size Chart Rider Height | Rider Height - 177.0 - 188.0 |
| Size Chart Rider Inseam | Inseam - 84.0 - 89.0 |
