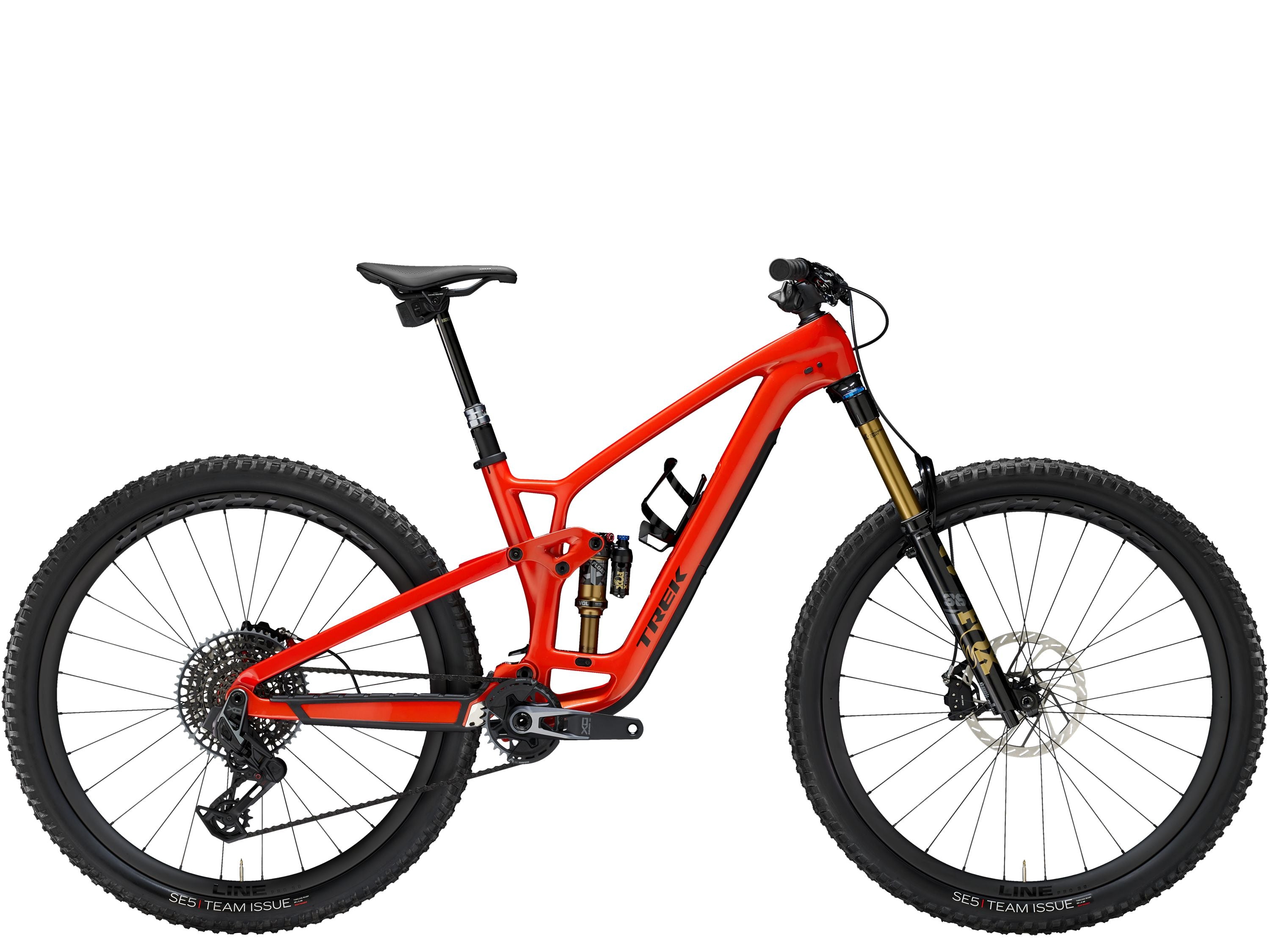

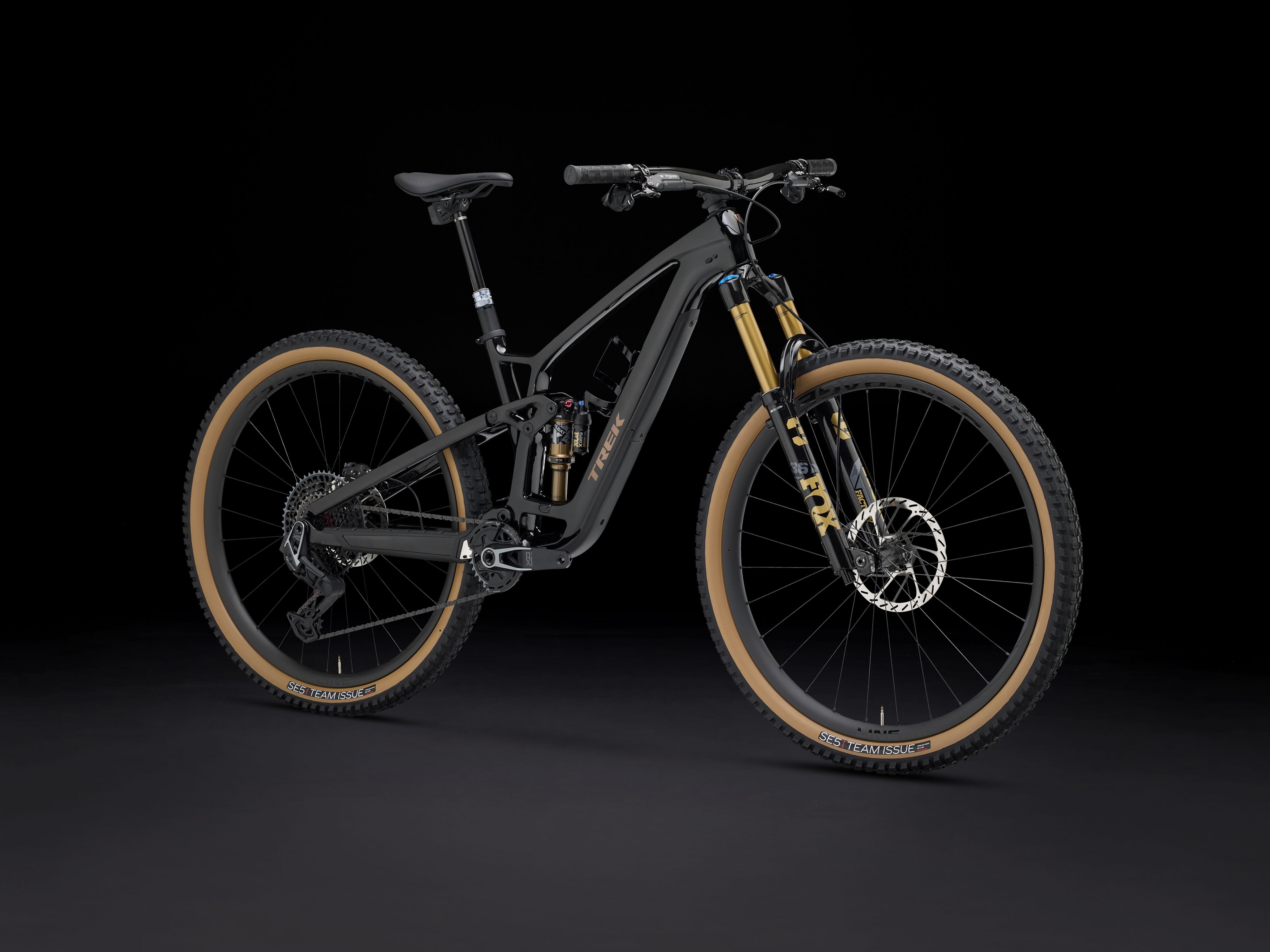

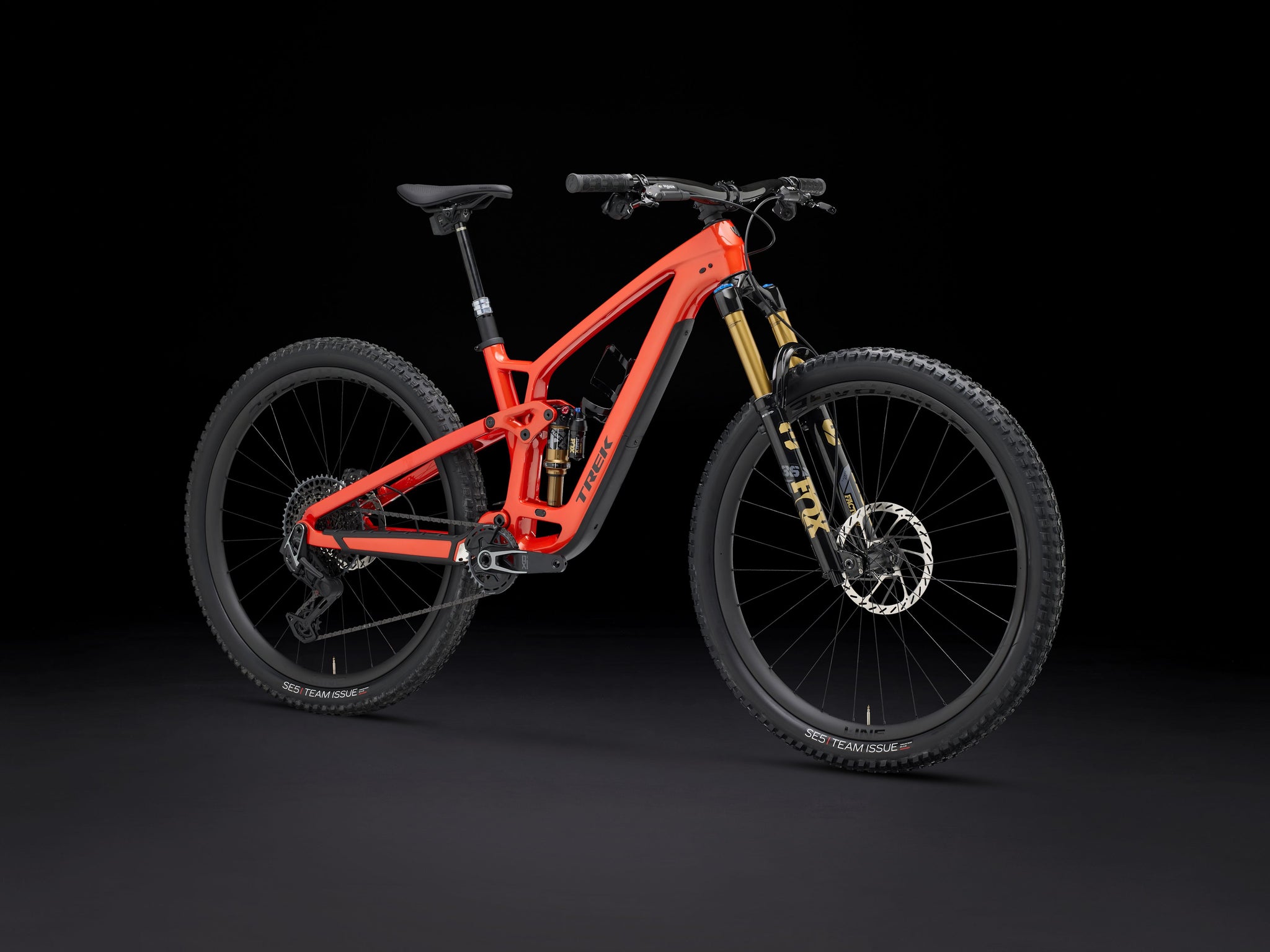

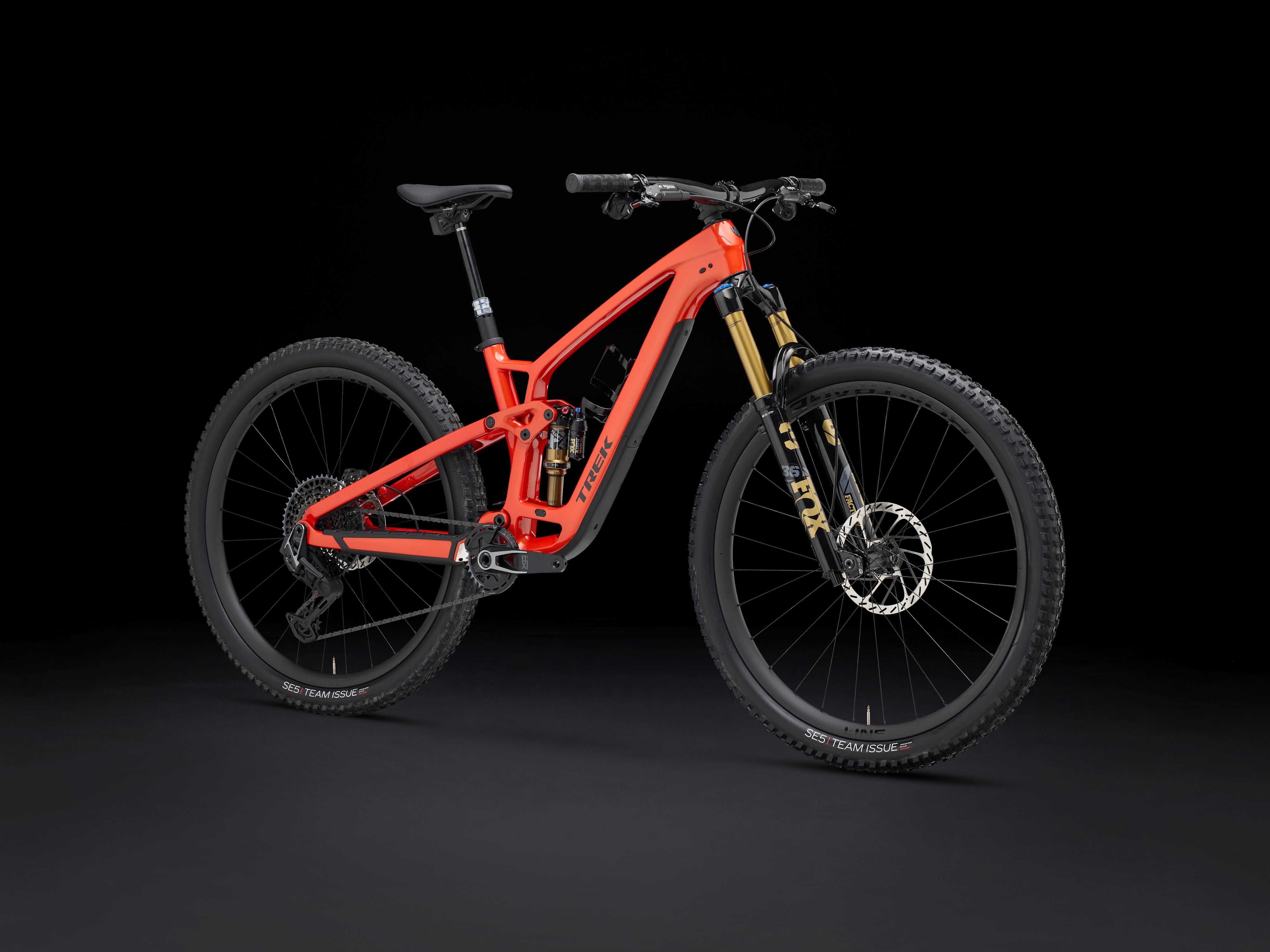

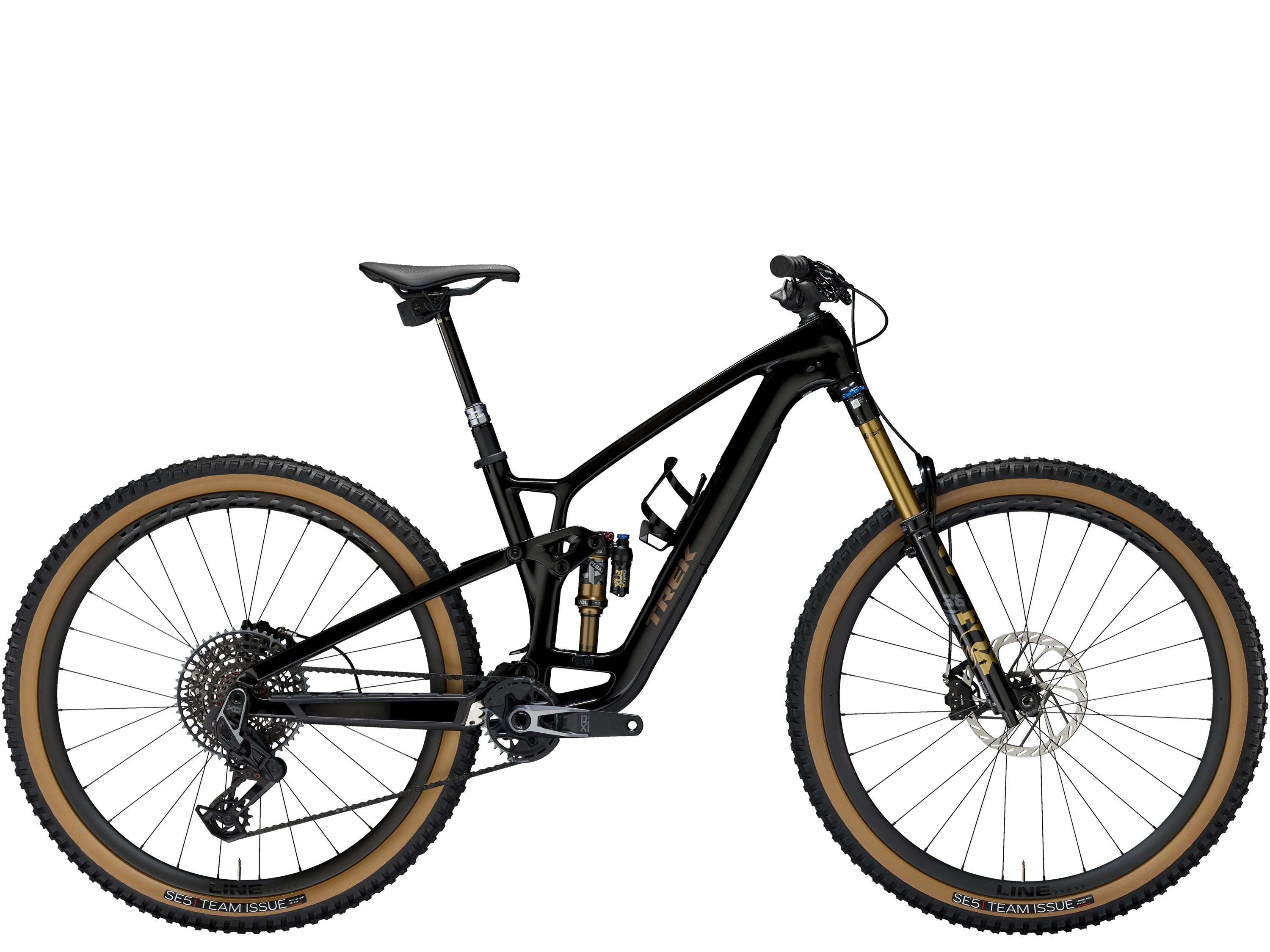

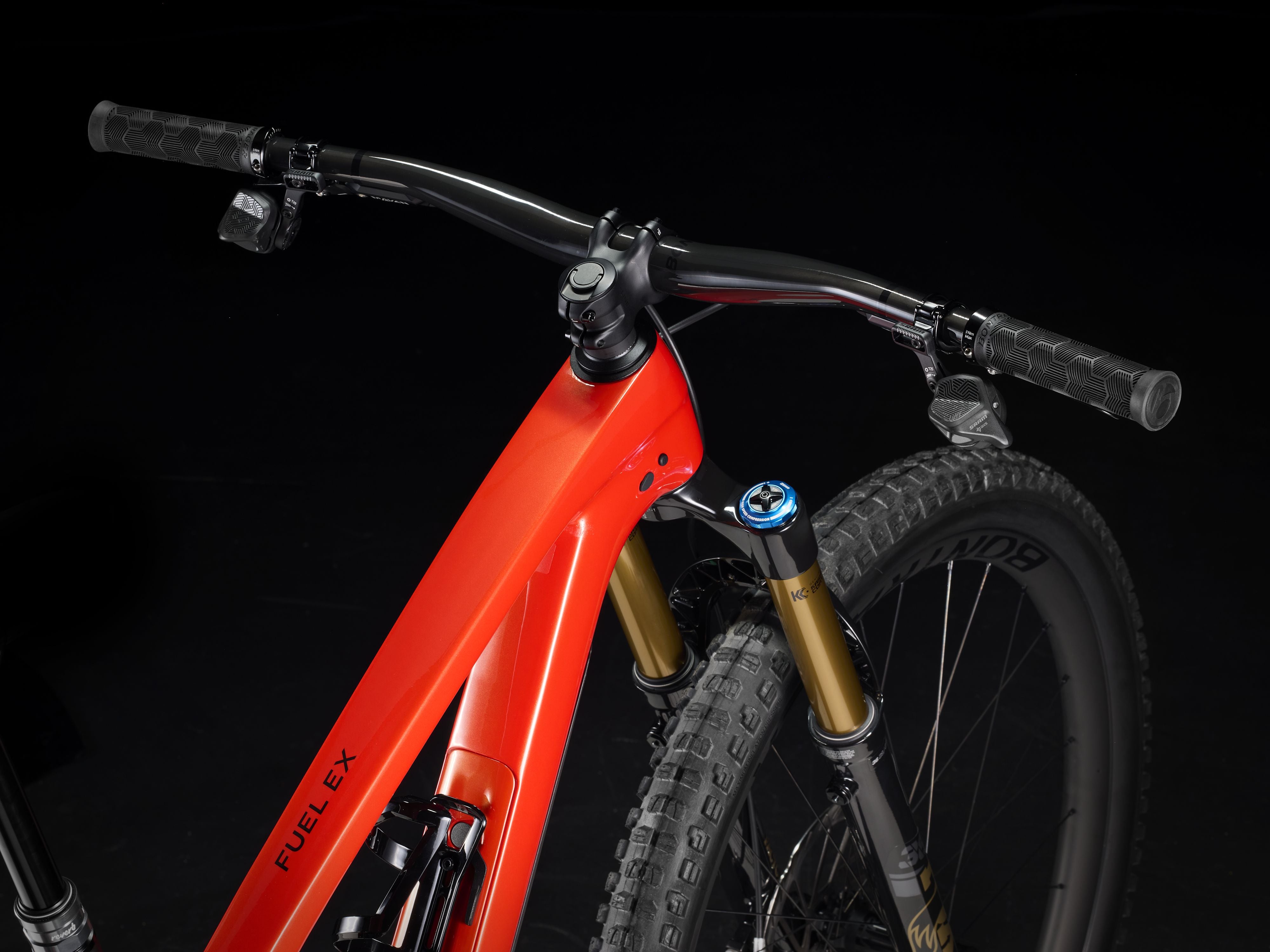

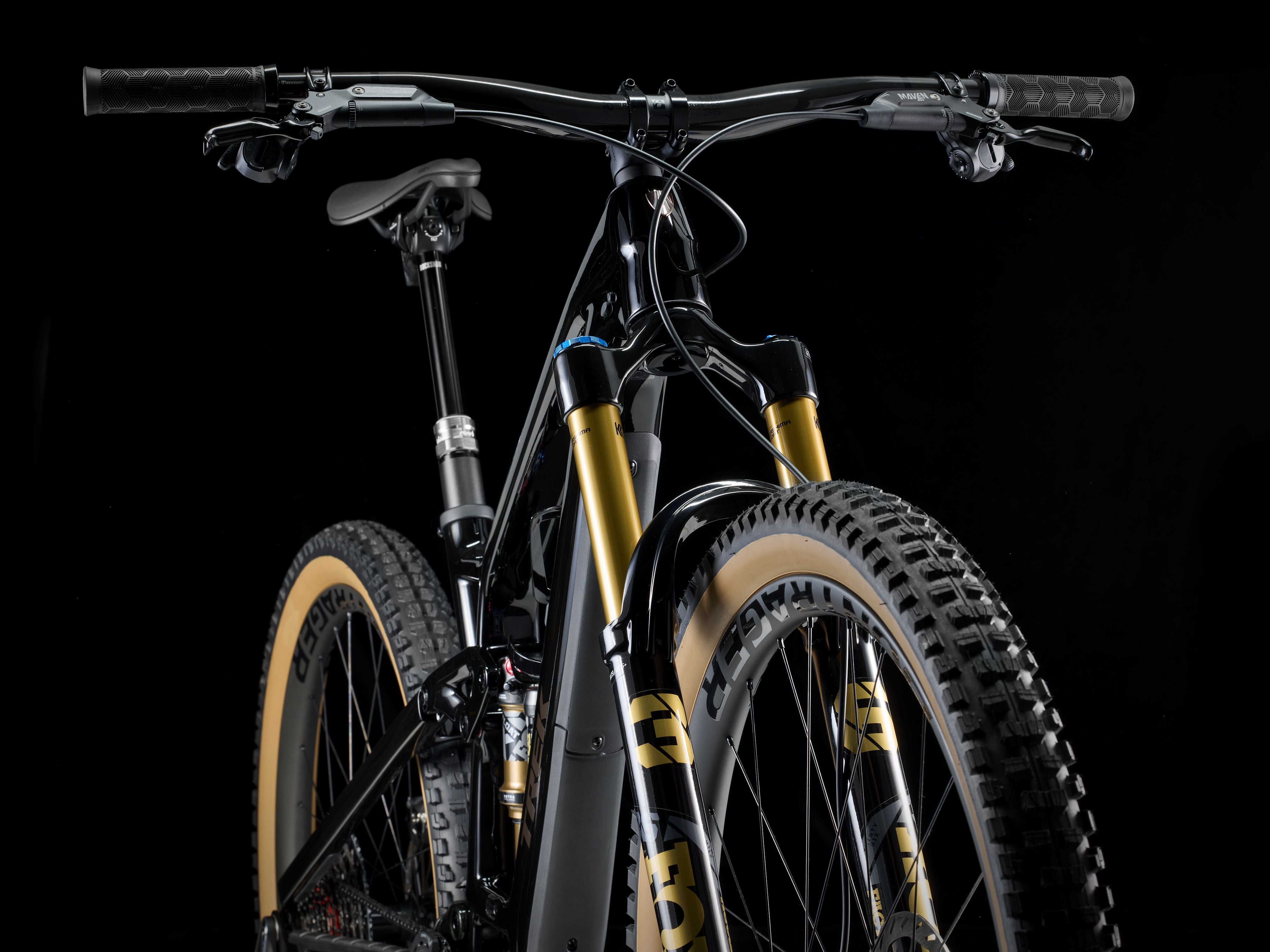

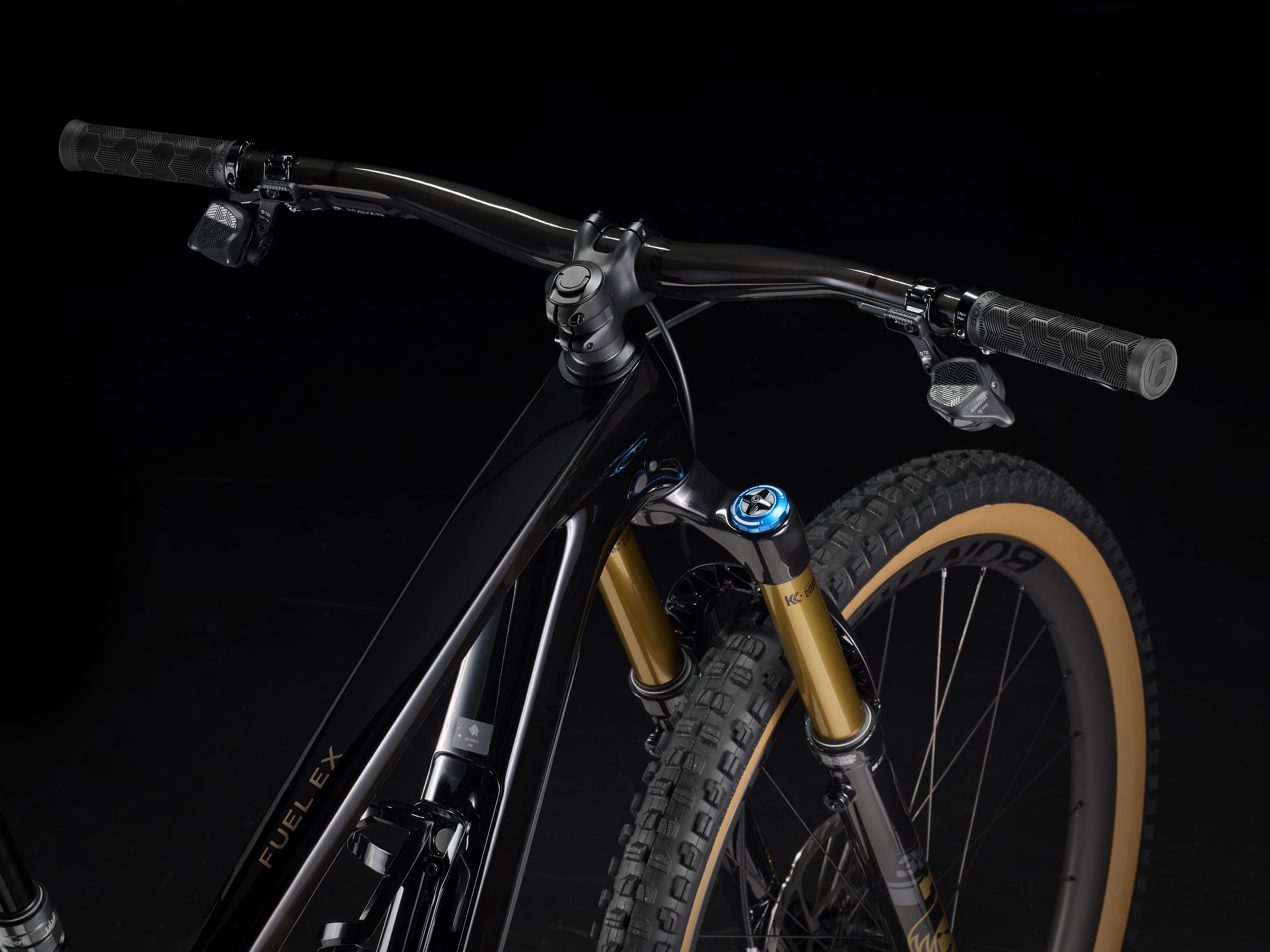

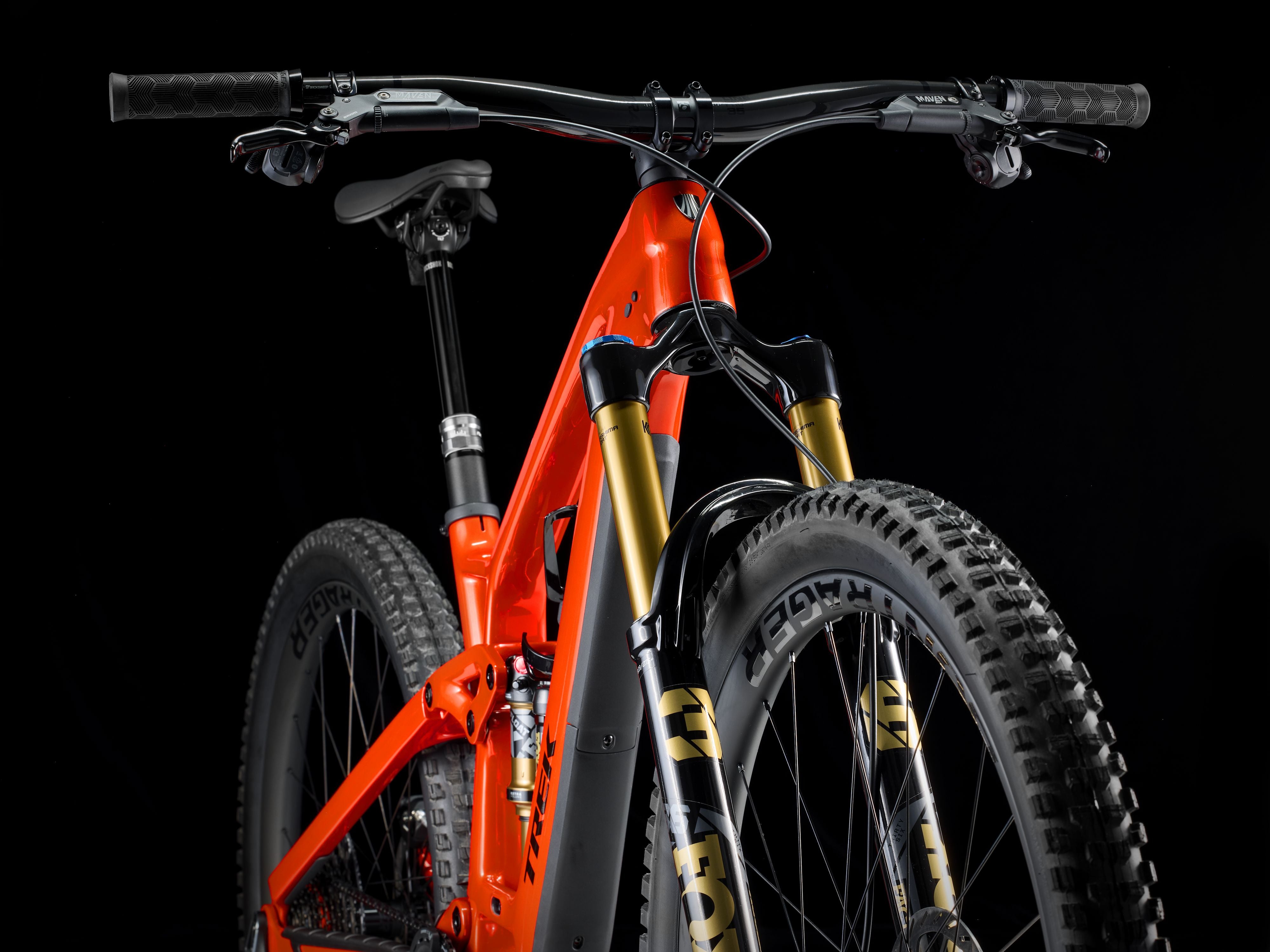

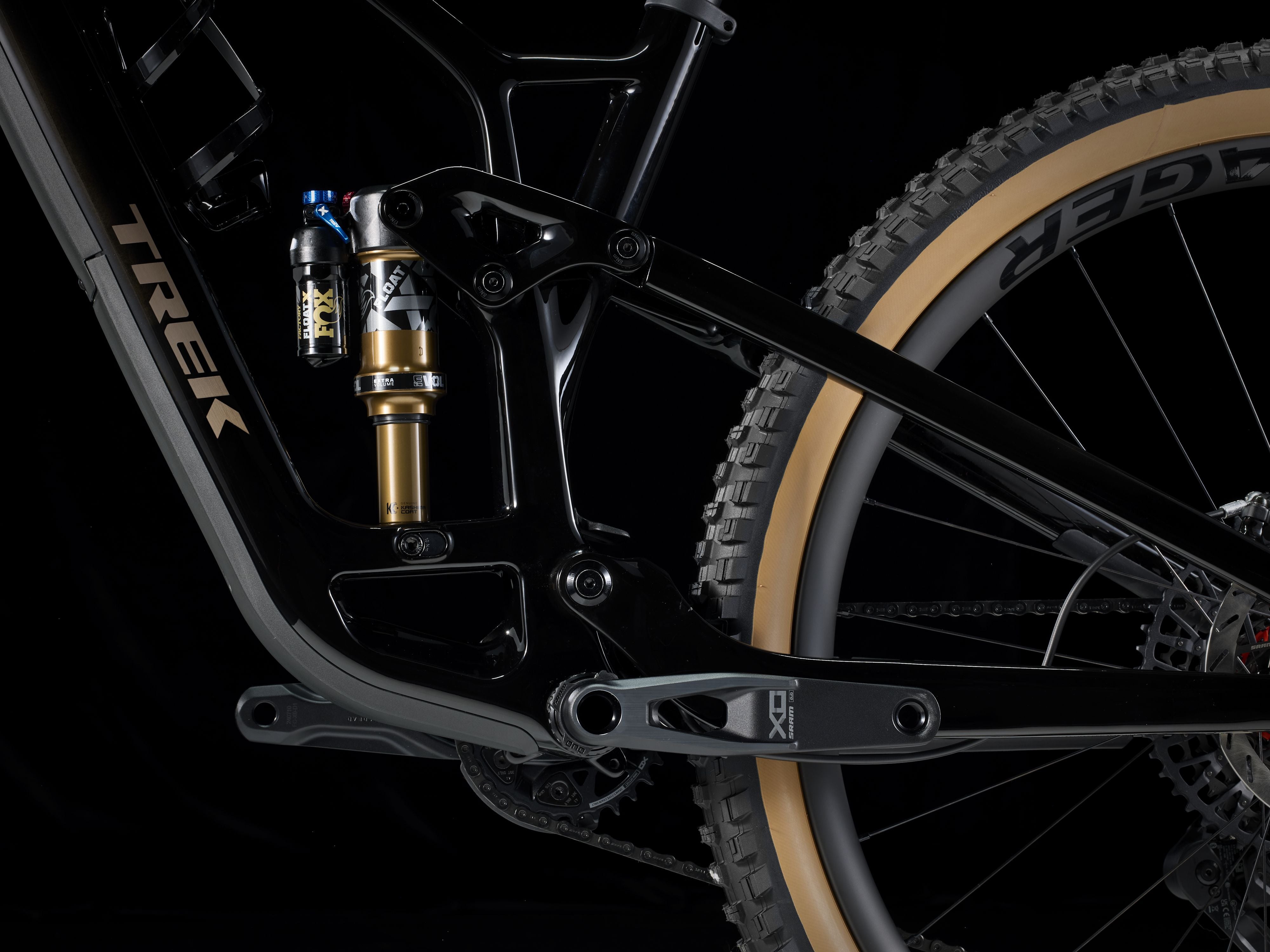

Fuel EX 9.9 X0 AXS T-Type Gen 6
The Fuel EX 9.9 X0 AXS is a top-tier trail bike built for riders who have an appreciation for the finest things in life. It combines a cream-of-the-crop carbon frame with top-tier components, from the carbon fibre wheels all the way up to the 150 mm Kashima-coated FOX Factory fork and rugged, fully wireless SRAM X0 transmission. It's a bike that rules the mountain and doesn't hesitate to lay claim to its domain, ripping up rock gardens, blasting berms and rocketing back to the top to conquer it all once again.
Technology
Internal Storage - Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.
Specification
| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel OCLV Mo |
|---|---|
| Frame Material | CARBON |
| Rim Size | 27.5 |
| Fork | Fox |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 180 mm direct mount brake tab, 140 mm travel Fox Factory 36, Float EVOL air spring, GRIP X2 damper |
| Rearsuspension | Fox |

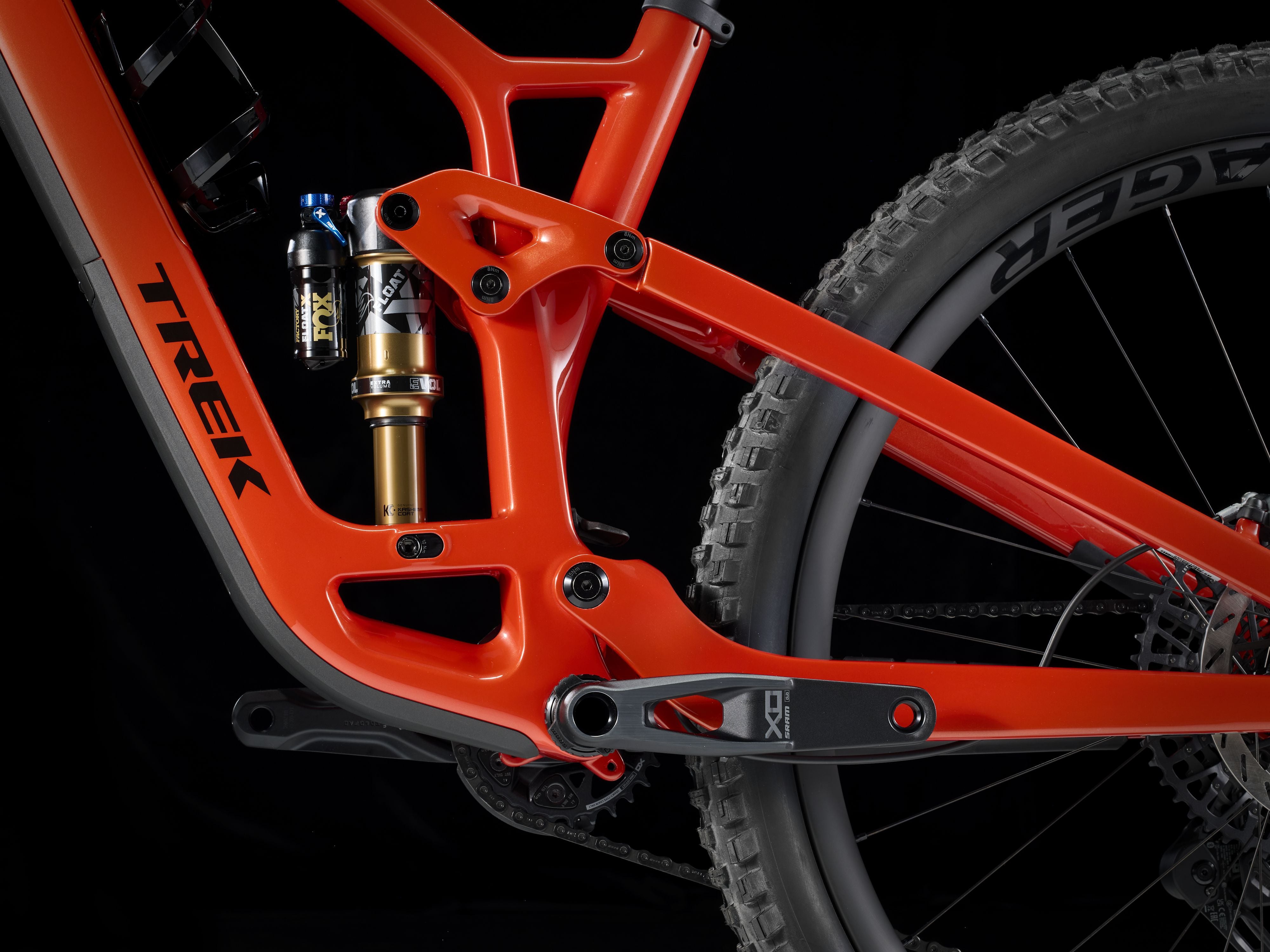

| Suspension Rear | Fox Factory Float X, 2-position damper, 185 mm x 55 mm |
| Wheels | Bontrager Line Pro 30 |
| Tires | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50" // Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 27.5 x 2.50" |
| Shifter | SRAM |

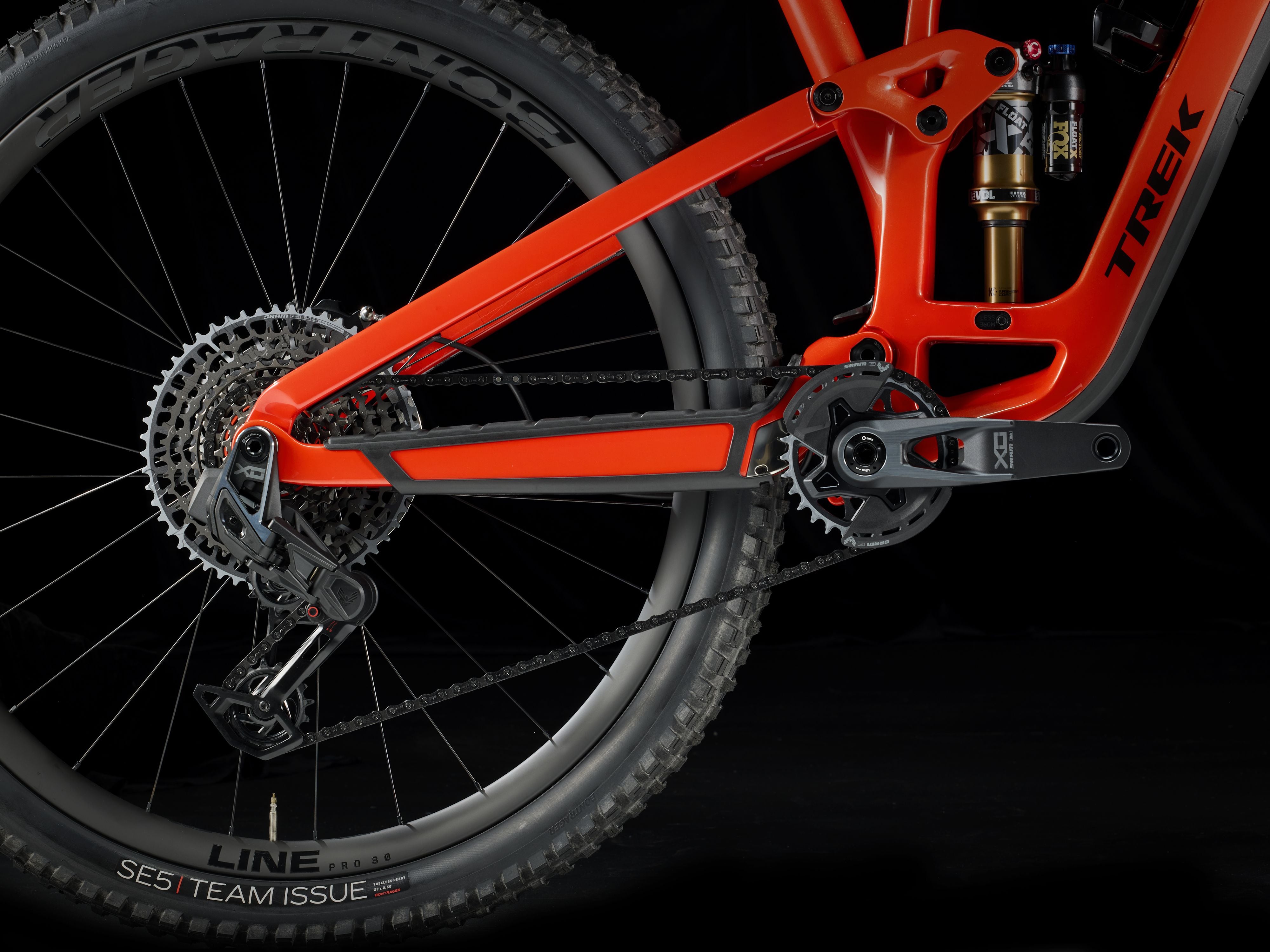

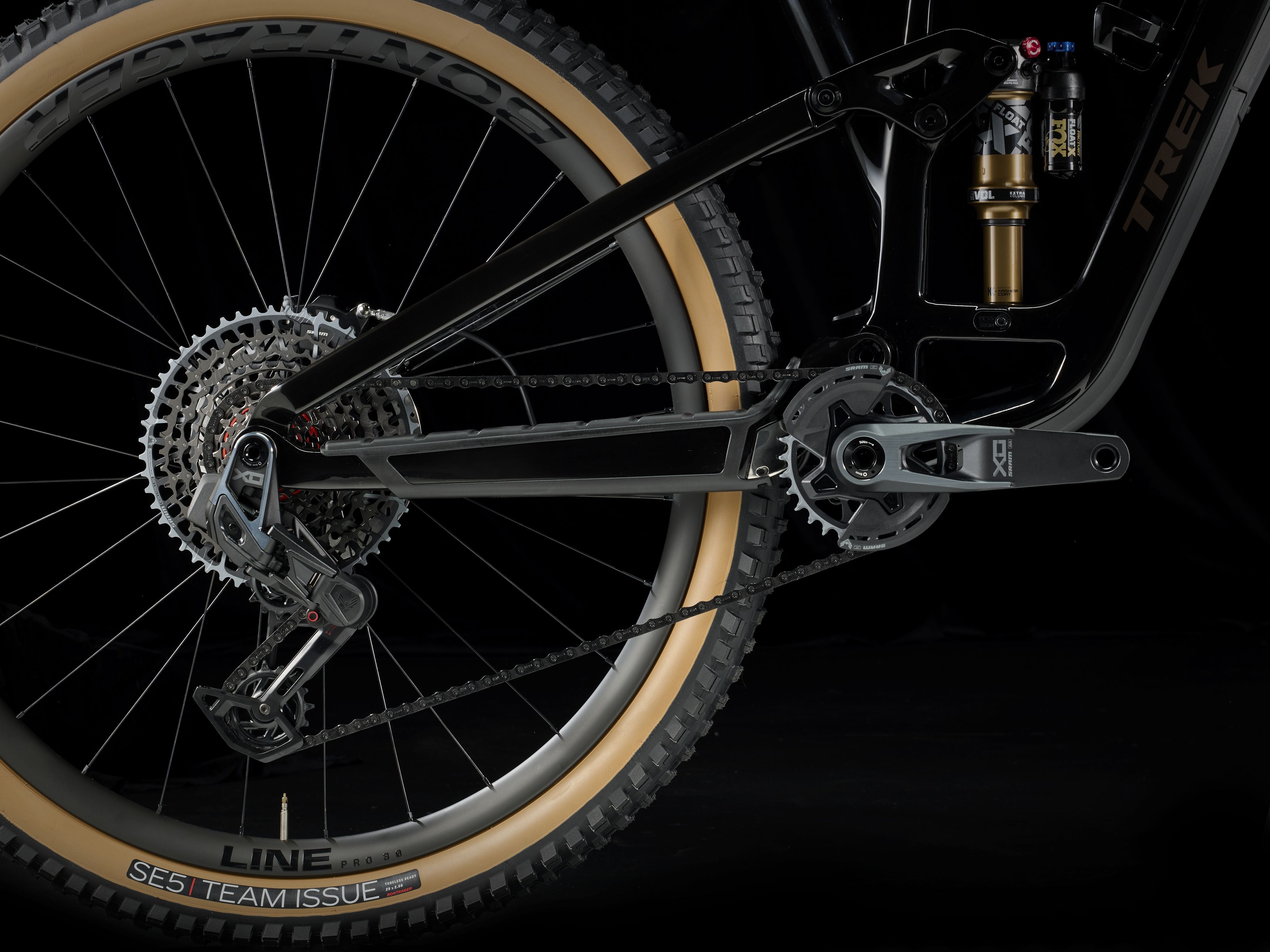

| Derailleur Rear | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM X0 Eagle, DUB, 30T, T-Type, 55 mm chainline, 170 mm length |
| Bottom Bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12-speed |
| Chain | SRAM X0 Eagle, T-Type, 12-speed |
| Brake | SRAM |
| Brakeset | SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc |
| Brake Rotor | SRAM HS2, 6-bolt, 180mm |
| Saddle | Verse Short Pro, carbon rails, 145 mm width |
| Seatpost | RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Stem | Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length |
| Headset | Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Size Chart Rider Height | Rider Height - 155.0 - 165.0 |
| Size Chart Rider Inseam | Inseam - 74.0 - 78.0 |
