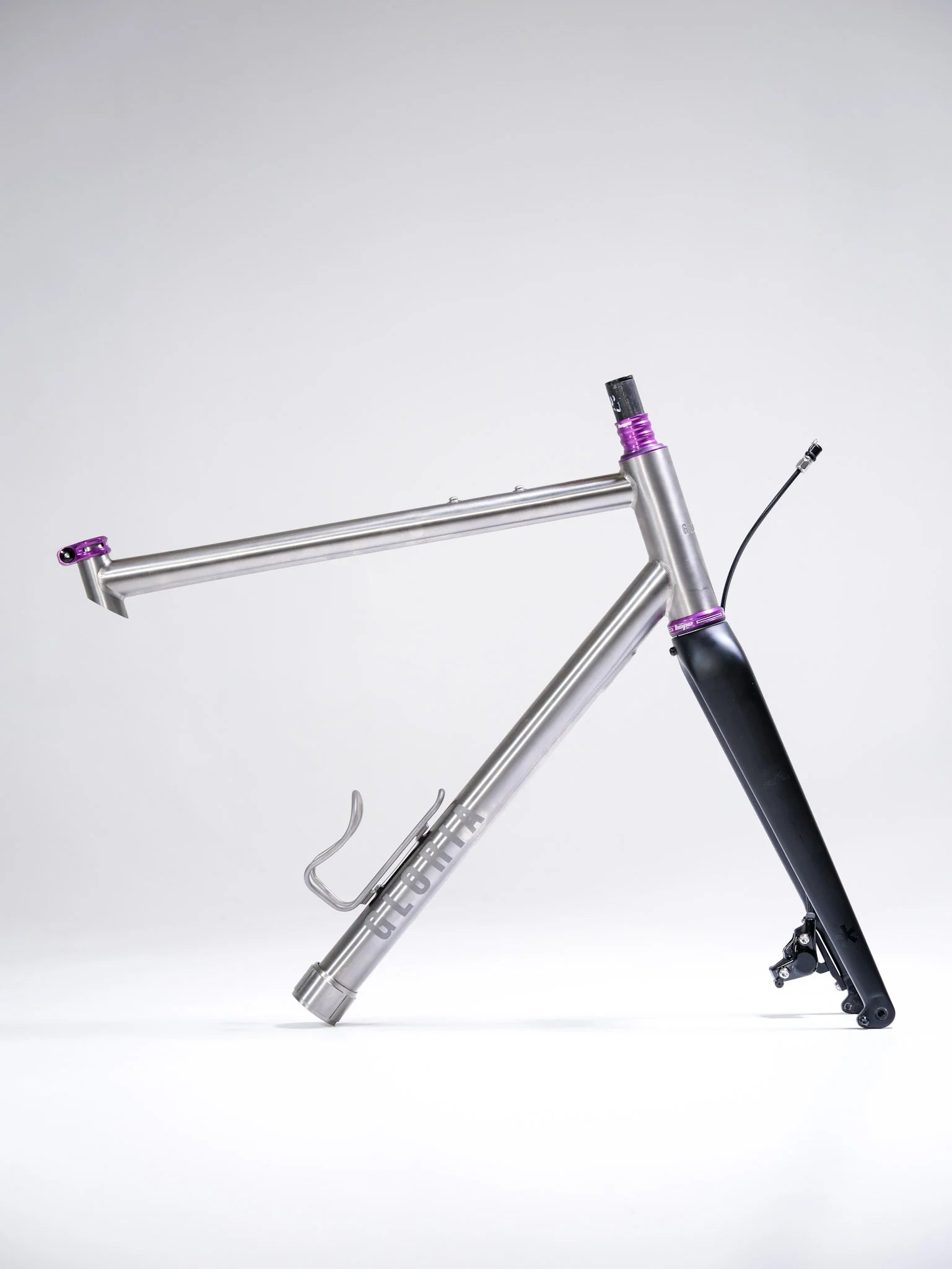

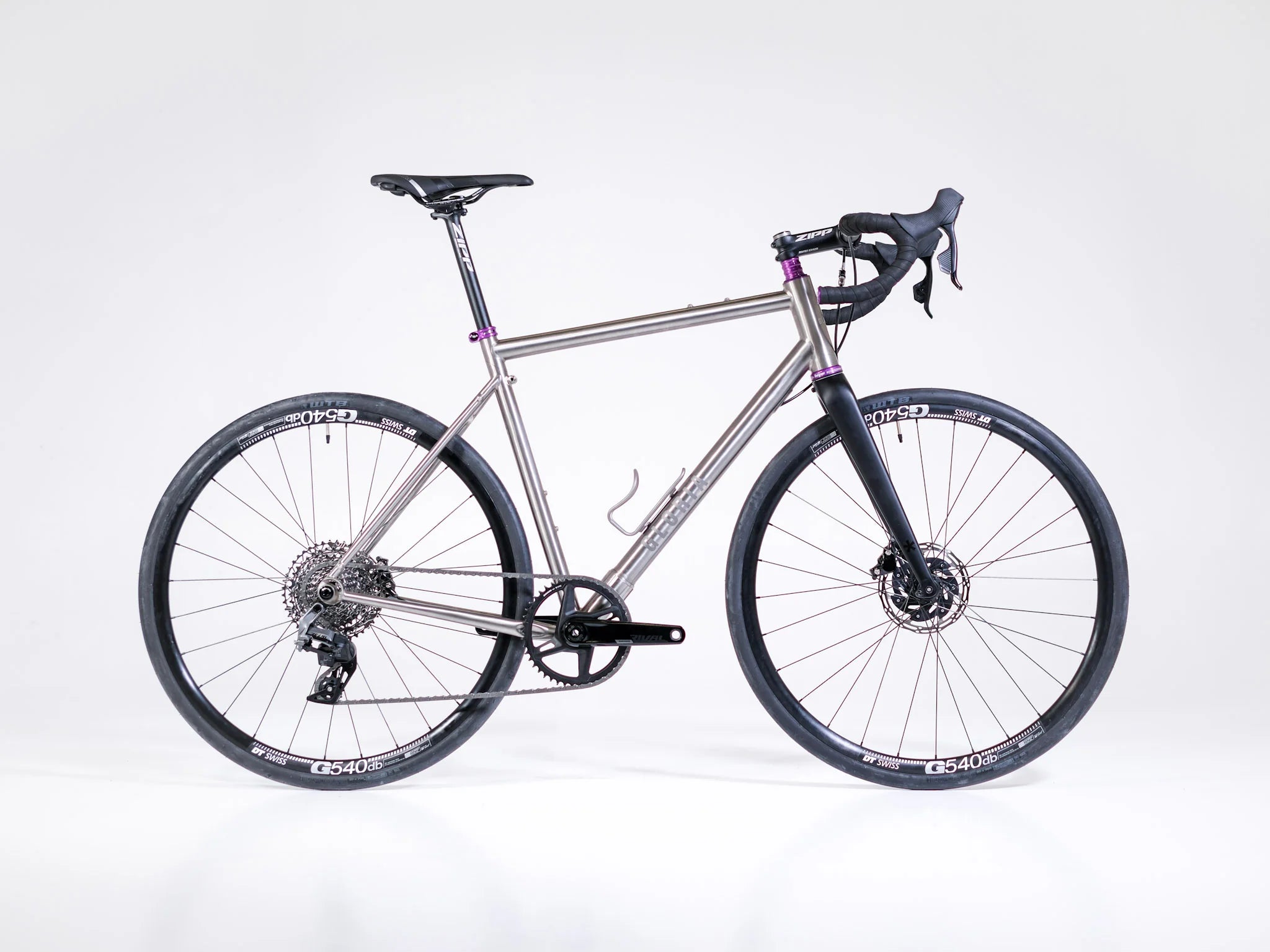

Frameset - Gloria Titanium All World - Brushed Finish
£1,899.00
Product Details
All World Frame Details
- ZS44/EC44 headset included
- UDH Hanger included
- SRAM (D.O.T) Ready Zeno Brake Hoses included
- Alloy seatpost collar included
- Titanium seatpost collar (optional extra)
- 3AL-2.5V grade 9
- Butted tubes
- Thru-axles front & rear and all appropriate cable guides included
- Lifetime Frame Warranty
- Frameset weight: ~ 2.3kg
- Frame weight: ~1.9 kg
- Frame finish - Brushed
- Axles 12mm x 100mm front and 12mm x 142mm The Robert Axle Project bolt thru
- Bottom bracket Standard BSA
- Mudguards and rack mounts compatible
- Brake mount: Flat mount 140mm or 160mm rotors
- Seat tube internal 27.2mm & Seat tube external 31.8
- Frame Tyre clearance 700 x 45c
- Front mech clamp - 31.8
- Axle size 166XM12 - TP1.0
Geometry, Weight & Specs
Weight:
Frame Weight: 1.9kg +/- 50g
Carbon Fork weight: 490g +/- 50g
Geometry:
Compare the geometry with your existing bike on the Geometry Geeks website
| 50 | 52 | 54 | 56 | 58 | |
| Stack | 543.1 | 562.0 | 580.9 | 600.0 | 619.0 |
| Reach | 358.1 | 366.5 | 380.9 | 382.3 | 390.0 |
| Head Tube Angle | 70.0 | 71.0 | 72.0 | 72.5 | 72.5 |
| Seat Tube Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Effective Top Tube | 519 | 533 | 547 | 560 | 574 |
| Seat Tube C-T | 456 | 484 | 518 | 544 | 558 |
| Head Tube | 110 | 126 | 142 | 160 | 180 |
| Chain stay | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 998 | 1003 | 1008 | 1017 | 1031 |
| DT Length | 618.1 | 628.6 | 639.0 | 647.3 | 656.7 |
Other relevant information
All World Product Guide and Data Sheet
The Gloria Titanium All-World is a highly versatile bike designed with drop bars. While we won’t claim it can do everything and take you everywhere, it’s built to push the boundaries as much as possible. By continuing with same design philosophy of the All-Road, but adding the benefit of packability, we have created something truly versatile. With clearance for 700x45c tires, this bike can accommodate chunky tires that not only enhance comfort but also perform well both on and off the road. We have successfully designed the All-World to be efficient on the road without being twitchy off-road.
We’re proud of the compatibility we've achieved across multiple modern groupsets. For example, it’s compatible with externally routed mechanical setups for both 2x and 1x drivetrains. It also supports 1x mechanical internally routed through a full outer cable inside the frame and is fully compatible with Di2 2x and 1x. Moreover, it can be routed through the headset, making it SMR or DCR compatible. And don’t worry, the coolest thing is that if you don’t run external cables, the frame will look neat and without any cable guides or stops, because they are designed to be removed when not in use.
We have multiple fork options available, including fully internally routed forks, cage mounts, dynamo compatible and other options. If you have any special requirements, please let us know ... I’m sure we can help.

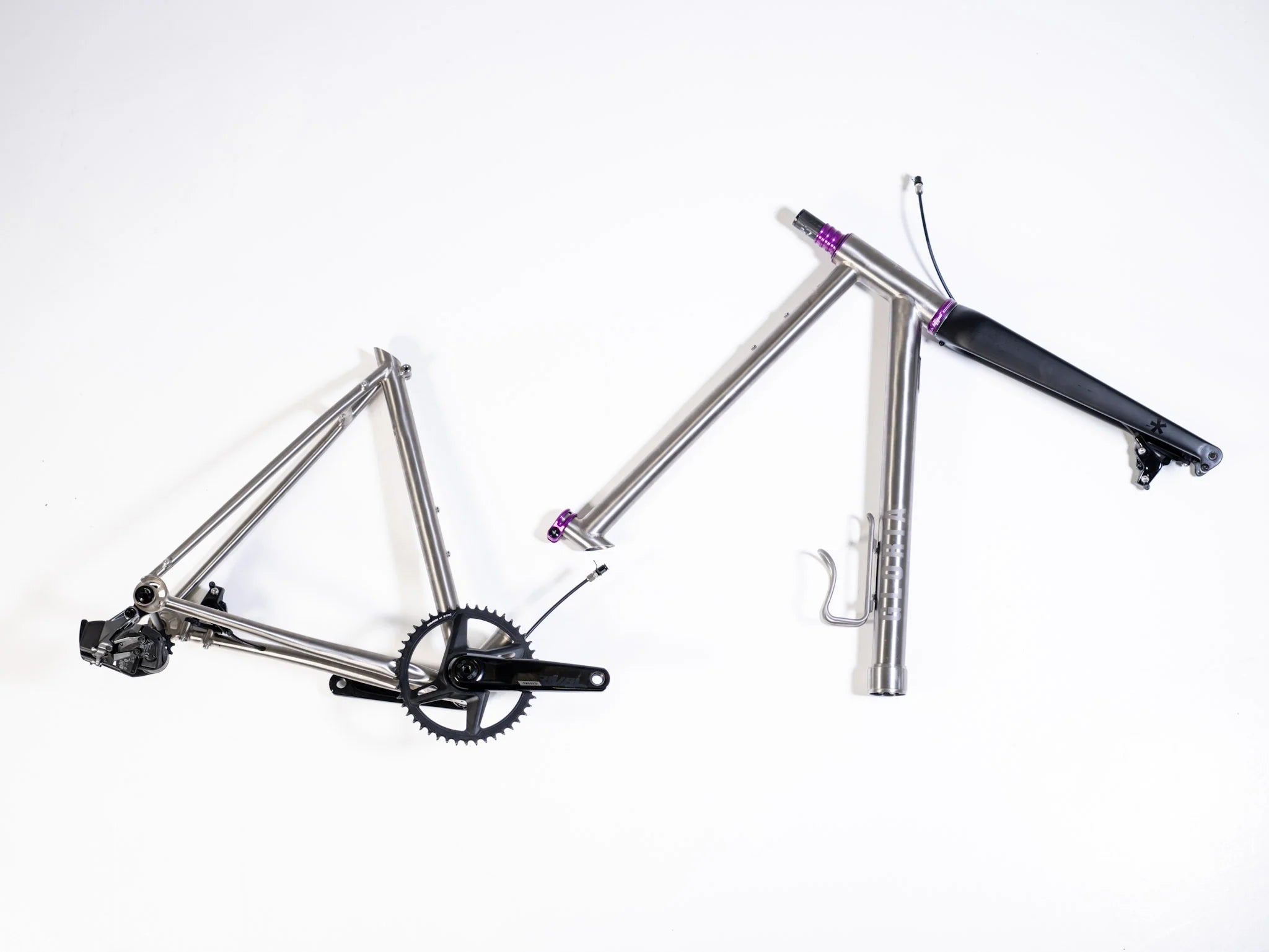

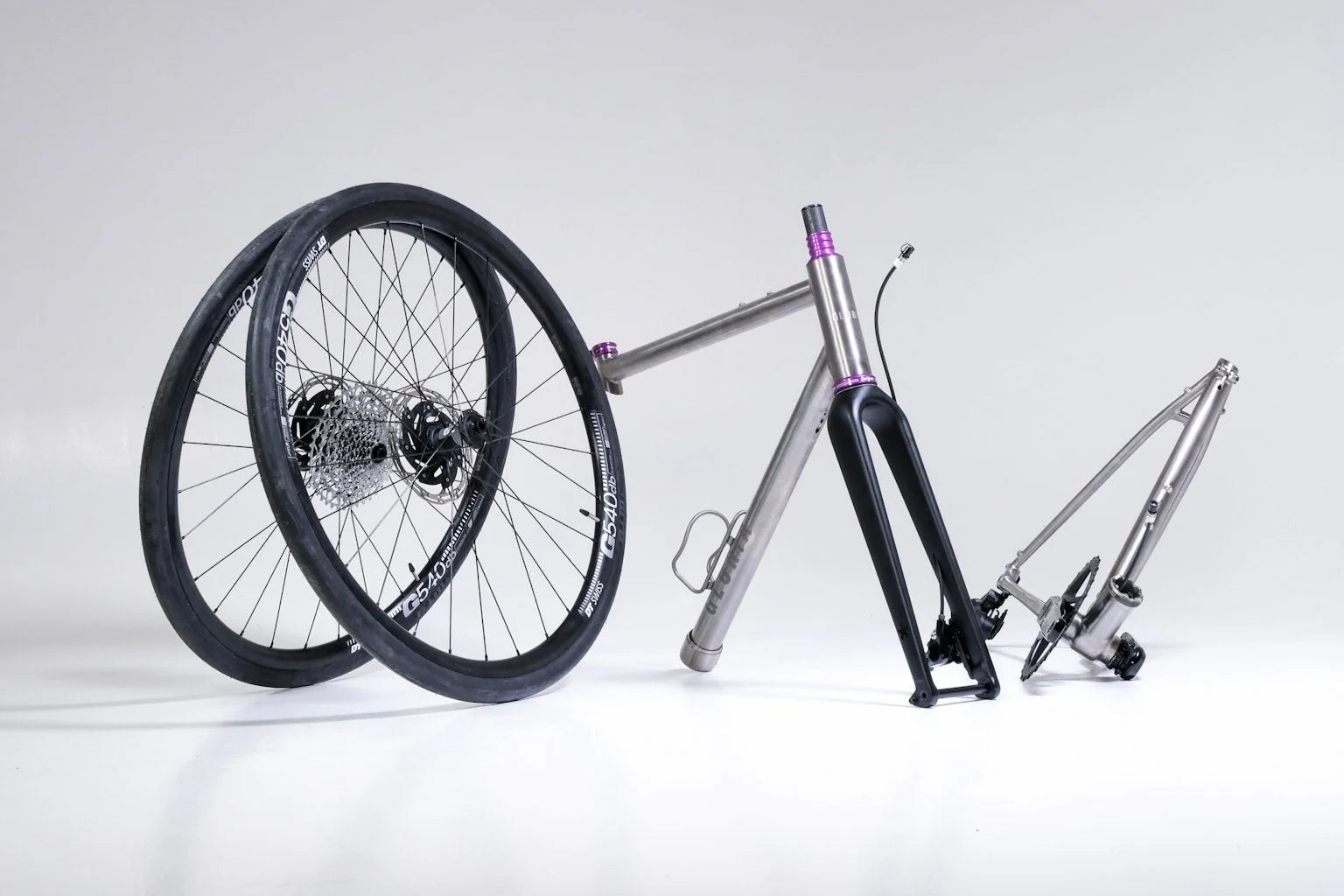

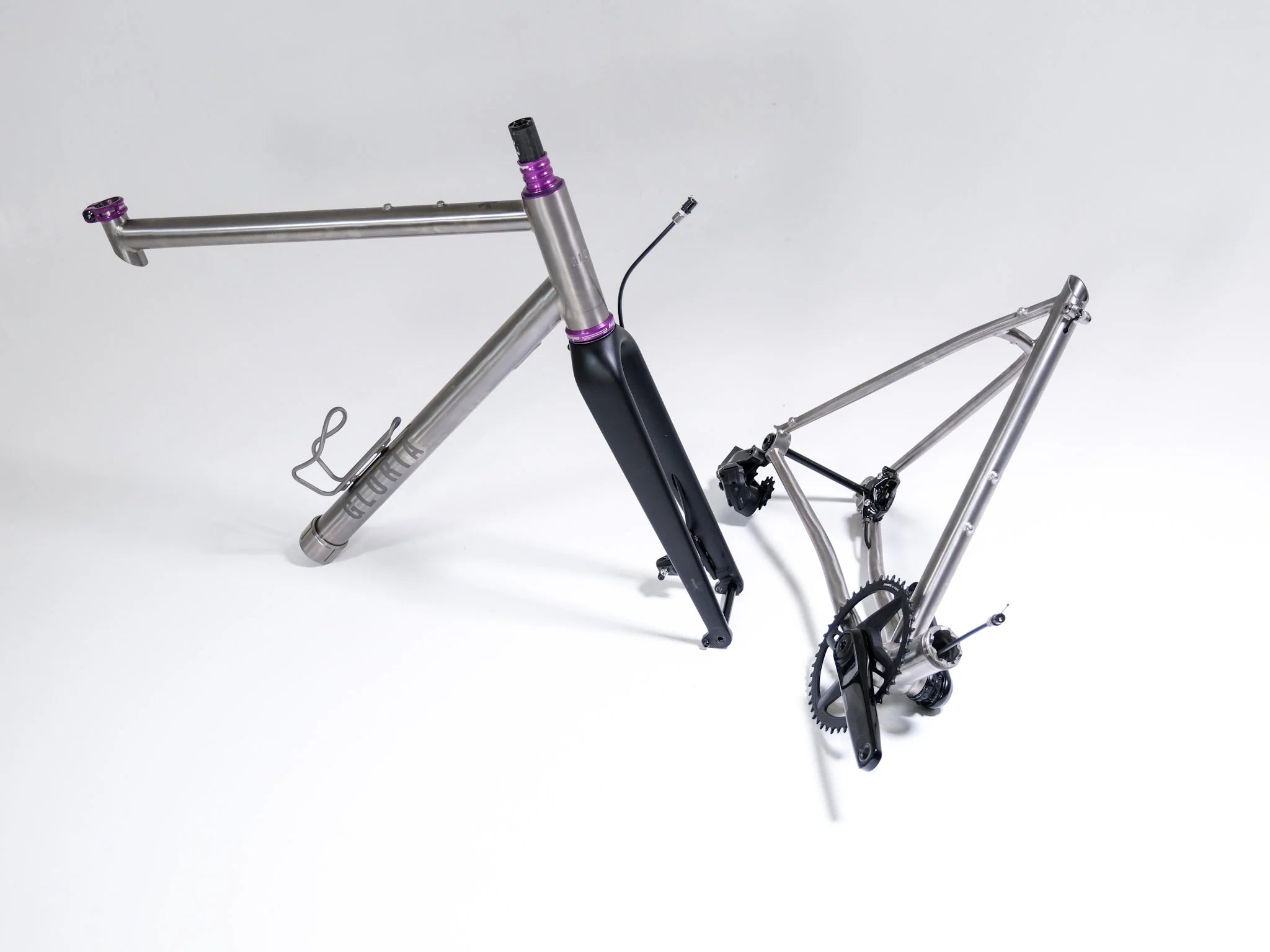

In a nutshell the Gloria All-World can fit almost any bike tool or accessory you desire to enhance your experience, ride on most terrain you come across and at the end of the day pack it away in it's compact suitcase.
All-World Highlights
🛠️ Easy Assembly: Quick setup, zero hassle.
🚲 Internal Cable Routing: Sleek look, disc brake performance.

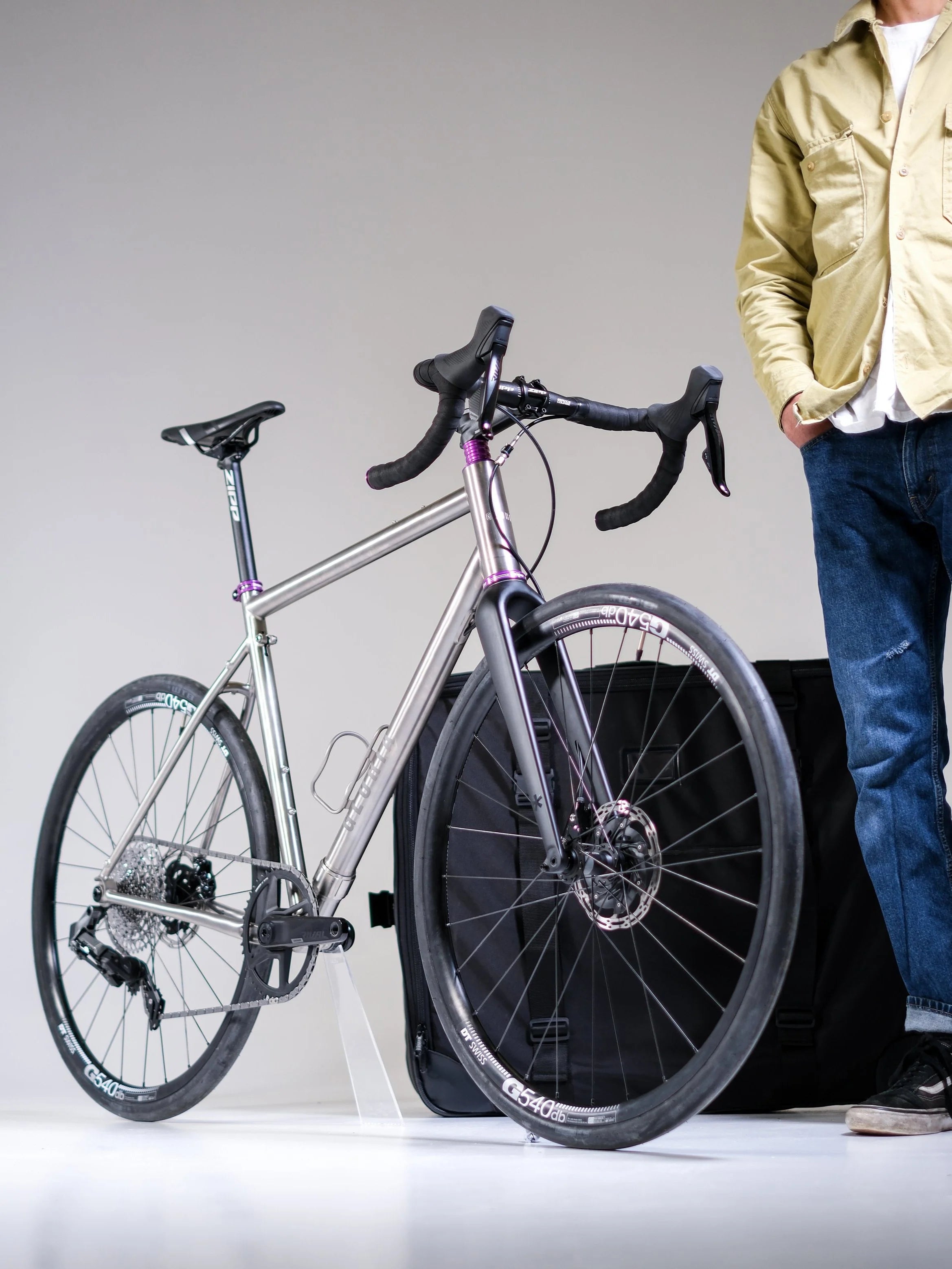

🛄 No Oversized Fees: Fits in suitcase with the following dimmentions Measures 8.5” / 21.6cm W x 26.5” / 67.3cm H x 31” / 78.8cmL w/ wheels.
🌍 Travel-Friendly: Lightweight and compact for easy transport.
🛡️ Adventure-Ready: Built for road and gravel durability.
🔄 Warranty: Life-time
