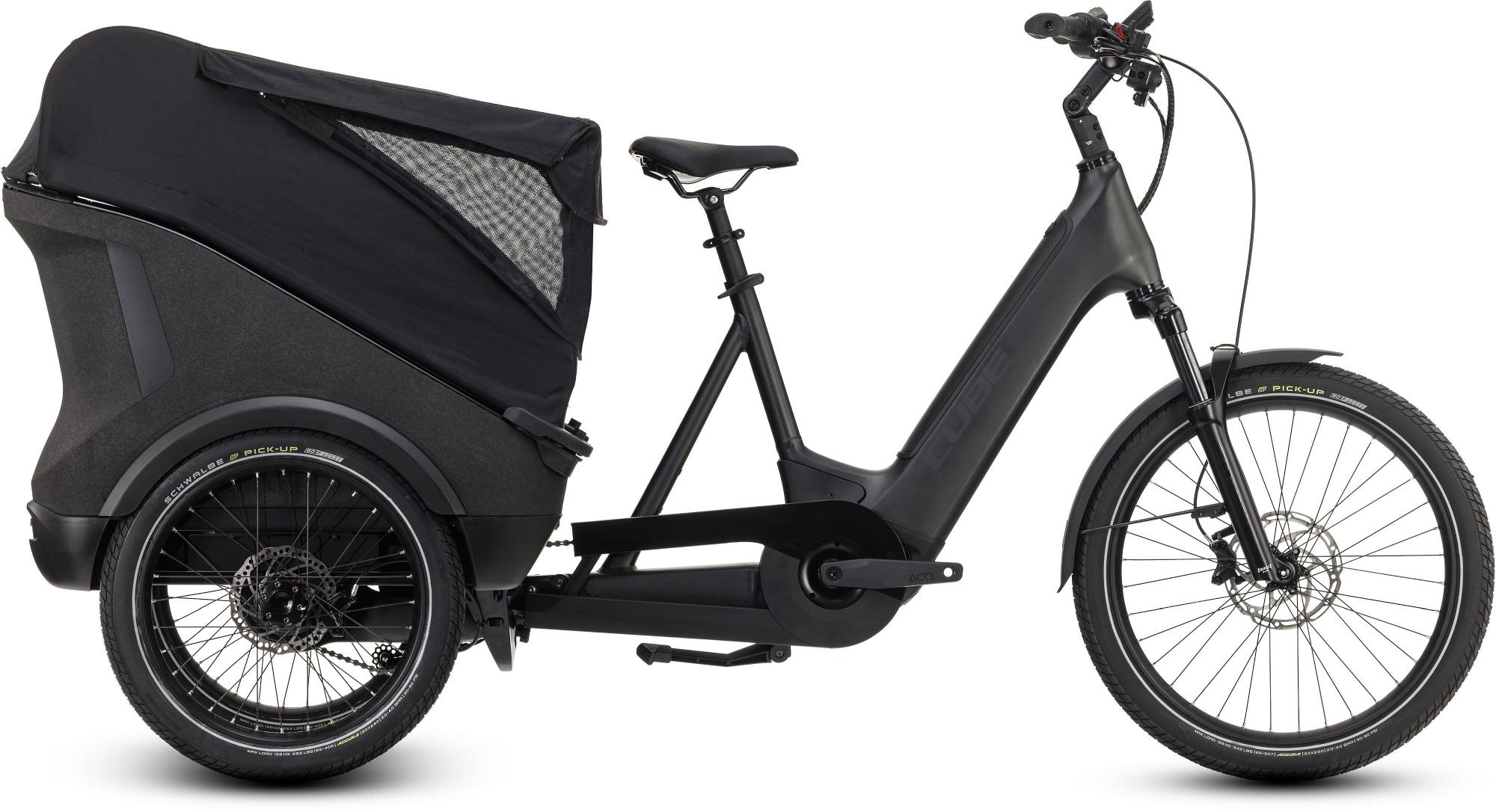

CUBE TRIKE CARGO HYBRID 750 GREY/REFLEX

Frame Style
Colour
Size
Quantity
Moving things around congested cities isn't easy at the best of times, but the Trike Cargo Hybrid 750 gives you an immediate advantage. Combining safety, ease of use and practicality in one easy-to-handle package, its innovative design is the secret sauce that makes it special. Bosch's fourth-generation CX Line drive system with a 750Wh battery and an easy-to-use, stepless hub gear work together to make light work of any route. Up front, a Suntour Mobie34 Cargo suspension fork provides a comfortable ride on potholed city streets. Powerful disc brakes – and an additional parking brake – keep your speed in check. A telescopic seatpost and stem, with adjustable reach for the handlebar, make it quick and easy to set up for any rider. At the rear, the versatile cargo box is waterproof, features a lockable lid and is capable of carrying loads of up to 50kg. And the unique tilt mechanism, combined with the stability of three wheels, means it's as easy to manoeuvre as any normal hybrid bike. Beating the traffic never looked more attractive.

Frame description
The Trike Cargo Hybrid 750 is part of our vision for the future of cleaner urban transport. A CUBE design concept with lots of innovative features, it combines the easy handling of a 'normal' hybrid bike with the versatility of a cargo bike and the safety and stability of three wheels. Bosch provides both the CX Line motor and the 750Wh battery, for seamless on-demand pedal assistance. The unique tilting mechanism de-couples the load at the rear from the bike at the front, giving a natural feel to cornering. At the rear, the lightweight and tough cargo box is waterproof and lockable – the ideal way to transport just about anything across town, up to a load of 50kg. There's even a storage compartment in the main frame, and the option to fit a front rack. With a short wheelbase, easy handling and tight turning circle all designed to beat the urban traffic and make parking easy, the future's looking brighter already.

Specification

Frame Aluminium Gravity Casting, Comfort Ride Geometry, Tilting Technology, Downtube Storage
Fork SR Suntour MOBIE 34 CARGO 24", 100mm
Headset ACROS Carrier Mount Headset
Stem Cube Comfort Stem Pro, 31.8mm, Adjustable
Handlebar CUBE Comfort Trail Bar, 700mm
Grips ACID Travel Comfort Gripshift
Shifters Enviolo Cargo manual
Brakes Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160)
Crankset ACID E-Crank, 170mm, 42T
Crankset chainring sizes 42T
Cassette KMC 3mm, 18T
Number of gears 999
Chain KMC e101 EPT
Rims CUBE EX40, 507 x 36H / 406 x 32H, DISC, Tubeless Ready
Front hub Cube Cargo Hub, 36H, Straightpull, 110x15mm Boost
Rear hub Cube Trike Hub, Straightpull
Front tire Schwalbe Pick-Up, Super Defense, 65-507
Rear tire Schwalbe Pick-Up, Super Defense, 65-406
Pedals CUBE PP MTB
Saddle Natural Fit Sequence Comfort
Seatpost Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
Seat post = dropper Yes/No NO
Seatpost clamp CUBE Varioclose, 40mm
Front light ACID Front Light PRO-E 110, 5-16V, DC
Rear light Supernova T-M99
Kickstand Ursus XXS
Mudguard ACID 75
Bell Ring Bell
Engine Bosch Drive Unit Cargo Line 85Nm (BDU37)
Battery Bosch PowerTube 750 Axial
Charger Bosch 4A
Remote Bosch LED Remote
Display Bosch Kiox 300
Net weight (kg) 75
Gross weight (kg) 108
Max. system weight (kg) 220
Max. rider weight (kg) 115
Body size ONESIZE
Accessories 93730,93490
