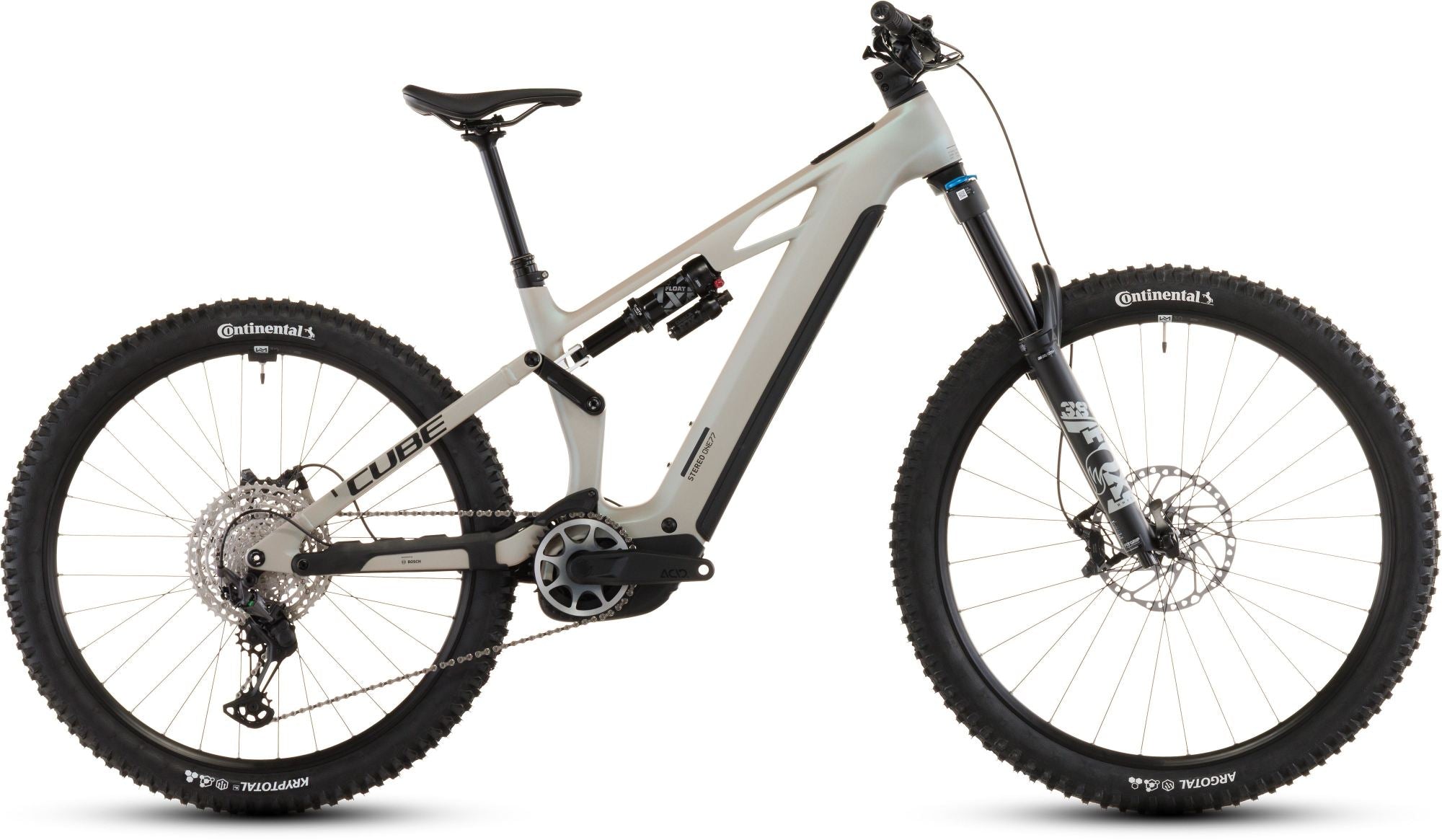

CUBE STEREO HYBRID ONE77 HPC SLX 800 GLINTSAND/BLACK

Frame Style
Colour
Size
Quantity
Challenging trails need a suspension set-up to match, which is why we gave the Stereo Hybrid ONE77 HPC SLX a Fox Float 38 Rhythm fork and Float X Performance shock. Together, they deliver 170mm of rock-swallowing travel front and rear, with loads of adjustment so you can get it dialled. The Bosch CX drive and 800Wh PowerTube battery give your pedalling an unobtrusive but very effective boost, via Shimano's legendary XT 1x12 gears – and the top tube-mounted Kiox 400C display shows you exactly what's going on. Meanwhile, the mullet Newmen Performance 30 wheelset – shod with Continental Argotal and Kryptotal 2.4in tyres – is held in check by Shimano's new XT hydraulic disc brakes. Add it all up and, with a remote dropper seatpost, too, it's the perfect formula for big mountain fun.

Frame description

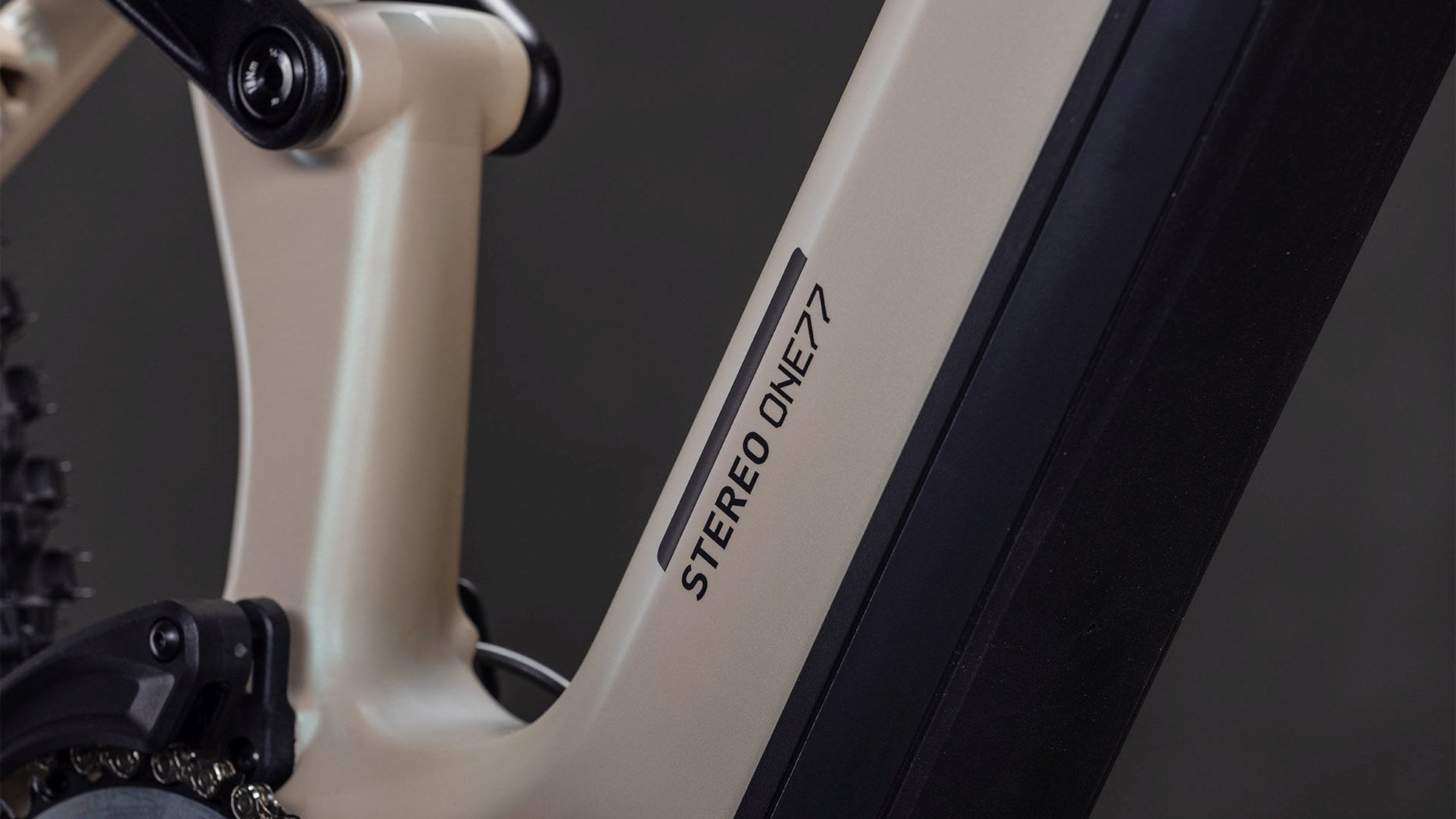

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

Specification

Frame C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

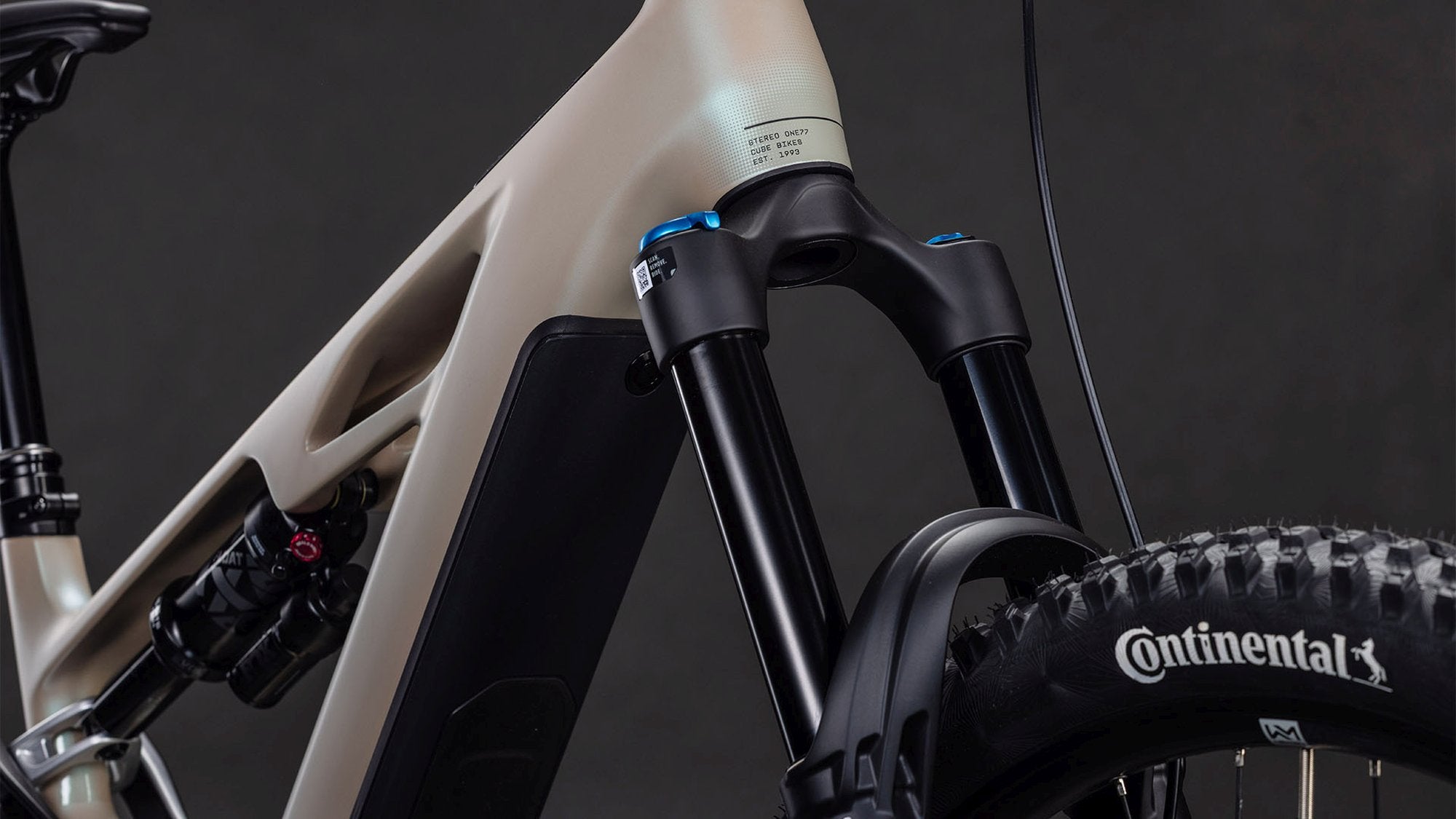

Fork Fox 38 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm

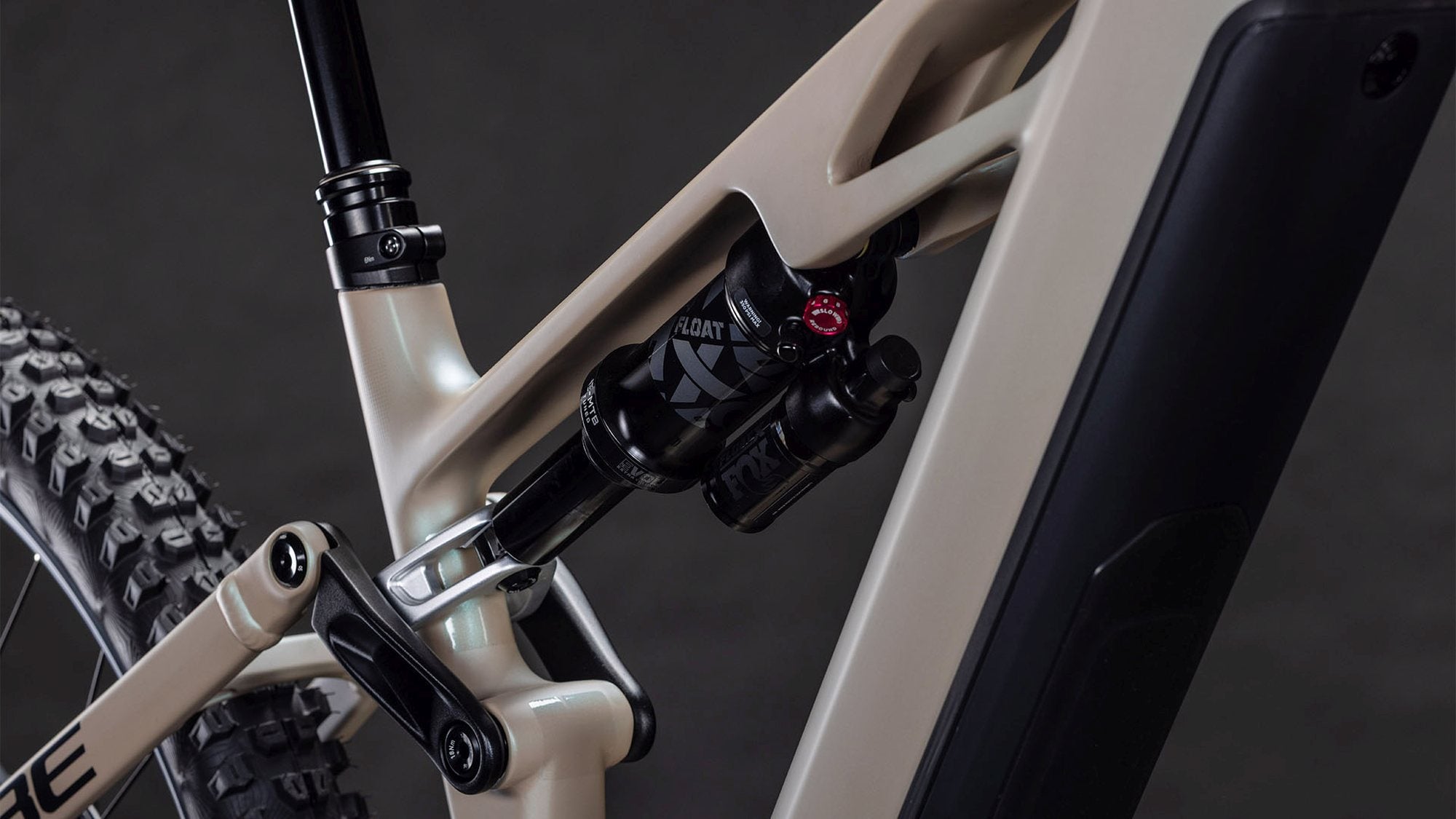

Shock Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever
Headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar CUBE Rise Trail Bar 35
Grips ACID Disrupt, Soft Compound
Rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters Shimano Deore SL-M6100, Rapidfire-Plus
Brakes Shimano XT BR-M8220, Hydr. Disc Brake (203/203)

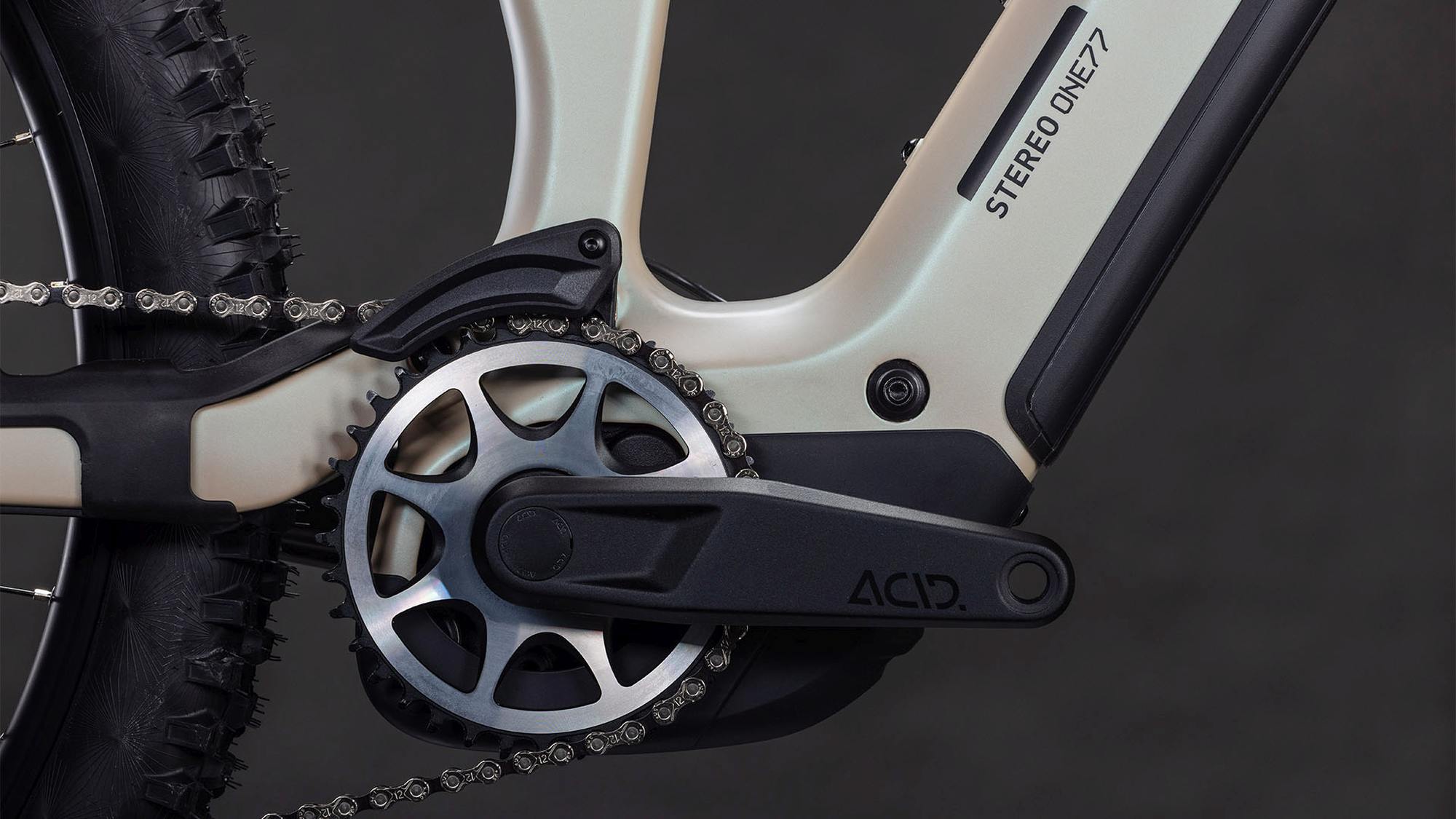

Crankset ACID MTB Hybrid Pro, 36T
Crankset chainring sizes 36T
Cassette Shimano Deore CS-M6100, 10-51T
Number of gears 12
Chain KMC e12
Wheelset Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front tire Conti Argotal, Enduro Soft, Tubeless Ready, 2.4
Rear tire Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
Pedals ACID PP MTB
Saddle ACID Venec EMTB Trail 140
Seatpost CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seat post = dropper Yes/No YES
Seatpost clamp CUBE Semi-Integrated
Engine Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
Engine ready for the Bosch 120 Nm update? YES
Battery Bosch PowerTube 800
Charger Bosch 4A
Remote Bosch Mini Remote

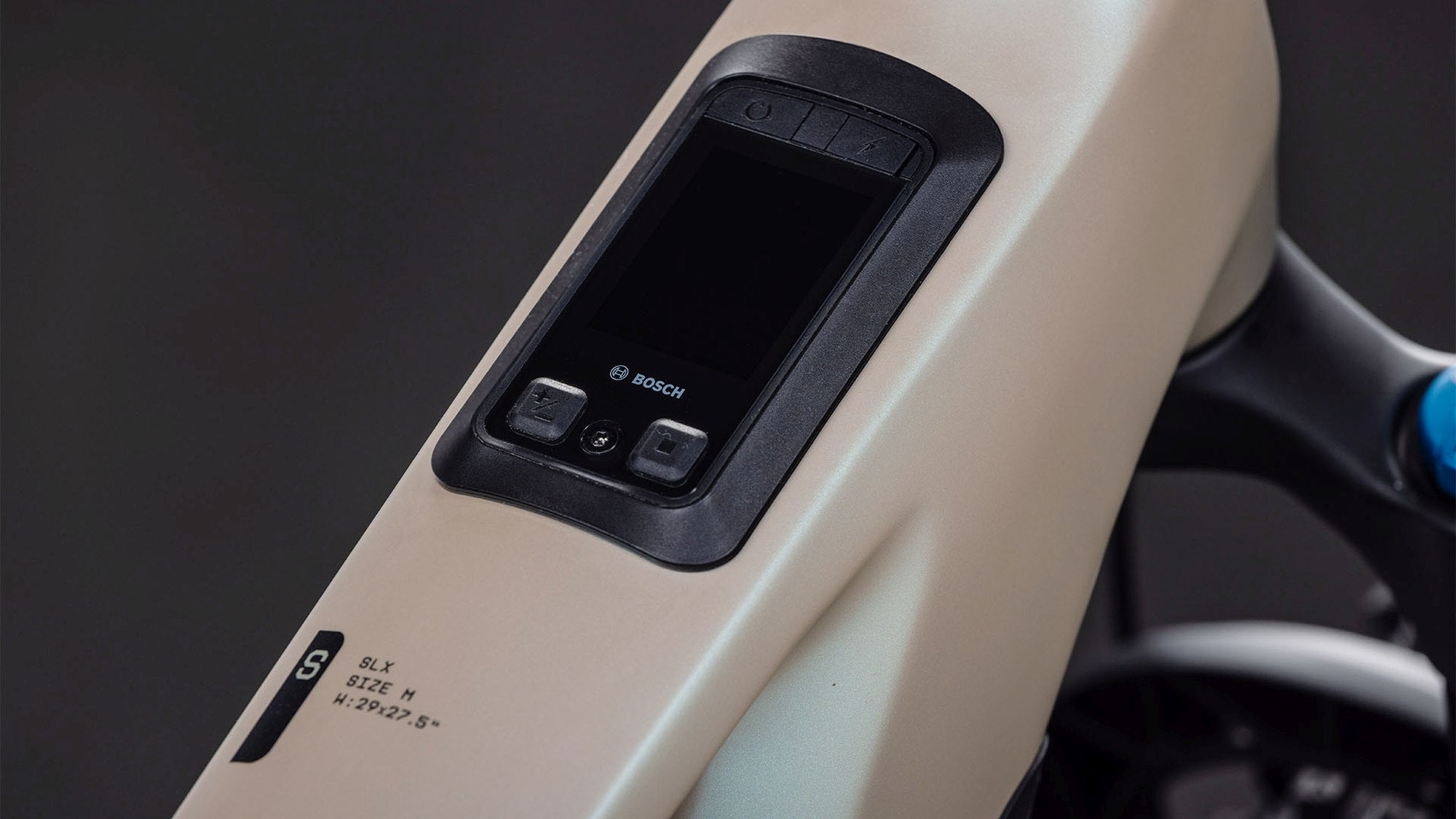

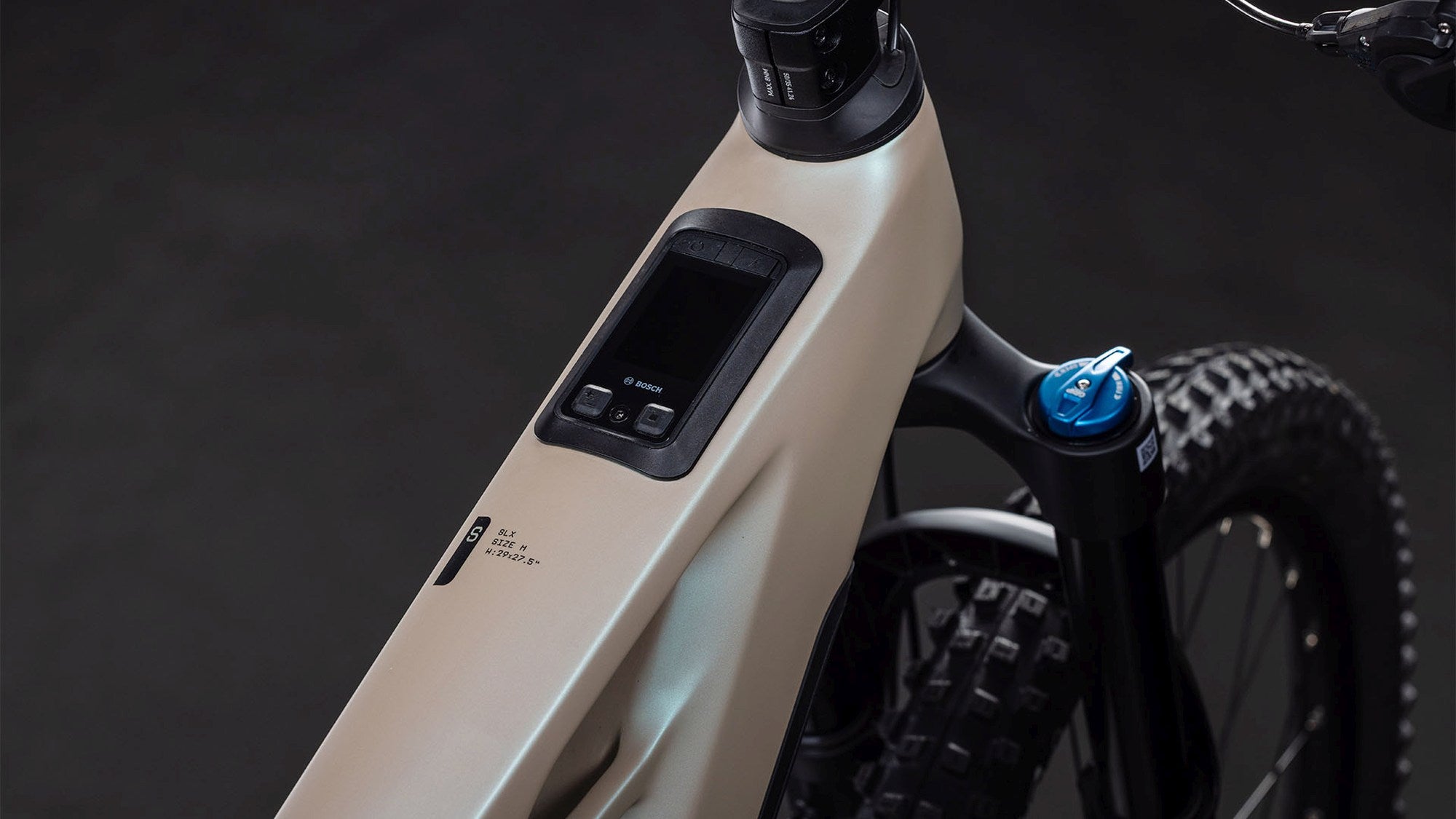

Display Bosch Kiox 400C
Net weight (kg) 24.7
Gross weight (kg) 29.7
Max. system weight (kg) 160
Max. rider weight (kg) 125
Body size 1.77m - 1.87m
Accessories 93250,93468,93362,93469,93490
