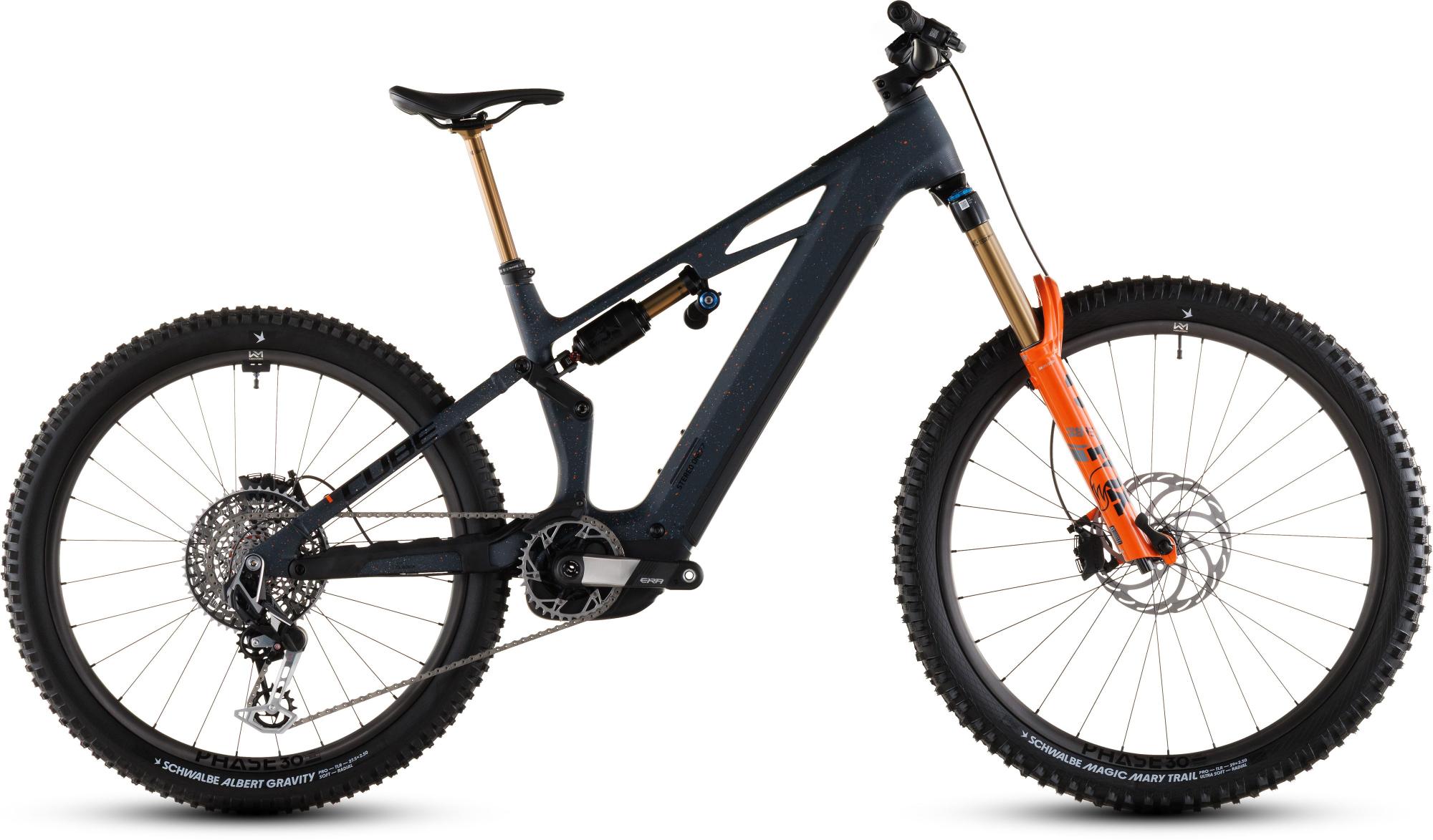

CUBE STEREO HYBRID ONE77 HPC SLT 800 GALAXY/ORANGE
The Stereo Hybrid ONE77 HPC SLT leaves nothing on the table in its pursuit of big-mountain riding perfection. The mullet wheelset is built around a pair of Newmen Phase 30 carbon wheels, shod with Schwalbe's tough and tenaciously grippy Magic Mary and Albert 2.5in tyres. That's a good thing, because the Magura Gustav Pro hydraulic disc brakes need all the traction they can get to deliver their safe, predictable stopping power. There's a remote dropper seatpost, of course, so that you can take the more adventurous line. Sram's XX Eagle Transmission 1x12 gears are driven via a Race Face Era carbon crank – and assistance from Bosch's smooth, quiet CX-R drive and 800Wh PowerTube battery – for quick, precise electronic shifts. With Fox's 38 Factory fork and Float X2 Factory shock delivering 170mm of plush, well-controlled travel at each wheel, it's safe to say that the rest comes down to you. Are you up for it?
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel set-up with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX-R drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel set-up with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX-R drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Specification
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
|---|---|
| Fork | Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm |

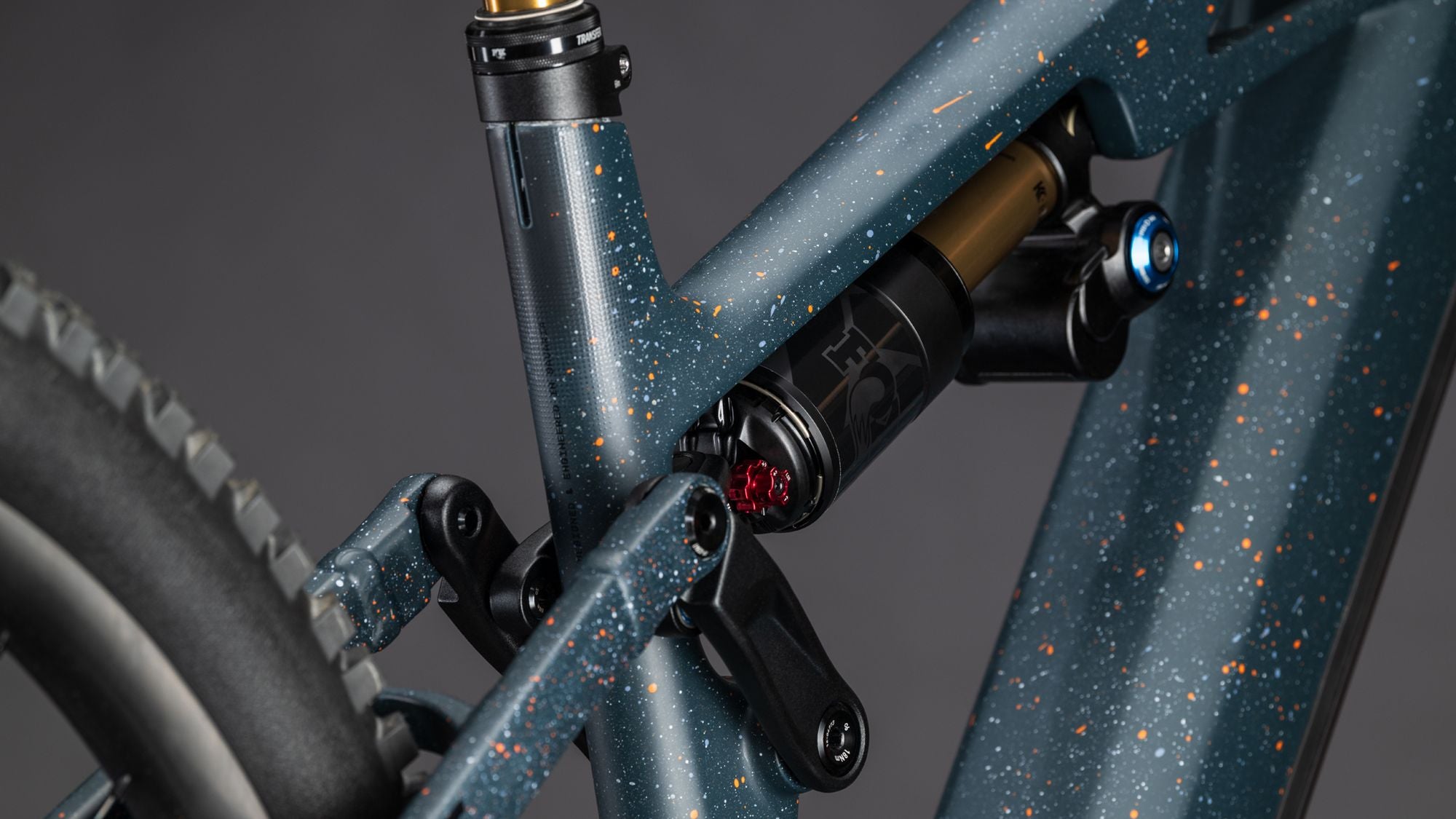

| Shock | Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever |
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | Race Face ERA 35 |
| Grips | ACID Disrupt, Soft Compound |
| Rear derailleur | Sram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System |
| Shifters | Sram AXS™ Pod Ultimate Controller |
| Brakes | Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |

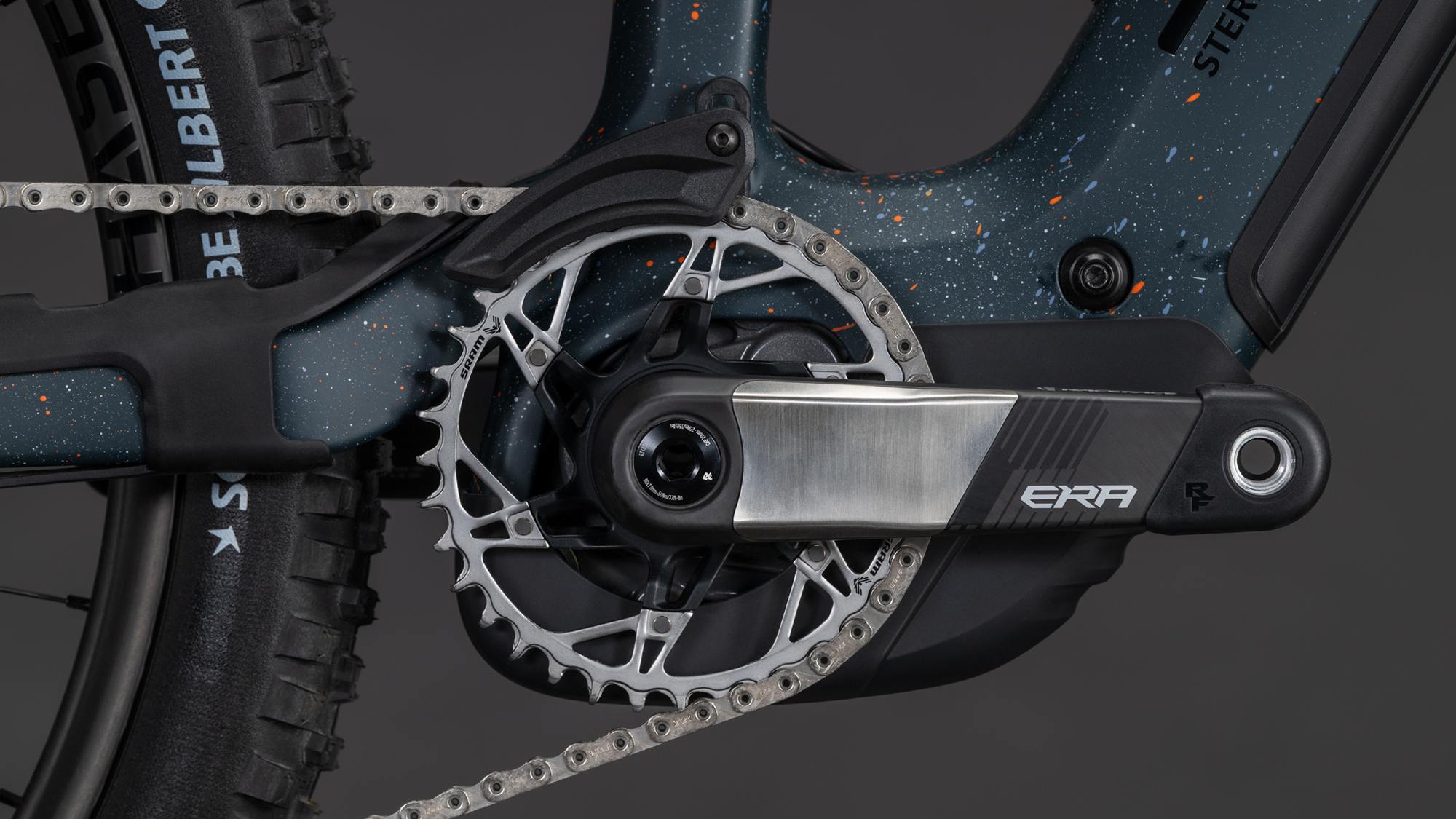

| Crankset | Race Face ERA E-MTB, 36T |
| Crankset chainring sizes | 36T |
| Cassette | Sram XS-1297, 10-52T |
| Number of gears | 12 |
| Chain | Sram XX Eagle Transmission |
| Wheelset | Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Front tire | Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5 |
| Rear tire | Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
| Pedals | ACID PP MTB |
| Saddle | ACID Venec EMTB Trail 140 |
| Seatpost | Fox Transfer Factory 31.6mm, Kashima Coated |
| Seat post = dropper Yes/No | YES |
| Seatpost clamp | CUBE Semi-Integrated |
| Engine | Bosch Drive Unit Performance Line CX-R max. 120Nm (BDU38) |
| Engine ready for the Bosch 120 Nm update? | YES |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 4A |
| Remote | Bosch Mini Remote |

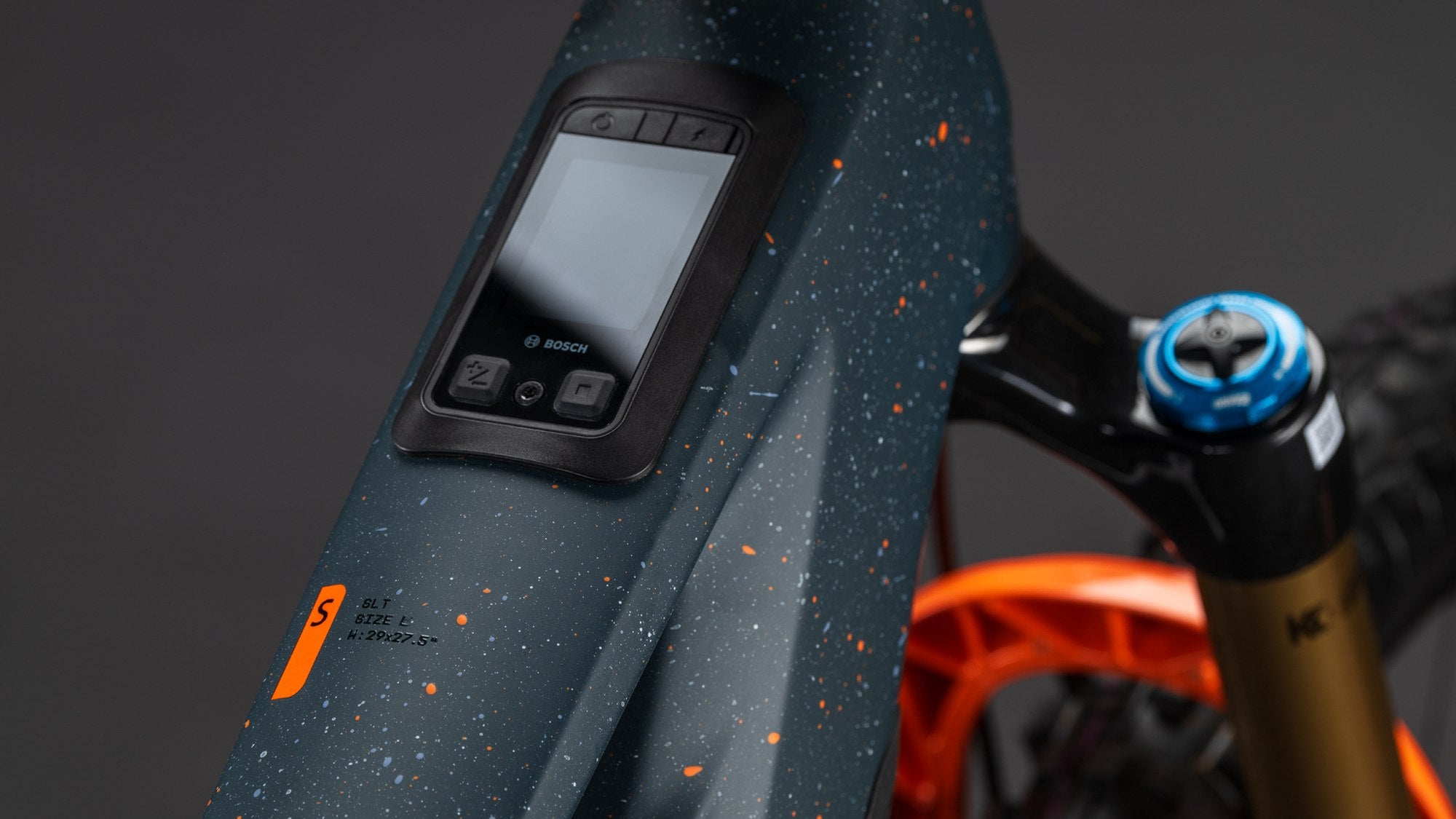

| Display | Bosch Kiox 400C |
| Net weight (kg) | 23.8 |
| Gross weight (kg) | 28.84 |
| Max. system weight (kg) | 160 |
| Max. rider weight (kg) | 125 |
| Body size | 1.77m - 1.87m |
| Accessories | 93250,93468,93362,93469,93470,93490 |
