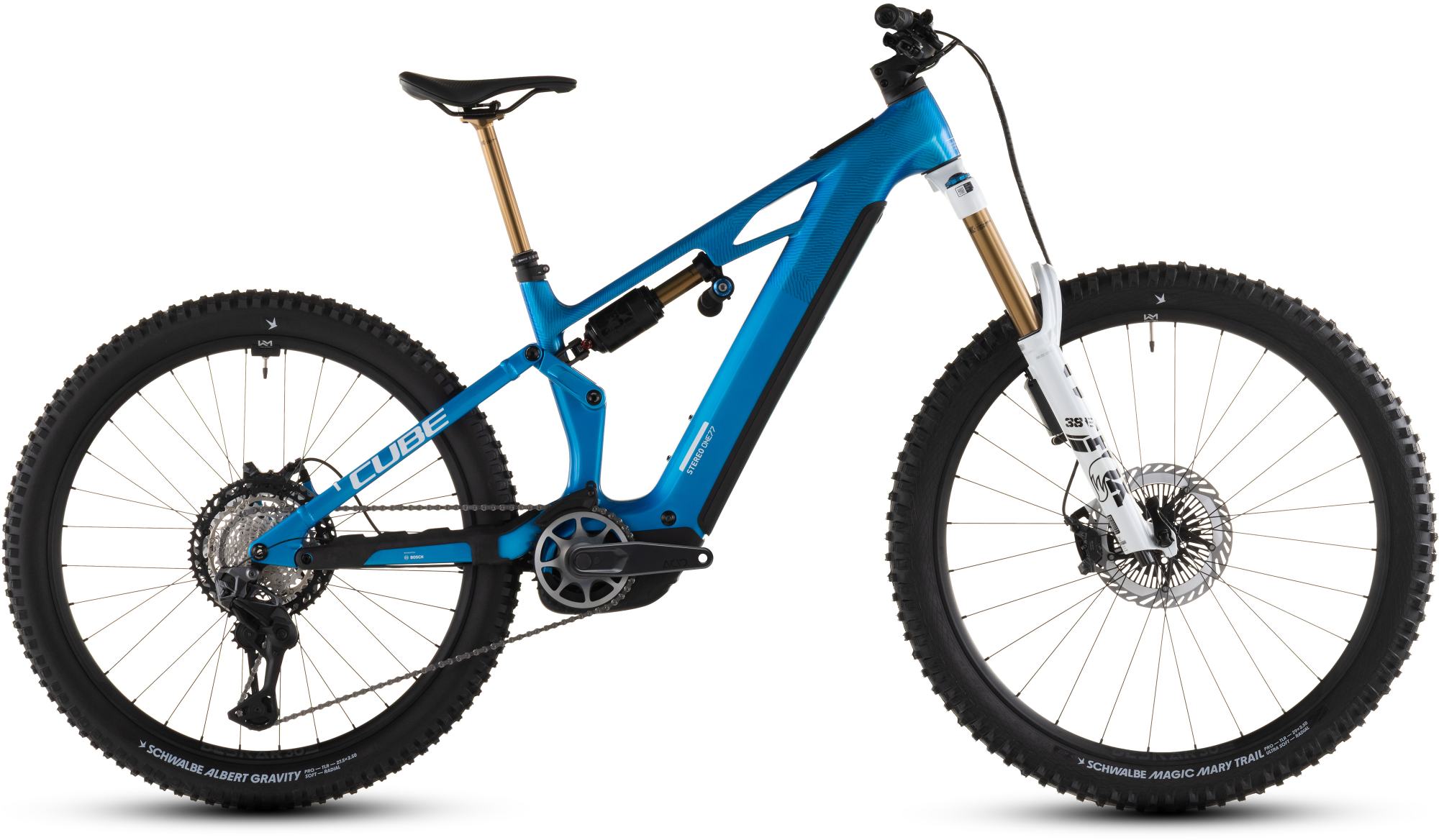

CUBE STEREO HYBRID ONE77 HPC AT 800 ACTIONTEAM
0 items

Quantity
Shipping & taxes calculated at checkout
- 1
- :root { --header-height: 60px; --header-sticky-height: 60px; --header-background-height: 60px; } :root { --full-height: calc(100vh - var(--header-sticky-height)); } .main-content > .shopify-section.supports-transparent-header:first-child [data-prevent-transparent-header] { --full-height: var(--content-full); } .site-header--has-border { --border-color: currentcolor; --border-opacity: 0.0; } 2
- 3 Open navigation menu .logo__image-link { width: 100px; height: 28px; } .has-scrolled .logo__image-link { width: 100px; height: 28px; }
- 4
- Open search bar
- 7
The Stereo Hybrid ONE77 HPC AT is built with big mountains in mind. To that end, we fitted Fox's Float 38 Factory fork and Float X2 Factory shock – because when you're making full use of 170mm of travel, you need to know you're in good hands. Shimano's XT Di2 1x12 gears select with uncanny electronic precision, getting your power to the trail with help from Bosch's CX drive, the 800Wh PowerTube battery, a Kiox 400C top tube-mounted display and an ACID carbon crank. We added a remote dropper seatpost for extra confidence and manoeuvrability on tough trails, while Shimano XT hydraulic disc brakes with ABS Pro ensure you can safely keep your speed in check. And Newmen Beskar 30 wheels – in mullet configuration – with Schwalbe 2.5in Magic Mary and Albert tyres – keep you rolling, whatever obstacles lie in your path.Shop All New Bikes
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
Frame description
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
SpecificationRoad / Gravel / Touring Bikes
| FrameHybrid / City Bikes | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing | Mountain Bikes
|---|---|
| ForkElectric Bikes | Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm | Kids Bikes
| ShockFrames | Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. LeverShop by Brand |
| Headset | TrekACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Stem | YetiCUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | BrotherRace Face ERA 35 |
| Grips | SingularACID Disrupt, Soft Compound |
| Rear derailleur | FrogShimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
| Shifters | SurlyShimano XT Di2 SW-M8250-IR, Direct Attach |
| Brakes | Early RiderShimano XT BR-M8220, Hydr. Disc Brake w/ Front ABS (203/203) | Second-Hand Bikes
| Crankset | Custom BuildsACID MTB Hybrid Carbon, 36T | Custom Builds for sale
| Crankset chainring sizesCustom Build Inspiration | 36T |
| Cassette | Shimano XT CS-M8100, 10-51TServices |
| Number of gears | Workshop Prices12 |
| Chain | Track Your ServiceShimano XT CN-M8100 | Other
| Wheelset | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless ReadyCycle To Work Schemes |
| Front tire | Book a ServiceSchwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5 |
| Rear tire | Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5Parts & Components |
| Pedals | HopeACID PP MTB |
| SaddleCockpit | ACID Venec EMTB Trail 140Handlebars |
| Seatpost | Fox Transfer Factory 31.6mm, Kashima CoatedGrips & Bar-Tape |
| Seat post = dropper Yes/No | BrakesYES | Complete Brakes
| Seatpost clampBrake Rotors | CUBE Semi-Integrated |
| Engine | ForksBosch Drive Unit Performance Line CX max. 120Nm (BDU38) | Front Suspension
| Engine ready for the Bosch 120 Nm update?Rear Suspension | YESFinishing Kit |
| Battery | TubesBosch PowerTube 800 |
| Charger | SaddlesBosch 4A |
| Remote | PedalsBosch Mini Remote | Gears & Drivetrain
| Display | Bosch Kiox 400CE-bike Batteries and chargers |
| Net weight (kg)Complete Wheels | 24.8Tubeless | Tools & Maintenance
| Gross weight (kg)ProjektRide Merchandise | 29.82 | Helmets
| Max. system weight (kg)Gloves | |
