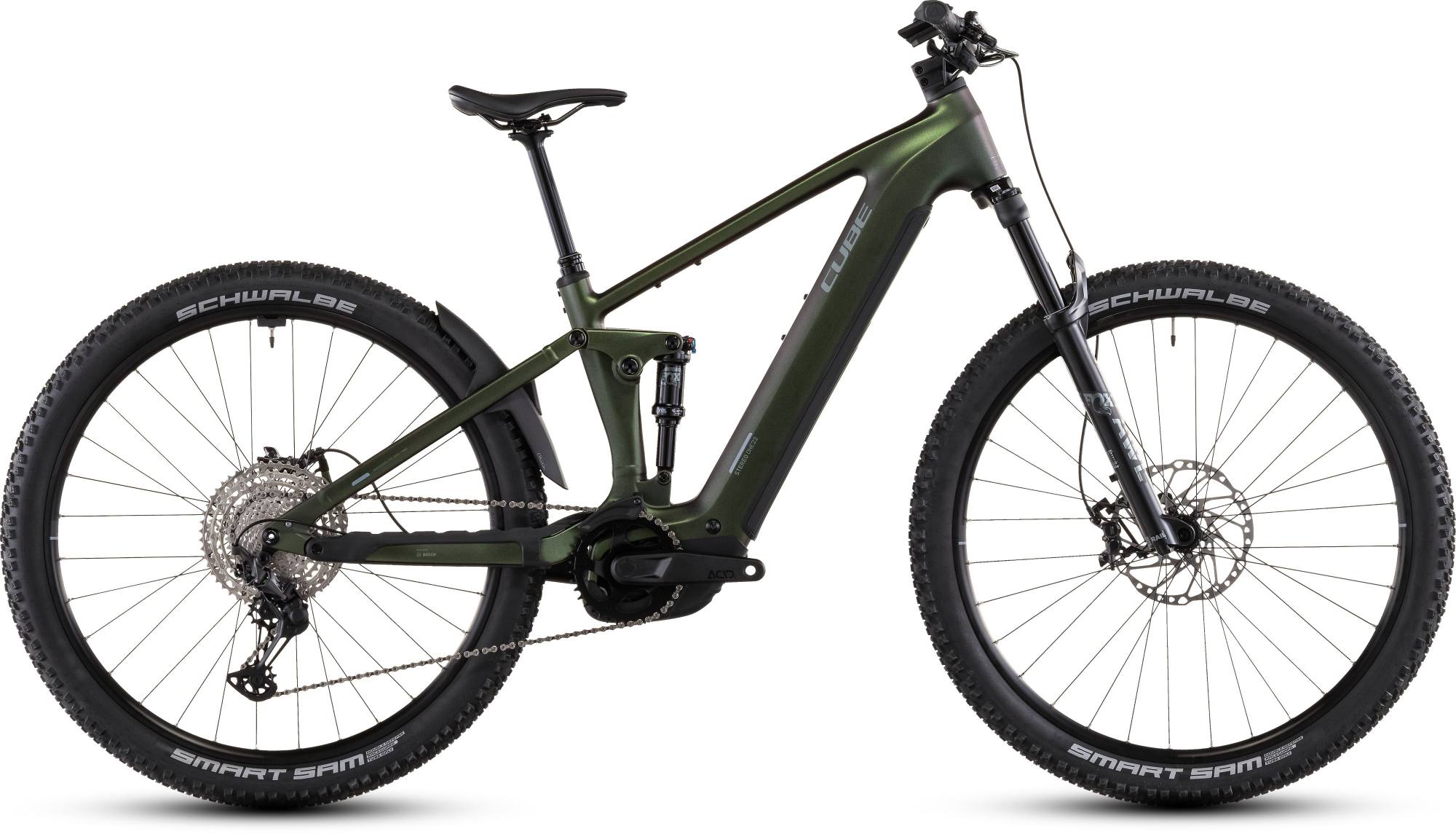

CUBE STEREO HYBRID ONE22 SLX 800 STELLAR/GREEN
Weekends just got a whole lot more interesting. From its Bosch CX motor and Purion 200 controller to its dropper post and 4-piston Shimano XT hydraulic disc brakes, everything about the Stereo Hybrid ONE22 SLX 800 is there to help you get the most from your riding. An 800Wh battery provides enough range for extended play, while Shimano's slick-shifting XT 1x12 gears make light work of any route. Fox's 34 AWL Float fork and Float Rhythm RC shock take care of even the roughest of trails, and Schwalbe 2.6in tyres provide both grip and comfort. Where to go for your next adventure?
Frame description
With added Bosch power and proven CUBE suspension kinematics, our trail explorer is a bike for all reasons. Suspension design that's stood the test of time is designed to work with a 120mm fork – including a mudguard mount – for the best in comfort and control. We fitted an 800Wh battery to power the Bosch CX drive unit, for worry-free extended rides. The UDH dropout, integrated cable routing and Direct Mount chain guard are all examples of the attention to detail we put into all our frames. And, with Size Split, you're sure to be able to find the perfect fit.
Frame description
With added Bosch power and proven CUBE suspension kinematics, our trail explorer is a bike for all reasons. Suspension design that's stood the test of time is designed to work with a 120mm fork – including a mudguard mount – for the best in comfort and control. We fitted an 800Wh battery to power the Bosch CX drive unit, for worry-free extended rides. The UDH dropout, integrated cable routing and Direct Mount chain guard are all examples of the attention to detail we put into all our frames. And, with Size Split, you're sure to be able to find the perfect fit.
Specification
| Frame | Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
|---|---|

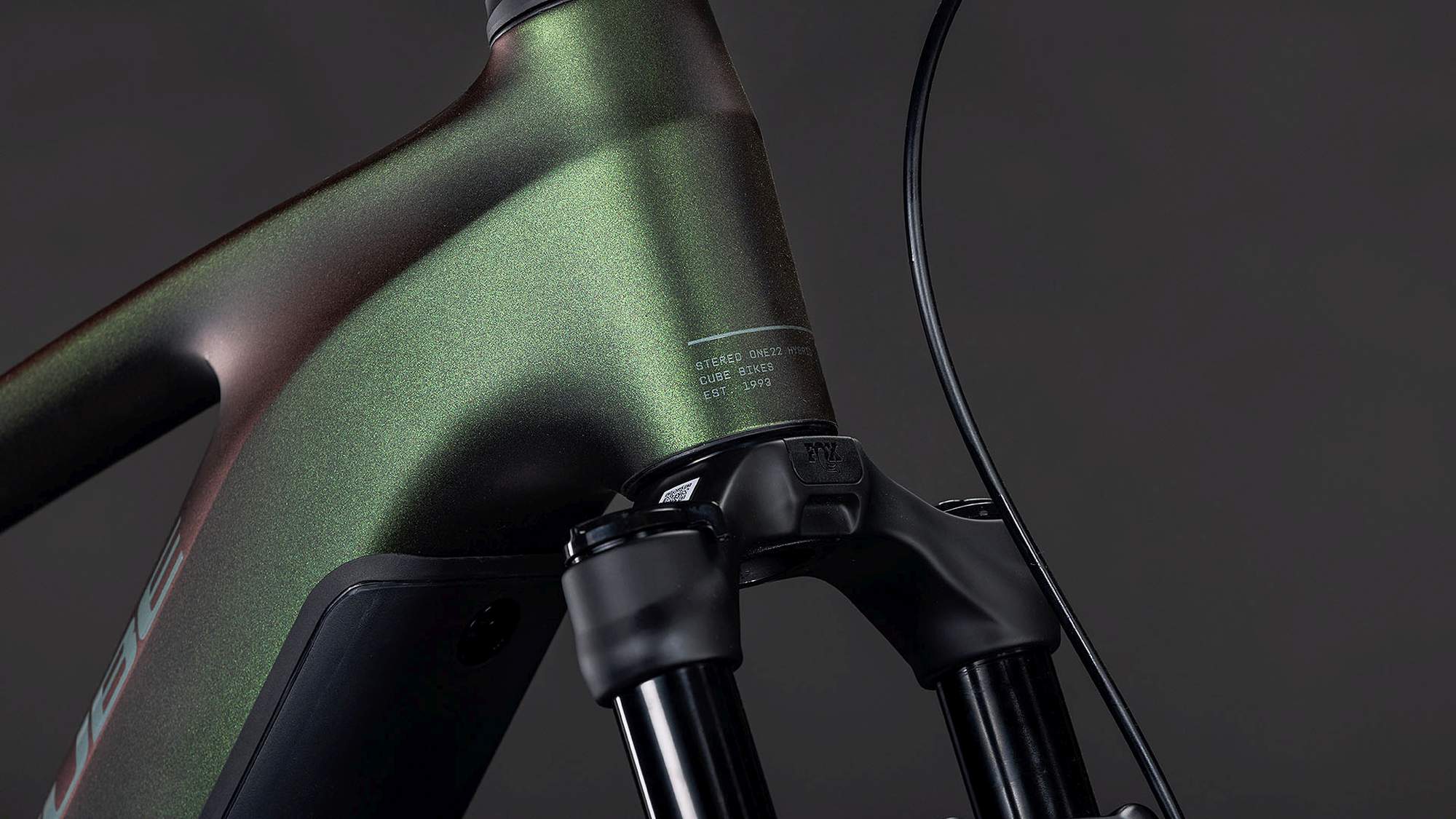

| Fork | Fox 34 Float AWL RAIL 2.0, Tapered, 15x110mm, E-Bike Optimized, 120mm |

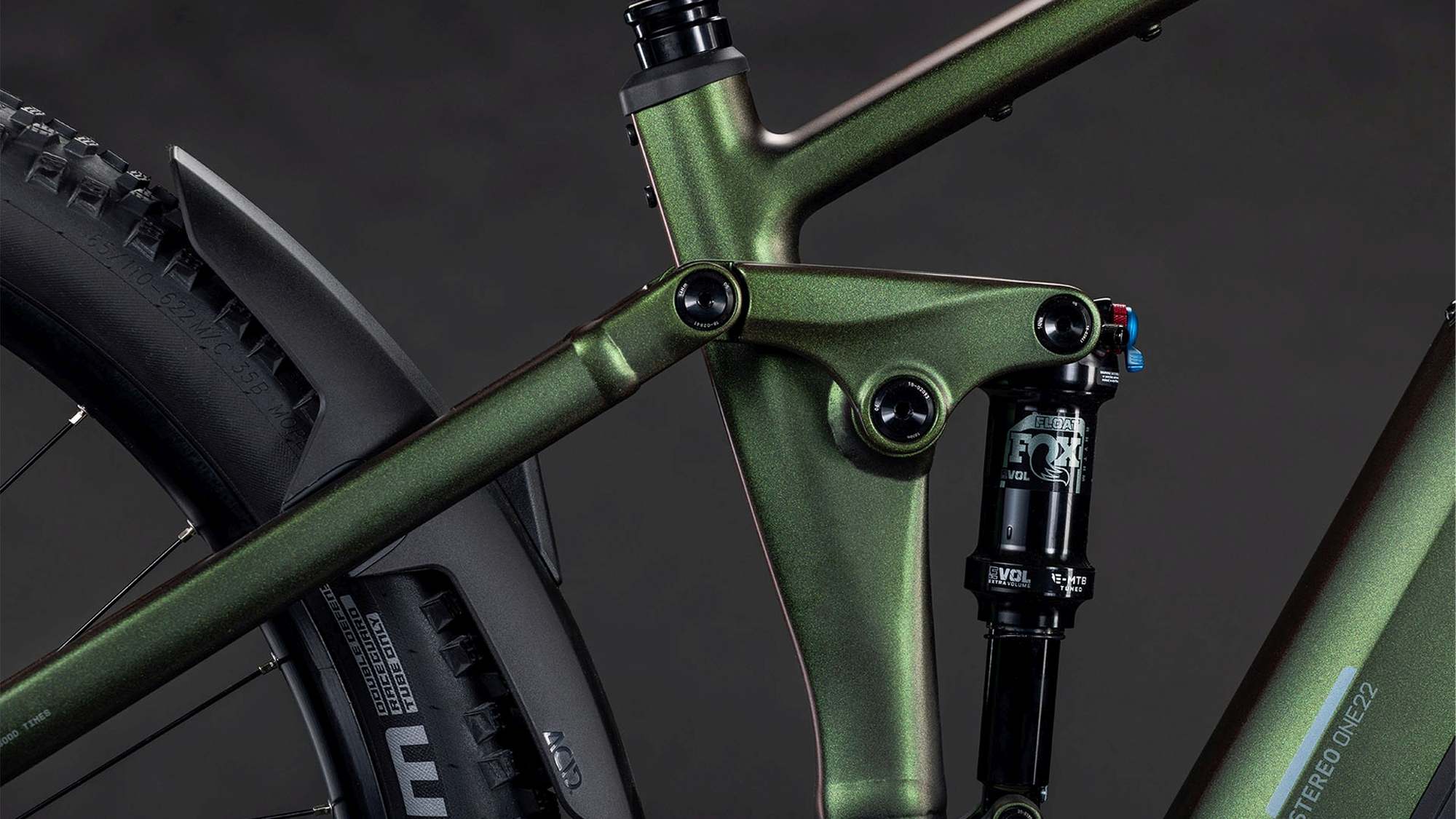

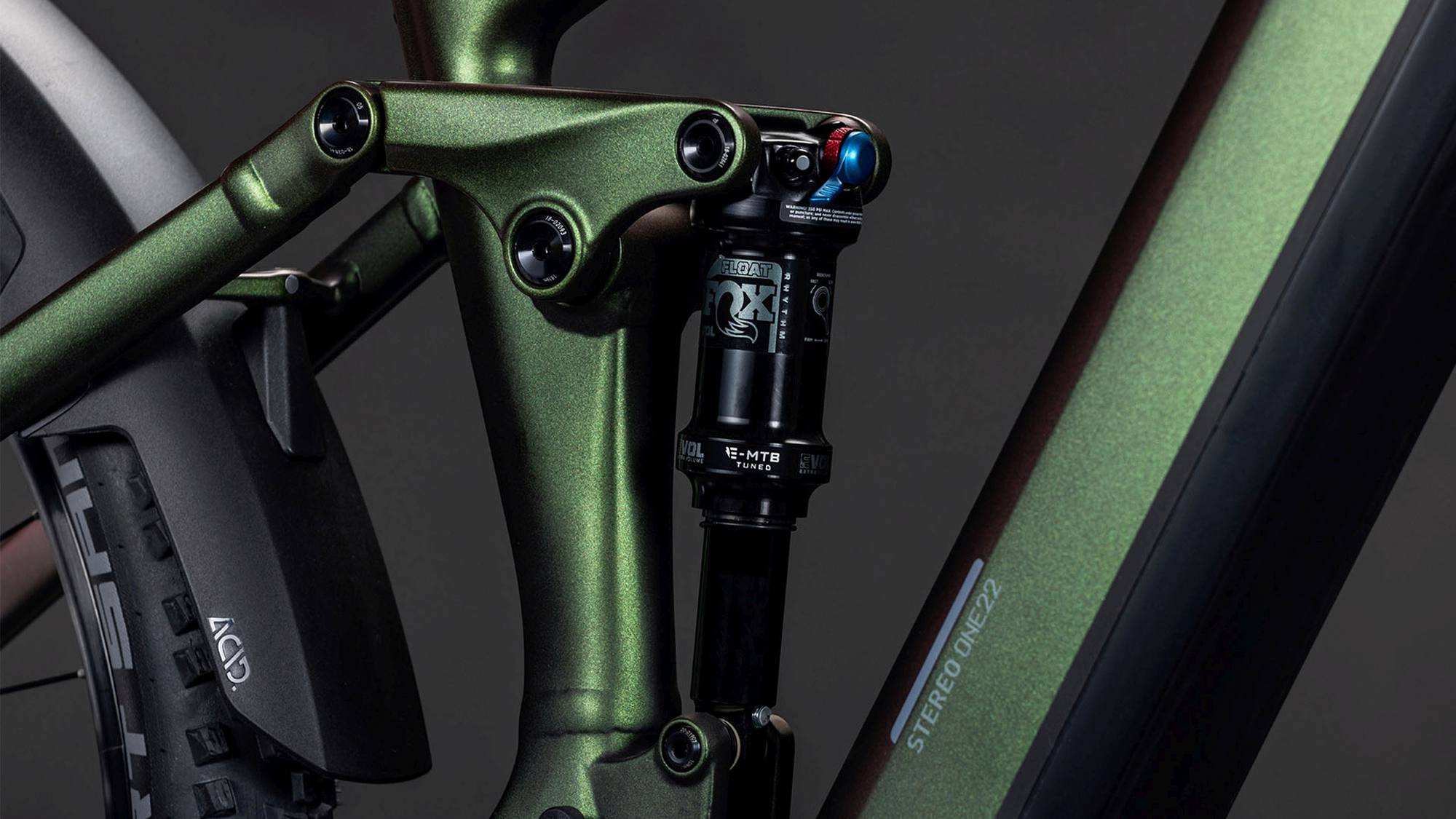

| Shock | Fox Float Rhythm RC, 185x52.5mm, Adjustable LSR w/ 2-Pos. Lever, Trunnion Mount |
| Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar | CUBE Rise Trail Bar 35 |
| Grips | ACID Hybrid Perform |
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| Brakes | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |

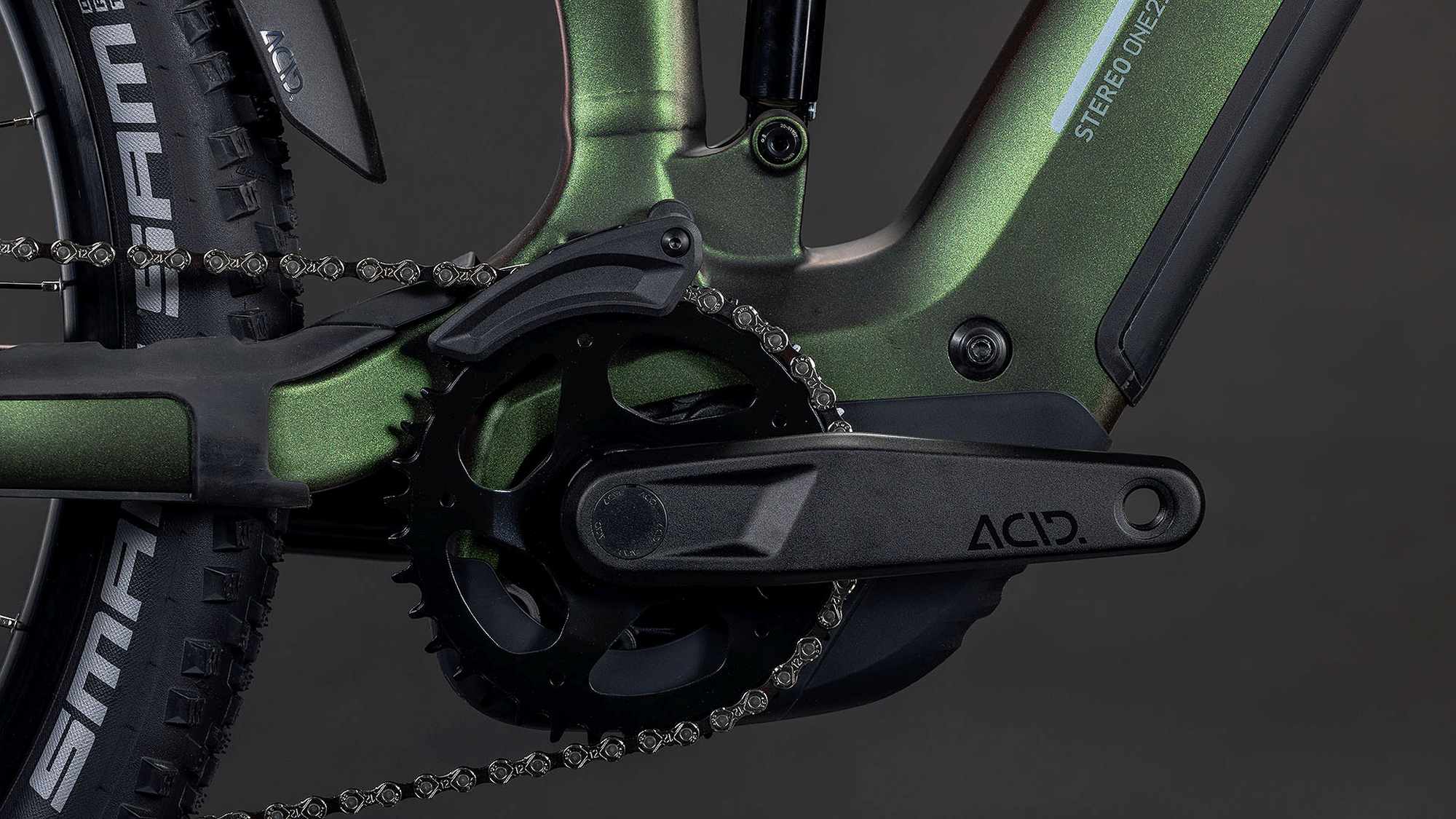

| Crankset | ACID MTB Hybrid Pro, 38T |
| Crankset chainring sizes | 38T |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Number of gears | 12 |
| Chain | KMC e12 |
| Wheelset | ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Tires (Front & Rear) | Schwalbe Smart Sam, Performance, 2.6 |
| Pedals | ACID PP MTB |
| Saddle | ACID Venec EMTB Plus 145 |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Engine | Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| Engine ready for the Bosch 120 Nm update? | YES |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 2A |
| Remote | Bosch LED Remote |
| Display | Bosch Kiox 500 |
| Net weight (kg) | 26.6 |
| Gross weight (kg) | 30.54 |
| Max. system weight (kg) | 160 |
| Max. rider weight (kg) | 125 |
| Body size | 1.77m - 1.87m |
| Accessories | 93453,93250,93455,93468,93362,93469,93470,93490 |
