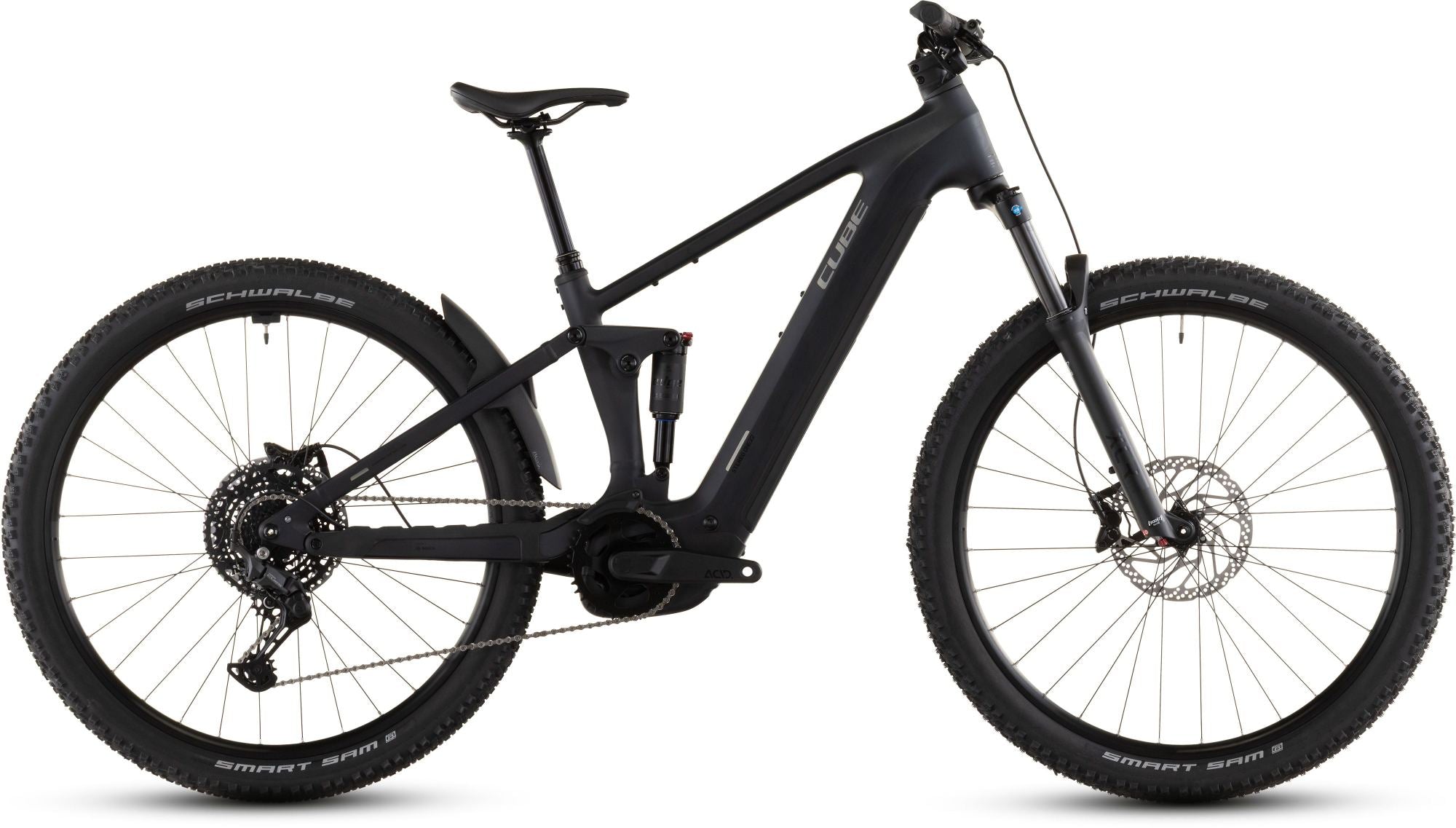

CUBE STEREO HYBRID ONE22 PRO 800 NIGHT/CHROME

Frame Style
Colour
Size
Quantity
The Stereo Hybrid ONE22 Pro 800 puts you in control. With the powerful Bosch CX drive system, Purion 200 controller and 800Wh battery, you've plenty of pedal assistance for even extended exploring. A Suntour air suspension fork and rear shock work with CUBE's proven kinematics to deliver ground-hugging comfort. Grippy Schwalbe 2.6in tyres and strong Shimano hydraulic disc brakes help control your speed. And easy-to-use Shimano Cues 1x10 gears keep you moving forward. Time for exploring...

Frame description
With added Bosch power and proven CUBE suspension kinematics, our trail explorer is a bike for all reasons. Suspension design that's stood the test of time is designed to work with a 120mm fork – including a mudguard mount – for the best in comfort and control. We fitted an 800Wh battery to power the Bosch CX drive unit, for worry-free extended rides. The UDH dropout, integrated cable routing and Direct Mount chain guard are all examples of the attention to detail we put into all our frames. And, with Size Split, you're sure to be able to find the perfect fit.

Specification

Frame Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

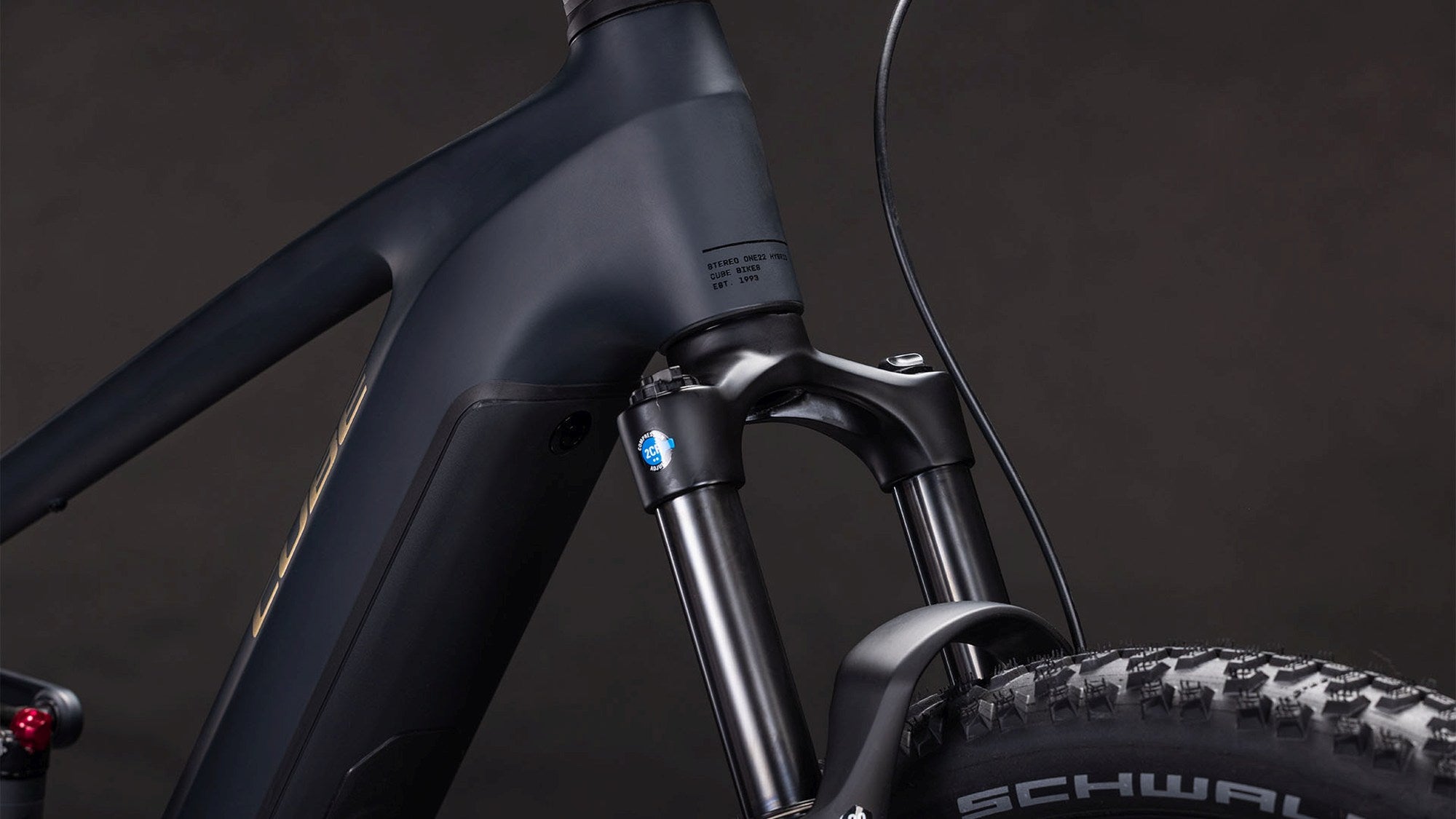

Fork SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm

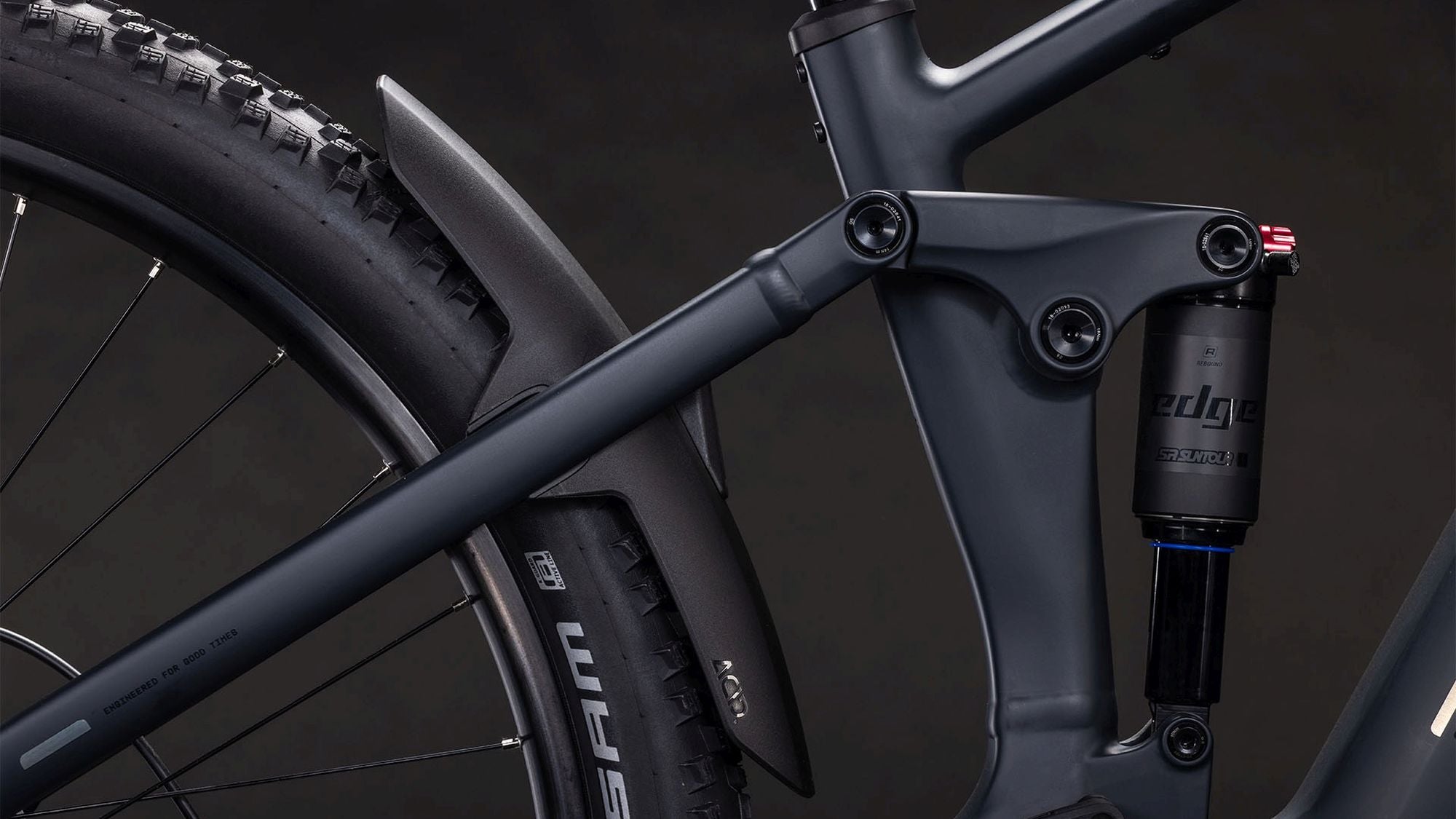

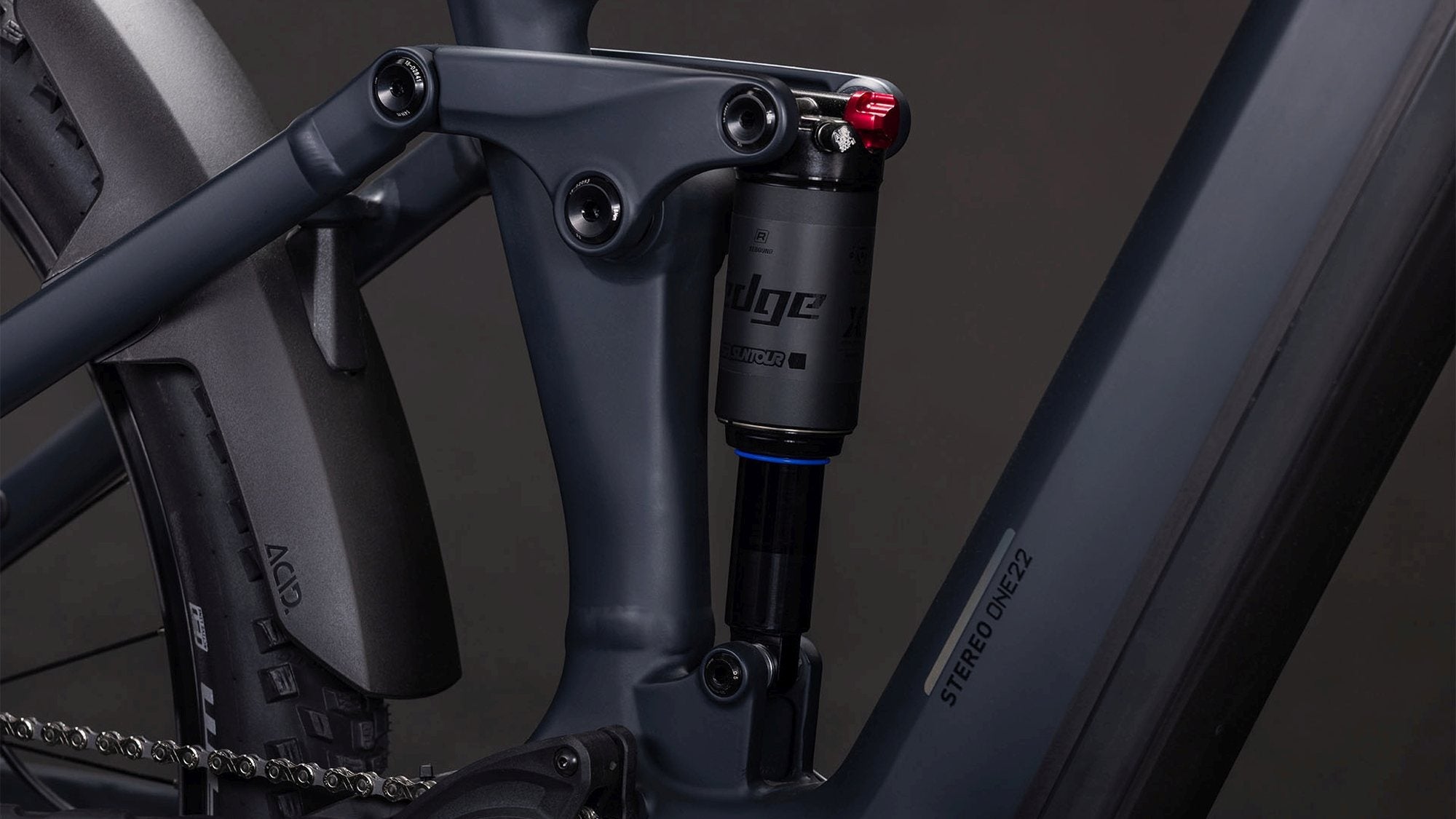

Shock SR Suntour EdgeX R 185x52.5mm, Rebound Adjust, Trunnion Mount
Headset ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface
Stem CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar CUBE Rise Trail Bar 35
Grips ACID Hybrid Perform
Rear derailleur Shimano Cues RD-U6000-GS, 10-Speed
Shifters Shimano Cues SL-U6000, Rapidfire-Plus
Brakes Shimano BR-MT420, Hydr. Disc Brake (203/203)
Crankset ACID MTB Hybrid Pro, 38T
Crankset chainring sizes 38T
Cassette Shimano Cues CS-LG300, 11-48T
Number of gears 10
Chain KMC eGlide
Wheelset ACID PRO 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires (Front & Rear) Schwalbe Smart Sam, Active, 2.6
Pedals ACID PP MTB
Saddle ACID Venec EMTB Plus 145
Seatpost CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Engine Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
Engine ready for the Bosch 120 Nm update? YES
Battery Bosch PowerTube 800
Charger Bosch 2A
Remote Bosch Purion 200 with Integrated Display
Net weight (kg) 26.7
Gross weight (kg) 30.62
Max. system weight (kg) 150
Max. rider weight (kg) 120
Body size 1.77m - 1.87m
Accessories 93453,93250,93455,93468,93362,93469,93470,93490
