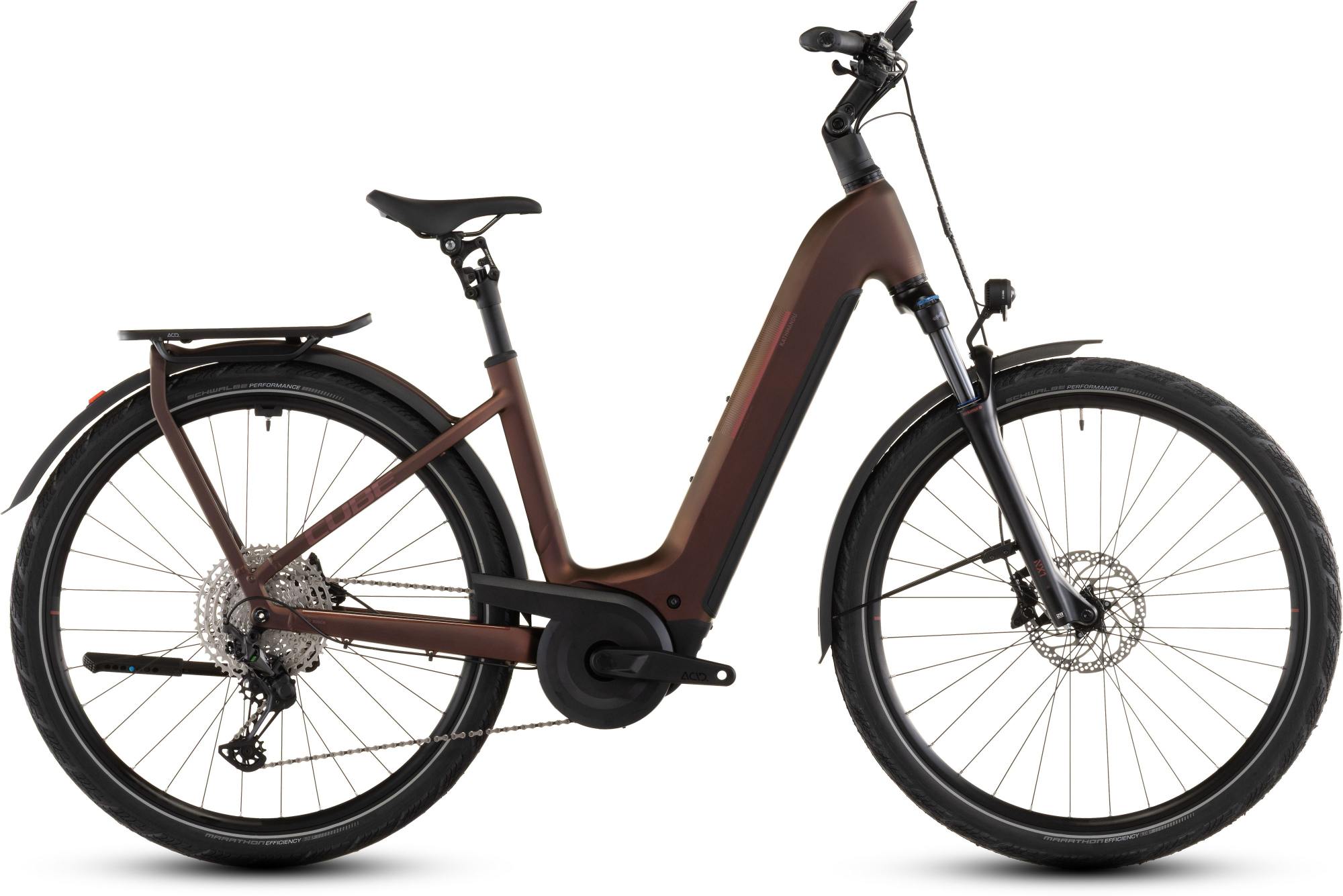

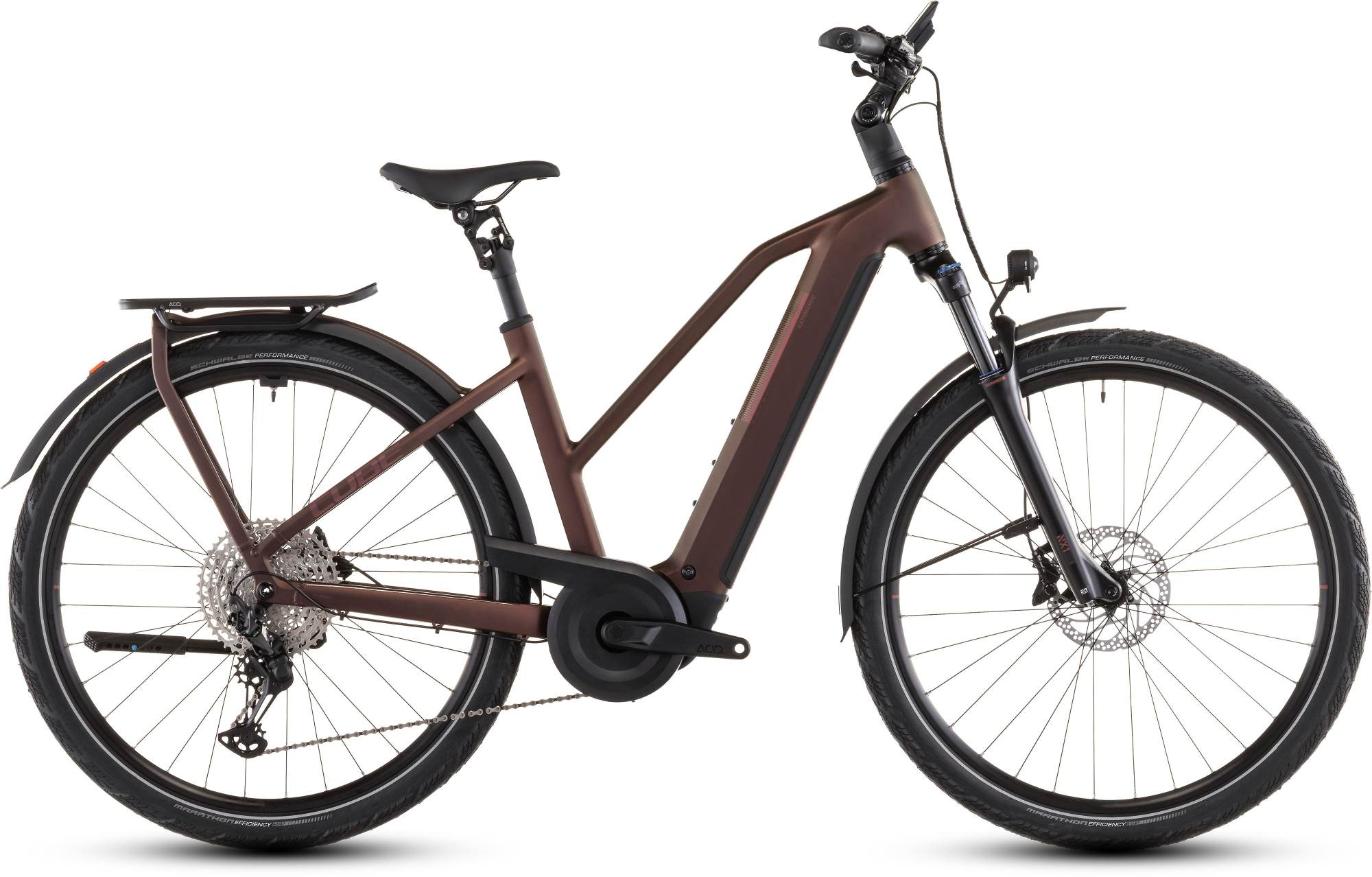

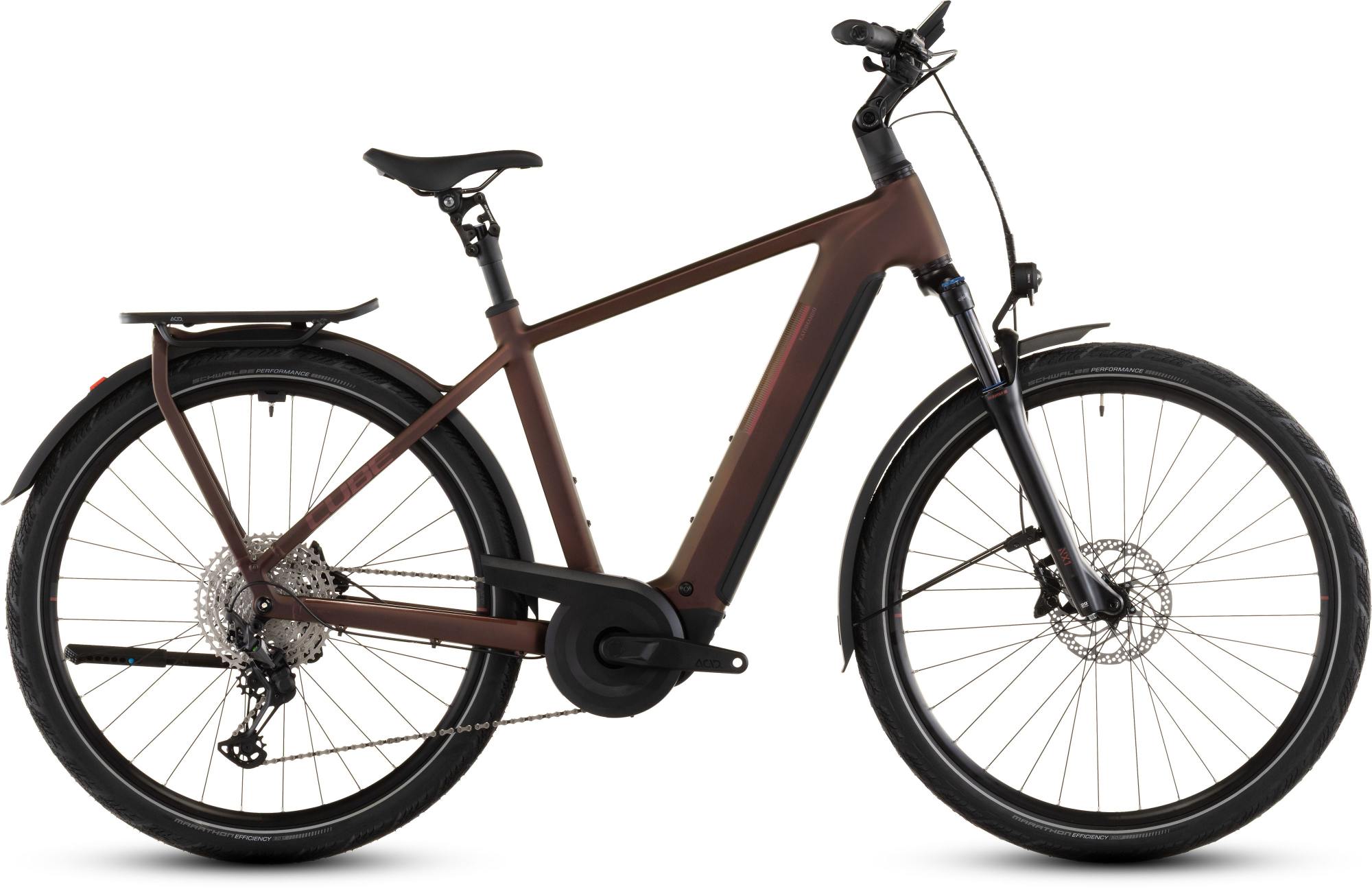

CUBE KATHMANDU HYBRID PRO 800 SUNGLOW/CHROME

Frame Style
Colour
Size
Quantity
The Kathmandu Hybrid Pro by CUBE is all about the freedom of two-wheeled exploration, with a handy Bosch power boost. You can't miss the elegant lines of the Integrated Carrier 3.0, which provides a sturdy base for carrying whatever you need. The Bosch CX drive and 800Wh PowerTube battery, meanwhile, are so neatly incorporated into the frame's design, you'll barely notice them until you start turning the pedals. At which point, the wide range and precise shifting of Shimano's XT 1x12 gears are bound to come in handy, as is the smooth strength of the 4-piston Shimano hydraulic disc brakes when you need to slow down. With a full complement of included accessories including a super-comfortable parallelogram seatpost, the only remaining question is where you'll be headed next...

Frame description
The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Specification

Frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, IC 3.0, Advanced Internal Cable Routing, Integrated Seatclamp
Fork SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
Headset ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar CUBE Comfort Trail Bar, 700mm
Grips ACID Travel Comfort
Rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters Shimano Deore SL-M6100-IR, Direct Attach
Brakes Shimano BR-MT420, Hydr. Disc Brake (180)
Crankset ACID MTB Hybrid Pro, 40T
Crankset chainring sizes 40T
Cassette Shimano Deore CS-M6100, 10-51T
Number of gears 12
Chain KMC e12
Wheelset ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires (Front & Rear) Schwalbe Marathon Efficiency, PerfL, 55-622
Pedals ACID PP Trekking
Saddle ACID Sequence 180
Seatpost SR Suntour NVX, 31.6mm
Seat post = dropper Yes/No NO

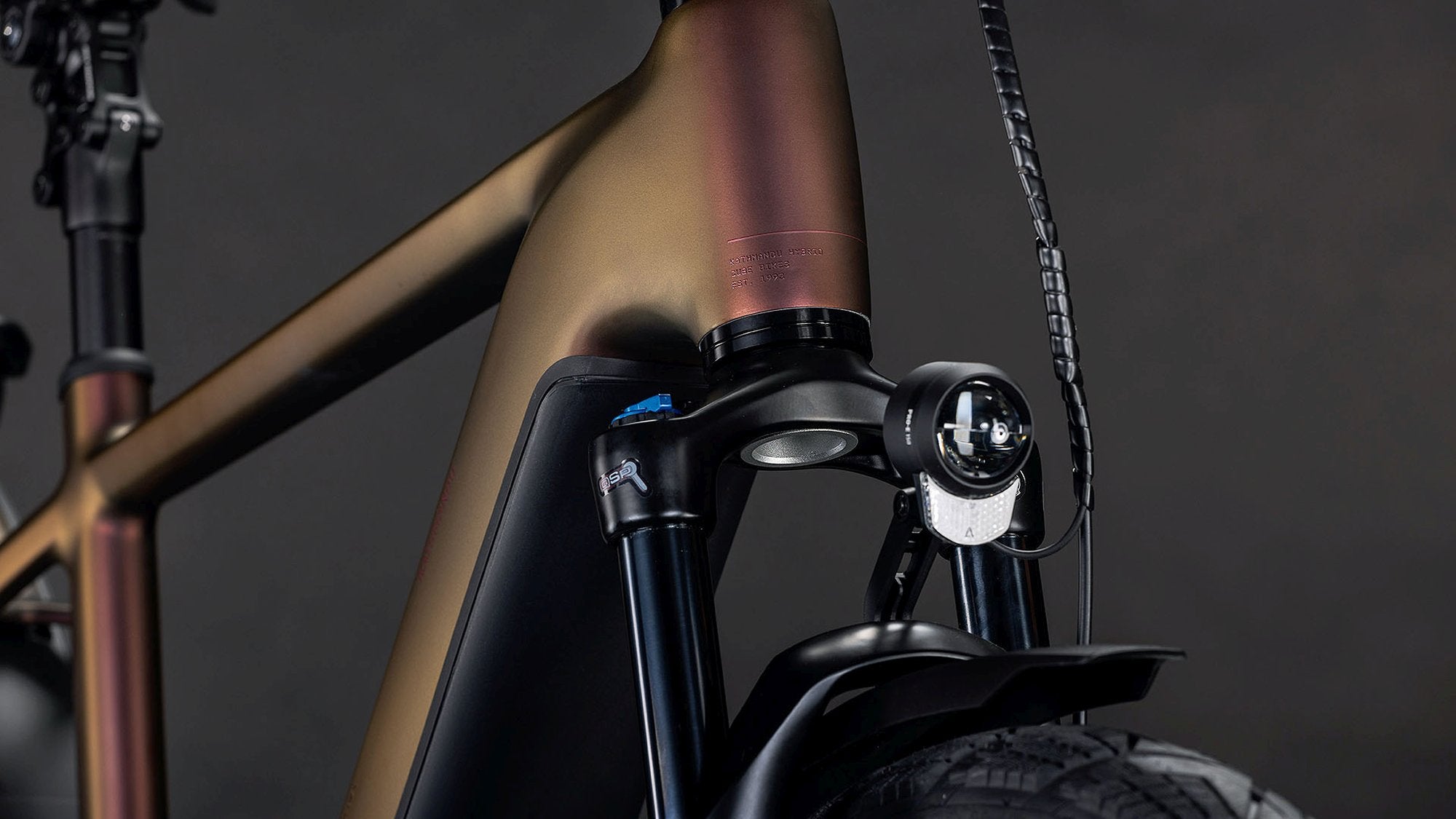

Front light ACID Front Light PRO-E 150 X-Connect, 12V, DC
Rear light ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand ACID FM Pure Kickstand
Mudguard ACID 65 Integrated Carrier 3.0
Bell Reich Cycle Bells Ringsound

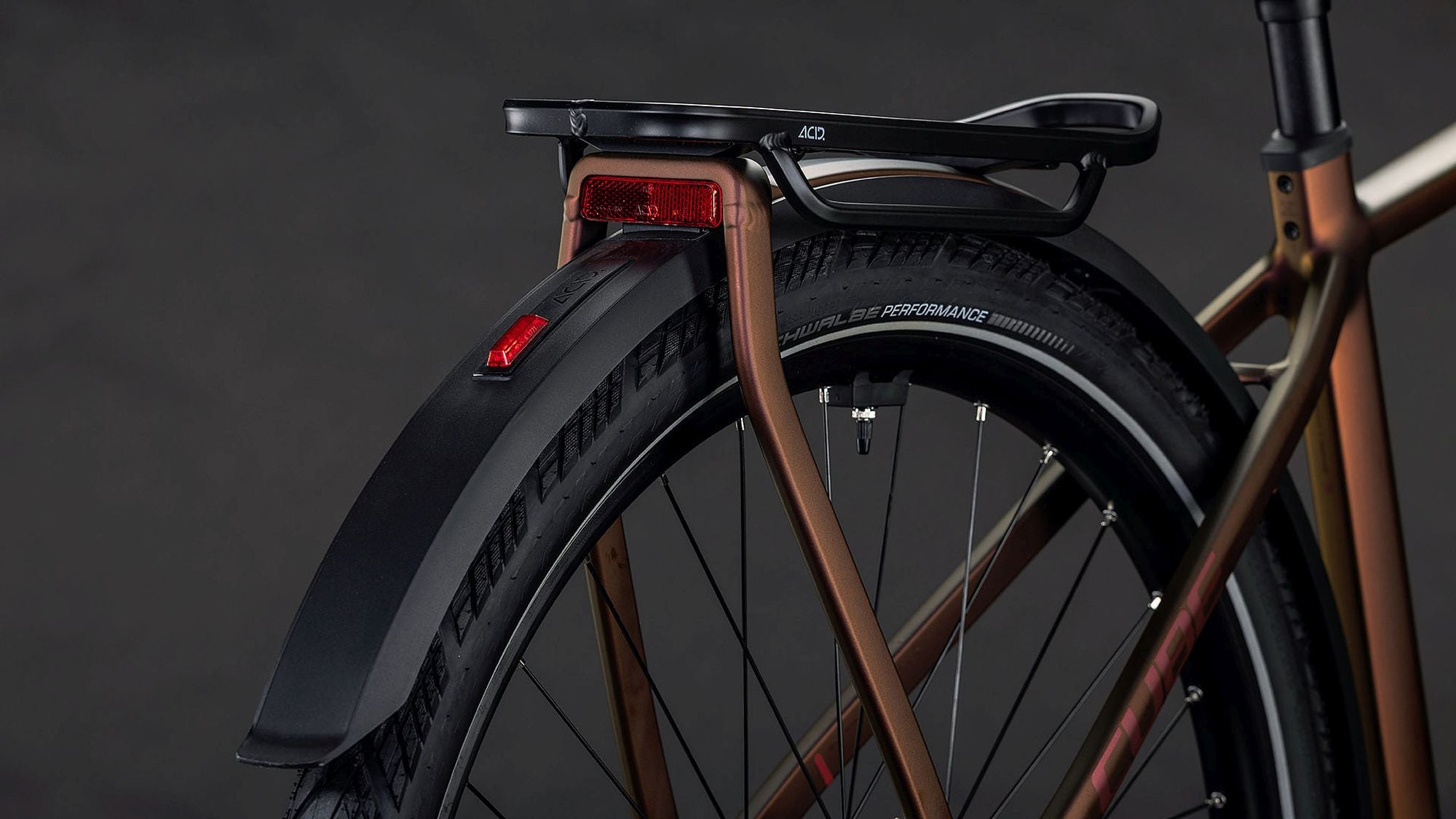

Carrier ACID Integrated Carrier 3.0, CUBE Adapter Compatible
Engine Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
Engine ready for the Bosch 120 Nm update? YES

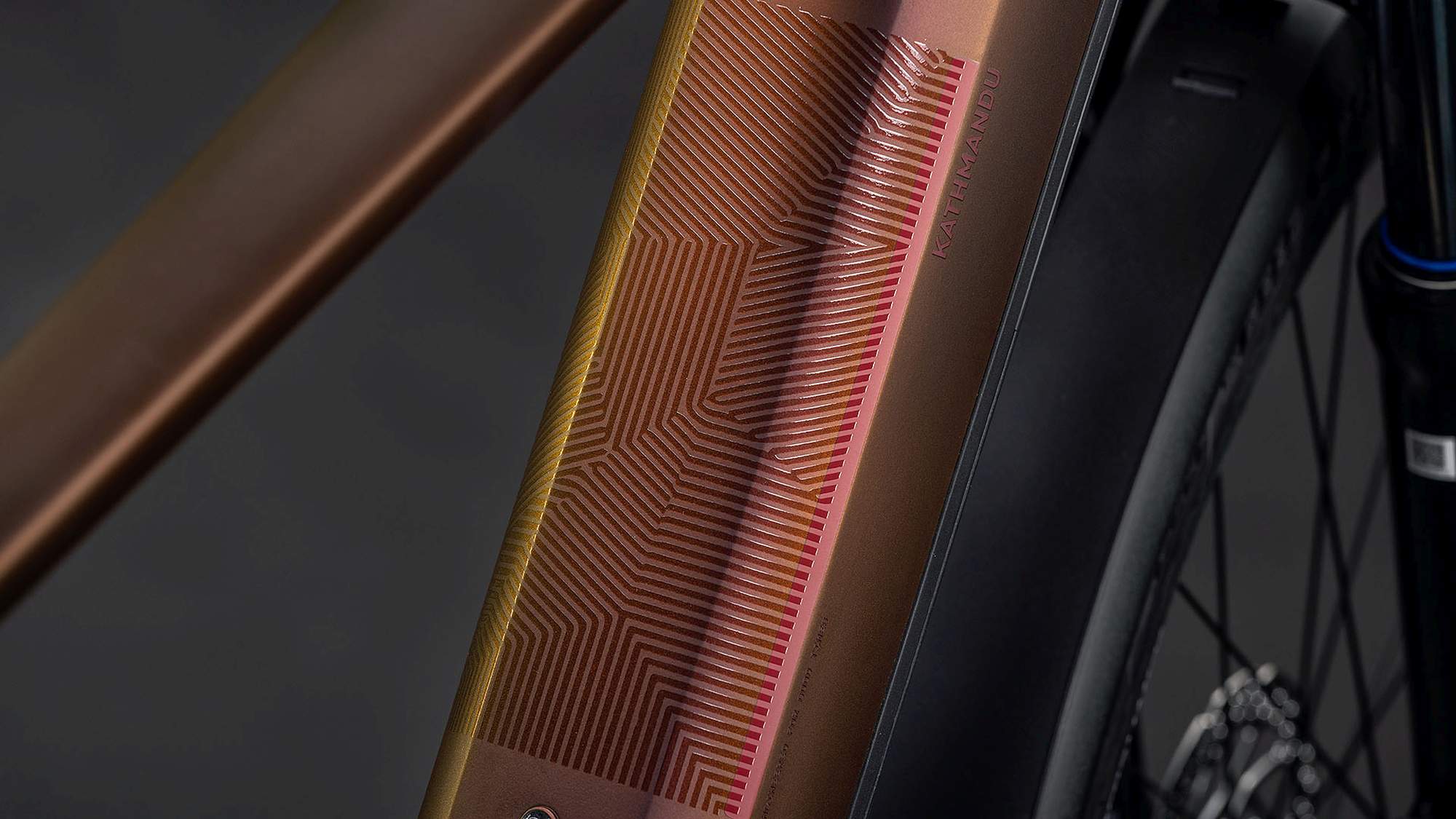

Battery Bosch PowerTube 800
Charger Bosch 2A
Remote Bosch LED Remote

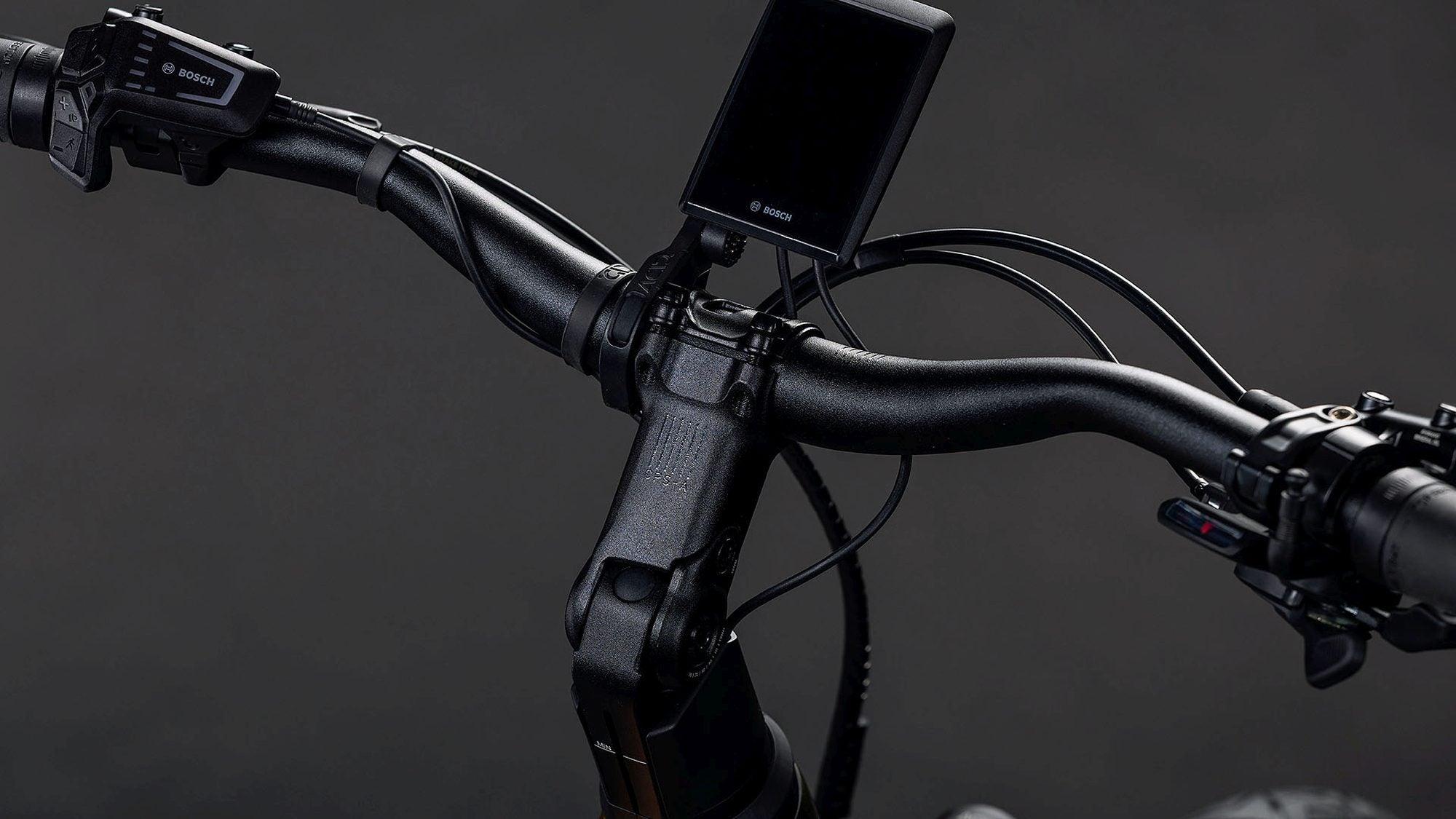

Display Bosch Kiox 500
Net weight (kg) 28.2
Gross weight (kg) 33.24
Max. system weight (kg) 140
Max. rider weight (kg) 110
Body size 1.66m - 1.76m
Accessories 93339,94799,93483,93354,93592
