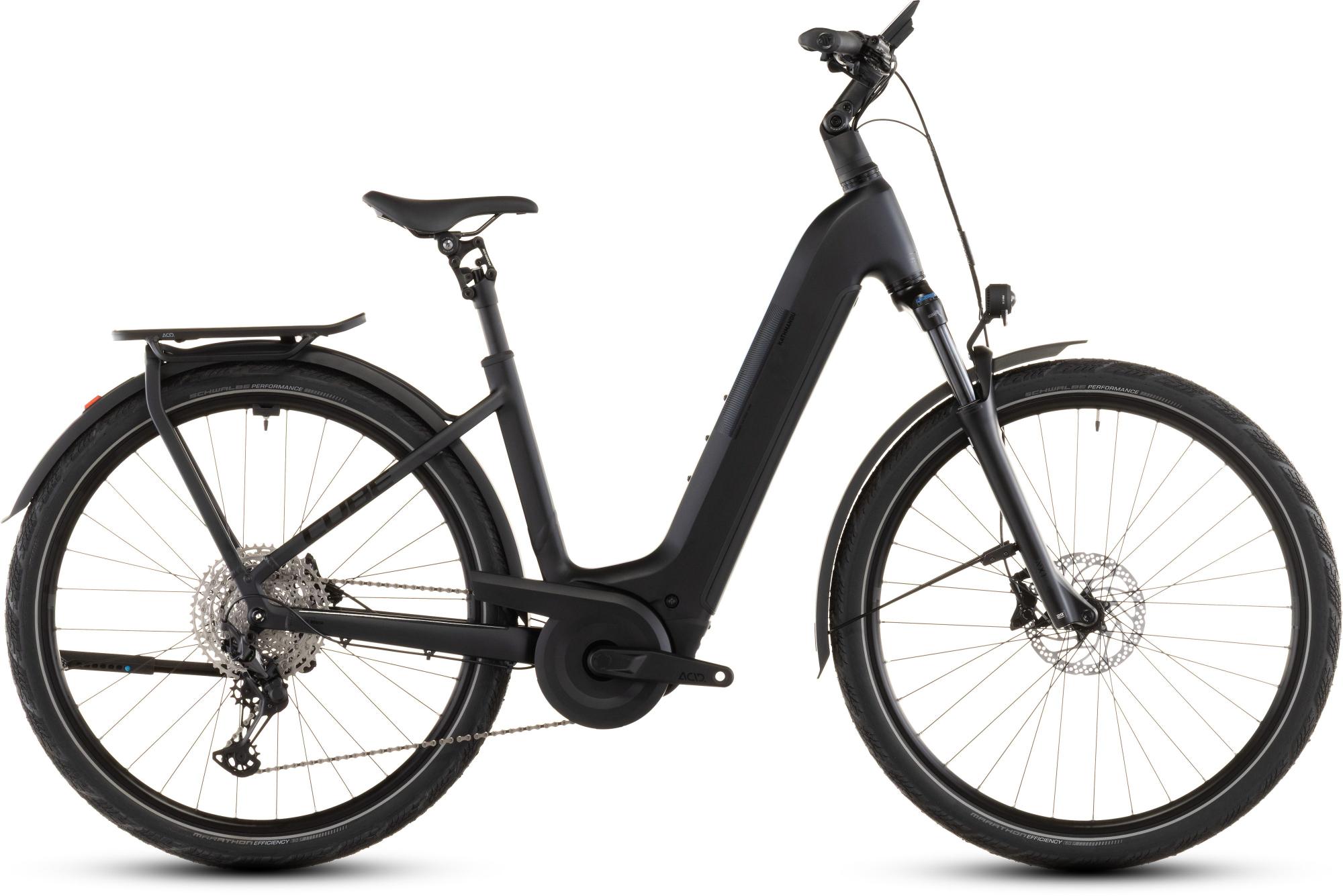

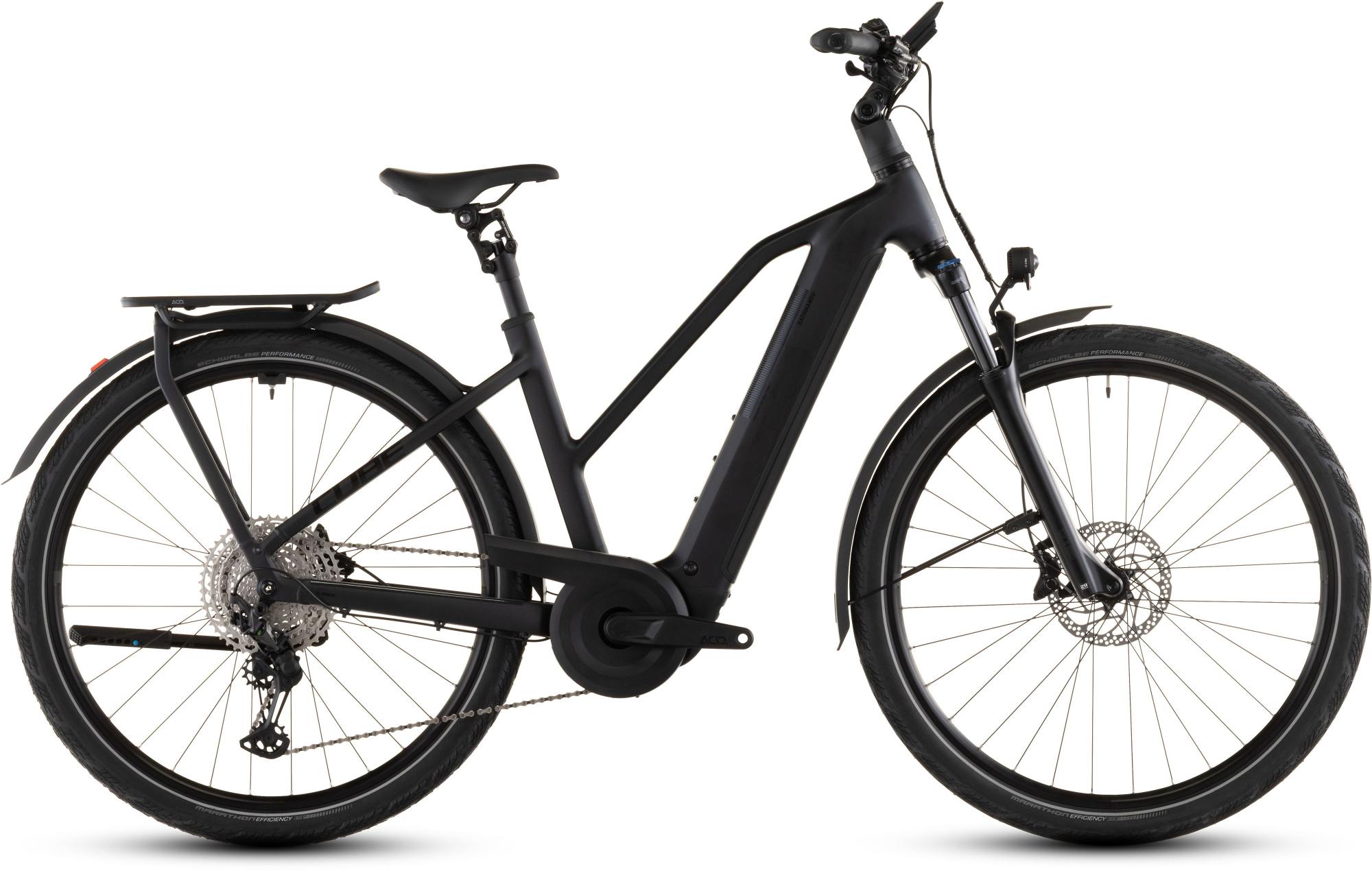

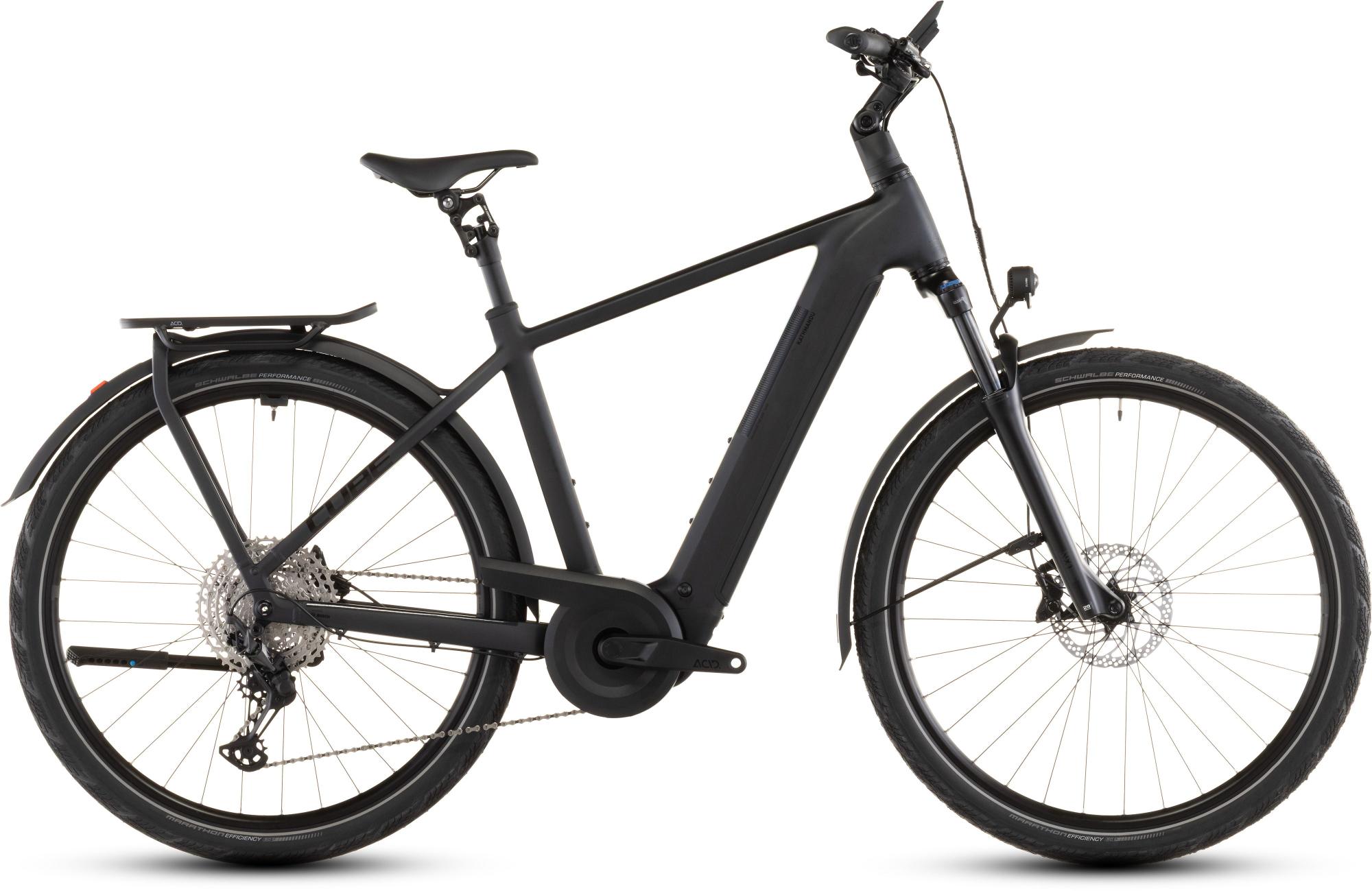

CUBE KATHMANDU HYBRID PRO 800 COAL/BLACK

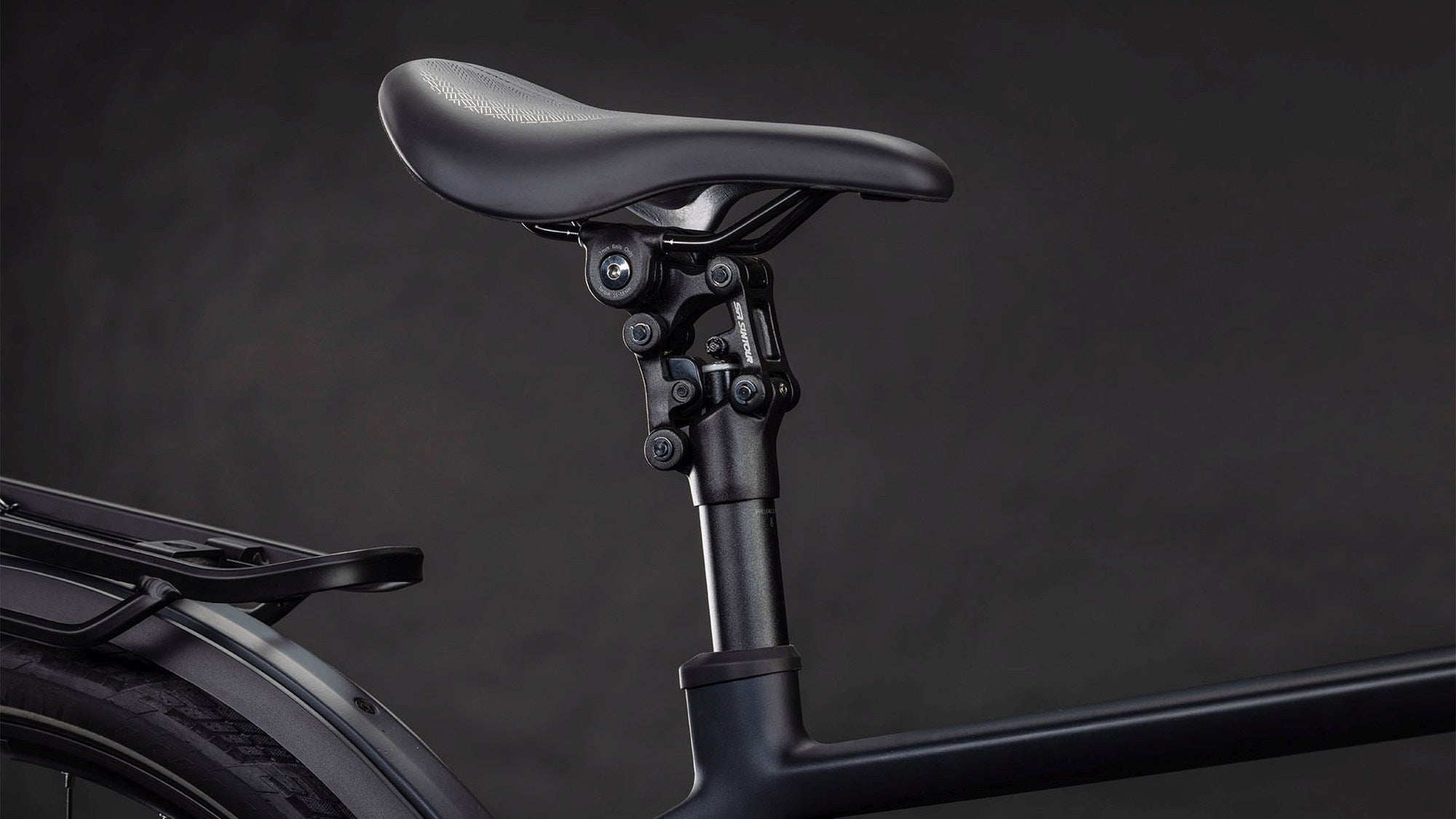

The Kathmandu Hybrid Pro by CUBE is all about the freedom of two-wheeled exploration, with a handy Bosch power boost. You can't miss the elegant lines of the Integrated Carrier 3.0, which provides a sturdy base for carrying whatever you need. The Bosch CX drive and 800Wh PowerTube battery, meanwhile, are so neatly incorporated into the frame's design, you'll barely notice them until you start turning the pedals. At which point, the wide range and precise shifting of Shimano's XT 1x12 gears are bound to come in handy, as is the smooth strength of the 4-piston Shimano hydraulic disc brakes when you need to slow down. With a full complement of included accessories including a super-comfortable parallelogram seatpost, the only remaining question is where you'll be headed next...
Frame description

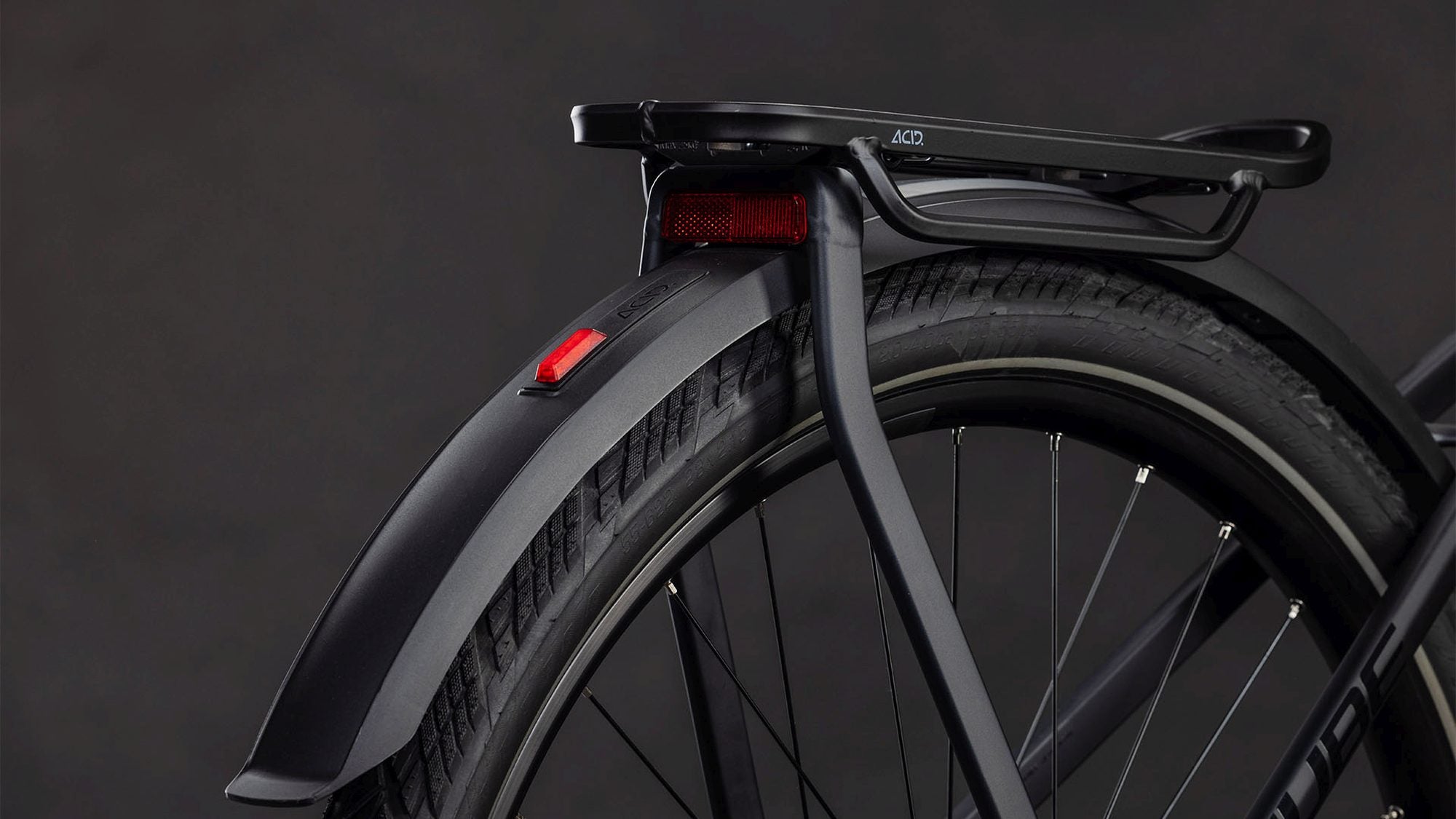

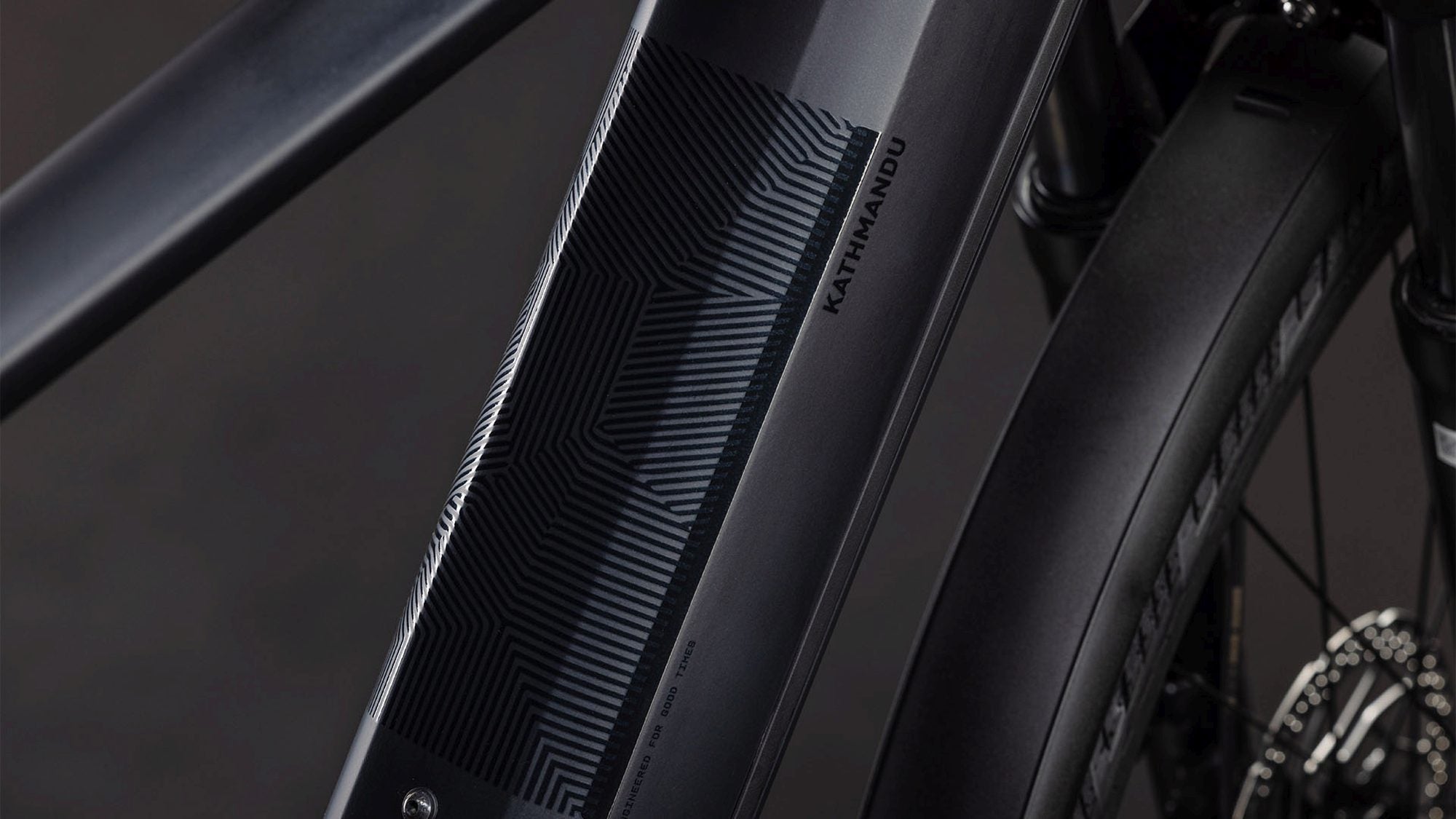

The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.
Frame description
The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chain guard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.
Specification
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, IC 3.0, Advanced Internal Cable Routing, Integrated Seatclamp |
|---|---|
| Fork | SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar | CUBE Comfort Trail Bar, 700mm |
| Grips | ACID Travel Comfort |
| Rear derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach |
| Brakes | Shimano BR-MT420, Hydr. Disc Brake (180) |
| Crankset | ACID MTB Hybrid Pro, 40T |
| Crankset chainring sizes | 40T |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Number of gears | 12 |
| Chain | KMC e12 |
| Wheelset | ACID SLX 25, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Tires (Front & Rear) | Schwalbe Marathon Efficiency, PerfL, 55-622 |
| Pedals | ACID PP Trekking |
| Saddle | ACID Sequence 180 |
| Seatpost | SR Suntour NVX, 31.6mm |
| Seat post = dropper Yes/No | NO |
| Front light | ACID Front Light PRO-E 150 X-Connect, 12V, DC |
| Rear light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | ACID FM Pure Kickstand |
| Mudguard | ACID 65 Integrated Carrier 3.0 |
| Bell | Reich Cycle Bells Ringsound |
| Carrier | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Engine | Bosch Drive Unit Performance Line CX max. 120Nm (BDU38) |
| Engine ready for the Bosch 120 Nm update? | YES |
| Battery | Bosch PowerTube 800 |
| Charger | Bosch 2A |
| Remote | Bosch LED Remote |
| Display | Bosch Kiox 500 |
| Net weight (kg) | 28.1 |
| Gross weight (kg) | 33.06 |
| Max. system weight (kg) | 140 |
| Max. rider weight (kg) | 110 |
| Body size | 1.66m - 1.76m |
| Accessories | 93339,94799,93483,93354 |
