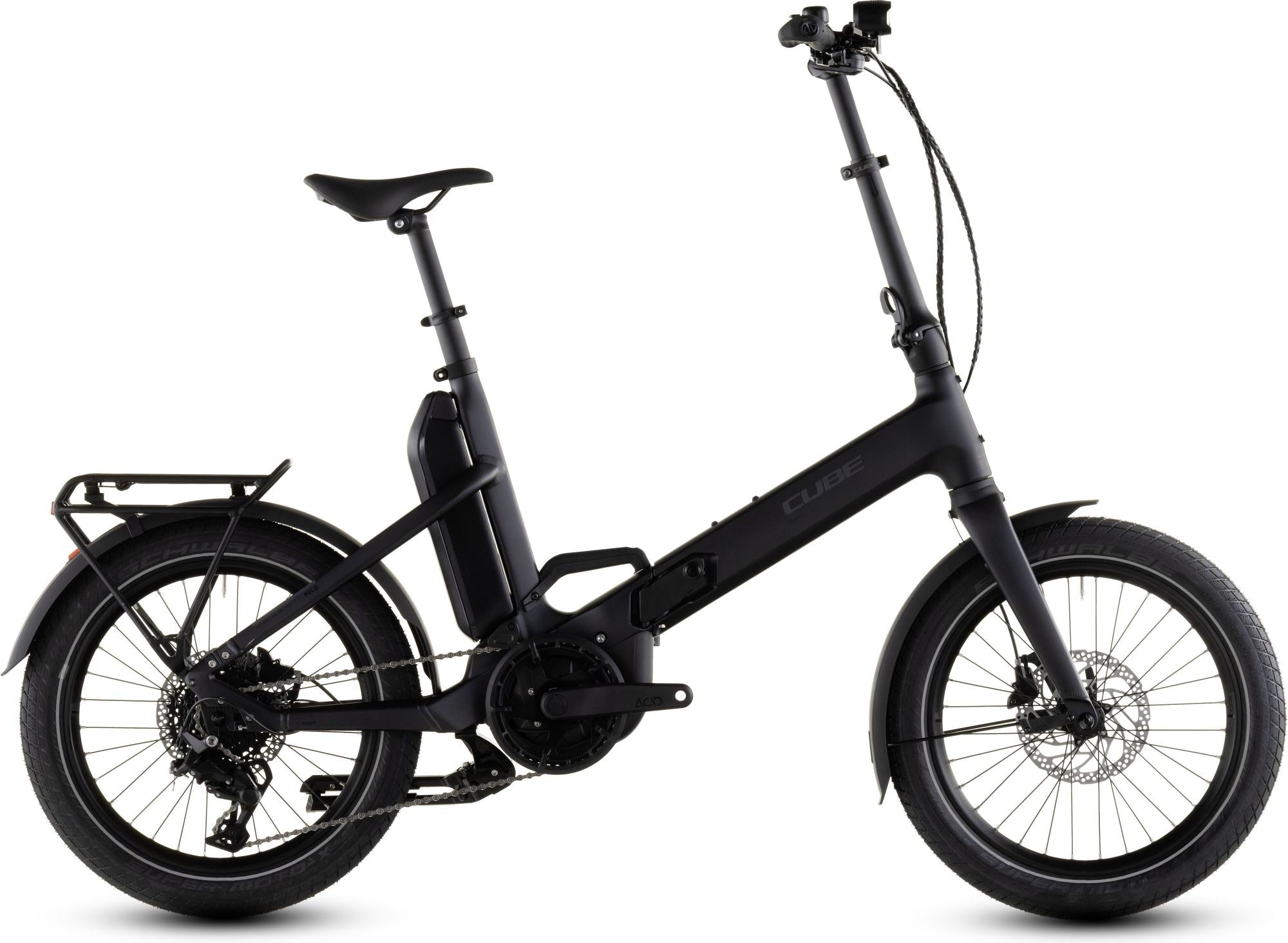

CUBE FOLD HYBRID 545 COAL/REFLEX

Frame Style
Colour
Size
Quantity
Built to slot into your life as easily as it folds for storage or transport, the Fold Hybrid is the two-wheeled companion you'll wish you'd always had. With the power of Bosch's Performance motor, the wide range of Shimano's easy-to-use Cues 10-speed gears and a 545Wh battery as standard, it makes light work of any trip and delivers you to your destination fresh and in good shape to continue with the rest of your day. We even fitted powerful Shimano hydraulic disc brakes, for assured stopping no matter the weather. The included rear carrier – and optional front carrier – make it easy to take everything you need with you. And, with mudguards, a sturdy kickstand and a rugged carrying handle, it has everything you need.

Frame description
When we set out to design our foldable Bosch e-bike, we wanted it to set new standards for flexibility, mobility and functionality. The fact that it also looks great is no coincidence, because form often follows function. With its clever folding mechanism and integrated carry handle, the Fold Hybrid is easy to store or transport in an efficient, space-saving size and shape. The 545Wh battery sits neatly behind the seat tube, and Bosch's Smart System gives you more control via the eBike Flow app. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height. We included mudguards, a really stable kickstand and a sturdy rear carrier. And an optional front carrier – plus a wide range of bags and baskets that attach quickly and simply via innovative mechanisms – make it simple to carry whatever you need along for the ride. You'll wonder how you ever managed without it.

Specification

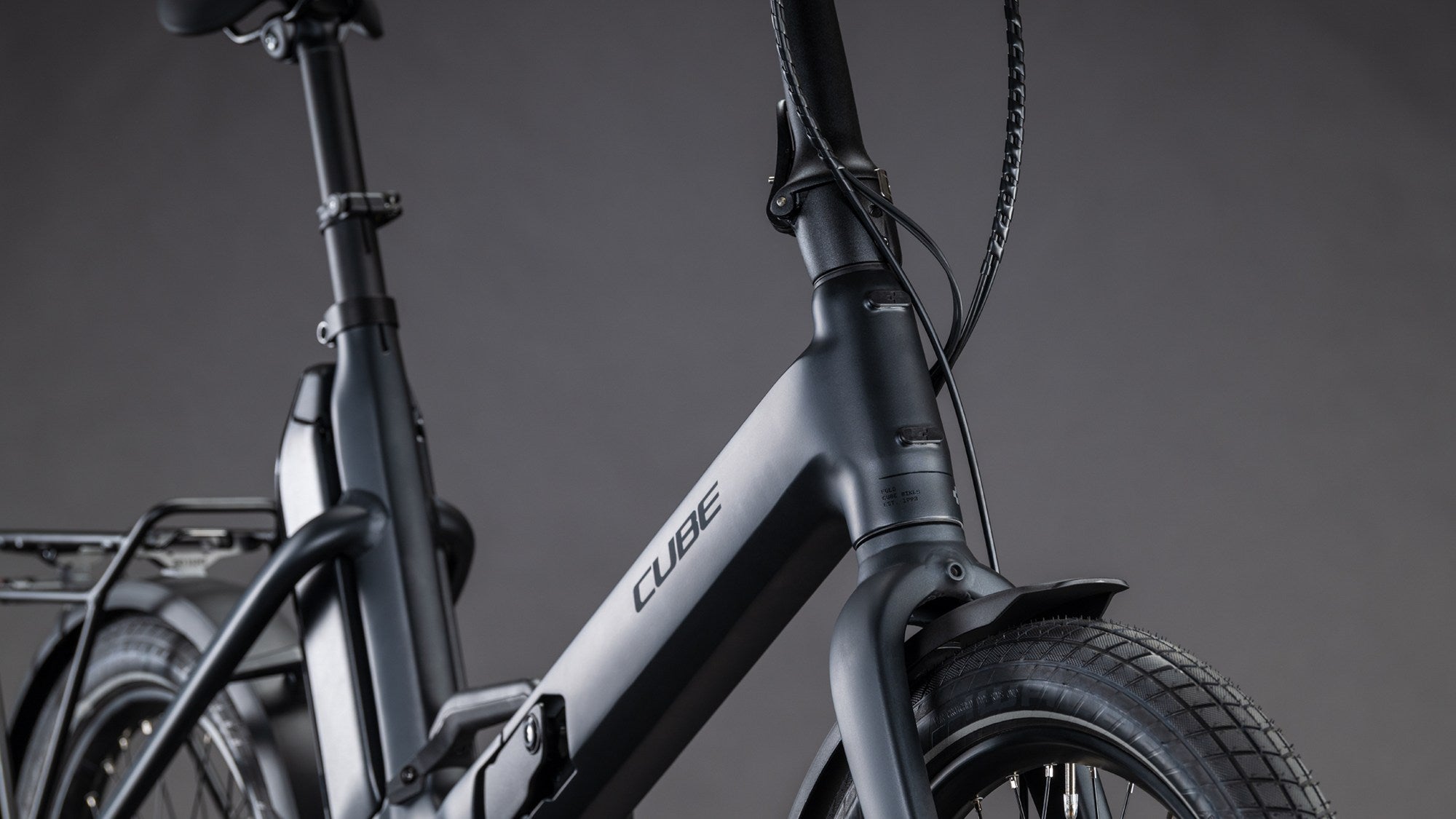

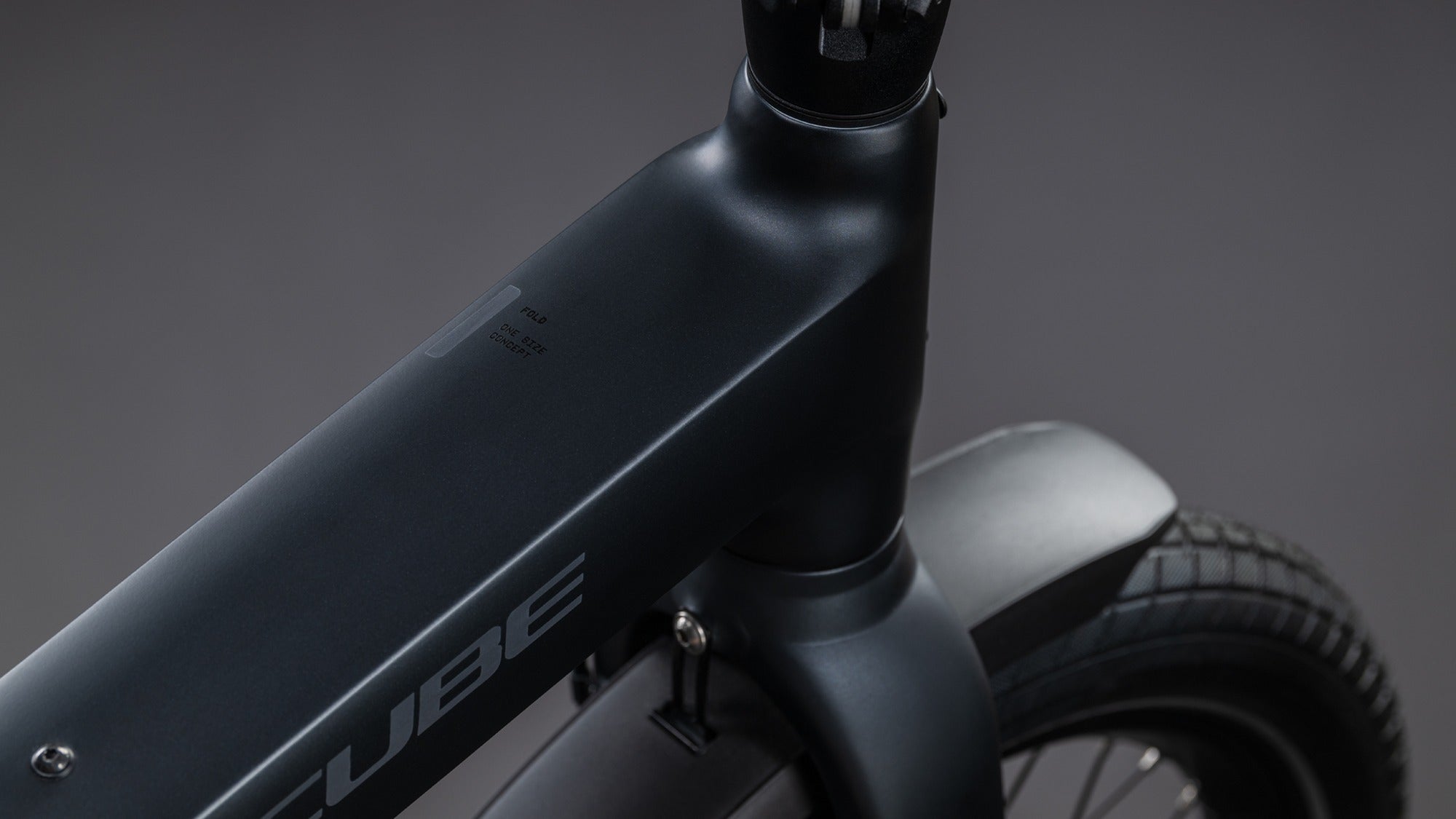

Frame Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Front-Carrier Ready, Slider Dropout, Integrated Folding Technology, Carrying Handlebar
Fork Aluminium Rigid Fork, 20"
Headset ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem Cube Folding Stem, Adjustable Length, 25,4mm Clamp
Handlebar CUBE Comfort Trail Bar, 680mm, 25.4mm
Grips ACID Travel Comfort
Rear derailleur Shimano Cues RD-U4010, 9-Speed
Shifters Shimano Cues SL-U4010- Rapidfire-Plus
Brakes Shimano BR-MT200, Hydr. Disc Brake (180/160))
Crankset ACID Trekking Hybrid, 42T
Crankset chainring sizes 42T
Cassette Shimano CS-LG300, 11-36T
Number of gears 9
Chain KMC eGlide
Rims ACID EX30, 32H, Disc, Tubeless Ready
Front hub Shimano HB-QC300, QR, Centerlock
Rear hub Shimano FH-QC300-HM, QR, Centerlock
Tires (Front & Rear) Schwalbe Super Moto-X, Double Defense, 62-406
Pedals Folding Pedal, Aluminium
Saddle ACID Sequence 160
Seatpost Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
Front light ACID Front Light PRO-E 60 X-Connect, 12V, DC
Rear light ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand Two Leg Kickstand
Mudguard ACID 75, BB-Mount
Bell Easy Bell

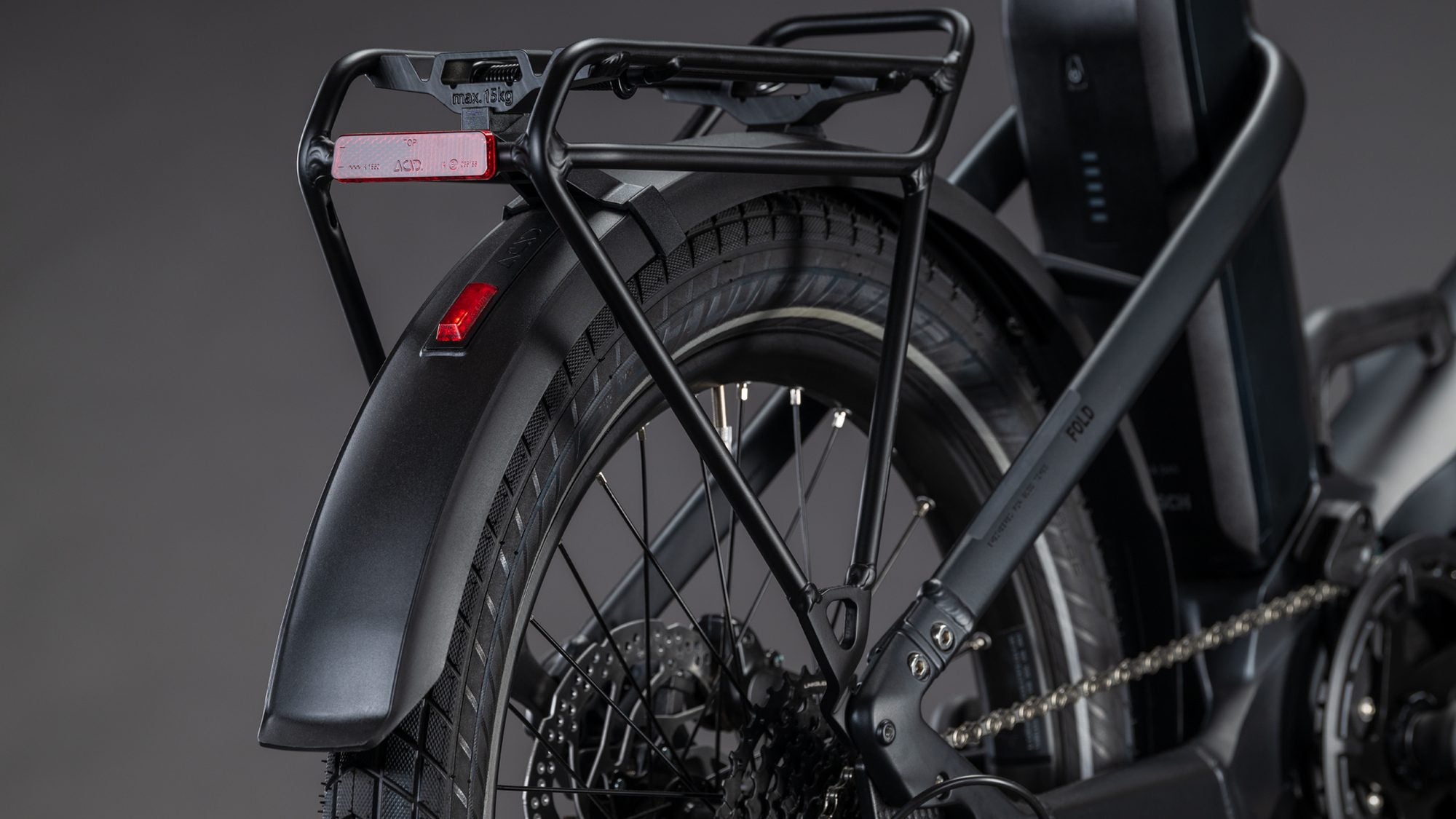

Carrier ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible

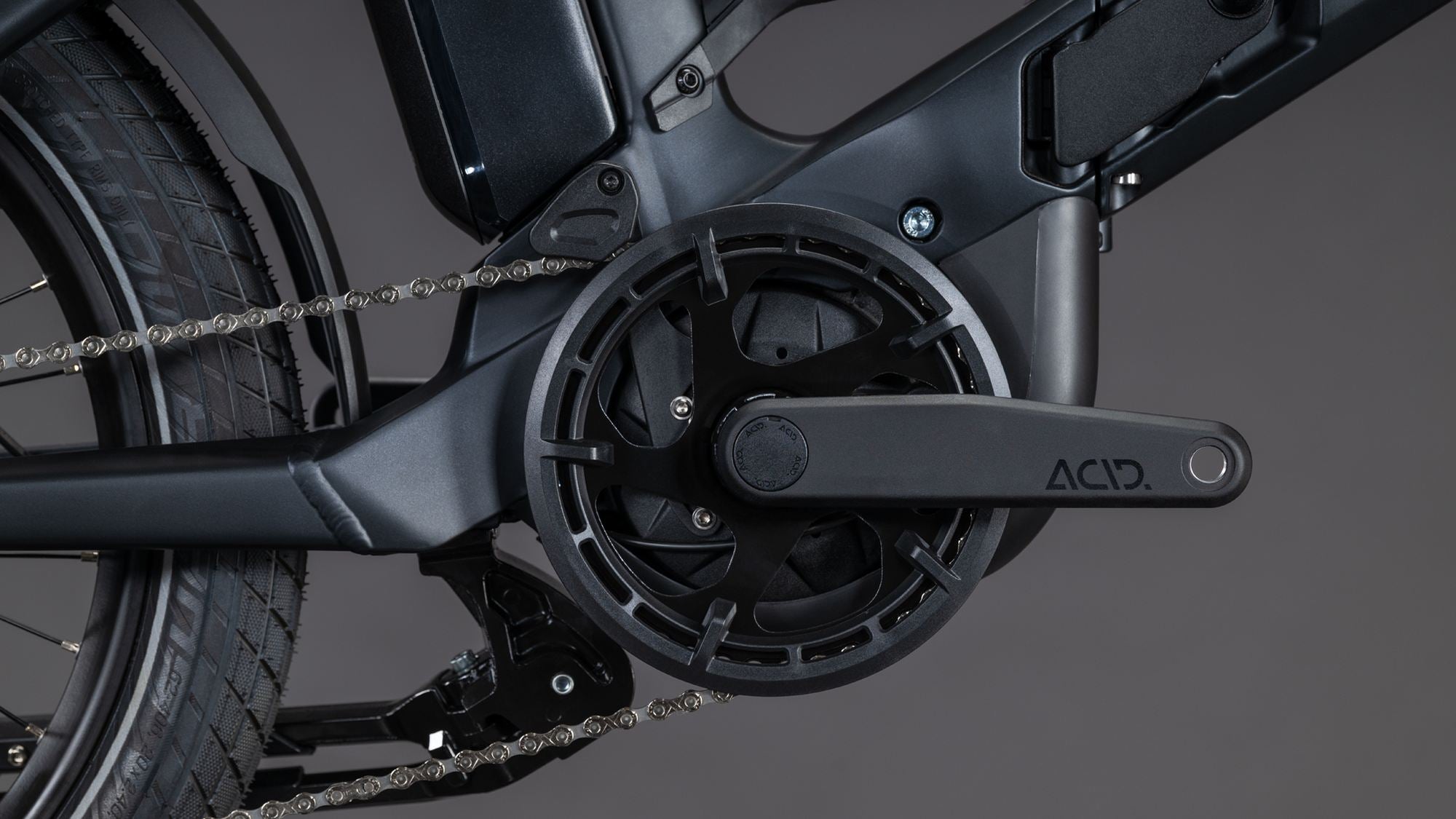

Engine Bosch Drive Unit Performance Line 75Nm (BDU34)
Battery Bosch PowerPack 545
Charger Bosch 2A
Remote Bosch Purion 200 with Integrated Display
Net weight (kg) 25.3
Gross weight (kg) 25.56
Max. system weight (kg) 142
Max. rider weight (kg) 95
Body size ONESIZE
Accessories 12793,93152,93151
