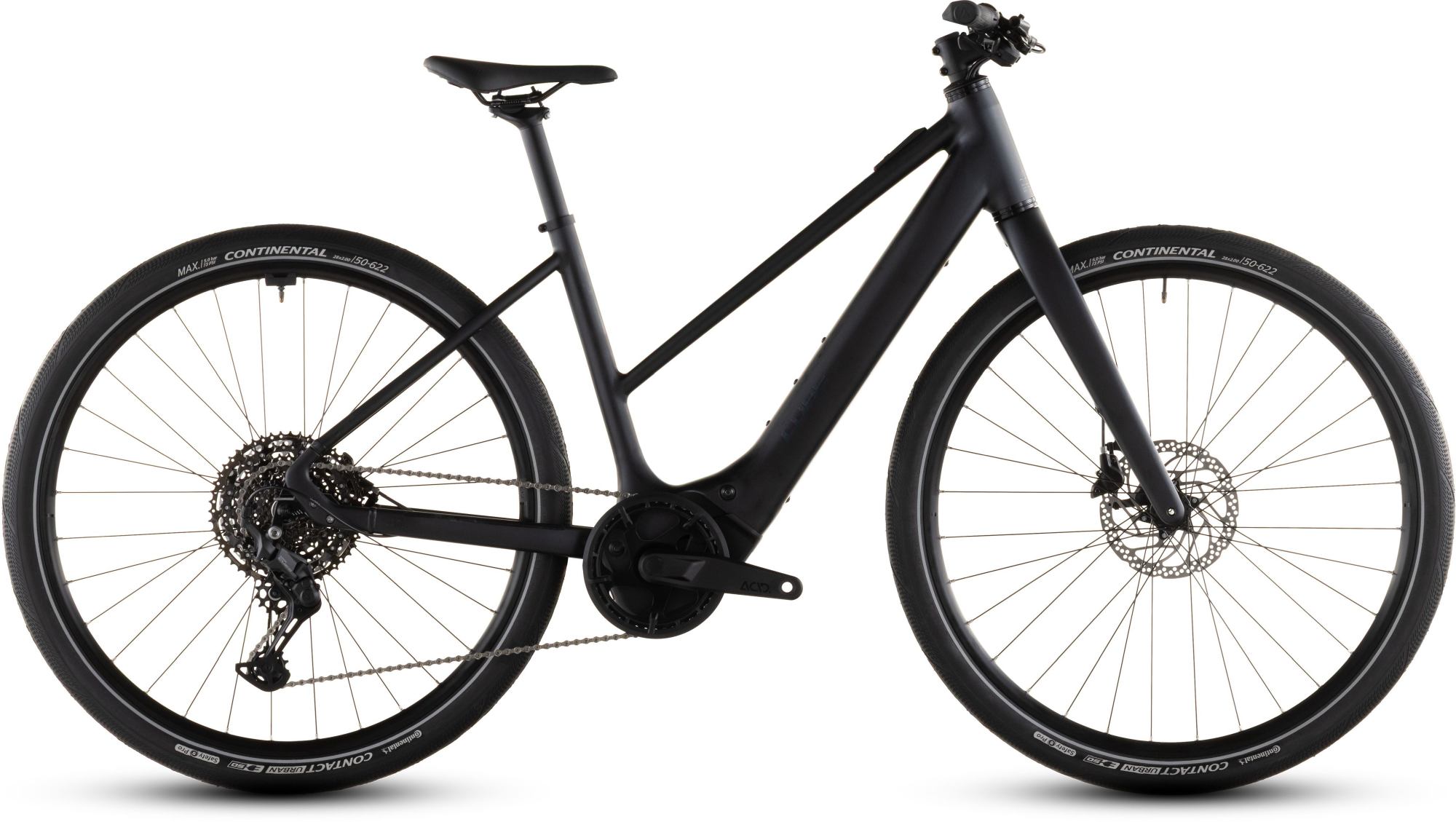

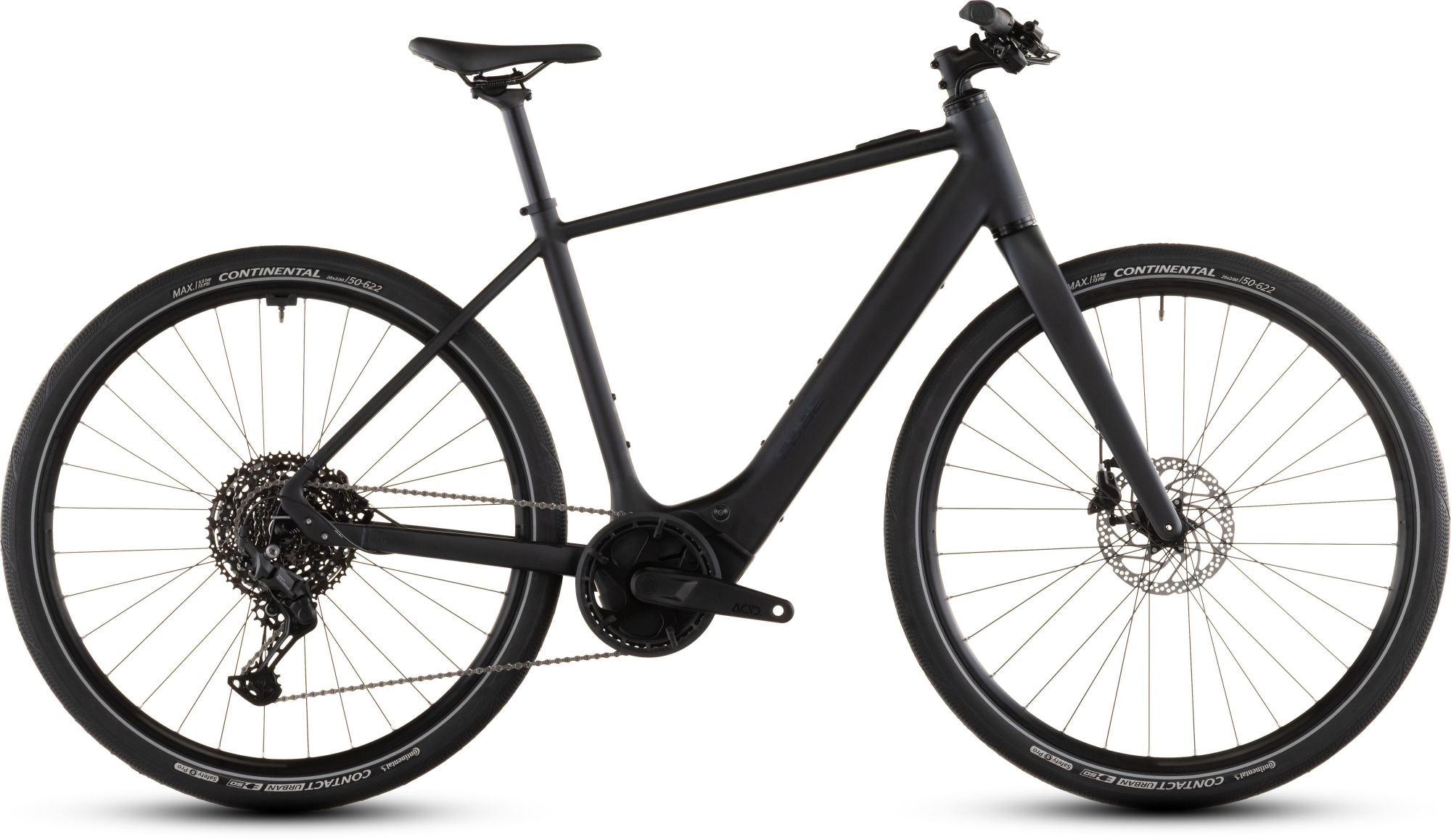

CUBE EDITOR HYBRID PRO 400X COAL/PRISM
The Editor Hybrid Pro 400X is the stealth urban e-bike you never knew you needed. Featuring Bosch's lightweight SX drive system, a built-in 400Wh battery and a controller integrated into the top tube, it's a compelling blend of practicality and style. Shimano's easy-to-use 11-speed Cues gears give you the range you need to make light work of any route, whilst powerful Shimano hydraulic disc brakes serve up safe stopping power in all weathers. With wide, grippy Continental Contact Urban 50mm tyres and a full lightweight carbon fork, you're always in control. Urban smarts, see?
Frame description

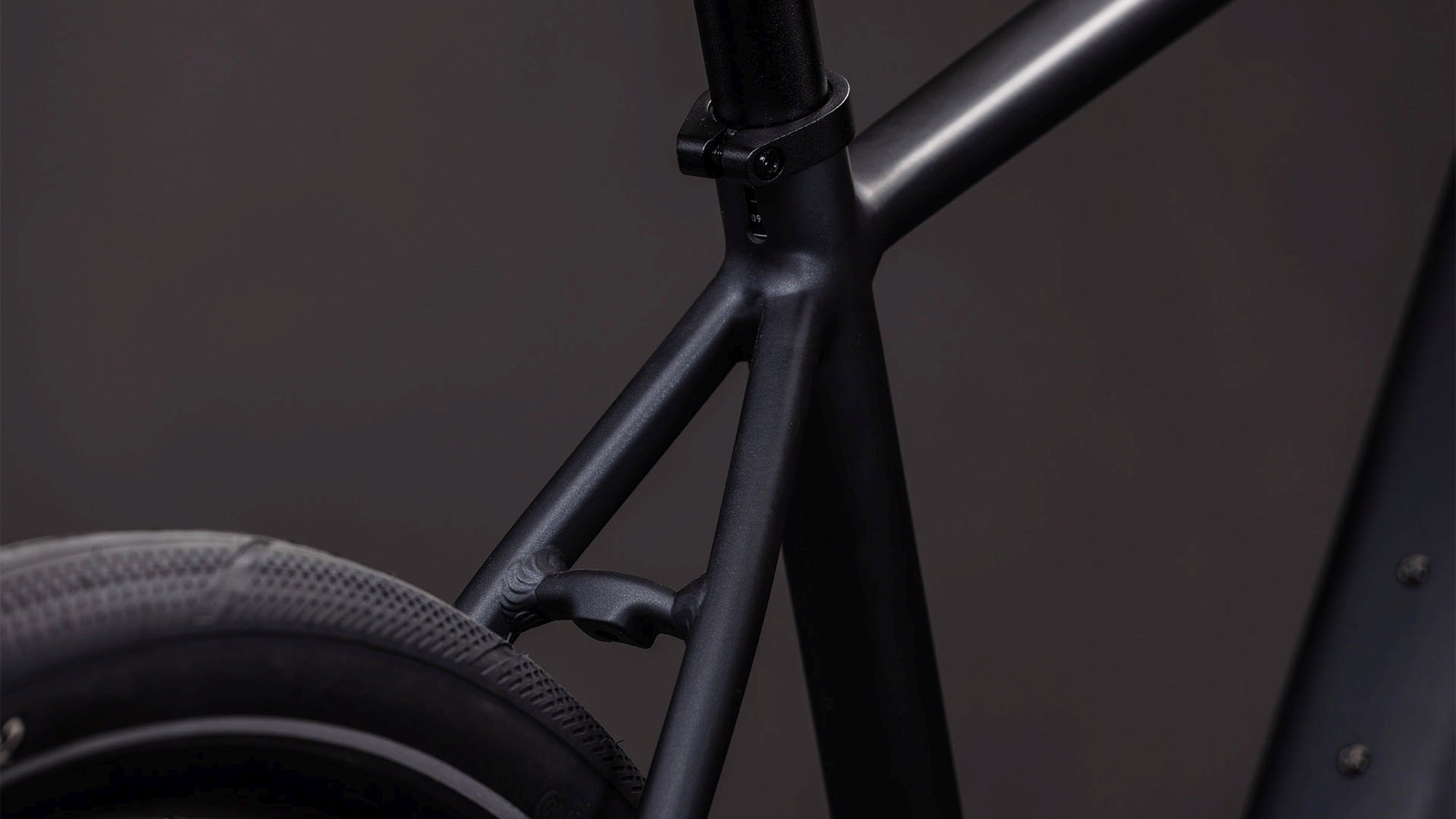

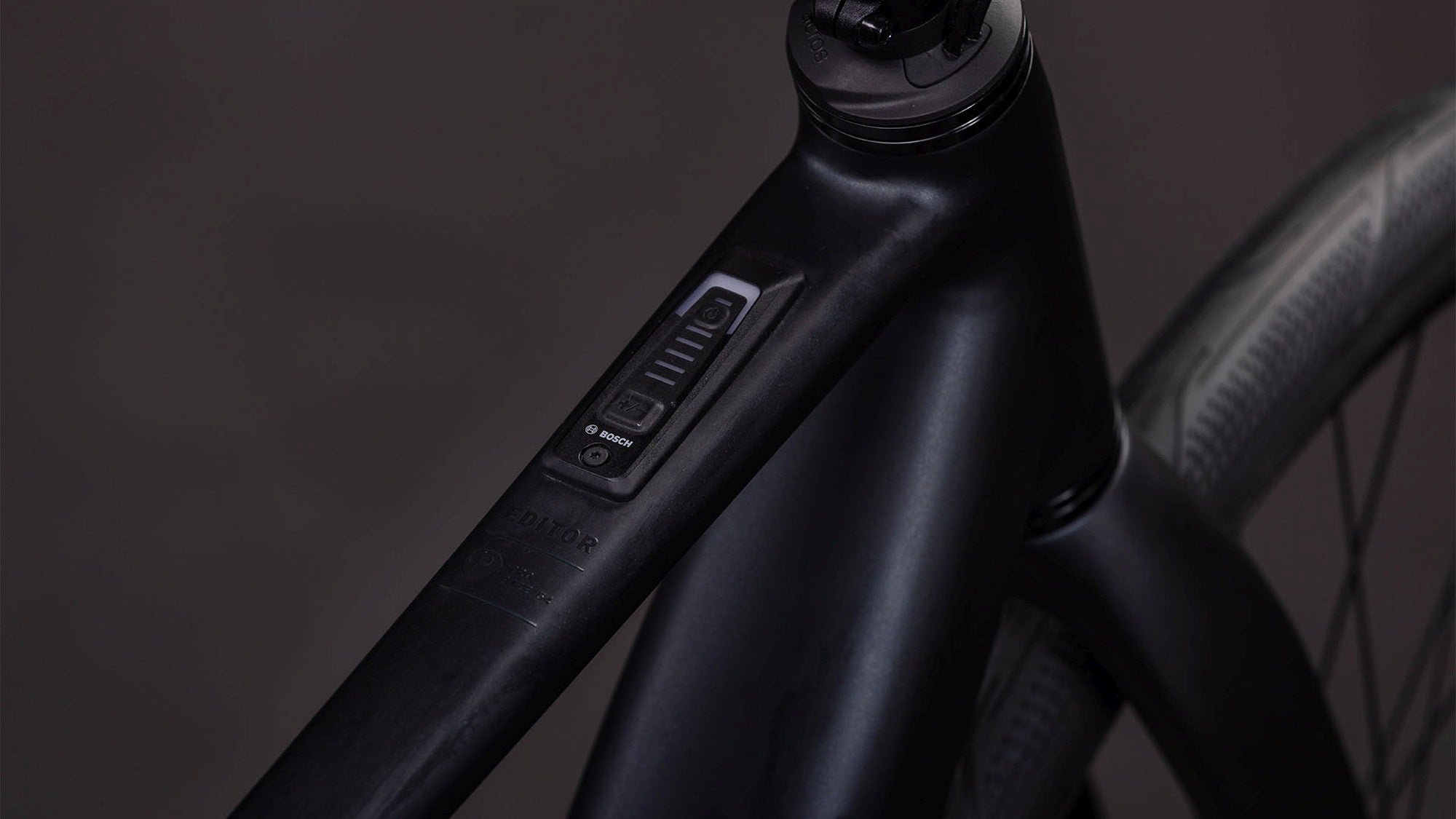

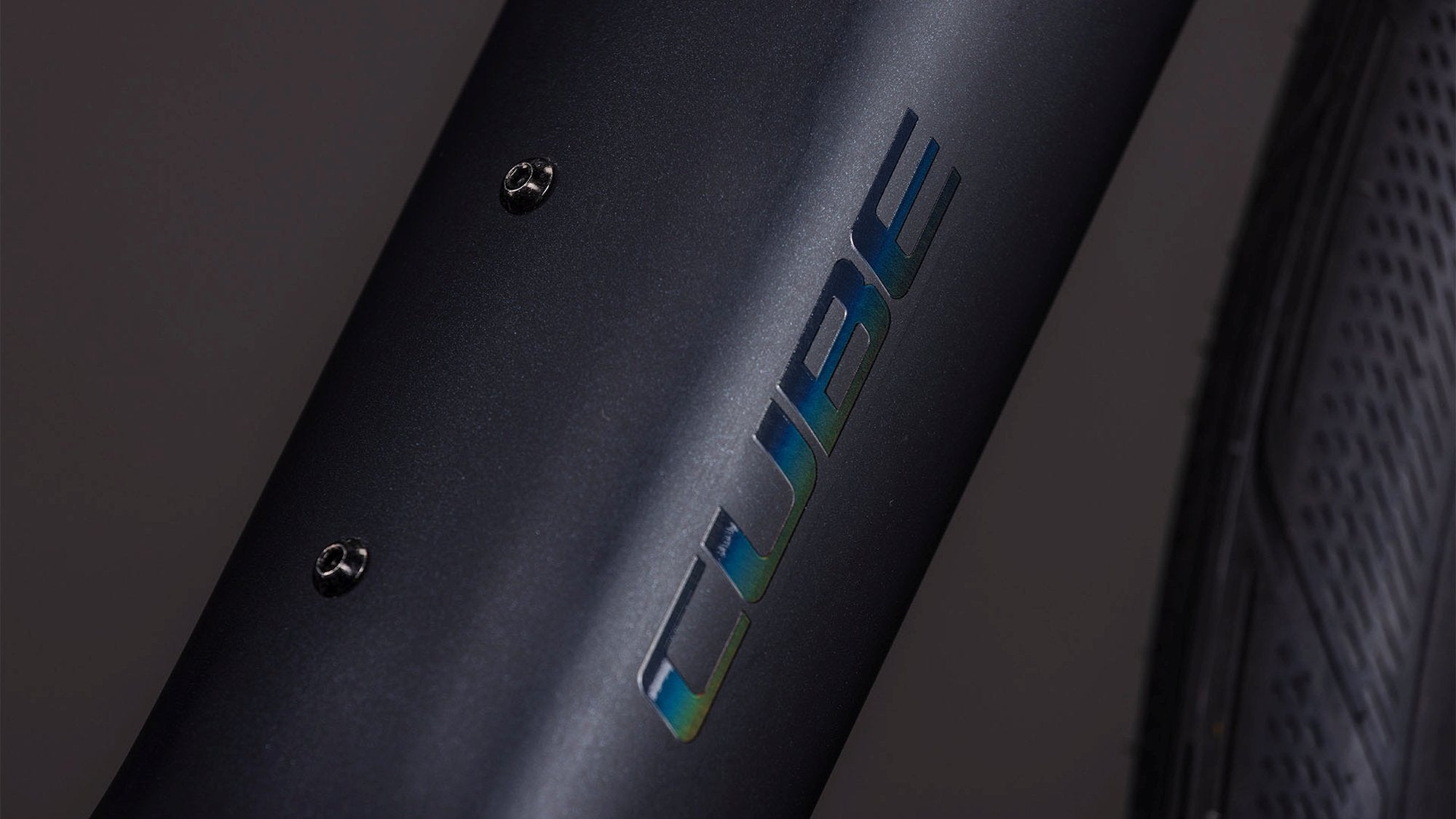

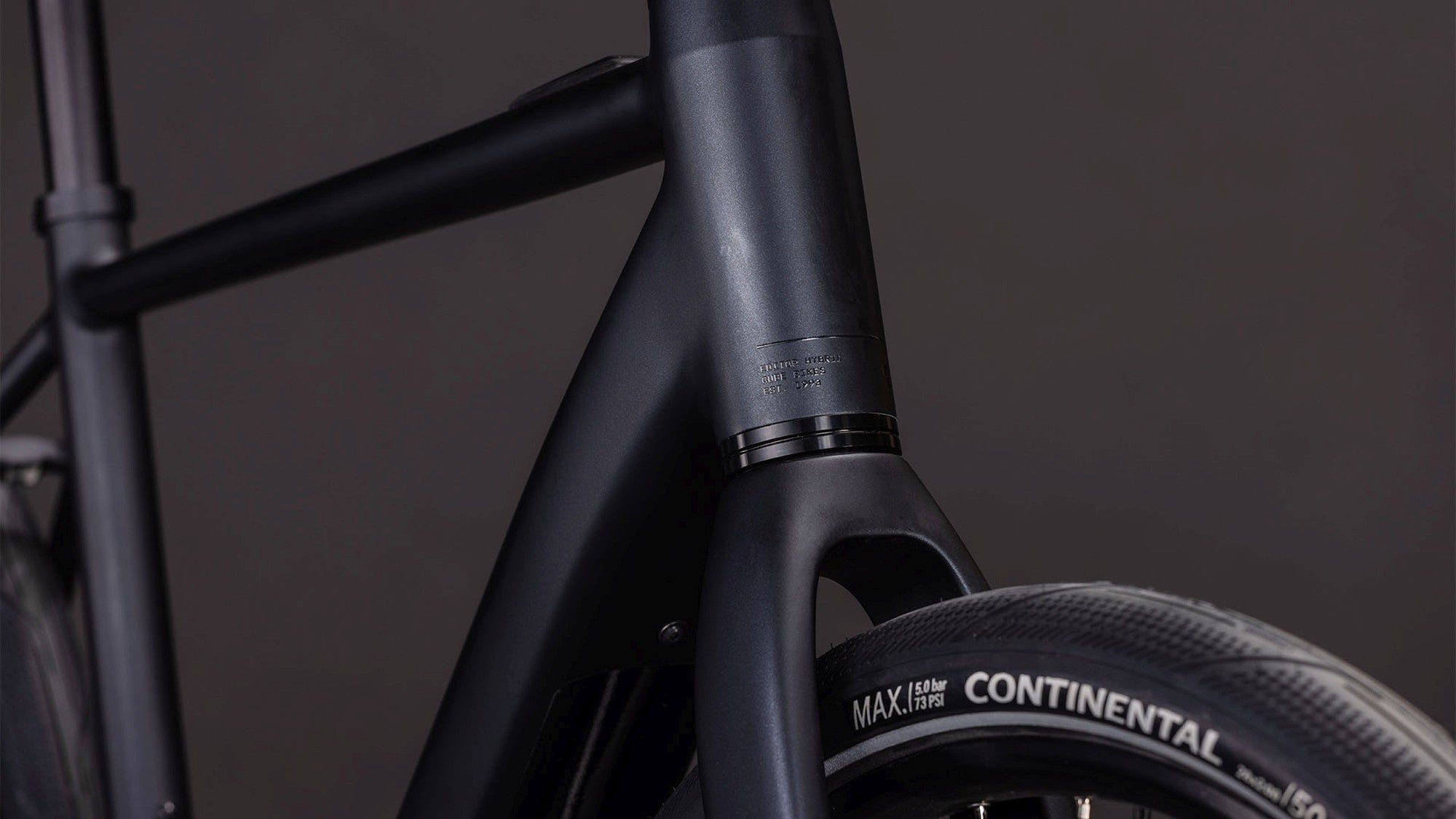

A practical urban bike should be elegant, understated and versatile. That's why, for the Editor Hybrid's frame, we started with lightweight and durable aluminium and then added Smooth Welding at the main tube joints – so it has a clean, almost organic appearance. Cables are fully integrated to complement the uncluttered aesthetic, and we placed the 400Wh battery unobtrusively in the down tube and incorporated the mini controller in the top tube. Meanwhile the full carbon fork is light, strong and suits the frame's pared-back aesthetic. It's ready for the urban jungle.
Frame description
A practical urban bike should be elegant, understated and versatile. That's why, for the Editor Hybrid's frame, we started with lightweight and durable aluminium and then added Smooth Welding at the main tube joints – so it has a clean, almost organic appearance. Cables are fully integrated to complement the uncluttered aesthetic, and we placed the 400Wh battery unobtrusively in the down tube and incorporated the mini controller in the top tube. Meanwhile the full carbon fork is light, strong and suits the frame's pared-back aesthetic. It's ready for the urban jungle.
Specification
| Frame | Aluminium Superlite, Efficient Comfort Geometry, Fixed Integrated Battery, Advanced Internal Cable Routing, Slider Dropout |
|---|---|
| Fork | CUBE Editor Full Carbon, 1 1/8" - 1 1/2" Tapered, Internal Cable Routing, 12x100mm |
| Stem | CUBE Performance Stem, 31.8mm |
| Handlebar | CUBE Rise Trail Bar, 680mm |
| Grips | ACID Hybrid Tour |
| Rear derailleur | Shimano Cues RD-U6000-GS |
| Shifters | Shimano Cues SL-U6000, Rapidfire Plus |
| Brakes | Shimano BR-MT200, Hydr. Disc Brake (180) |

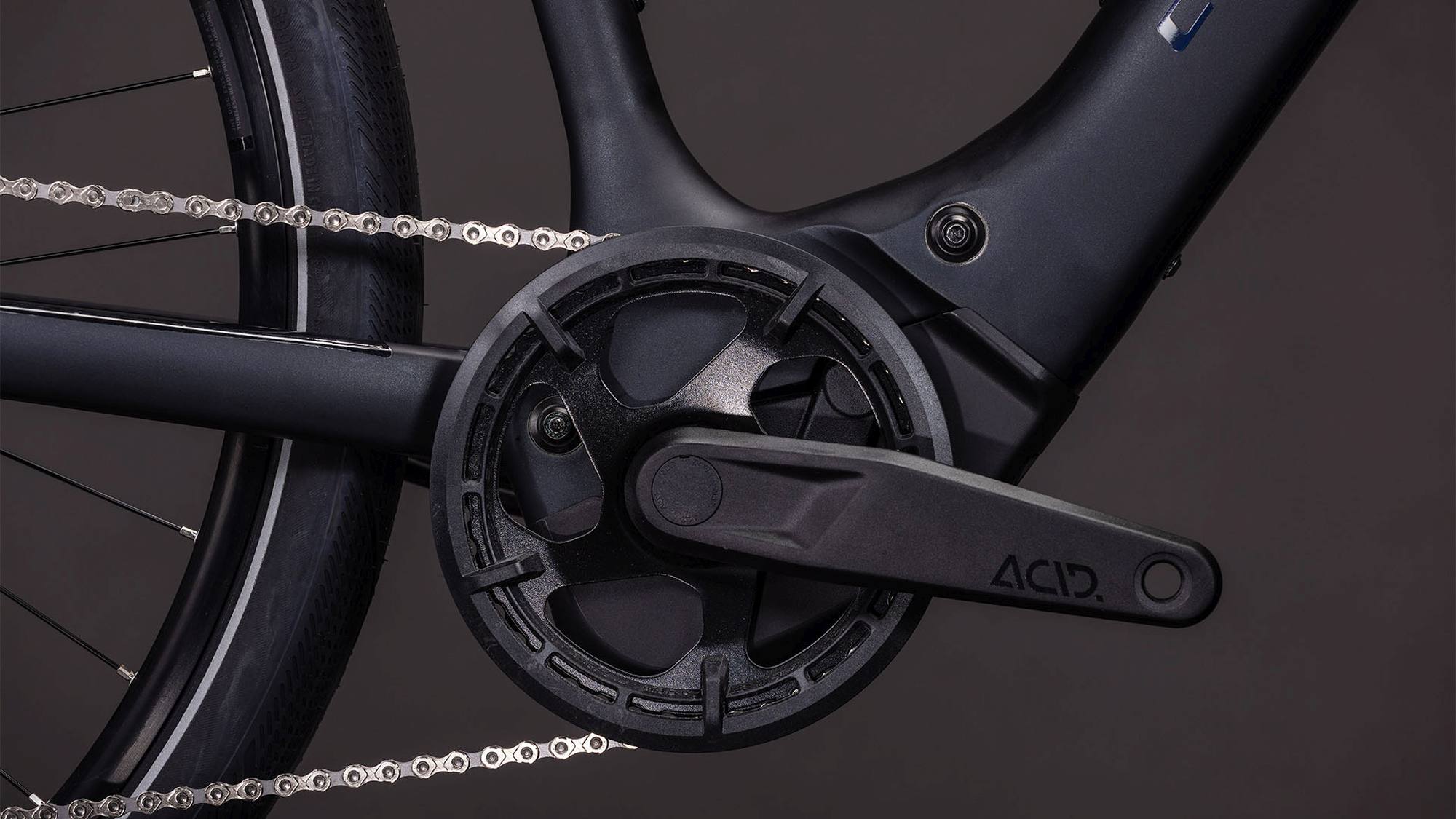

| Crankset | ACID MTB Hybrid Pro, 44T |
| Crankset chainring sizes | 44T |
| Cassette | Shimano Cues CS-LG400, 11-50T |
| Number of gears | 11 |
| Chain | KMC eGlide |
| Rims | ACID EX25, 32H, Disc, Tubeless Ready |
| Front hub | Shimano Tiagra HB-RS470, 12x100mm, Centerlock |
| Rear hub | Shimano FH-QC300-HM, QR, Centerlock |
| Tires (Front & Rear) | Conti Contact Urban, 50-622 |
| Pedals | CUBE PP MTB medium |
| Saddle | ACID Venec Lite |
| Seatpost | CUBE Performance Post, 30.9mm |
| Bell | Knog Oi |
| Engine | Bosch Drive Unit Performance SX max. 60Nm (BDU31) |
| Battery | Bosch CompactTube 400 |
| Charger | Bosch 2A |
| Remote | Bosch System Control, incl. Mini Remote |
| Net weight (kg) | 17.6 |
| Gross weight (kg) | 17.58 |
| Max. system weight (kg) | 135 |
| Max. rider weight (kg) | 100 |
| Body size | 1.62m - 1.73m |
| Accessories | 93995,93799,93339,93468,93469,94799,93730,93483,94806,93470,93159,93354,93490 |
