CUBE CARGO HYBRID 800 PEA/REFLEX

Frame Style
Colour
Size
Quantity

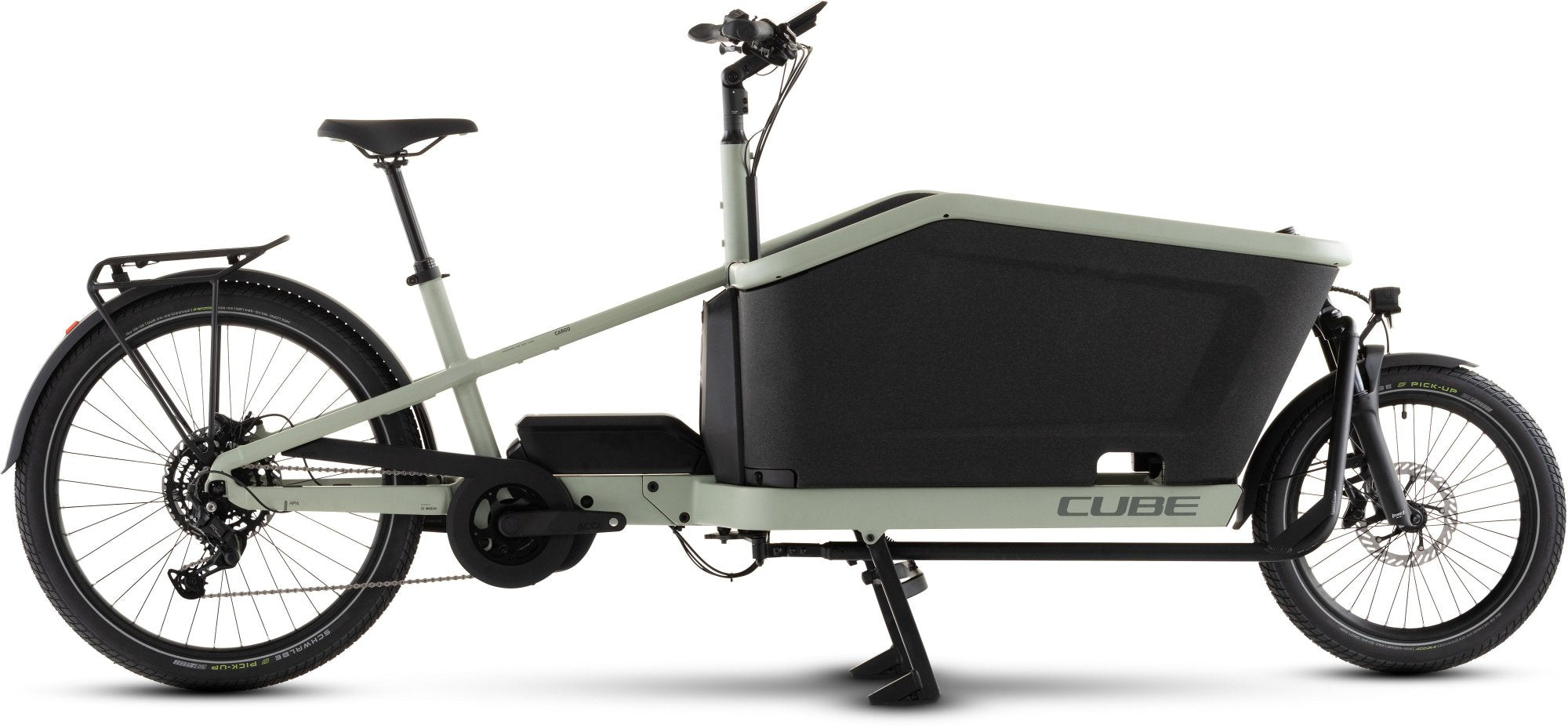

The Cargo Hybrid 800 will change the way you think about two-wheeled transport. With a maximum system weight of 200kg, rear carrier and its versatile EPP foam cargo box, it's capable of carrying more than you think – and optional accessories like child seats with safety harnesses extend its versatility even further. It's easy to ride, too. Bosch's powerful Cargo Line motor and an 800Wh battery offer up to 100Nm of pedal assistance, while easy-to-use and wide-ranging Shimano Cues 9-speed gears put the right ratio at your fingertips. Bright LED lights front and rear ensure you can see and be seen, mudguards and grippy tyres make light work of wet streets, there's a super-stable kickstand for easy parking, and powerful Shimano hydraulic disc brakes ensure you're always in control, whatever the weather. Wherever you're going and whatever you need to take with you, it's got you covered.

Frame description
The Cargo Hybrid is a thoroughbred workhorse, with the ability to handle a total system weight of 200kg. The durable aluminium frame features an integrated motor mount to house the Bosch Cargo Line drive which, in tandem with the included 800Wh battery, offers up to 100Nm of torque – and there's the option to add a 250 Wh PowerMore range extender, for even more miles between charges. We've thought about the fine details, too. The rugged EPP foam cargo box is fitted with a rubber mat for reduced noise and easier cleaning, there's an additional small storage compartment for all your day-to-day essentials, and an integrated locking system – which works with an optional chain lock – allows you to lock both the bike and this compartment. A kickstand with elongated feet makes it easy to park, whilst the integrated chain guard helps keep your clothes clean. And, with an improved steering system featuring a reduced turning radius, it's easy and intuitive to ride.

Specification

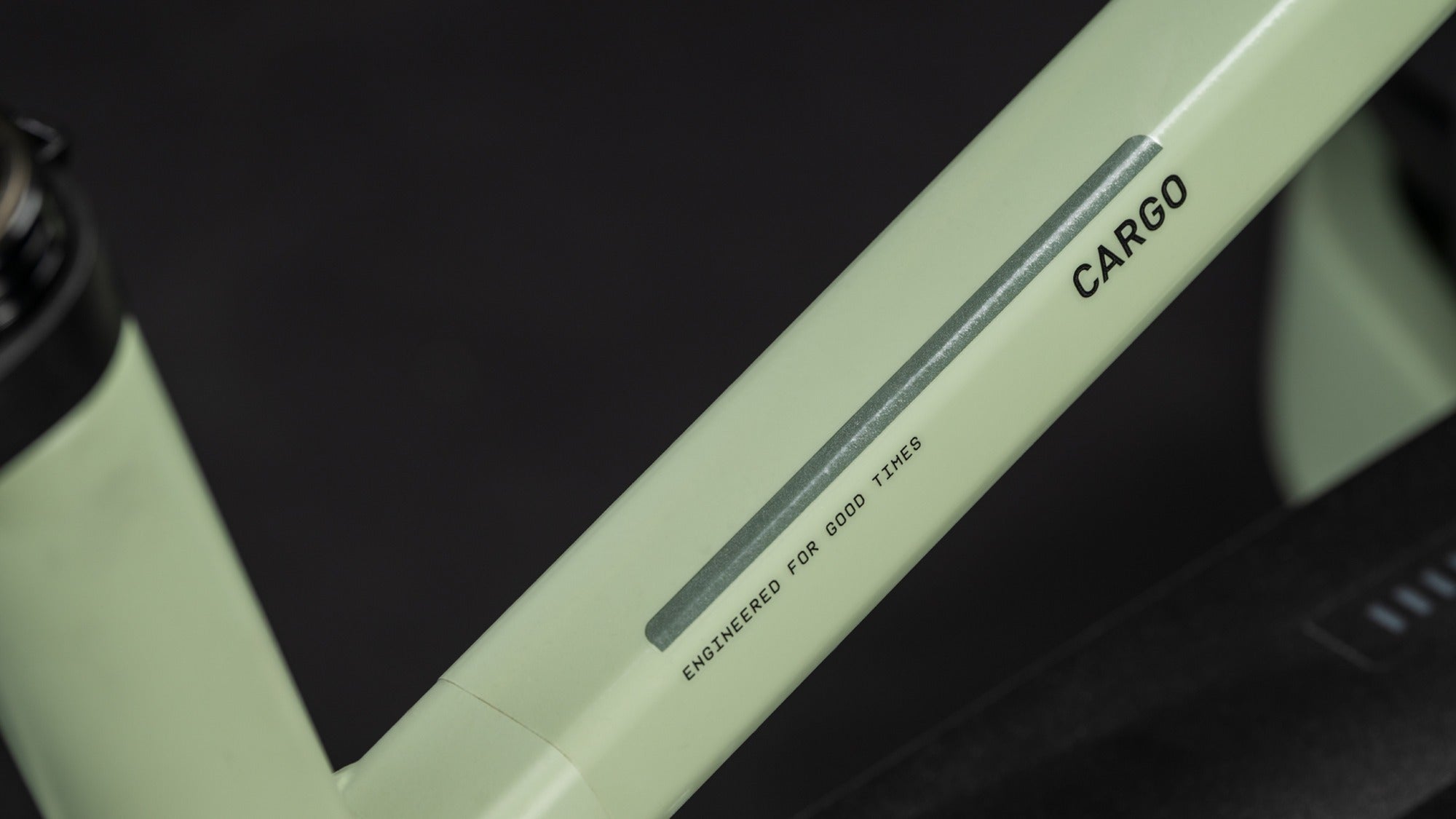

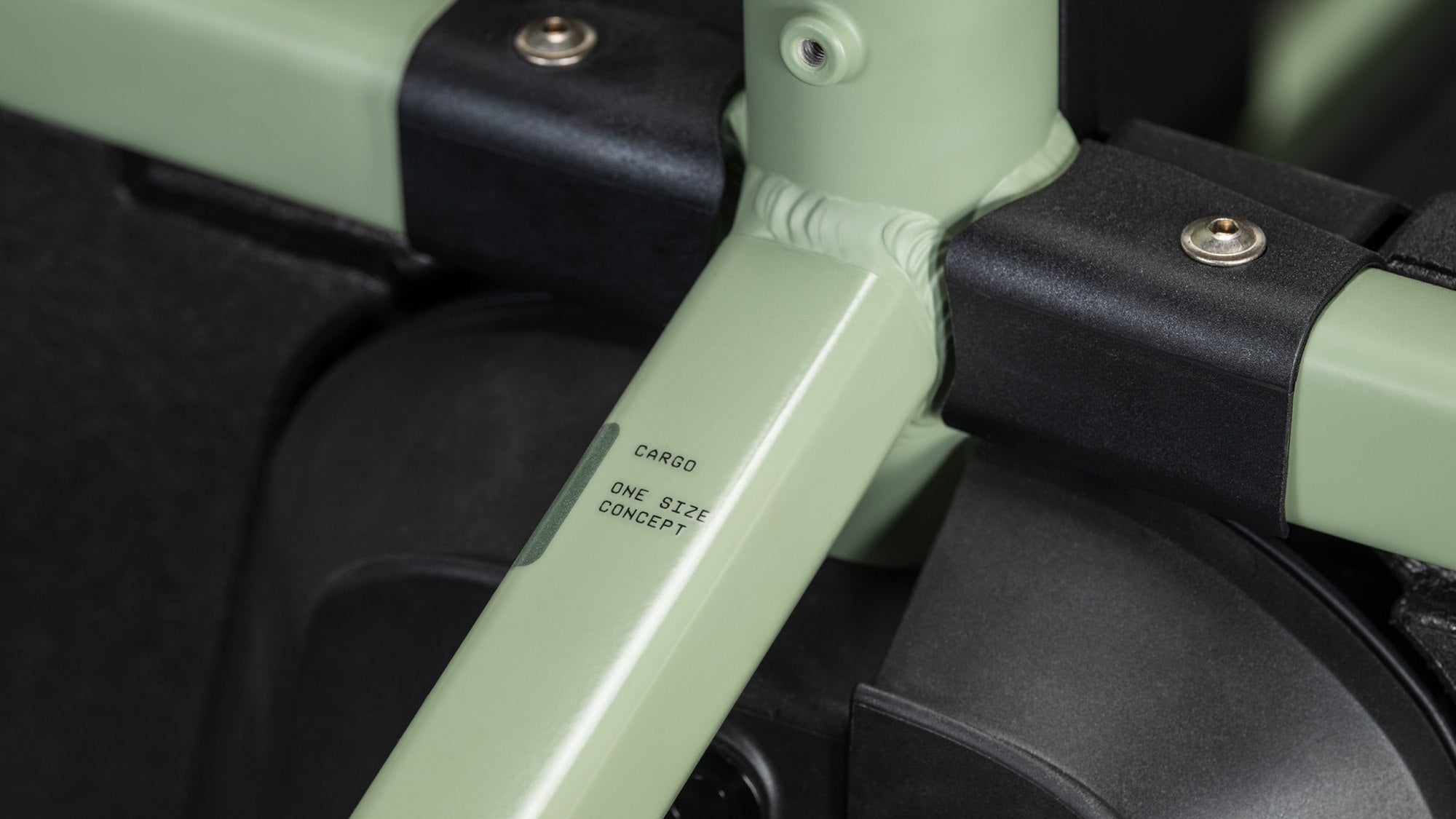

Frame Aluminium Casting, Comfort Ride Geometry, Premium Durability and Safety, Integrated Chainlock Interface
Fork SR Suntour Mobie34 Cargo, Tapered, 15x110mm
Headset VP sealed bearings and Cane Creek Viscoset
Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar CUBE Comfort Trail Bar, 680mm
Grips ACID Travel Comfort
Rear derailleur Shimano Cues RD-U4000-GS, 9-Speed
Shifters Shimano Cues SL-U4010- Rapidfire-Plus
Brakes Shimano BR-MT520, Hydr. Disc Brake (180/203)
Crankset ACID Trekking Hybrid, 40T
Crankset chainring sizes 40T
Cassette Shimano Cues CS-LG300, 11-46T
Number of gears 9
Chain KMC eGlide
Rims ACID EX35, 36H, Disc, Tubeless Ready
Front hub ACID SLX, 15mm, Boost, Centerlock
Rear hub Shimaneo Deore FH-M5100, QR, Centerlock
Front tire Schwalbe Pick-Up, Performance, Super Defense, 65-406
Rear tire Schwalbe Pick-Up, Performance, Super Defense, 65-559
Pedals ACID PP Trekking
Saddle ACID Shen Pro
Seatpost CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 34.9mm

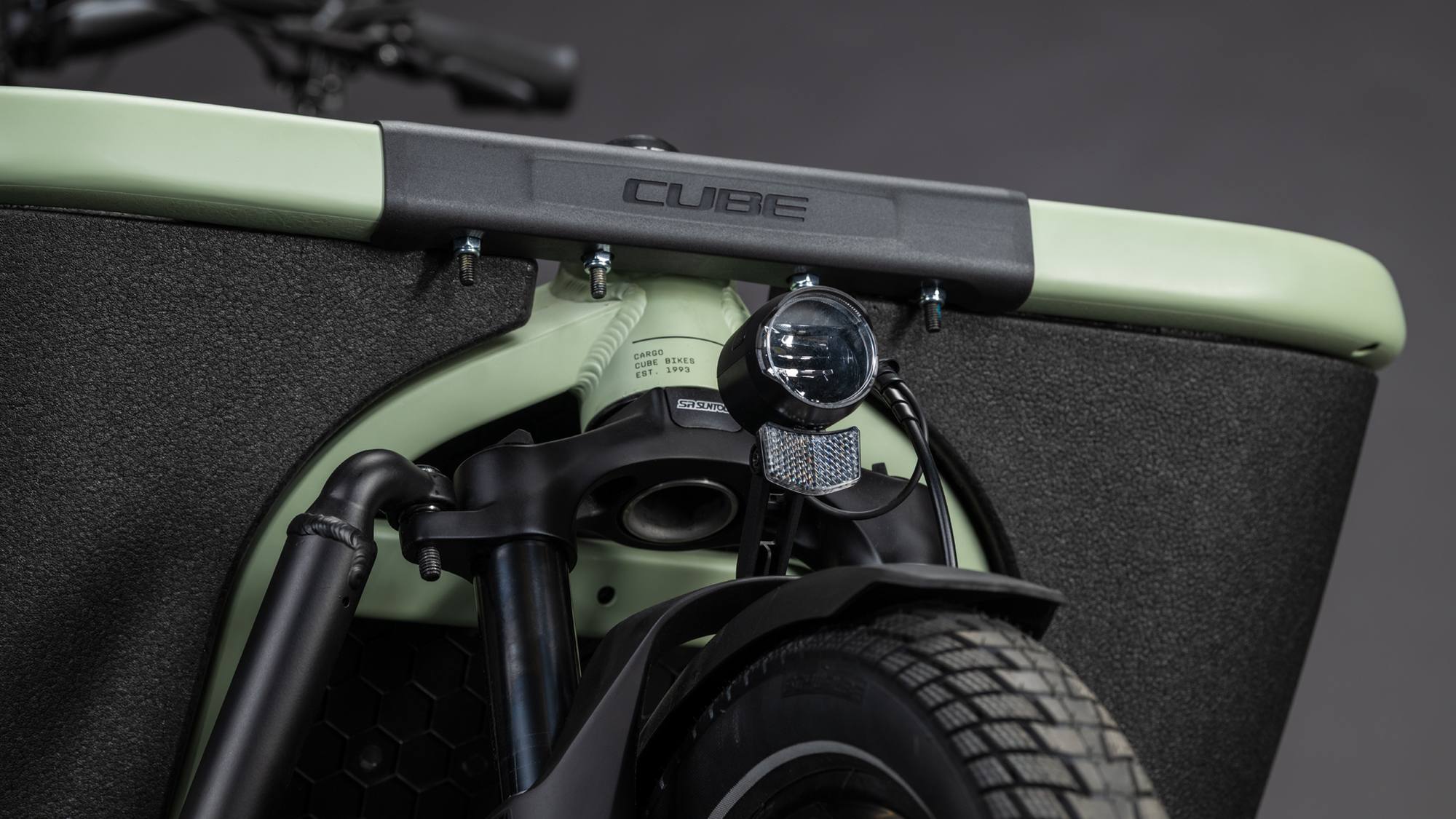

Front light ACID Front Light PRO-E 60 X-Connect, 12V, DC
Rear light ACID Mudguard Rear Light PRO-E, 12V, DC
Bell Reich Cycle Bells Ringsound

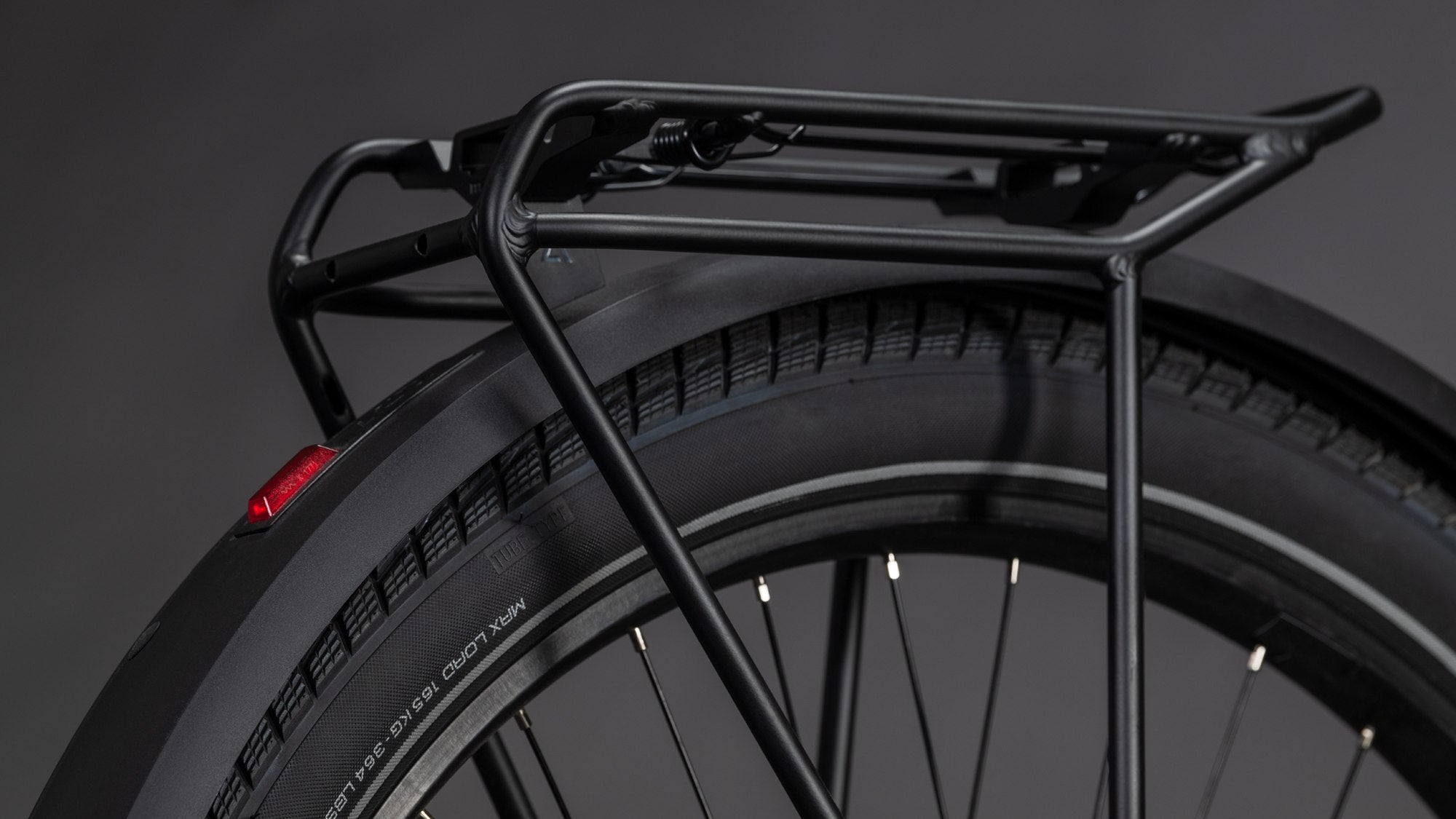

Carrier ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible

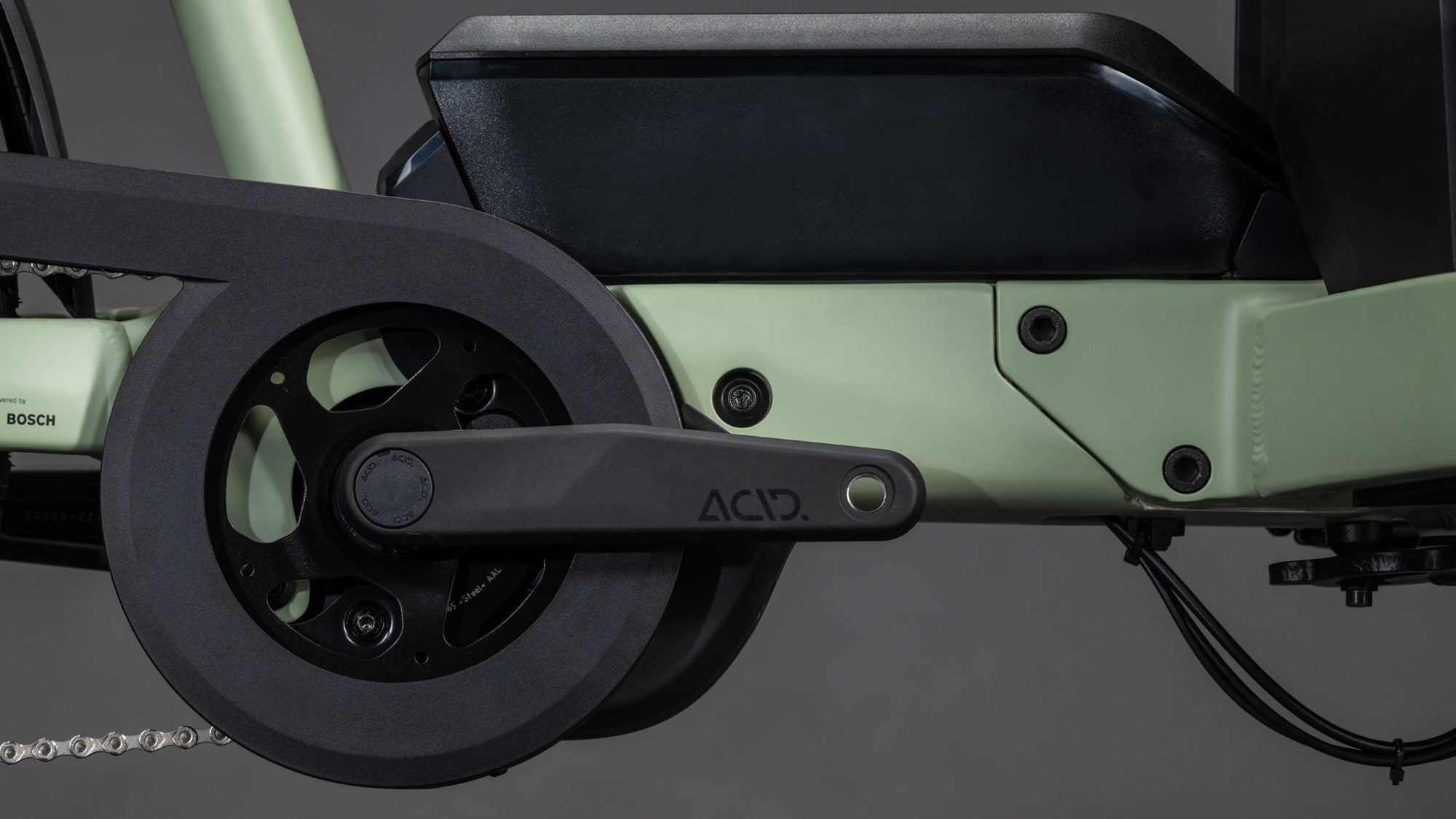

Engine Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Battery Bosch PowerPack 800
Charger Bosch 4A
Remote Bosch LED Remote
Display Bosch Kiox 500
Net weight (kg) 47
Gross weight (kg) 85
Max. system weight (kg) 200
Max. rider weight (kg) 110
Body size ONESIZE
Accessories 12839,12793,12840,12841,12830,93038
