CUBE AMS HYBRID ONE44 C:68X TM 400X REEDGREEN/MATRIX

Frame Style
Colour
Size
Quantity

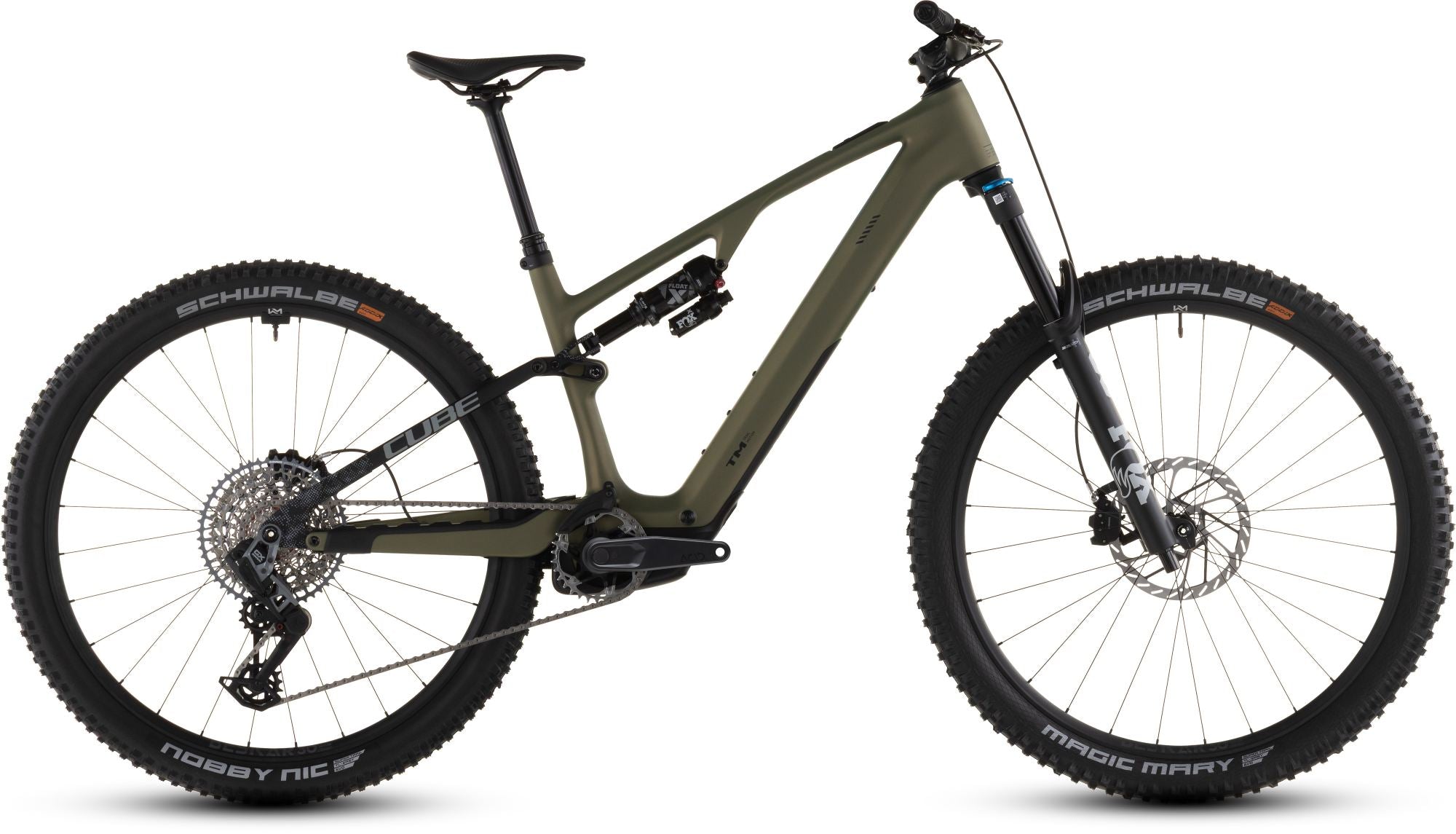

If you've ever wanted that little extra boost up a climb without worrying about the heft, the AMS Hybrid ONE44 C:68X TM is the bike you've been waiting for. Crafted from our premium C:68X carbon, it's built to be equal parts light and tough. Bosch's SX drive combines with a 400Wh battery, built-in system controller and bar-mounted Mini Remote to deliver up to 60Nm of additional torque via Sram's GX Eagle Transmission 1x12 electronic gears and a carbon crankset. A Fox 36 Float Performance fork and Float X Performance shock handle even the rowdiest of trails with aplomb, and there's a remote dropper to keep you on top of things. And Newmen Beskar 30 wheels are fitted with Schwalbe Magic Mary and Nobby Nic 2.4in tyres, and held in check with a pair of Sram's powerful Maven Silver hydraulic disc brakes. If you think all this adds up to blistering pace, you'd be absolutely right.

Frame description
The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

Frame description

The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

Specification

Frame C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing

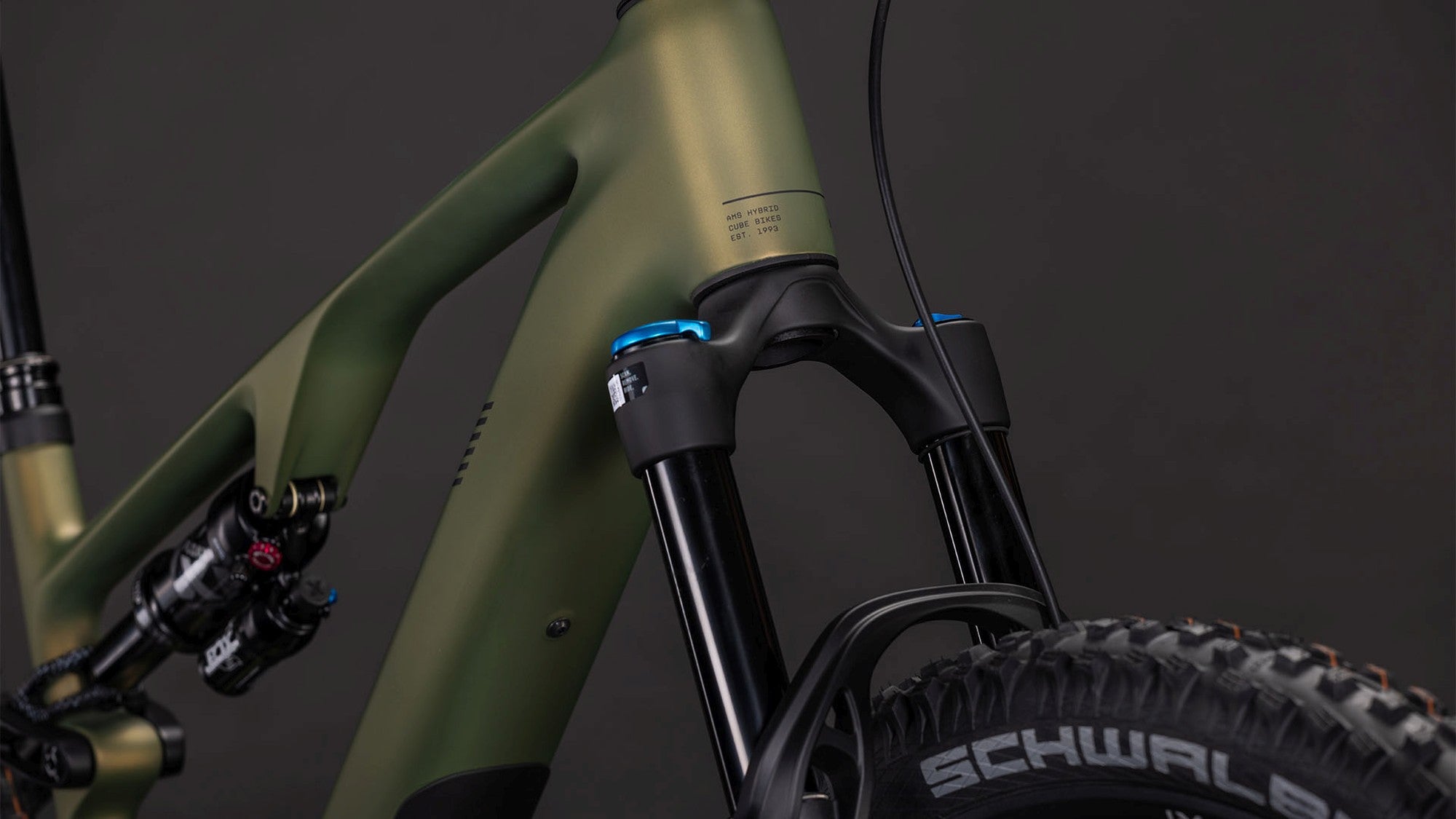

Fork Fox 36 Float Performance GRIP, Tapered, 15x110mm, 140mm

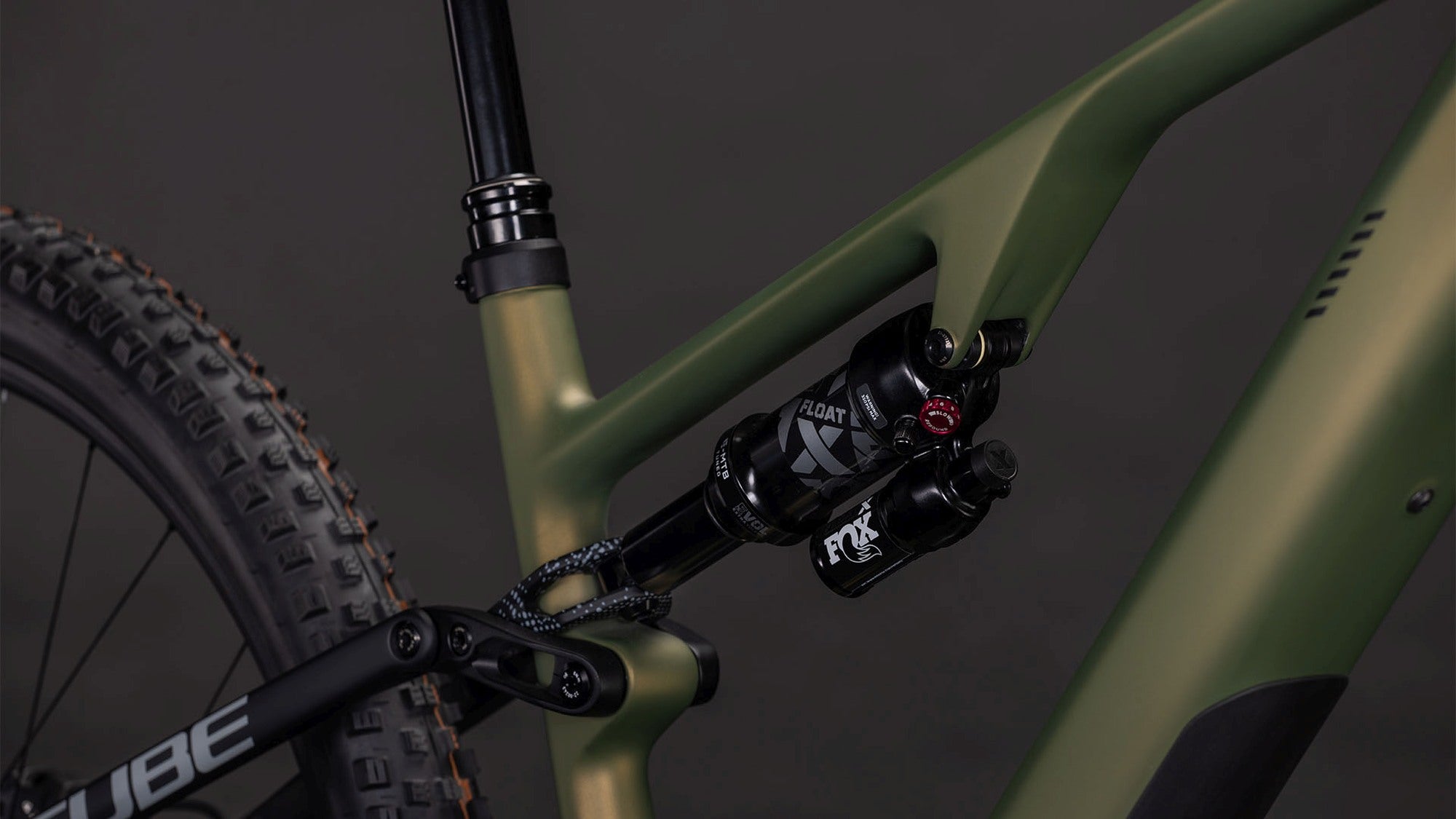

Shock Fox Float X Performance, 210x55mm, Adjustable LSR w/ 2-Pos. Lever
Headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Stem Newmen Evolution SL 318.4, 31.8mm
Handlebar Newmen Evolution SL 318.25, 780mm
Grips ACID Disrupt, Soft Compound

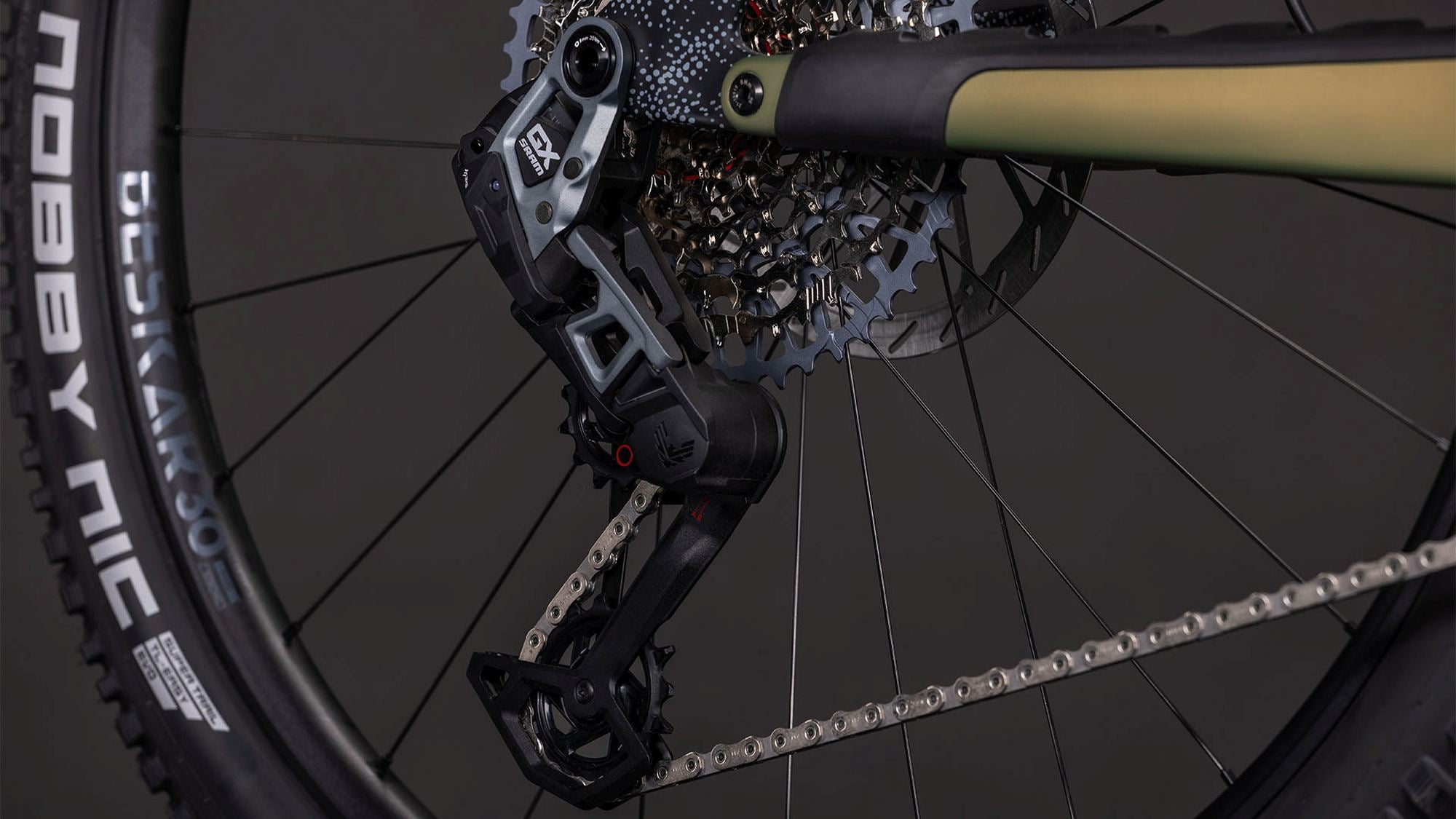

Rear derailleur Sram GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
Shifters Sram AXS™ Pod Ultimate Controller
Brakes Sram Maven Silver, Hydr. Disc Brake (200/180)
Crankset ACID MTB Hybrid Carbon, 32T
Crankset chainring sizes 32T
Cassette Sram XS-1275, 10-52T
Number of gears 12
Chain Sram GX Eagle™ Transmission
Wheelset Newmen Beskar Base 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tire Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Rear tire Schwalbe Nobby Nic, Super Trail, Addix Soft, Kevlar, 2.4
Pedals ACID PP MTB
Saddle ACID Venec EMTB Trail 140
Seatpost CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seat post = dropper Yes/No YES
Engine Bosch Drive Unit Performance SX max. 60Nm (BDU31)
Battery Bosch CompactTube 400
Charger Bosch 4A

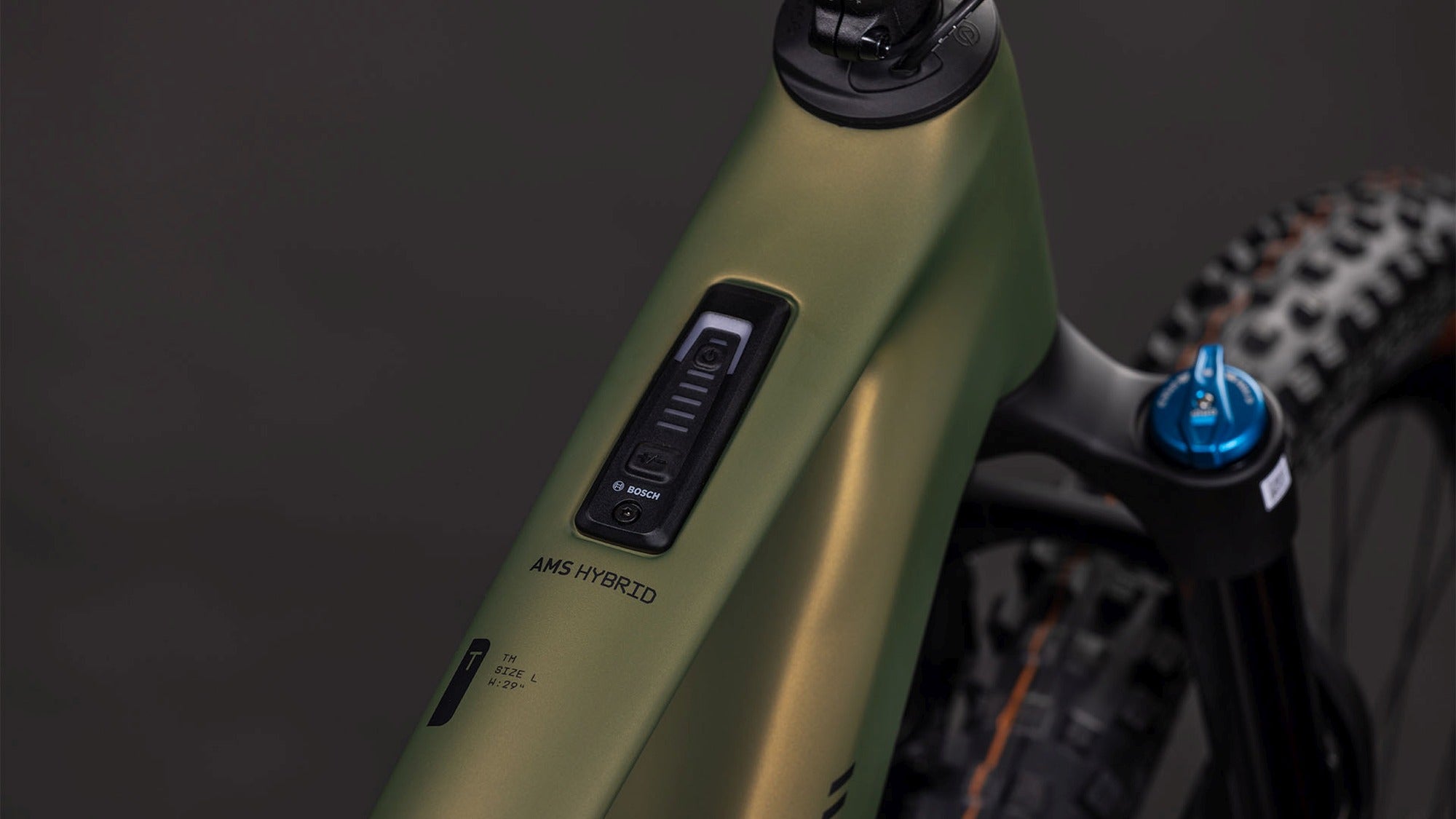

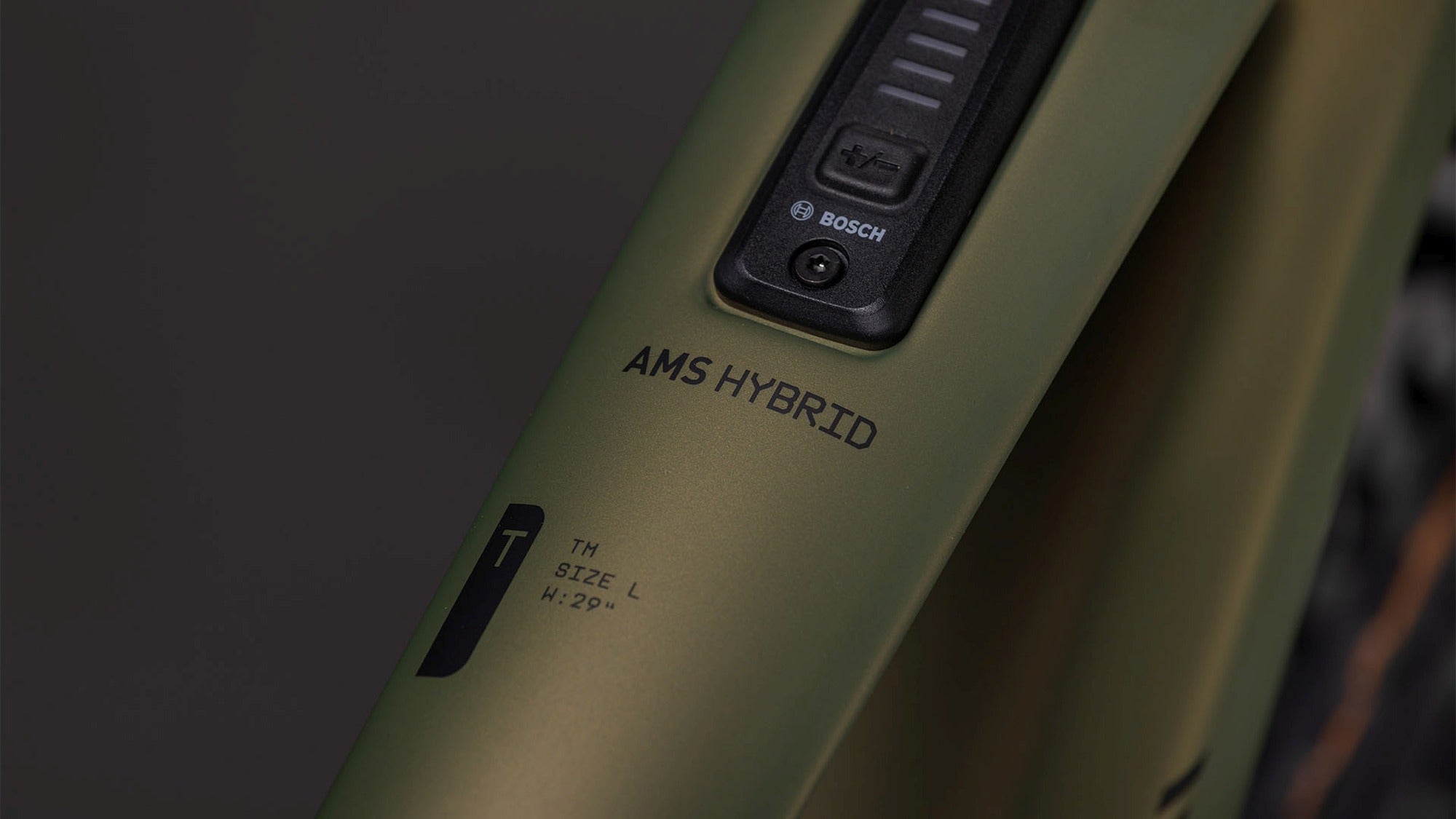

Remote Bosch System Control, incl. Mini Remote
Net weight (kg) 18.7
Gross weight (kg) 22.49
Max. system weight (kg) 135
Max. rider weight (kg) 110
Body size 1.78m - 1.89m
Accessories 92390,93490
