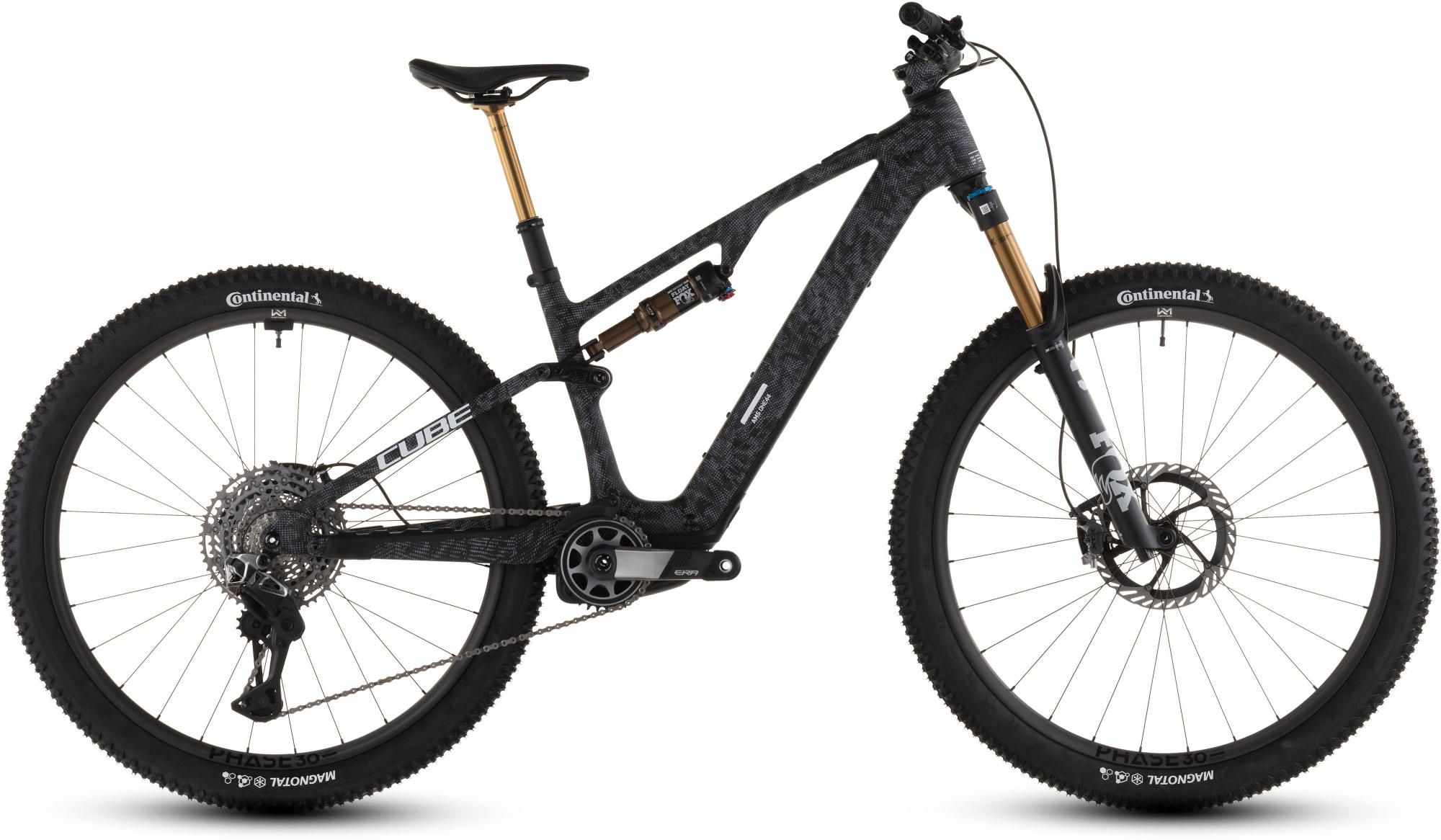

CUBE AMS HYBRID ONE44 C:68X SLT 400X MATRIXBLACK/WHITE

Frame Style
Colour
Size
Quantity
The AMS Hybrid ONE44 C:68X SLT is all about low weight with ultimate pace. Bosch's lightweight SX drive unit and 400Wh battery save precious grammes but are still capable of serving up 60Nm of torque assistance, so that's a good start. Throw in the ultra-light C:68X carbon chassis, Race Face carbon cranks, Newmen Phase 30 wheels with Continental Magnotal 2.4in tyres, and things are looking even better. A Fox 36 Float SL Factory fork and Float Factory shock keep everything planted and stable, whilst a remote dropper post adds both confidence and speed to the mix. Last but by no means least, Shimano XTR Di2 1x12 gears with matching XTR hydraulic disc brakes ensure you can go – and slow – at exactly the right pace. Which is, of course, very fast indeed.

Frame description

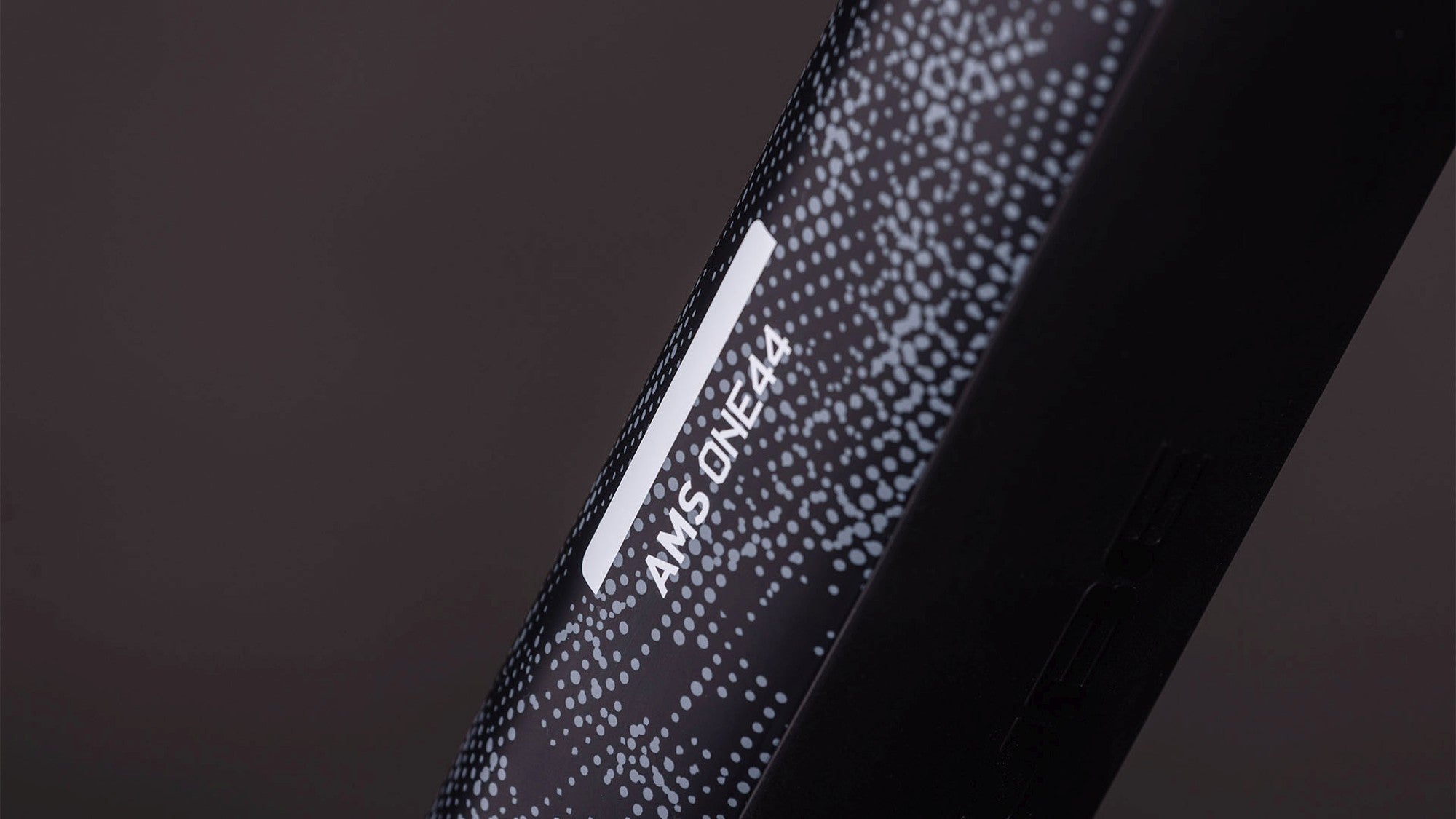

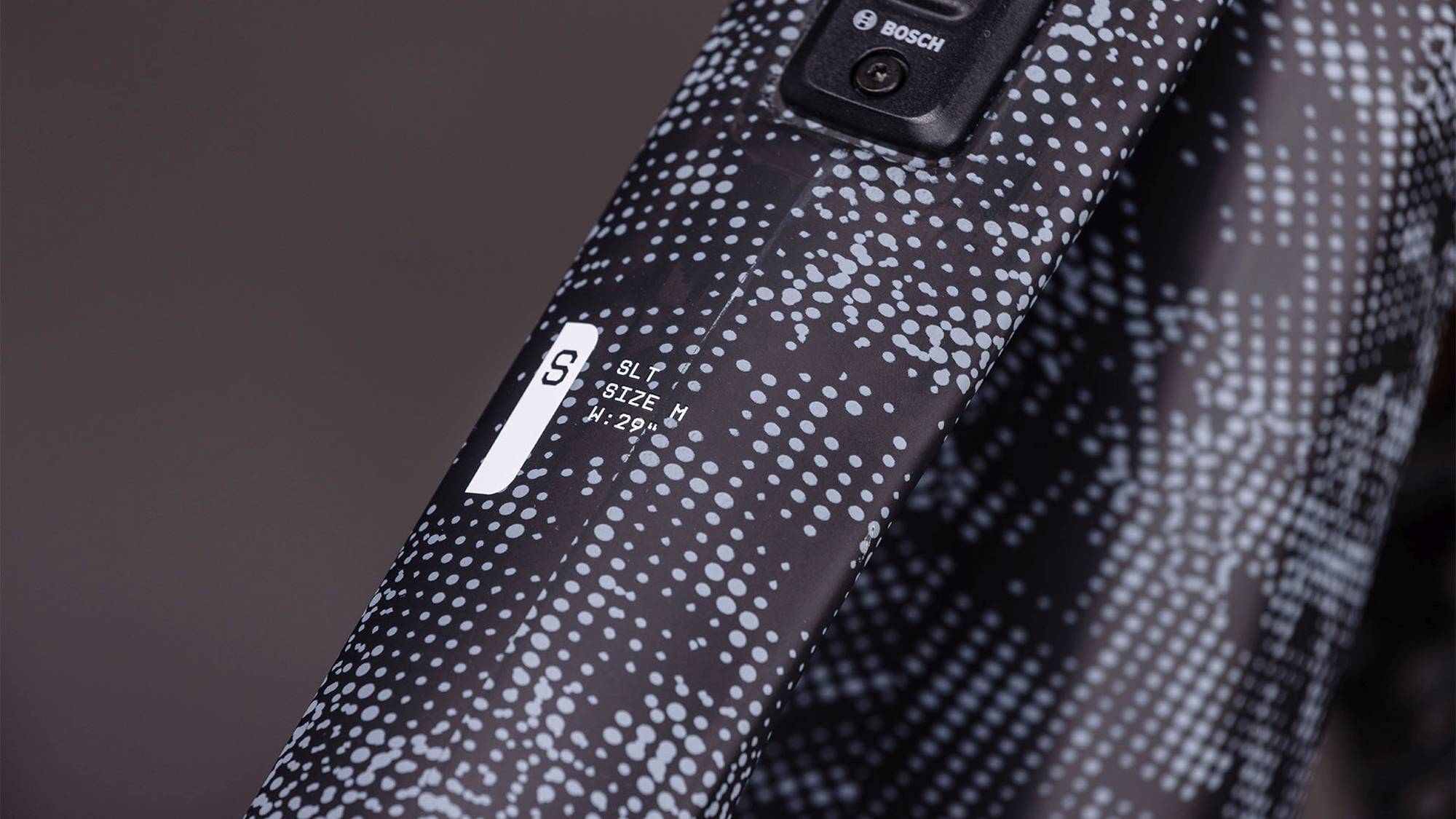

The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

Frame description

The AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal Cable Routing complements the frame's sleek silhouette and there's a lightweight Direct Mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

Specification

Frame C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing

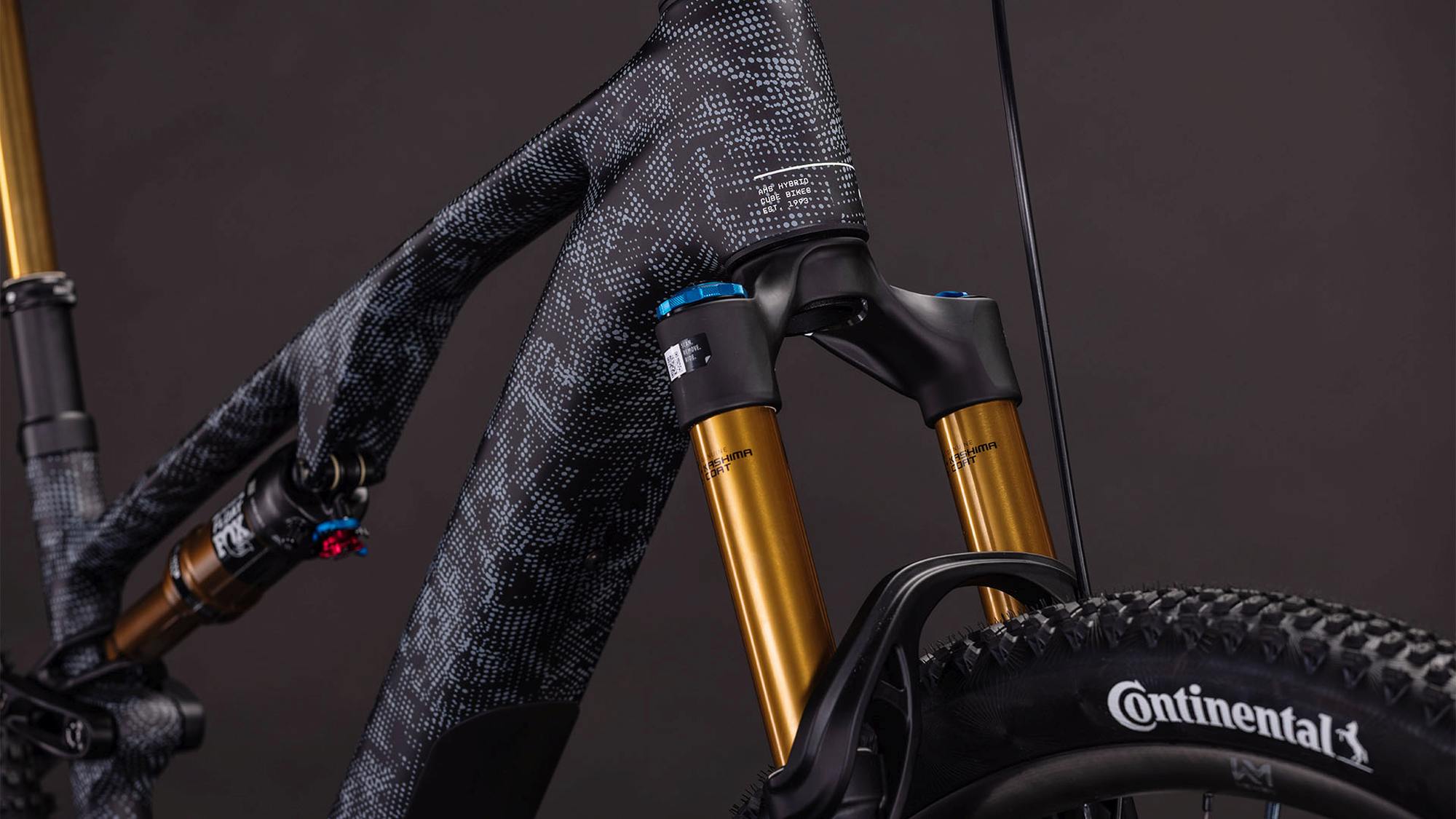

Fork Fox 36 Float SL Factory GRIPX2, Tapered, 15x110mm, 140mm

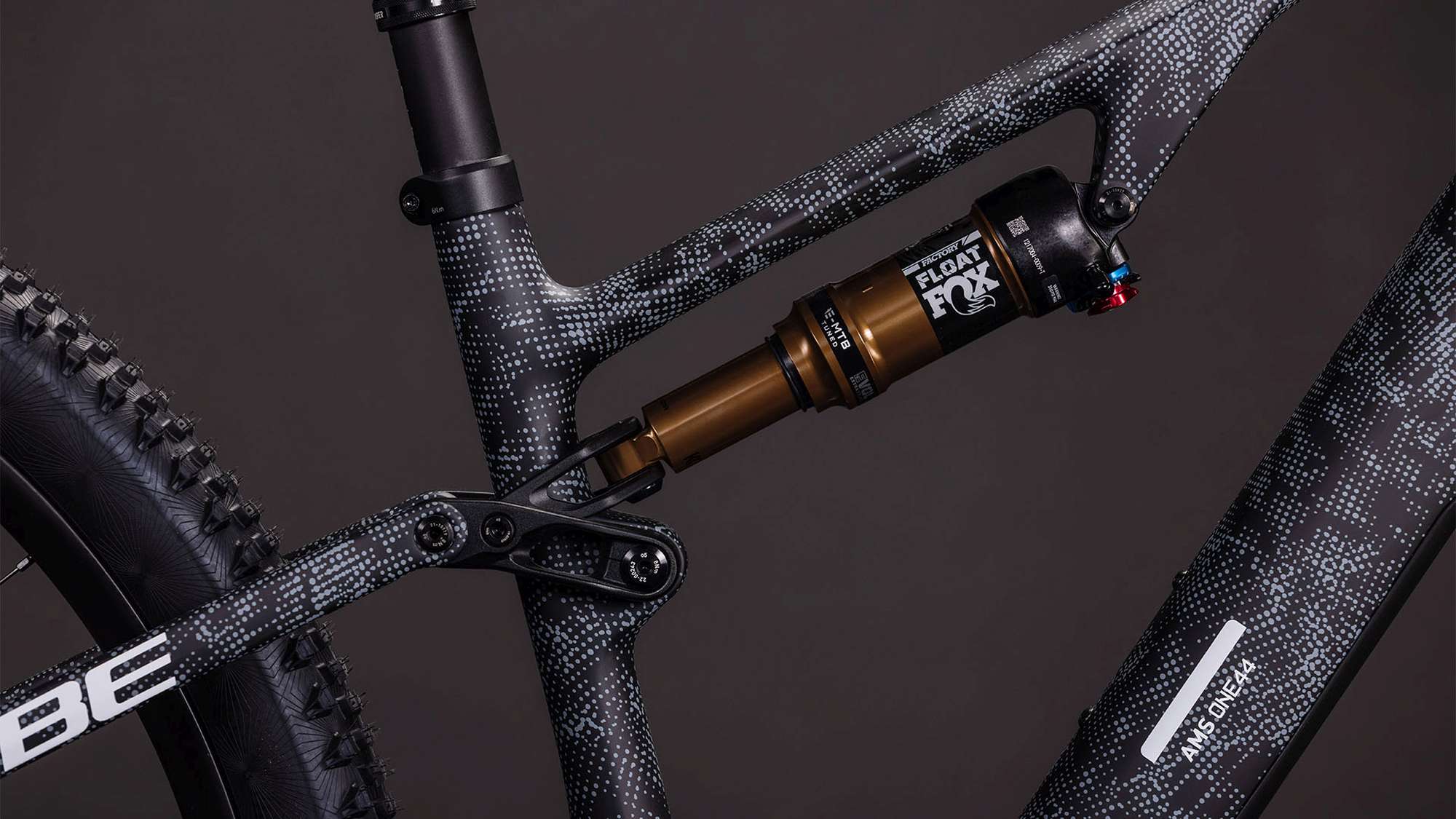

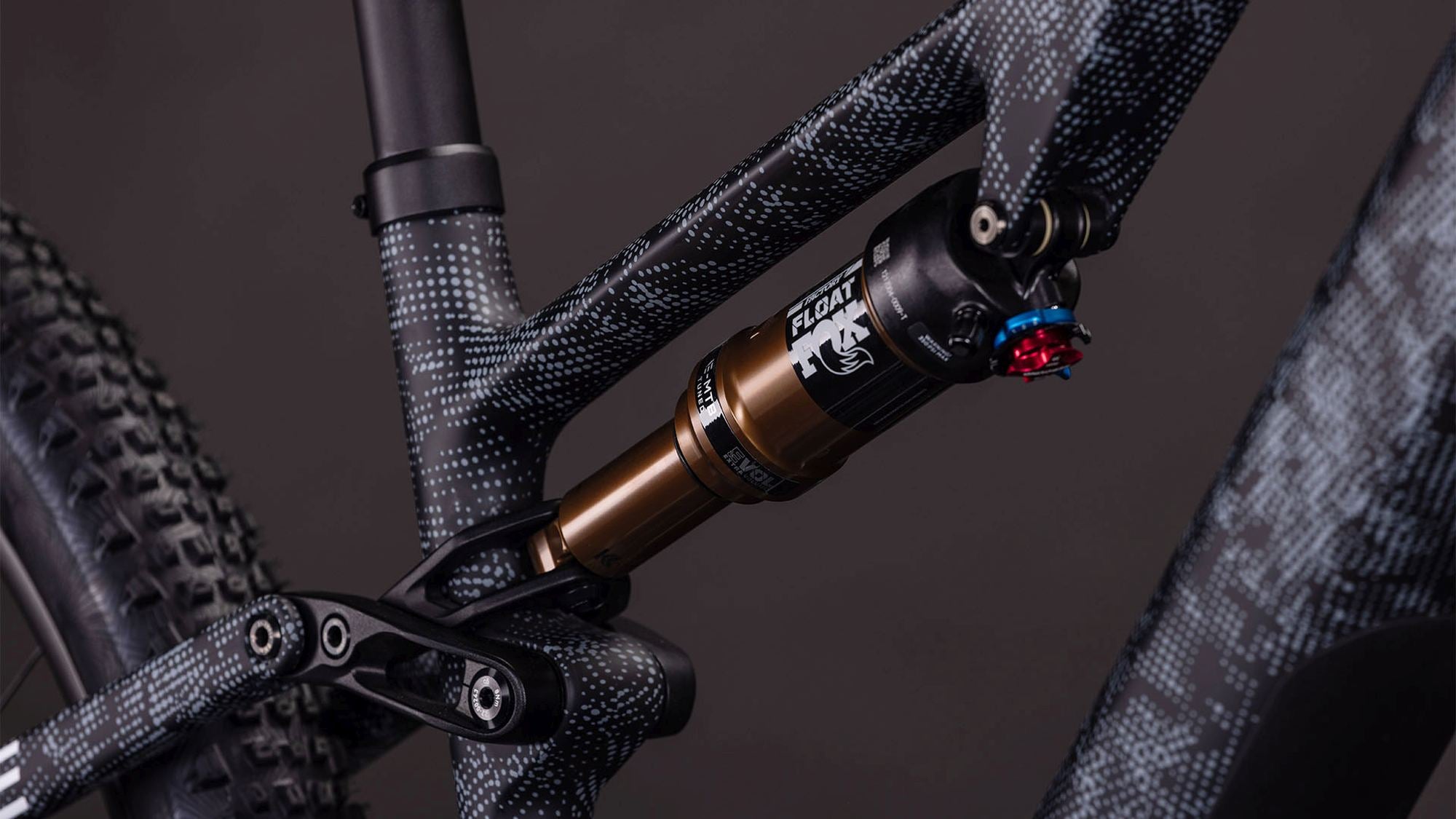

Shock Fox Float Factory, 210x55mm, Adjustable LSC/LSR w/ 2-Pos. Lever
Headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

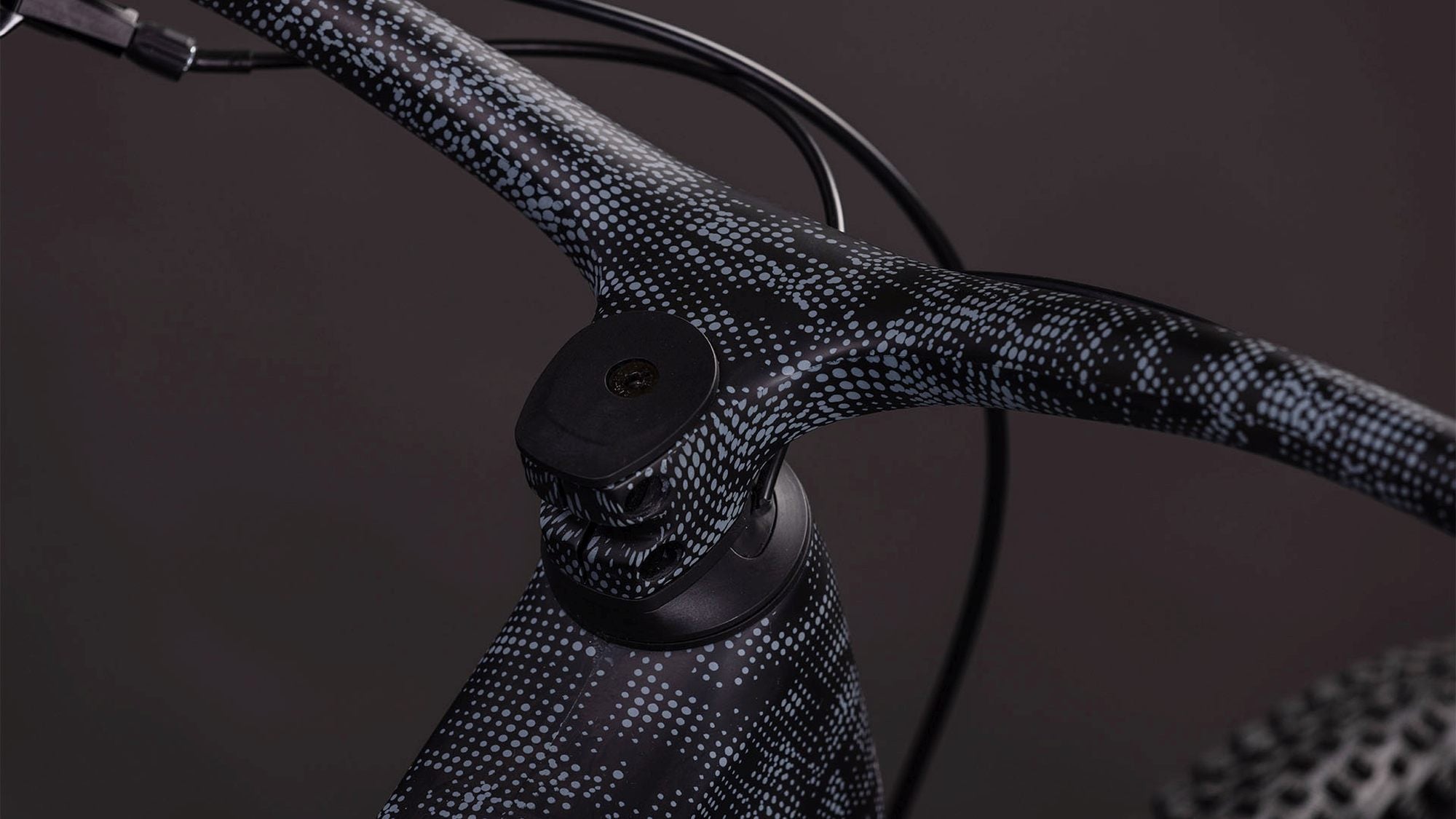

Integratedbar/stem CUBE Stereo Carbon Cockpit System
Grips ACID Disrupt, Soft Compound
Rear derailleur Shimano XTR Di2 RD-M9260-SGS, 12-Speed, Electronic Shifting System
Shifters Shimano XTR Di2 SW-M9250-I, Direct Attach
Brakes Shimano XTR BR-M9220, Hydr. Disc Brake (203/180)

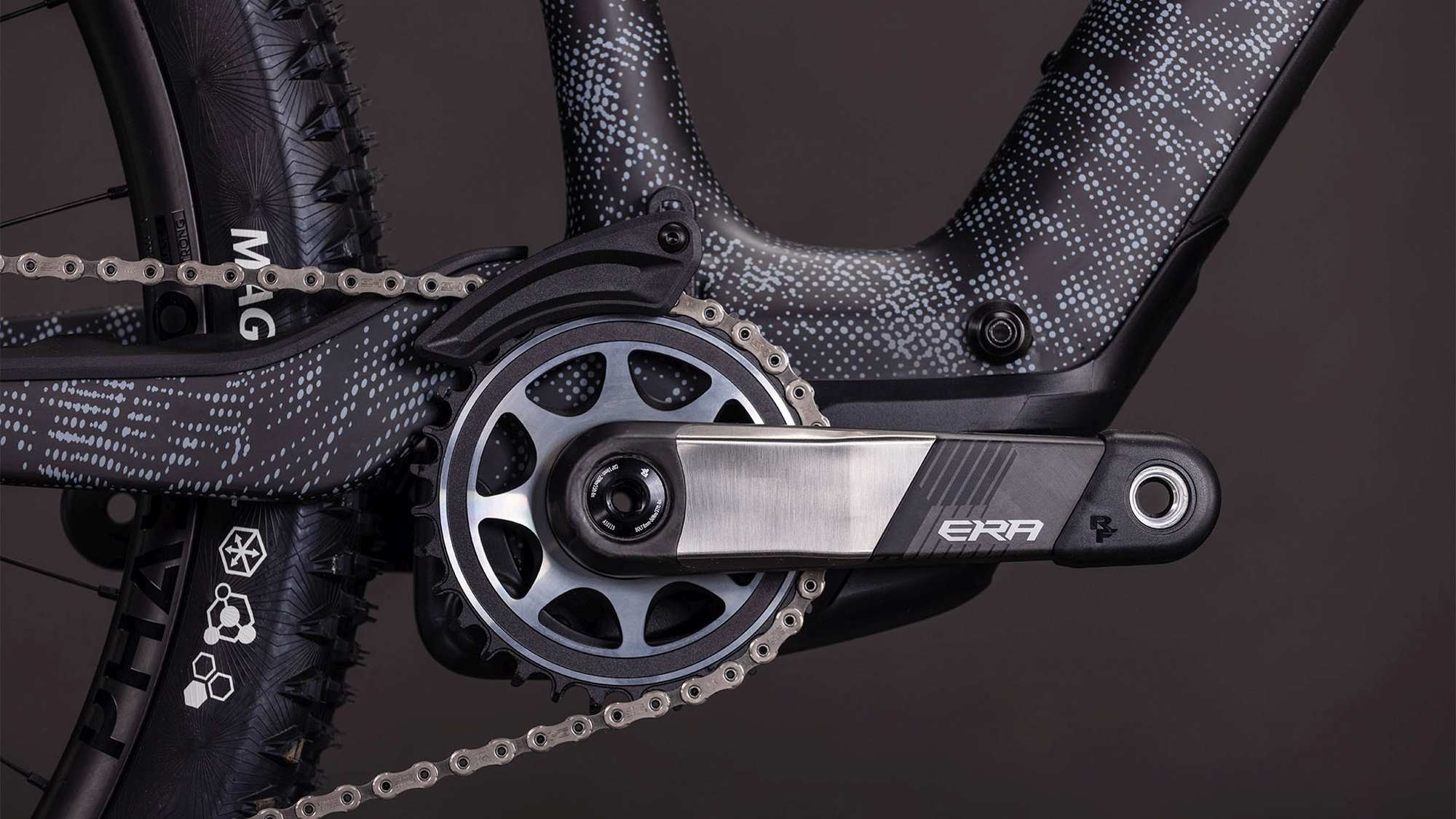

Crankset Race Face ERA E-MTB, 32T
Crankset chainring sizes 32T
Cassette Shimano XTR CS-M9200, 10-51T
Number of gears 12
Chain Shimano CN-M9100
Wheelset Newmen Phase 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires (Front & Rear) Conti Magnotal, Trail Soft, Tubeless Ready, 2.4
Pedals ACID PP MTB
Saddle ACID Venec EMTB Trail 140
Seatpost Fox Transfer Factory, 31.6mm, Kashima Coated
Seat post = dropper Yes/No YES
Engine Bosch Drive Unit Performance SX max. 60Nm (BDU31)
Battery Bosch CompactTube 400
Charger Bosch 4A

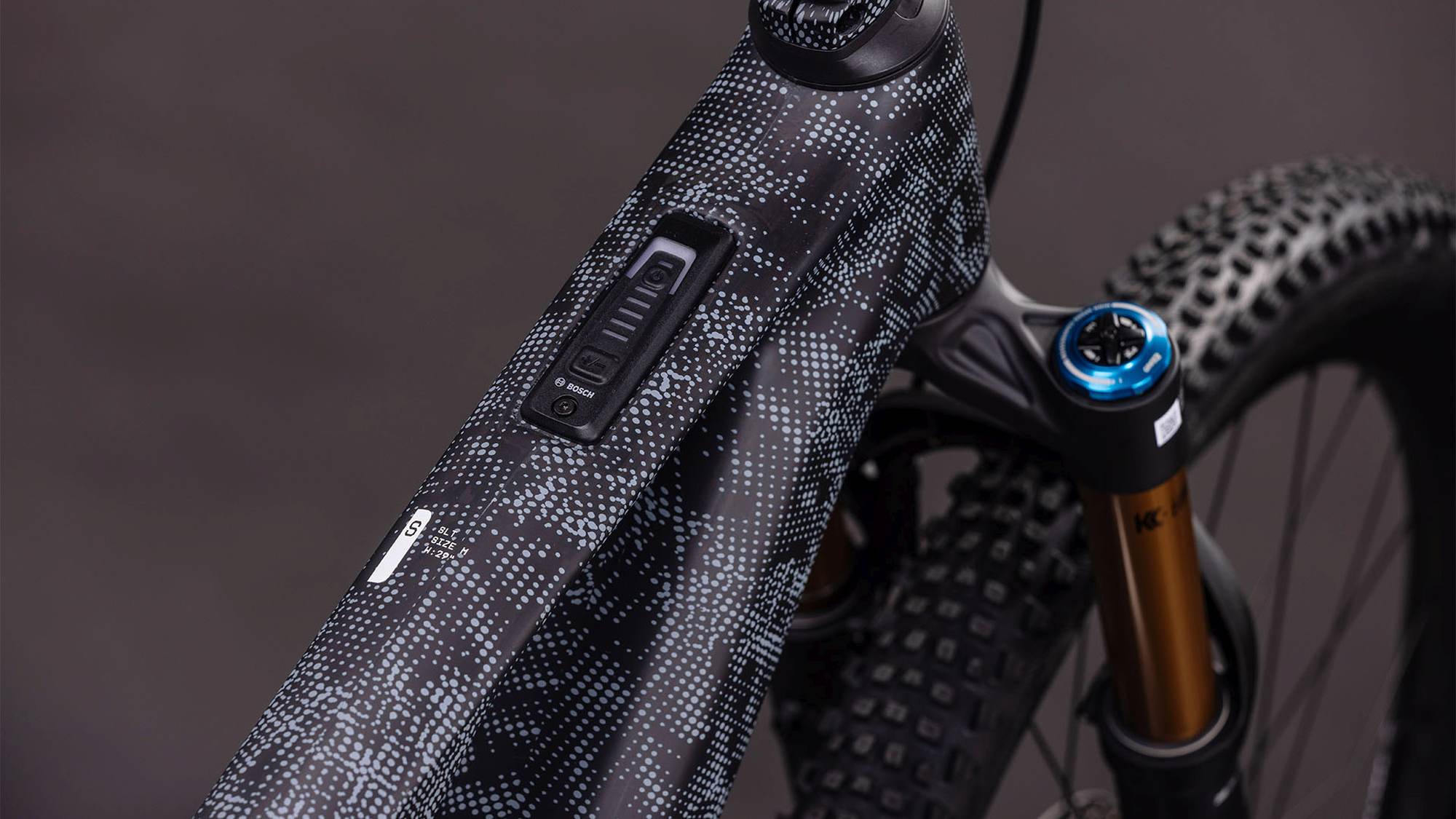

Remote Bosch System Control, incl. Mini Remote
Net weight (kg) 16.8
Gross weight (kg) 20.59
Max. system weight (kg) 135
Max. rider weight (kg) 110
Body size 1.78m - 1.89m
Accessories 92390,93490,93521
