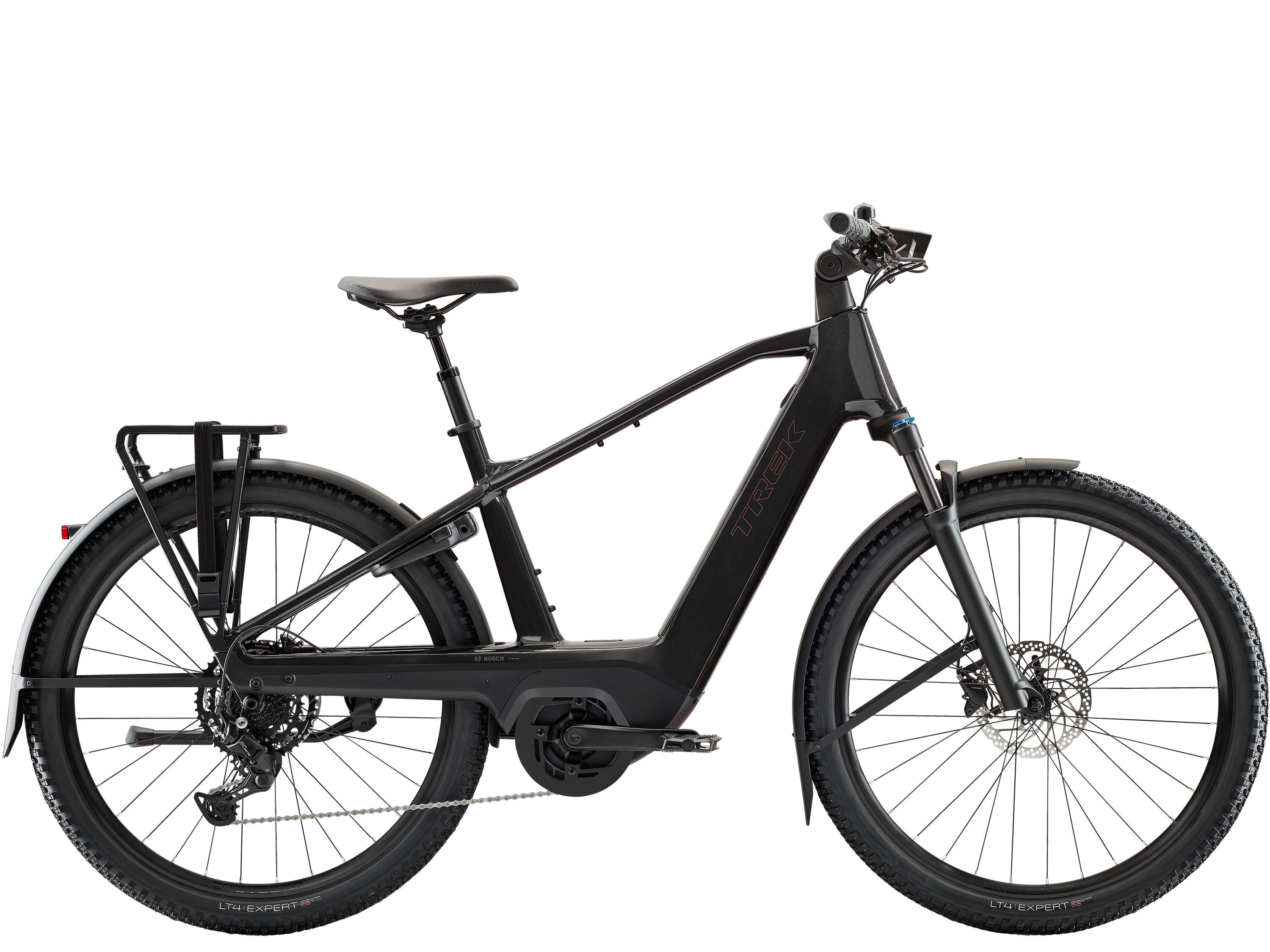

Charter+ 4 Trail 540 Wh
The Charter+ Trail 540 Wh is an adventure-ready city e-bike designed to give you a boost wherever you explore. It comes ready to ride off the beaten track with a 9-speed Shimano CUES drivetrain, 80 mm coil-sprung fork, off-road ready wheels and tyres, and flat handlebars with 5 mm of rise for control getting up and over potholes and kerbs. A Bosch Performance Line motor with 540 Wh battery gives you the power you need for commutes and weekend adventures.
Technology
Assembled in Germany - Explore the factory in Saxony, Germany, where every European Trek, Electra, and Diamant bike is built.
Specification
| Frame | Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR |
|---|---|
| Frame Material | ALUMINIUM |
| Rim Size | 27.5 |
| Fork | SR Suntour |
| Fork | SR Suntour XCR32, tapered steerer tube, coil spring, preload adjuster, lockout,100mm QR, 80mm travel |
| Tires | Bontrager Connection Elite, reflective strip, wire bead, 60 tpi, 27.5x2.40" |
| Hub Front | Shimano Tourney HB-QC300, centerlock |
| Hub Rear | Shimano TC500-HM |
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
| Shifter | Shimano |
| Shifters | Shimano U4000, 9 speed |
| Crank | ProWheel alloy, 170 mm length |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Brake | Shimano |
| Brakeset | Shimano MT200 hydraulic disc |
| Brake Rotor | Shimano EM300, CentreLock, 180 mm |
| Pedals | Bontrager City pedals |
| Saddle | Bontrager Commuter Comp |
| Seatpost | Alloy, suspension, 31.6 mm, 300 mm length |
| Handlebar | Bontrager alloy, 31.8mm, 5mm rise, 720 width |
| Stem | Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length |
| Grips | Trek Ergonomic Comp, lock-on |
| Fenders | Trek Charter alloy mudguard |
| Kickstand | Pletscher Comp Flex 40 |
| Battery | Bosch PowerTube 540 Wh Bosch PowerTube 540Wh |
| Controller | Bosch Purion 200 |
| Motor | Bosch Performance Line, 250W, 75Nm, 20mph |
| Size Chart Rider Height | Rider Height - 170.0 - 185.0 |
| Size Chart Rider Inseam | Inseam - 80.0 - 99.0 |
