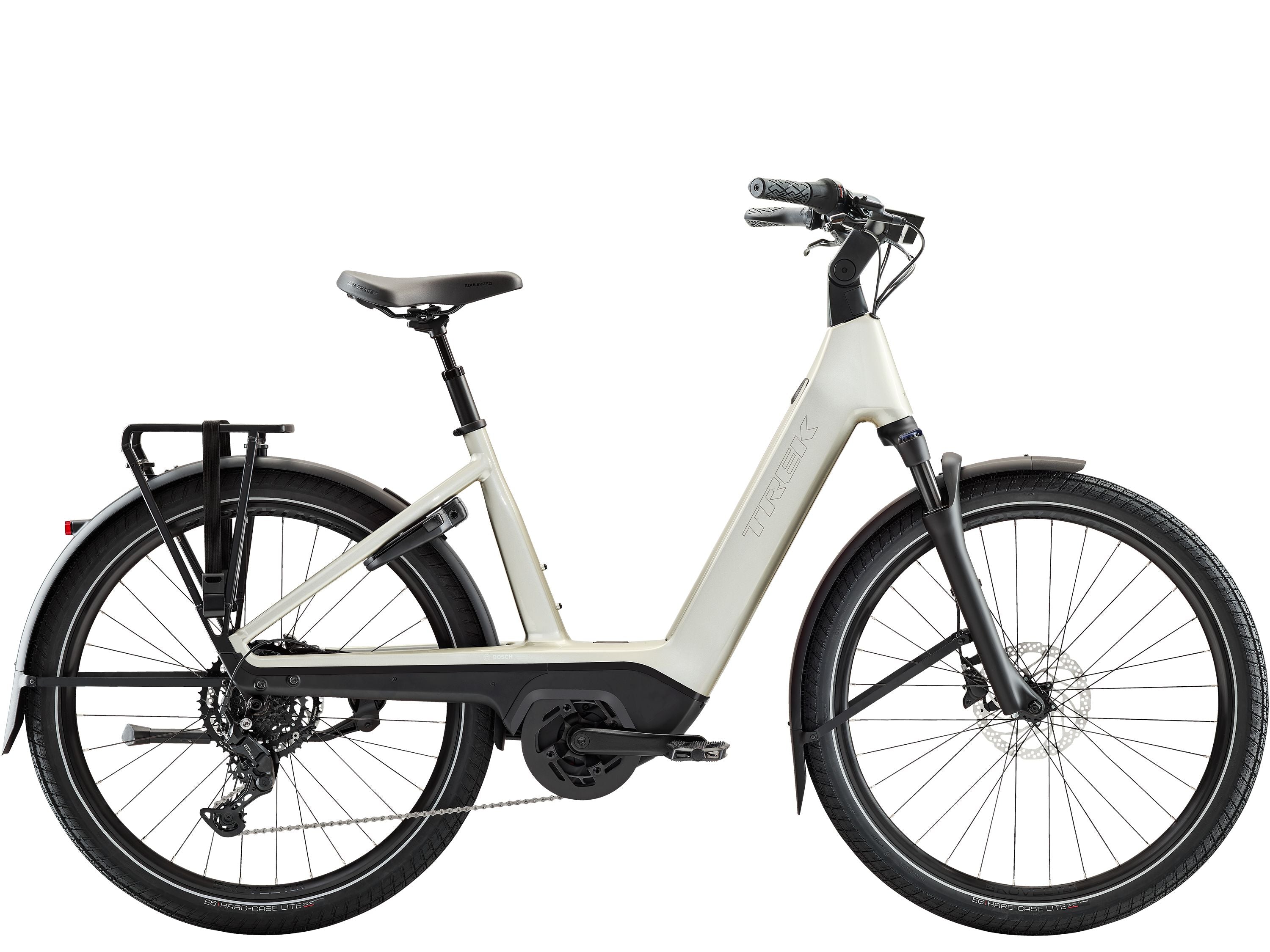

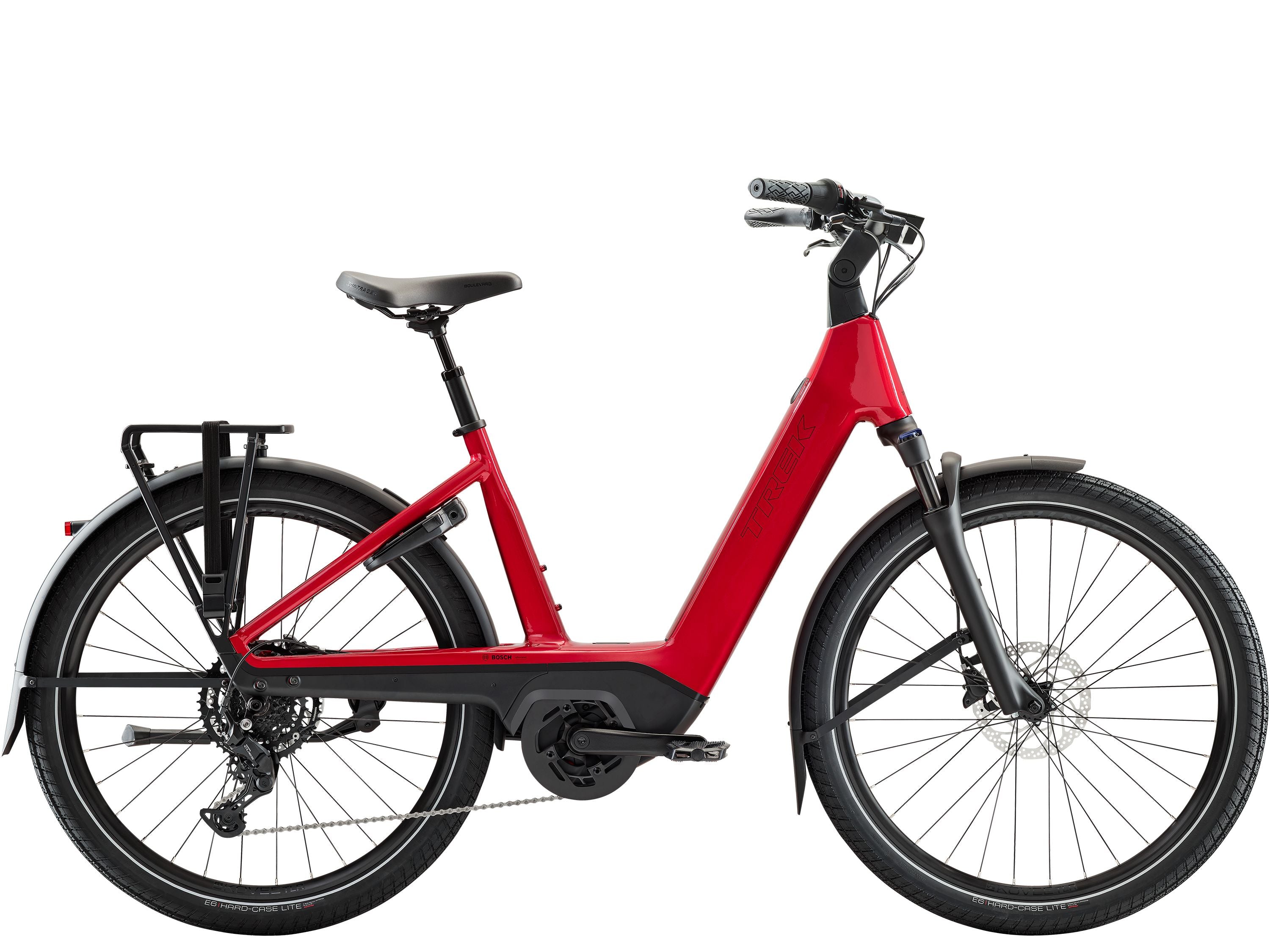

The Charter+ 4 800 Wh low-step is a city e-bike that's truly ready for anything. Its adjustable cockpit lets you customise the ride fit from an upright, comfort-first position to a more active pedal-efficient fit. It comes with a premium Alpha Platinum frame with confidence-boosting low-step geometry, a coil-sprung fork, 9-speed Shimano CUES shifting and a Bosch Performance Line motor with 800 Wh battery for your biggest adventures.

Technology

Assembled in Germany - Explore the factory in Saxony, Germany, where every European Trek, Electra, and Diamant bike is built.

Specification

Frame	Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR
Frame Material	ALUMINIUM
Rim Size	27.5
Fork	SR Suntour
Fork	SR Suntour SF25-NVX32, coil spring, preload adjuster, 5mm ThruSkew, 63mm travel
Tires	Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Hub Front	Shimano Tourney HB-QC300, centerlock
Hub Rear	Shimano TC500-HM
Rims	Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Shifter	Shimano
Shifters	Shimano U4000, 9 speed
Crank	ProWheel alloy, 170 mm length
Cassette	Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain	Shimano LG500, 9/10/11-speed
Brake	Shimano
Brakeset	Shimano MT200 hydraulic disc
Brake Rotor	Shimano EM300, CentreLock, 180 mm
Pedals	Bontrager City pedals
Saddle	Bontrager Boulevard
Seatpost	Alloy, suspension, 31.6 mm, 300 mm length
Handlebar	Alloy, 31.8 mm clamp, 25 mm rise, 630 mm width
Stem	Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length
Grips	Trek Ergonomic Comp, lock-on
Fenders	Trek Charter alloy mudguard
Kickstand	Pletscher Comp Flex 40
Battery	Bosch PowerTube 800Wh, smart system
Controller	Bosch Purion 200
Motor	Bosch Performance Line, 250W, 75Nm, 20mph
Size Chart Rider Height	Rider Height - 170.0 - 185.0
Size Chart Rider Inseam	Inseam - 80.0 - 99.0
